MotherboardsAsus
ASUS Pro WS X570-ACE
Quick Specs
ChipsetAMD X570
SocketAM4
MemoryDDR4
Form FactorATX
M.2 Slots3
Model: 11042
About this motherboards
Boost your tech experience with Pro WS X570-ACE: an advanced AMD AM4 X570 ATX Workstation motherboard designed for high-performance and reliability.
Technical Specifications23 specs
General
Model
Pro WS X570-ACE
Cpu
- AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors,* Due to CPU limitation, CPU cores supported varies by processors.,* Refer to
- www.asus.com
- for CPU support list
Chipset
AMD X570
Memory
- 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/ 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3400(O.C.)/3200/3000/2933/ 2800/2666/2400/2133 MHz Un-buffered Memory *,* The maximum memory capacity supported vary depending on the CPU you installed.,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to
- www.asus.com
Graphic
Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors,- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz,- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz,Multi-VGA output support : HDMI/DisplayPort ports
Multi Gpu Support
- 3rd and 2nd Gen AMD Ryzen™ Processors
- ,Supports NVIDIA® 2-Way SLI® Technology,Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
- 2nd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- ,2 x PCIe 4.0 x16 (x16 or dual x8),2 x PCIe 3.0 x16 (x16 or dual x8),1 x PCIe 3.0 x16 (x8 mode)
- AMD X570 chipset
- ,1 x PCIe 4.0 x16 (x8 mode),1 x PCIe 4.0 x1
Storage
- 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors :
- 3rd Gen AMD Ryzen™ Processors :
- ,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
- AMD X570 chipset :
- ,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support,1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage,4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10
Lan
Realtek® RTL8117,Intel® I211-AT,ASUS Turbo LAN Utility,ASUS LAN Guard
Audio
- Realtek® S1220A8-Channel High Definition Audio CODEC *,- Supports : Jack-detection, Front Panel Jack-retasking,- Front panel audio connector (AAFP)
- Audio Feature :
- ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,- EMI protection cover to prevent electrical noise to affect the amplifier quality,Separate layer for left and right track, ensuring both sound deliver equal quality,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Usb Ports
- 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors :
- ,3 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A, 1 at mid-board),5 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, Type-A, 1 x Type-C)
- AMD X570 chipset :
- ,4 x USB 2.0 port(s) (4 at mid-board)
Workstation Feature
ProCool Power Connector,ASUS Control Center (ACC)
Special Features
- 5-Way Optimization by Dual Intelligent Processors 5
- ,- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
- Fan Xpert4
- ,- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- ASUS 5X Protection III :
- - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection
- ASUS SafeSlot
- - Protect your graphics card Investment
- ASUS OptiMem：
- ,- Improved DDR4 Stability
- ASUS EPU :
- ,- EPU
- ASUS Exclusive Features
- :,- OptiMem,- AI Suite 3,- Ai Charger,- ESD Guards,- Turbo LAN,- Armoury Crate,- ASUS NODE : hardware control interface
- ASUS Quiet Thermal Solution
- :,- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink,- ASUS Fan Xpert 4
- ASUS EZ DIY :
- ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode
- ASUS Q-Design :
- ,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM

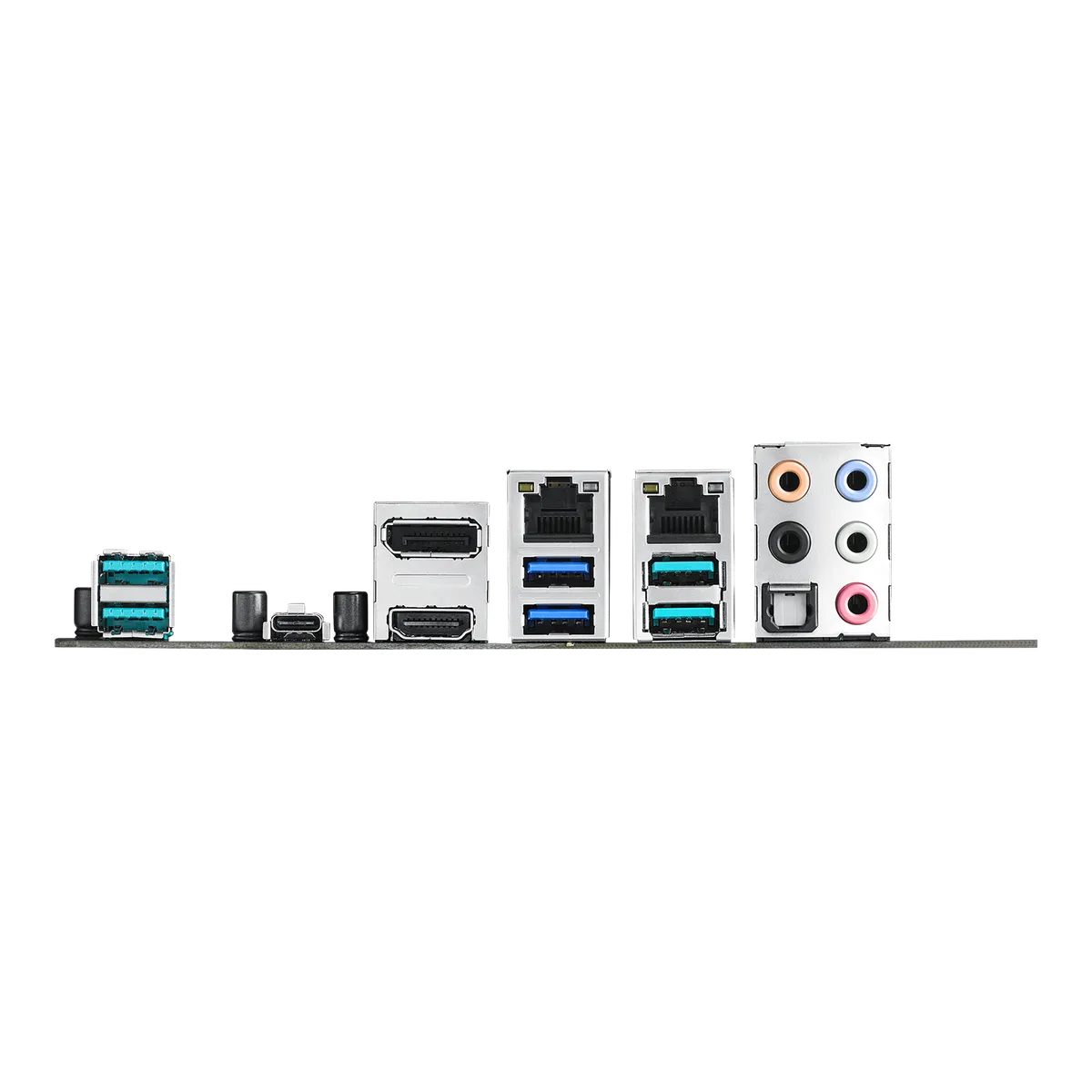

Back I O Ports
1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s),2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A,4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A),1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Internal I O
1 x PCH_FAN,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x M.2 Socket 3 with M Key, type 2242/2260/
2280 storage devices support (PCIE mode only),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),3 x Chassis Fan connector(s) (3 x 4-pin),1 x AIO_PUMP connector (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x U.2 Connector (support U.2 NVMe device),2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
4 x SATA 6Gb/s cable(s),1 x ASUS VGA Holder,User´s manual,I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD
Bios
256 Mb Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor,12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Physical Dimensions
Length Mm
304.8
Width Mm
243.8
Height Mm
774.7
