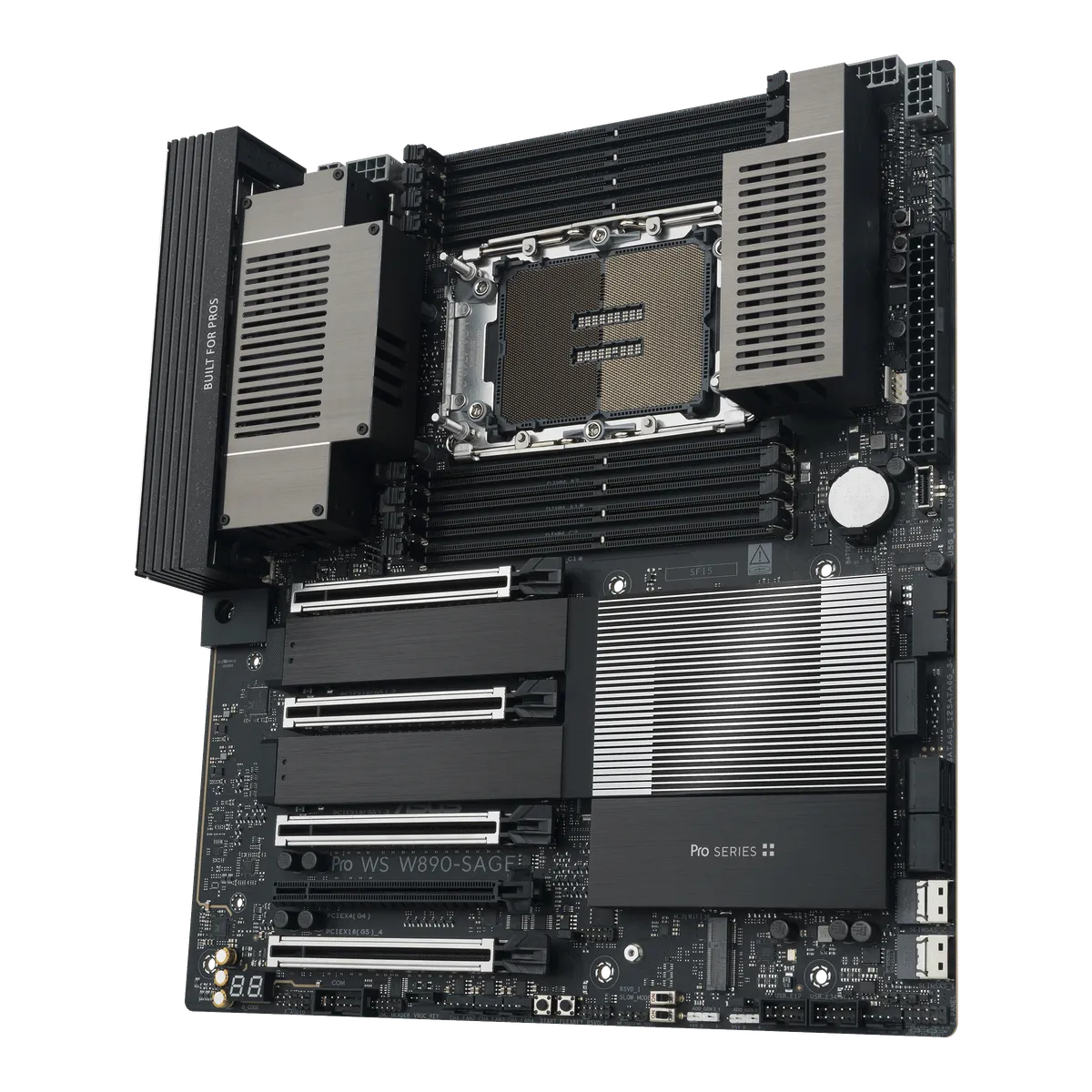

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or
visit https://www.asus.com/support/download-center/
. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Graphics
2 x USB 40Gbps (USB4
®
) ports support USB Type-C
®
display outputs
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Output at USB4
®
Type-C
®
40G USB 1 or USB4
®
Type-C
®
40G USB 2 ports, each requires a DisplayPort IN to DisplayPort
adapter cable.
For more information on display connection and video output configuration using the DisplayPort IN ports, please refer to
the user manual.
*** The display function of the Type-C
®
port depends on the resolution supported by your processor or graphics card.
For more details, please refer to the product manual.
Expansion Slots
Intel® Xeon
®
690/670/650/630 Series Processors
4 x PCIe 5.0 x16 slots (supports x16 mode)
Intel
®
W890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/
1037507/).
** CXL (Compute Express Link) is supported in PCIEX16(G5)_1, PCIEX16(G5)_2, PCIEX16(G5)_3, and PCIEX16(G5)_4
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/download-center/
for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports
Intel
®
Xeon
®
690/670/650/630 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel
®
W890 Chipset
SlimSAS_1 connector supports PCIe 4.0 x4 mode
SlimSAS_2 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an SFF-8654 adapter cable. The cable is
purchased separately.
4 x SATA 6Gb/s ports
* Supports Intel
®
Virtual RAID on CPU (Intel
®
VROC) and Intel Volume Management Device (Intel
®
VMD)
** Intel
®
VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/
5/10. VROC_HW_Key is purchased separately.
Ethernet
1 x Realtek 10Gb Ethernet
1 x Intel
®
2.5Gb Ethernet
ASUS LANGuard
Wireless Bluetooth
M.2 slot only (Key E, CNVi & PCIe)
* Wi-Fi module is sold separately.
Usb
Rear USB (Total 10 ports)
2 x USB4
®
(40Gbps) ports (2 x USB Type-C
®
)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C
®
)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C
®
power delivery output: max. 5V/3A
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I O Ports
2 x USB4
®
(40Gbps) ports (2 x USB Type-C
®
)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x Realtek 10Gb Ethernet
1 x Intel
®
2.5Gb Ethernet
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
2 x DP IN ports
Internal I O
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
5 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 4-pin VRM Fan header (with VRM fan onboard)
Power Related
1 x 24-pin Main Power connector
1 x 4-pin to 24-pin Main Power connectors
2 x 8-pin +12V CPU Power connector
2 x 8-pin PCIe to CPU power connectors
1 x 8-pin PCIe Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS connector
USB
1 x USB 20Gbps connector (supports USB Type-C
®
)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
