ASUS Pro WS W480-ACE
Quick Specs
ChipsetIntel® W480
MemoryDDR4
Form FactorATX
M.2 Slots3
Model: 14781
About this motherboards
Experience superior tech with Pro WS W480-ACE. Unmatched performance, expandable storage and exceptional connectivity for elevated daily interactions.
Technical Specifications26 specs
General
Model
Pro WS W480-ACE
Cpu
- Intel® Socket 1200for 10th Gen Intel
- ®
- Xeon
- ®
- Core
- ™
- , Pentium
- ®
- Gold and Celeron
- ®
- Processors *,Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**,**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel® 14nm CPU,* Refer to
- www.asus.com
- for CPU support list
Chipset
Intel® W480
Memory
-
Thunderbolt
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs,Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60Hz*,* VGA resolution support depends on VGA cards´ resolution.,Data transfer rate up to 40Gbps,Daisy-chain up to 12 Thunderbolt devices,Up to 5V/3A, 15W charging support
Graphic
- 1 x DisplayPort 1.4 **,**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to
- www.intel.com
- for any update.,1 x HDMI 1.4b,*Graphics specifications may vary between CPU types.,Integrated Graphics Processor
Multi Gpu Support
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
- Intel
- ®
- W480 Chipset
- ,2 x PCIe 3.0 x16 (x16 or dual x8)
- 1
- ,1 x PCIe 3.0 x16 (x4 mode)
- 2
- Intel® 10th Gen Processors
- ,2 x PCIe 3.0 x1
Storage
- Intel
- ®
- W480 Chipset :
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 3
- ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 4
- ,Intel® Rapid Storage Technology supports,6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready
Lan
Intel® I225-LM 2.5Gb Ethernet,Realtek® RTL8117
Audio
- Realtek® ALC S1220A8-Channel High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback,- High quality120dBSNR stereo playback outputandSNR recording input,- Audio Shielding,- Dedicated audio PCB layers,- Unique de-pop circuit,- Premium Japanese audio capacitors,- Audio Cover,* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
- Audio Feature :
- ,- Optical S/PDIF out port(s) at back panel
Usb Ports
- 2 x USB 3.2 Gen 2 port(s) (USB Type-C
- ®
- ),4 x USB 3.2 Gen 2 port(s)(4 x Type-A),1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C
- ®
- )
- Rear USB Port
- ( Total 6 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- Front USB Port
- ( Total 7 )
- Intel® Thunderbolt™ 3 Controller :
- ,4 x USB 2.0 port(s)
Operating System Support
Windows® 10 64-bit
Software Features
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- Performance And Power Saving Utility
- - TPU
- - EPU
- - Digi+ VRM
- - EZ update
- - Fan Xpert 4
- - Turbo app
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- AI Charger
- ASUS Turbo LAN
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- FlexKey
Asus Special Features
- ASUS 5X PROTECTION III
- - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- - ASUS Enhanced DRAM Overcurrent Protection
- - ASUS ESD Guards
- - ASUS LANGuard
- - ASUS Overvoltage Protection
- - ASUS SafeSlot Core+
- - ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- - ASUS Q-DIMM
- - ASUS Q-LED
- - ASUS Q-Shield
- - ASUS Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- ASUS EZ DIY
- - Procool II
- - SafeSlot
- Out-of-band Management
- - BIOS Update Indicator LED
- - LAN Initialization Indicator LED
Back I O Ports
- 4 x USB 3.2 Gen 2 Type-A,2 x USB 3.2 Gen 1 Type-A,1 x LAN (2.5G) port(s),2 x Thunderbolt 3 ports TypeC
- ™
- ,2 x DisplayPort IN ports for Thunderbolt™ 3,1 x HDMI,1 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s)
Internal I O
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C),1 x System panel(s) (Chassis intrusion header is inbuilt)x With flexkey function,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x 8-pin EATX 12V Power connectors,1 x Thermal sensor connector(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),3 x Chassis Fan connector(s),1 x AIO_PUMP connector,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),6 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x COM port header
Accessories

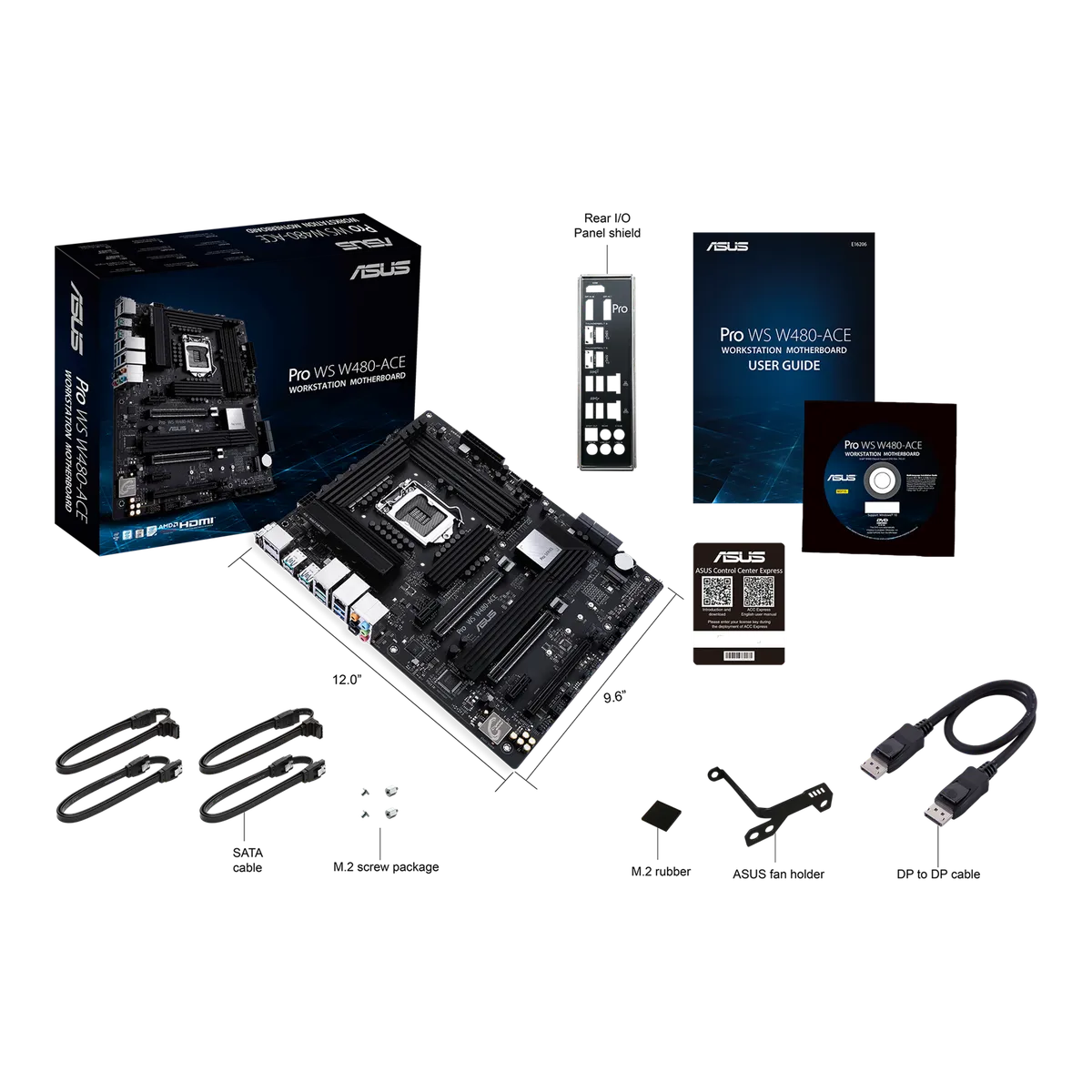

1 x ACC Express Activation Key Card,1 x 2-in-1 Rubber pad,User manual,1 x DisplayPort cable,1 x CPU Fan Holder,4 x SATA 6Gb/s cable(s),I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ),ATX Form Factor
Note
- *1 Support PCIe bifurcation for RAID on CPU function.
- *2 PCIe 3.0 x4 will be switched from Thunderbolt™ 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 3 will have no output.
- *3 When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
- *4 M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled.
- *5 Please refer to the user manual for more details about DisplayPort input and Type-C output settings
- *6 Intel® Xeon® W-1200 and non-K processors may not support some memory clocks including 3000, 3400, 4500, 4600 MHz
Physical Dimensions
Length Mm
304.8
Width Mm
233.7
Height Mm
774.7
