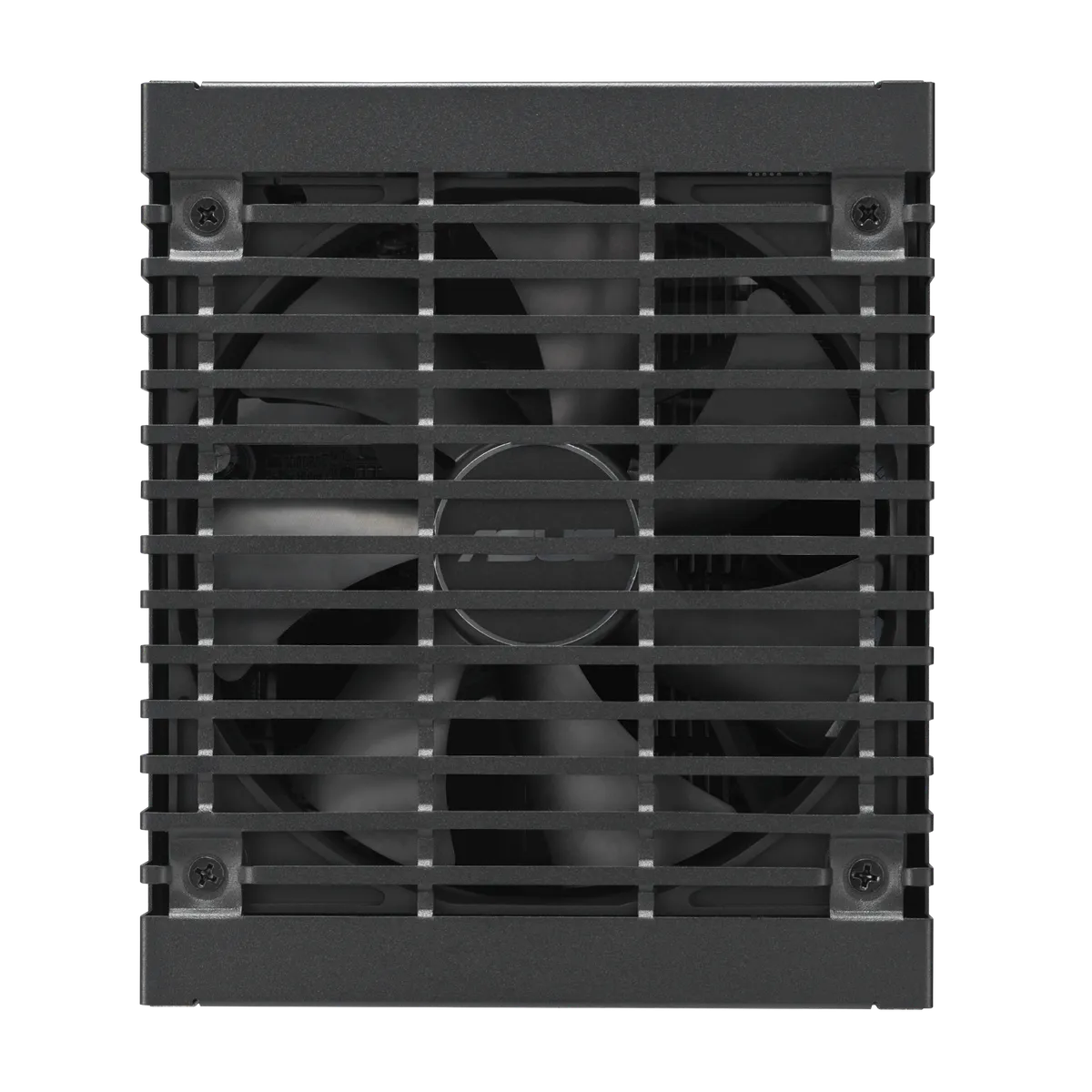

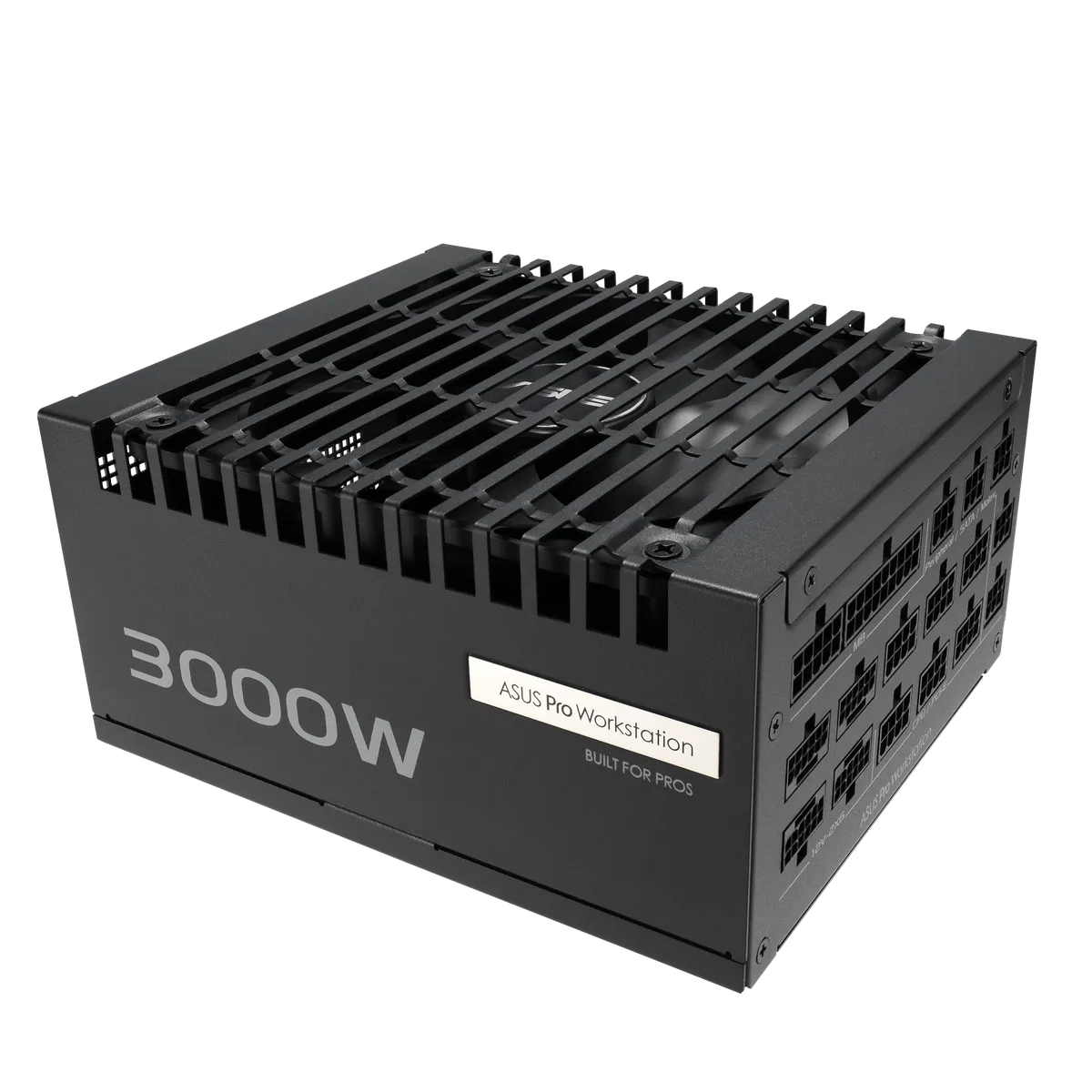

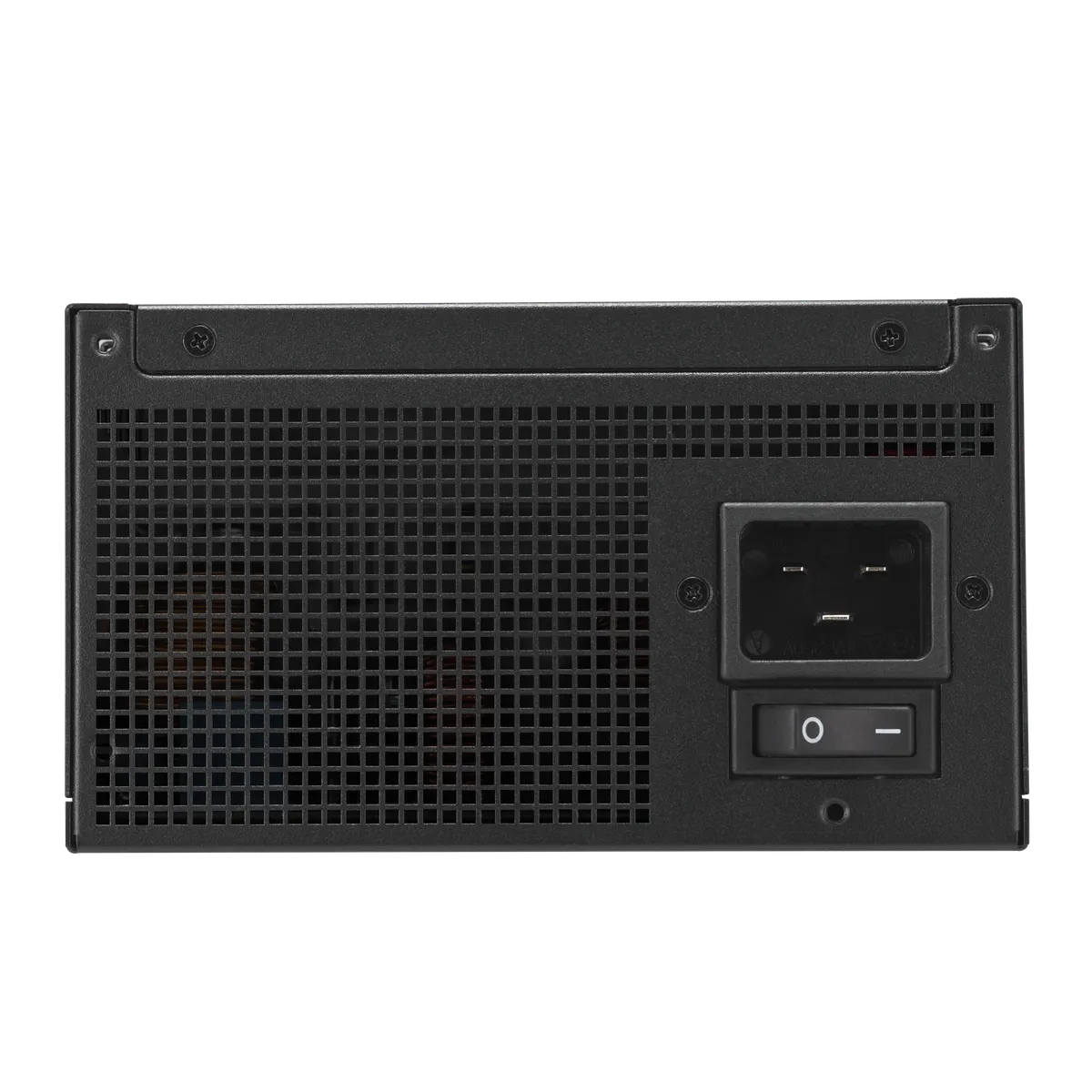

ASUS ASUS-PRO-WS-3000P
Power SuppliesAsus

ASUS ASUS-PRO-WS-3000P

Price TBC

Compatibility Data

Wattage (W)3000
Total Output (W)3000
Depth (mm)175
Form FactorATX12V
Atx StandardATX 3.1
Pcie ConnectorsMB 24/20-pin x 1 | CPU 4+4-pin x 2 | PCIE 5.1 16-pin x 4 | PCIE 6+2-pin x 4 | SATA x 12 | PERIPHERAL x 3
Model: 31086

Technical Specifications22 specs

General

Model
ASUS-PRO-WS-3000P
Intel Form Factor
ATX12V
Pfc Type
Active PFC
Atx Standard
ATX 3.1
Dimensions
175 x 150 x 86 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/ OTP
Hazardous Materials
ROHS
Ac Input Range
220-240Vac
Dc Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 250A 0.8A 3A
Combined Load
130W 130W 3000W 9.6W 15W
Total Output
3000W
Cable Connectors
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCIE 5.1 16-pin x 4
  • PCIE 6+2-pin x 4
  • SATA x 12
  • PERIPHERAL x 3
Package Contents
  • Power Cord x 1
  • Motherboard Power Cable x 1 (610mm)
  • CPU Cable x 2 (1000mm)
  • PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
  • PCI-E 1-to-1 Cable x 4 (750mm)
  • SATA 1-to-3 Cable x 4 (400+120+120mm)
  • Peripheral 1-to-3 Cable x 1 (400+150+150mm)
  • Chassis Screws Package x 1
  • Cable Tie x 6
  • User Manual x 1
Weight
2.16 kg (single PSU)
Cybenetics Noise Level Certification
NA
0db Technology
No

Physical Dimensions

Length Mm
175
Width Mm
150
Height Mm
86
Weight G
2160
