About this power supplies

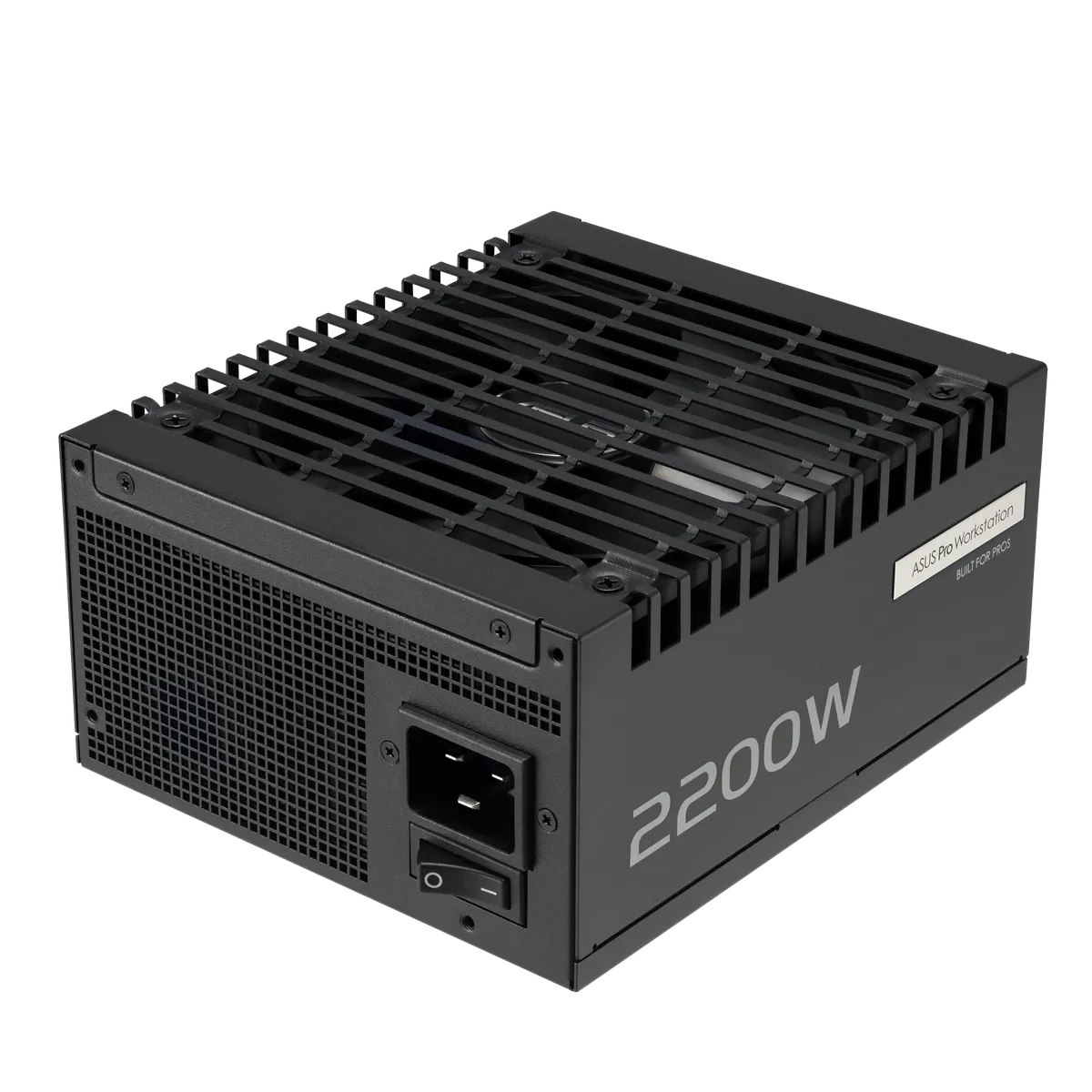

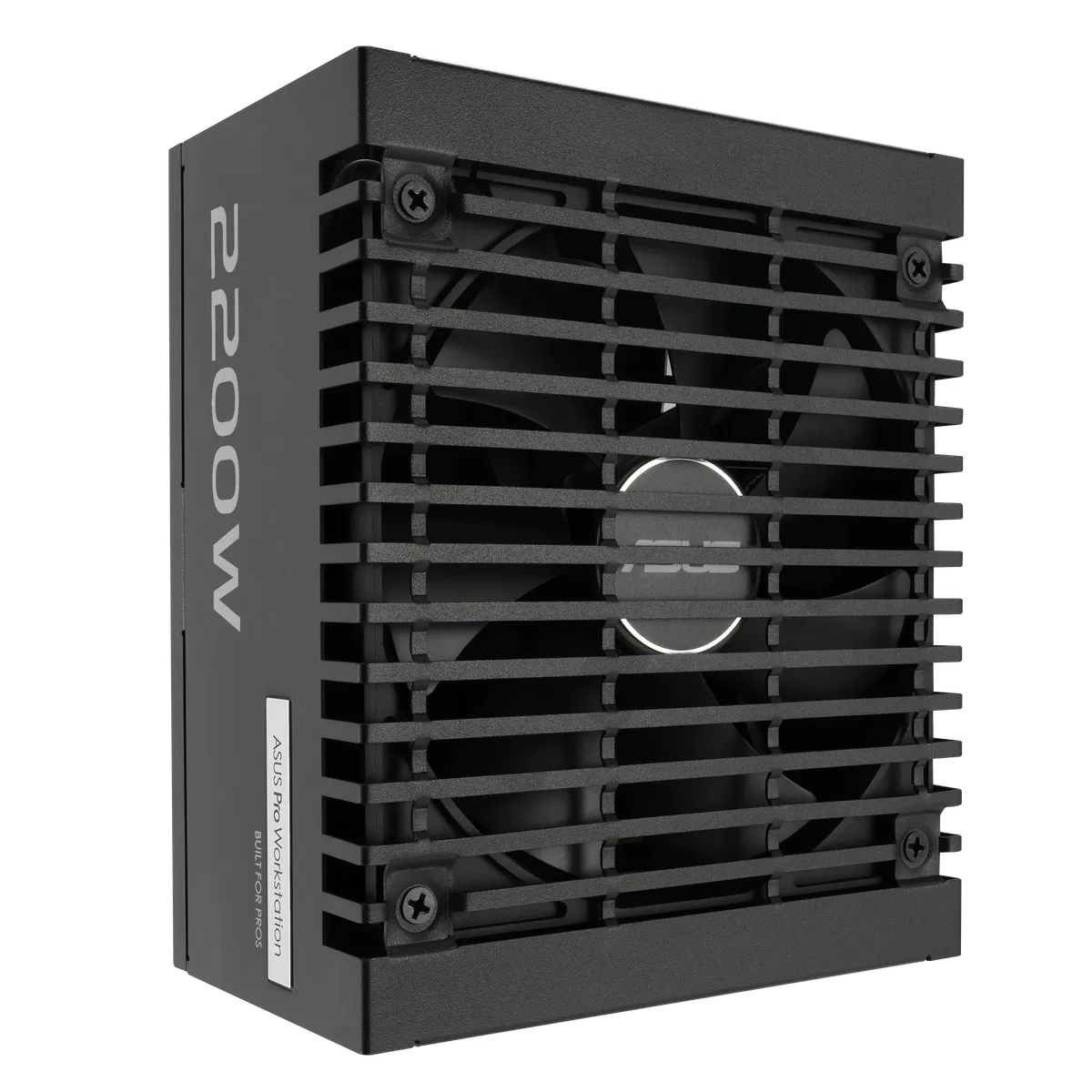

ASUS Pro WS 2200W Platinum PSU delivers exceptional voltage stability and power delivery for professionals, supports up to 4 GPUs to meet demanding AI workloads
Technical Specifications22 specs
General
Model
ASUS-PRO-WS-2200P
Intel Form Factor
ATX12V
Pfc Type
Active PFC
Atx Standard
ATX 3.1
Dimensions
175 x 150 x 86 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/
OTP
Hazardous Materials
ROHS
Ac Input Range
200-240Vac
Dc Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 183.3A 0.8A 3A
Combined Load
130W 130W 2200W 9.6W 15W
Total Output
2200W
Cable Connectors
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCIE 5.1 16-pin x 4
- PCIE 6+2-pin x 4
- SATA x 12
- PERIPHERAL x 3
Package Contents
- Power Cord x 1
- Motherboard Power Cable x 1 (610mm)
- CPU Cable x 2 (1000mm)
- PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
- PCI-E 1-to-1 Cable x 4 (750mm)
- SATA 1-to-3 Cable x 4 (400+120+120mm)
- Peripheral 1-to-3 Cable x 1 (400+150+150mm)
- Chassis Screws Package x 1
- Cable Tie x 6
- User Manual x 1
Weight
2.13 kg (single PSU)
Cybenetics Noise Level Certification
NA
0db Technology
No
Physical Dimensions
Length Mm
175
Width Mm
150
Height Mm
86
Weight G
2130
