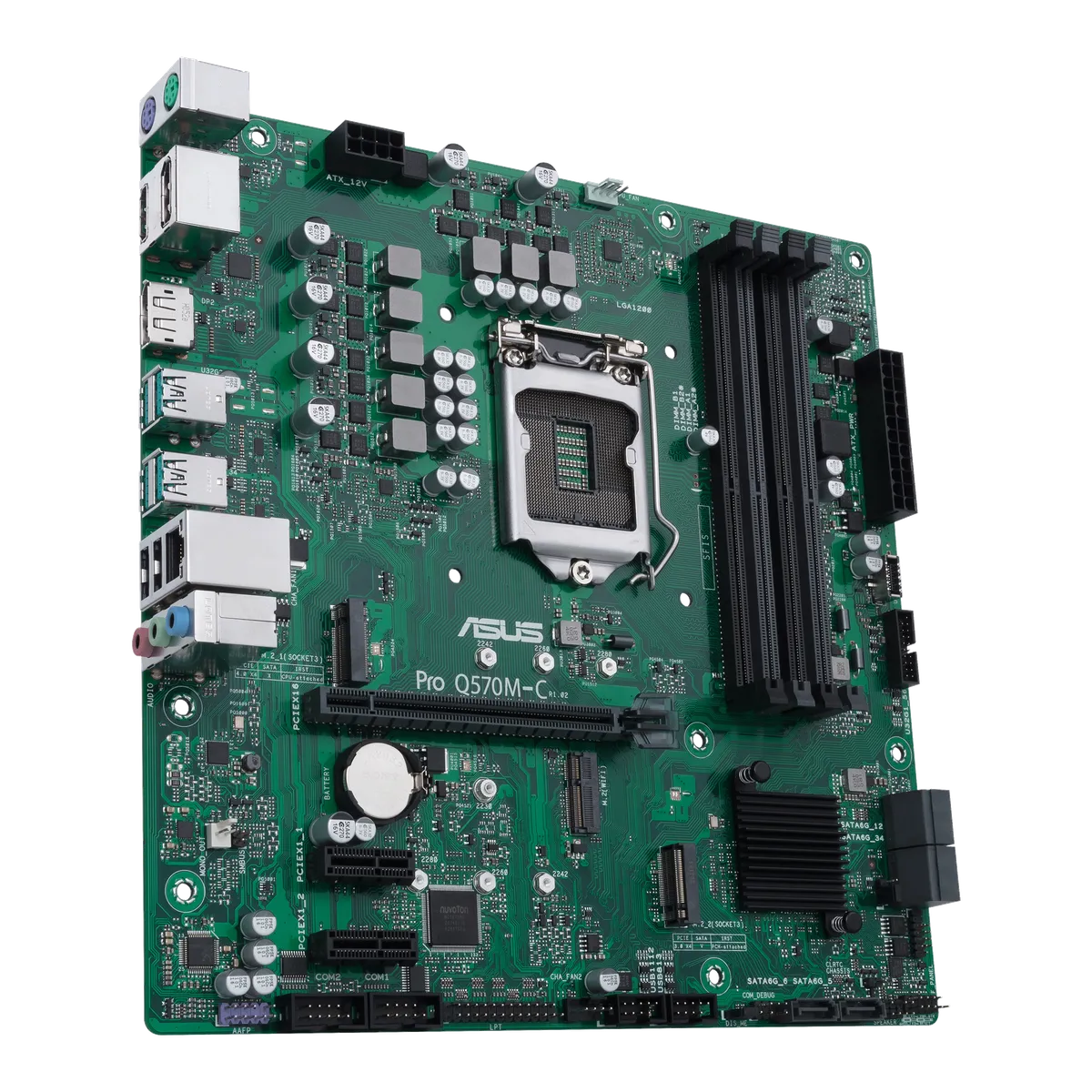

ASUS Pro Q570M-C/CSM
Quick Specs
SocketLGA 1200
MemoryDDR4
M.2 Slots3
Model: 15618
About this motherboards
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization.
Technical Specifications16 specs
General
Model
Pro Q570M-C/CSM
Cpu
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel
- ®
- 14 nm CPU
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Memory
- Memory Channels:4DDR4 (Dual channel), Max Memory Size:128GB
- 4 x DIMM, Max. 128GB, DDR4 3200(OC)/2933/2800/2666/2400/ 2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel
- ®
- Extreme Memory Profile (XMP)
- Optimem
- * 10th Gen Intel
- ®
- Core™ i7/i9 processors support 2933/2800/2666/2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
- * 11th Gen Intel
- ®
- processors support 2933/2800/2666/2400/2133 natively.
Graphics
- * Graphics specifications may vary between CPU types.
- ** Intel
- ®
- 11
- th
- & 10
- th
- processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
- *** Only Intel
- ®
- 11
- th
- processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
- Intel® 11th & 10th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- - Intel® 11th processors support PCIe 4.0 x16 mode
- - Intel® 10th processors support PCIe 3.0 x16 mode
- Intel® Q570 Chipset
- 2 x PCIe 3.0 x1 slots
Storage
- Intel® 11th & 10th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280
- - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
- Intel® Q570 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)
- 6 x SATA 6Gb/s ports
- * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
- RAID function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
- To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
Usb
- 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Audio
- Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 2x USB 2.0 ports (2 x Type-A)
- 2 x DisplayPort
- 1 x HDMITM
- 3 x Audio jacks
- 1 x Intel® I219-LM 1Gb Ethernet
- 1 x PS/2 keyboard (purple) port
- 1 x PS/2 mouse (green) port
Internal I O
- Fan and cooling related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x Clear CMOS header
- 1 x Chassis Intrude header
- 2 x COM Port headers
- 1 x Front Panel Audio header (AAFP)
- 1 x COM debug header
- 1 x DIS ME jumper
- 1 x LPT header
- 1 x Mono-out header(with Amp IC)
- 1 x M.2 slot (Key E)
- 1 x SMBUS header
- 1 x Speaker header
- 1 x 10-1 System Panel header
Special Features
- ASUS EZ DIY
- - Box Headers
- Bespoke Motherboard Design & Business Focused Features
- - ASUS Self Recovering BIOS
- - ASUS Event Log
- - ASUS Commercial BIOS kit
- - Anti-Moisture
- - 24/7 Reliability
- - Overcurrent Protection
- TPM 2.0 IC onboard
Software Features
- ASUS Exclusive Software
- IT Management software supported
- - ASUS Control Center Express(ACCE)
Bios
128+64 Mb Flash ROM
Manageability
WOL by PME, PXE

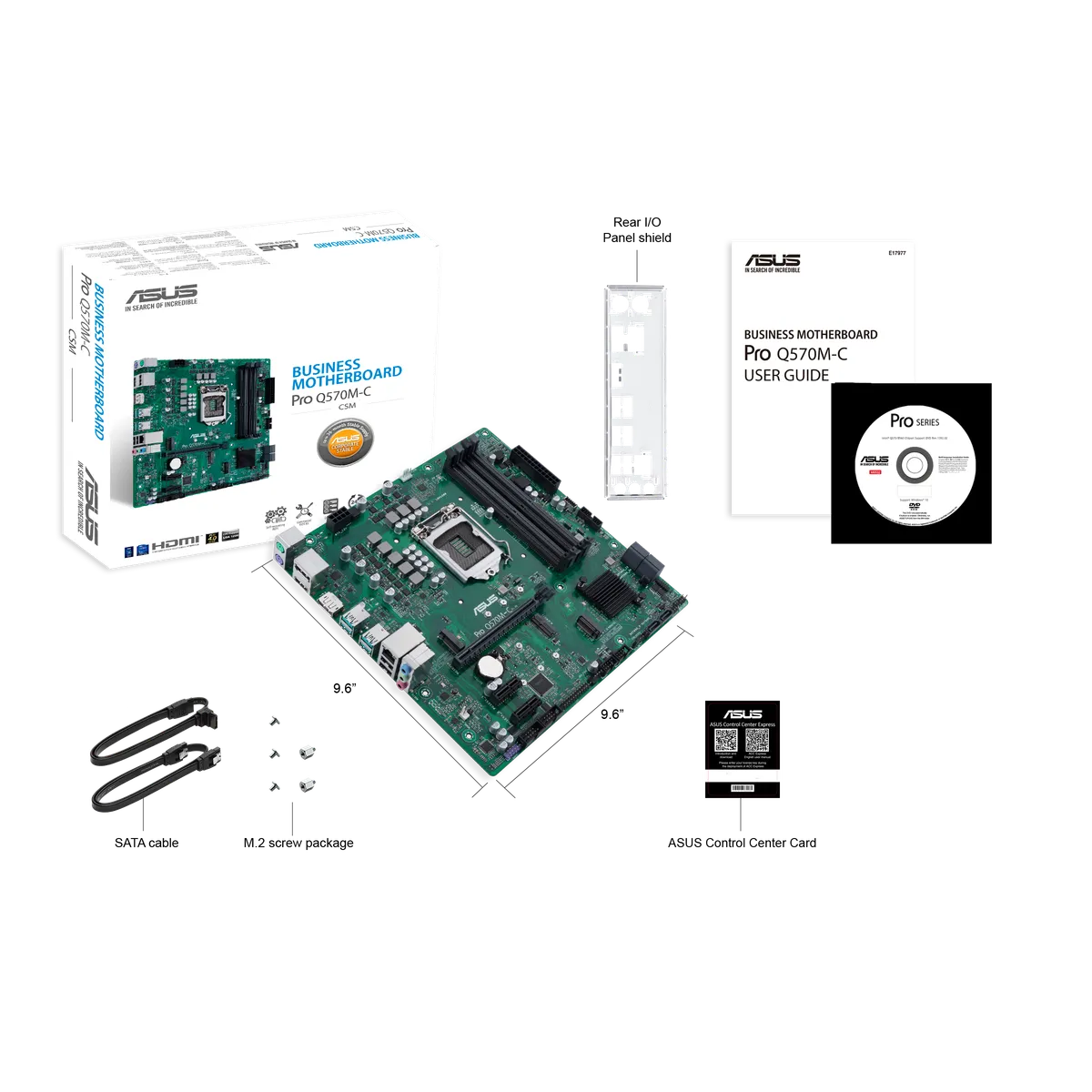

Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- 1 x M.2 Key E screw package
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x ACC Express Activation Key Card
- 1 x User manual
Operating System
Windows 10 64bit
