ASUS Pro H810T-CSM
Quick Specs
ChipsetIntel | ® | H810 Chipset
SocketLGA 1851
MemoryDDR5
Form FactorMini-ITX
M.2 Slots2
Model: 32214
About this motherboards
ASUS Pro H810T-CSM: Elevate your IT operations with top-tier security, ultrafast PCIe 5.0, and ASUS Control Center for seamless management.
Technical Specifications24 specs
General
Model
Pro H810T-CSM
News Updates
- Please see the updated OS support requirements for the Intel
- ®
- Core Ultra 200S series below:
- •Intel
- ®
- Core Ultra 200S Series:
- Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
- •Intel
- ®
- Core Ultra 200S Plus Series:
- Windows 11 (version 25H2 and later) for full compatibility.
- Please visit our
- GLOBAL website
- to check and download the latest updates.
Cpu
- Supports Intel
- ®
- Core™ Ultra Processors (Series 2) , LGA1851
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- *CPU only support up to 65W
- *** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- H810 Chipset
Memory
- 2 x SO-DIMM slots, max. 128GB, DDR5
- Support up to 6400+MT/s, Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x LVDS connector
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
Storage
- Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
- Intel
- ®
- Core™ Ultra Processors (Series 2)
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- Intel
- ®
- H810 Chipset
- 2 x SATA 6Gb/s ports
Ethernet
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard
Wireless Bluetooth
- M.2 slot only (Key E, CNVi & PCIe)
- * Wi-Fi module is sold separately.
Usb
- Rear USB (Total 4 ports)
- 2 x USB 10Gbps ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 20Gbps connector (supports USB Type-C
- ®
- )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- * USB Type-C
- ®
- power delivery output: max. 5V/3A
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

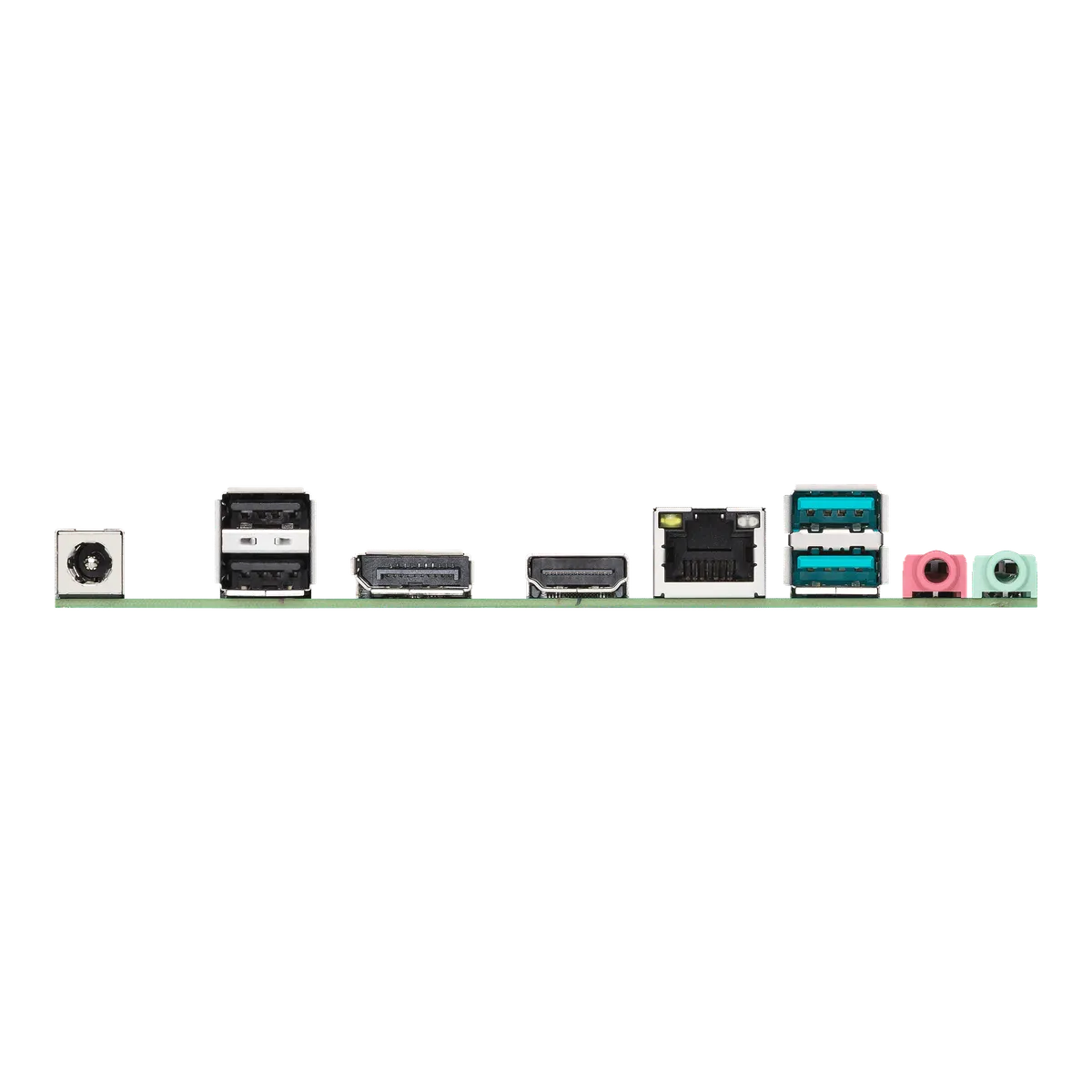

Back Panel I O Ports
- 2 x USB 10Gbps ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 2 x Audio jacks
- 1 x DC power connector (supports 19V)
Internal I O
- I/O ConnectorsFan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power Related
- 1 x 2-pin +19V Power connector
- 1 x SATA power connector
- Storage Related
- 1 x M.2 slot (Key M)
- 2 x SATA 6Gb/s ports
- USB
- 1 x USB 20Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- AIO System Related
- 1 x Stereo Speaker header
- 1 x DMIC header
- Flat Panel Display Related
- 1 x Backlight Inverter Voltage Selection header
- 1 x FPD Brightness header
- 1 x Panel Voltage Selection header
- 1 x Panel Off header
- Miscellaneous
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x COM Debug header
- 1 x LVDS connector
- 1 x M.2 slot (Key E)
- 1 x Speaker header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin Front Panel System header
Special Features
- ASUS Q-Design
- - Q-LED Core
- ASUS Thermal Solution
- - Aluminum heatsink design
- ASUS EZ DIY
- - Box headers
- Bespoke Motherboard Design & Business Focused Features
- - ASUS Self-Recovering BIOS
- - ASUS Event Log
- - ASUS Commercial BIOS Kit
- - BIOS EZ Deploy
- - Anti-moisture coating
- - 24/7 reliability
- - Overcurrent protection
- - G-sensor
- TXT support
- * Please contact local FAE for Commercial BIOS kit.
Software Features
- ASUS Exclusive Software
- ASUS DriverHub
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash
- - ASUS MyHotkey
Remote Management Features
- IT Management software supported
- - ASUS Control Center Express(ACCE)
Bios
128 +128Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- 1 x SATA power cable
- Miscellaneous
- 2 x I/O shields
- Documentation
- 1 x ACC Express activation key card
- 1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor
- Thin Mini-ITX Form Factor
- 6.7”x 6.7” (17.0cm x 17.0cm)
Physical Dimensions
Length Mm
67
Width Mm
67
Height Mm
170
