MotherboardsAsus
ASUS Pro H810M-C-CSM
MPN: 30899
Key specifications
SocketLGA 1851
Form factormATX
ChipsetIntel | ® | H810 Chipset
Memory typeDDR5
M.2 slots3
Max MemoryUnknown
Full Specifications24 fields
General
Model
Pro H810M-C-CSM
News Updates
- Please see the updated OS support requirements for the Intel
- ®
- Core Ultra 200S series below:
- •Intel
- ®
- Core Ultra 200S Series:
- Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
- •Intel
- ®
- Core Ultra 200S Plus Series:
- Windows 11 (version 25H2 and later) for full compatibility.
- Please visit our
- GLOBAL website
- to check and download the latest updates.
Cpu
- Supports Intel
- ®
- Core
- ™
- Ultra Processors (Series 2), LGA1851
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- * Refer to
- https://www.asus.com/support/download-center/
- for CPU support list.
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- H810 Chipset
Memory
- 2 x DIMM slots, max. 128GB, DDR5
- Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
- Dual channel memory architecture
- DIMM Fit
- Supports Intel
- ®
- Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile II (AEMP II)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
- https://www.asus.com/support/download-center/
- . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
- 1 x DisplayPort
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI
- ™
- port
- * Graphics specifications may vary between CPU types. Please refer to
- www.intel.com
- for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- **** Supports up to 3 displays simultaneously.
Expansion Slots
- Intel
- ®
- Core
- ™
- Ultra Processors (Series 2)
- 1 x PCIe 5.0 x16 slot
- Intel
- ®
- H810 Chipset
- 2 x PCIe 4.0 x1 slots
- - To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/download-center/
- for the list of supported peripherals.
Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel
- ®
- H810 Chipset
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6Gb/s ports
Ethernet
- 1 x Intel
- ®
- 1Gb Ethernet port
- ASUS LANGuard
- * With Intel
- ®
- I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Usb
- Rear USB (Total 6 ports)
- 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C
- ®
- )
- 2 x USB 5Gbps ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- * USB Type-C
- ®
- power delivery output: max. 5V/3A
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C
- ®
- )
- 2 x USB 5Gbps ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI
- ™
- port
- 1 x Intel
- ®
- 1Gb Ethernet port
- 3 x Audio jacks
- 1 x COM port
- 1 x PS/2 keyboard/mouse combo port
Internal I O
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
- Storage Related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x COM Debug header
- 1 x LPT header
- 1 x Mono-Out Audio header (with Amp IC)
- 1 x SMBUS header
- 1 x Speaker header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin Front Panel System header
Special Features
- ASUS Q-Design
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- ASUS EZ DIY
- - Box headers
- - Dual DIMM clips
- - SafeSlot
- Bespoke Motherboard Design & Business Focused Features
- - ASUS Self-Recovering BIOS
- - ASUS Event Log
- - ASUS Commercial BIOS Kit
- - Anti-moisture coating
- - 24/7 reliability
- - Overcurrent protection
- * Please contact local FAE for Commercial BIOS kit.
Software Features
- ASUS Exclusive Software
- ASUS DriverHub
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash
- - ASUS MyHotkey
Remote Management Features
- IT Management software supported
- - ASUS Control Center Express (ACCE)
- Ready for ASUS DASH LAN Card
- 1 x SMBUS header
- * ASUS DASH LAN Card is sold separately.
Bios
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

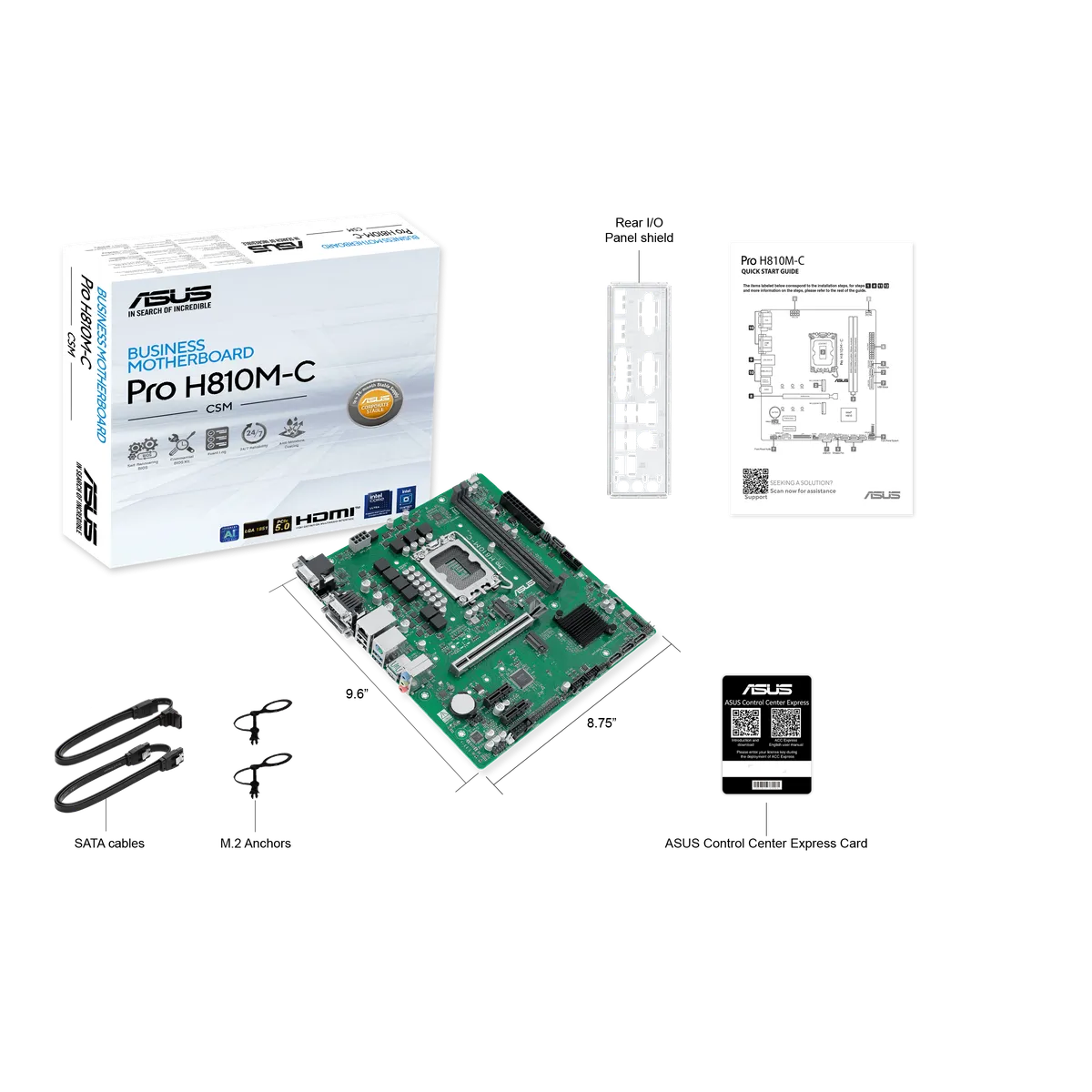

Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O shield
- 1 x M.2 anchor package
- Documentation
- 1 x ACC Express activation key card
- 1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
- micro-ATX Form Factor
- 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Physical Dimensions
Length Mm
243.8
Width Mm
222.2
Height Mm
619.8
