MotherboardsAsus

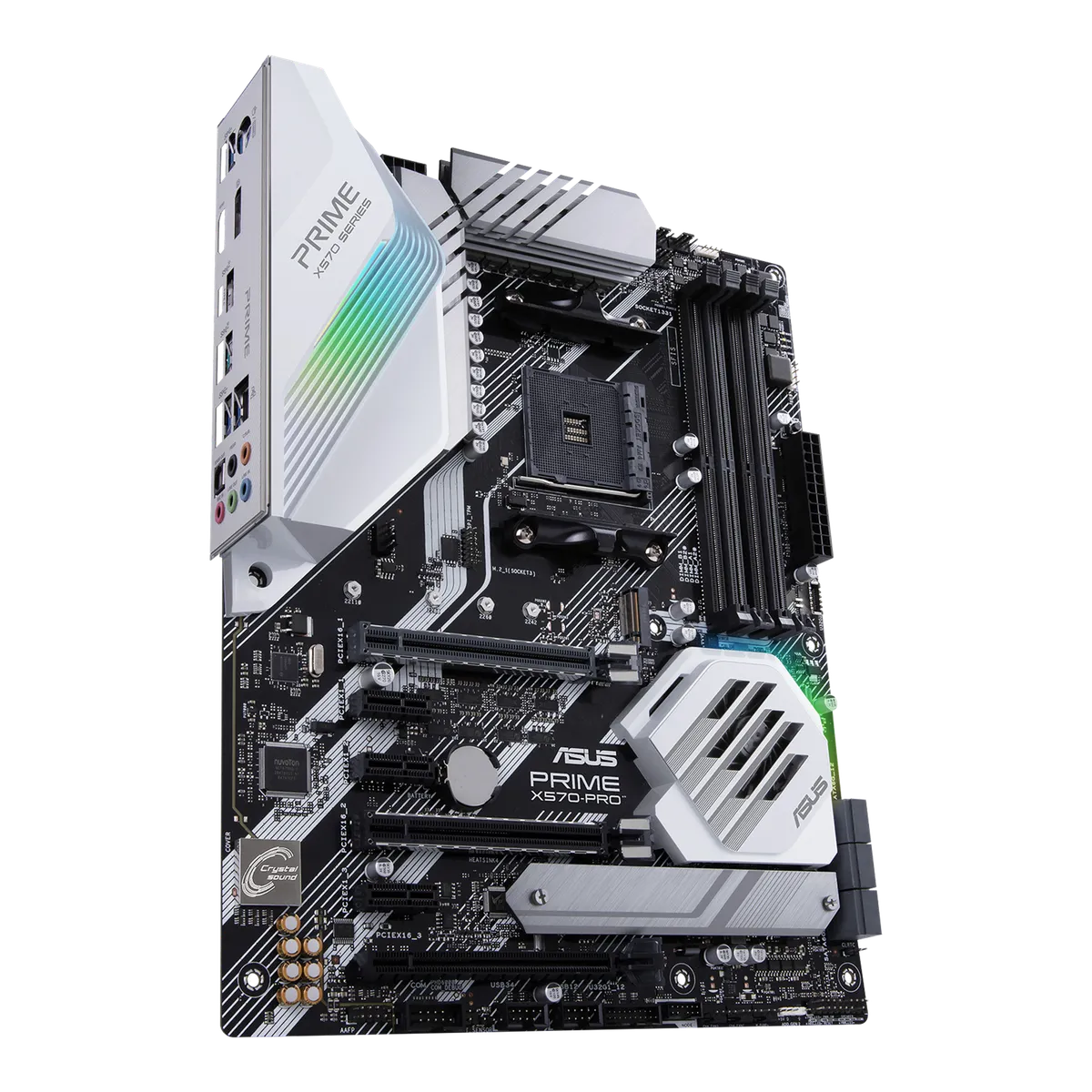

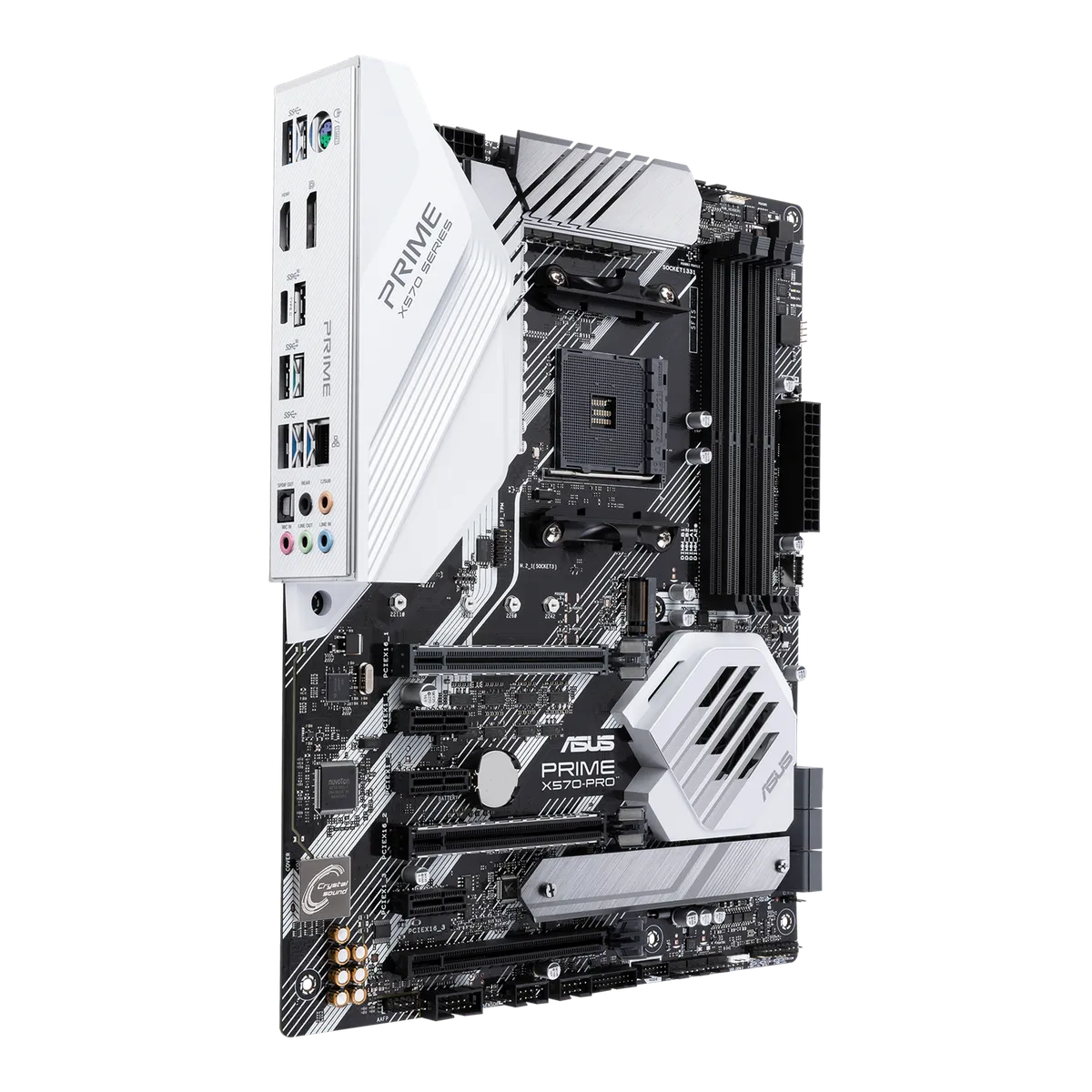

ASUS PRIME X570-PRO
Quick Specs
ChipsetAMD X570
SocketAM4
MemoryDDR4
Form FactorATX
M.2 Slots3
Model: 10953
About this motherboards
Experience next-level computing with the PRIME X570-PRO, offering state-of-the-art Ryzen processor support, lightning-fast connectivity, and superior cooling for optimal performance.
Technical Specifications21 specs
General
Model
PRIME X570-PRO
Cpu
- AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors,* Due to CPU limitation, CPU cores supported varies by processors.,* Refer to
- www.asus.com
- for CPU support list
Chipset
AMD X570
Memory
- 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/ 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/ 2800/2666/2400/2133 MHz Un-buffered Memory,* The maximum memory capacity supported vary depending on the CPU you installed.,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to
- www.asus.com
Graphic
Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors,Multi-VGA output support : HDMI/DisplayPort ports,- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz,- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi Gpu Support
- 3rd and 2nd Gen AMD Ryzen™/3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- ,Supports NVIDIA 2-Way SLI® Technology,Supports AMD 2-Way CrossFireX™ Technology,Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
- 2nd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- ,2 x PCIe 4.0 x16 (x16 or dual x8),2 x PCIe 3.0 x16 (x16 or dual x8),1 x PCIe 3.0 x16 (x8 mode)
- AMD X570 chipset
- ,1 x PCIe 4.0 x16 (max at x4 mode),3 x PCIe 4.0 x1
Storage
- 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors :
- ,6 x SATA 6Gb/s port(s),1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
- 3rd Gen AMD Ryzen™ Processors :
- ,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
- AMD X570 chipset :
- ,Support Raid 0, 1, 10
Lan
Intel® I211-AT,ASUS LAN Guard
Audio
- Realtek® S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- High quality120dBSNR stereo playback outputand113dBSNR recording input(Line-in),- Supports up to 32-Bit/192kHz playback *,* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.,- Impedance sense for front and rear headphone outputs,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,- Front panel audio connector (AAFP)
- Audio Feature :
- ,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- EMI protection cover to prevent electrical noise to affect the amplifier quality
Usb Ports
- 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors :
- ,4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A),4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C),1 x USB 3.2 Gen 2 front panel connector port(s),2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
- AMD X570 chipset :
- ,4 x USB 2.0 port(s) (4 at mid-board)
Special Features
- - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
- DIGI+ VRM: Digital power design with Dr. MOS
- EPU Guidance
- TPU Insight
- Turbo App:
- system performance tuning, network priority, and audio scene configuration for selected applications.,- ASUS DIGI+ VRM - Digital power design with Dr. MOS,- Pre-mounted I/O Shield,- ASUS Q-Connector
- 5-Way Optimization by Dual Intelligent Processors 5
- Fan Xpert4
- ,- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- ASUS 5X Protection III :
- - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection
- ASUS SafeSlot
- - Protect your graphics card Investment
- ASUS OptiMem：
- ,- Improved DDR4 Stability
- AURA :
- ,- Aura Lighting Control,- Aura RGB Strip Headers,- Addressable Gen 2 Header
- ASUS Exclusive Features
- :,- AI Suite 3,- Ai Charger,- Turbo LAN,- Armoury Crate
- ASUS Quiet Thermal Solution
- :,- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink,- ASUS Fan Xpert 4
- ASUS EZ DIY :
- ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode
- ASUS Q-Design :
- ,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM
Back I O Ports
4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A,3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A),1 x PS/2 keyboard/mouse combo port(s),1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s),1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Internal I O
2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode),1 x PCH_FAN (1 x 4-pin),1 x Water Pump header (4-pin),1 x Power-on button(s),2 x Aura RGB Strip Headers,1 x Node Connector(s),1 x T_Sensor Connector,1 x USB 3.2 Gen 2 (up to 10Gbps) connector,1 x Addressable Gen 2 header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),3 x Chassis Fan connector(s) (3 x 4-pin),1 x AIO_PUMP connector (1 x 4-pin),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
1 x Q-connector(s) (1 in 1),1 x Extension cable for Addressable LED,User´s manual,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD
Bios
256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor,12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Physical Dimensions
Length Mm
304.8
Width Mm
243.8
Height Mm
774.7
