ASUS PRIME H810M-E-CSM
Quick Specs
ChipsetIntel | ® | H810 Chipset
SocketLGA 1851
MemoryDDR5
Form FactormATX
M.2 Slots3
Model: 33383
About this motherboards
ASUS PRIME H810M-E-CSM unleashes Intel® Core™ Ultra power with PCIe 4.0, DDR5, and Aura Sync, perfect for AI applications and customization.
Technical Specifications23 specs
General
Model
PRIME H810M-E-CSM
News Updates
- Please see the updated OS support requirements for the Intel
- ®
- Core Ultra 200S series below:
- •Intel
- ®
- Core Ultra 200S Series:
- Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
- •Intel
- ®
- Core Ultra 200S Plus Series:
- Windows 11 (version 25H2 and later) for full compatibility.
- , Please visit our
- GLOBAL website
- to check and download the latest updates.
Cpu
- Support Intel
- ®
- Core™ Ultra Processors (Series 2) , LGA1851
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- * Refer to
- https://www.asus.com/support/download-center/
- for CPU support list.
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- H810 Chipset
Memory
- 2 x DIMM slots, max. 128GB, DDR5
- Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
- Dual channel memory architecture
- DIMM Fit
- Supports Intel
- ®
- Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile II (AEMP II)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
- https://www.asus.com/support/download-center/
- . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
- ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
- 2 x DisplayPort
- 1 x HDMI™ port
- * Graphics specifications may vary between CPU types. Please refer to
- www.intel.com
- for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- **** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
- Intel
- ®
- Core™ Ultra Processors (Series 2)
- 1 x PCIe 4.0 x16 slot
- Intel
- ®
- H810 Chipset
- 1 x PCIe 4.0 x1 slot
- - To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/download-center/
- for the list of supported peripherals.
Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel
- ®
- H810 Chipset
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6Gb/s ports
Ethernet
- 1 x Realtek 1Gb Ethernet port
- ASUS LANGuard
Usb
- Rear USB (Total 6 ports)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 5 ports)
- 1 x USB 5Gbps connector (supports USB Type-C
- ®
- )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- * USB Type-C
- ®
- power delivery output: max. 5V/3A
- ** USB_E1 port, USB_E2 port and USB_E3 port share the bandwidth.
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 2 x DisplayPort
- 1 x HDMI
- ™
- port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
Internal I O
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
- Storage Related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps connector (supports USB Type-C
- ®
- )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable RGB Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin Front Panel System header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage protection
- - SafeSlot Core+
- - Stainless-steel back I/O
- ASUS Q-Design
- - Q-Dashboard
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- ASUS EZ DIY
- - Dual DIMM clips
- Aura Sync
- - Addressable RGB Gen 2 headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 2+
- ASUS DriverHub
- - ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash
- - ASUS UEFI BIOS EZ Mode
- - ASUS MyHotkey
- DIMM FIT Pro
- * For more software features, please visit the asus support site or refer to
- www.asus.com/support
- for additional information.
Bios
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous

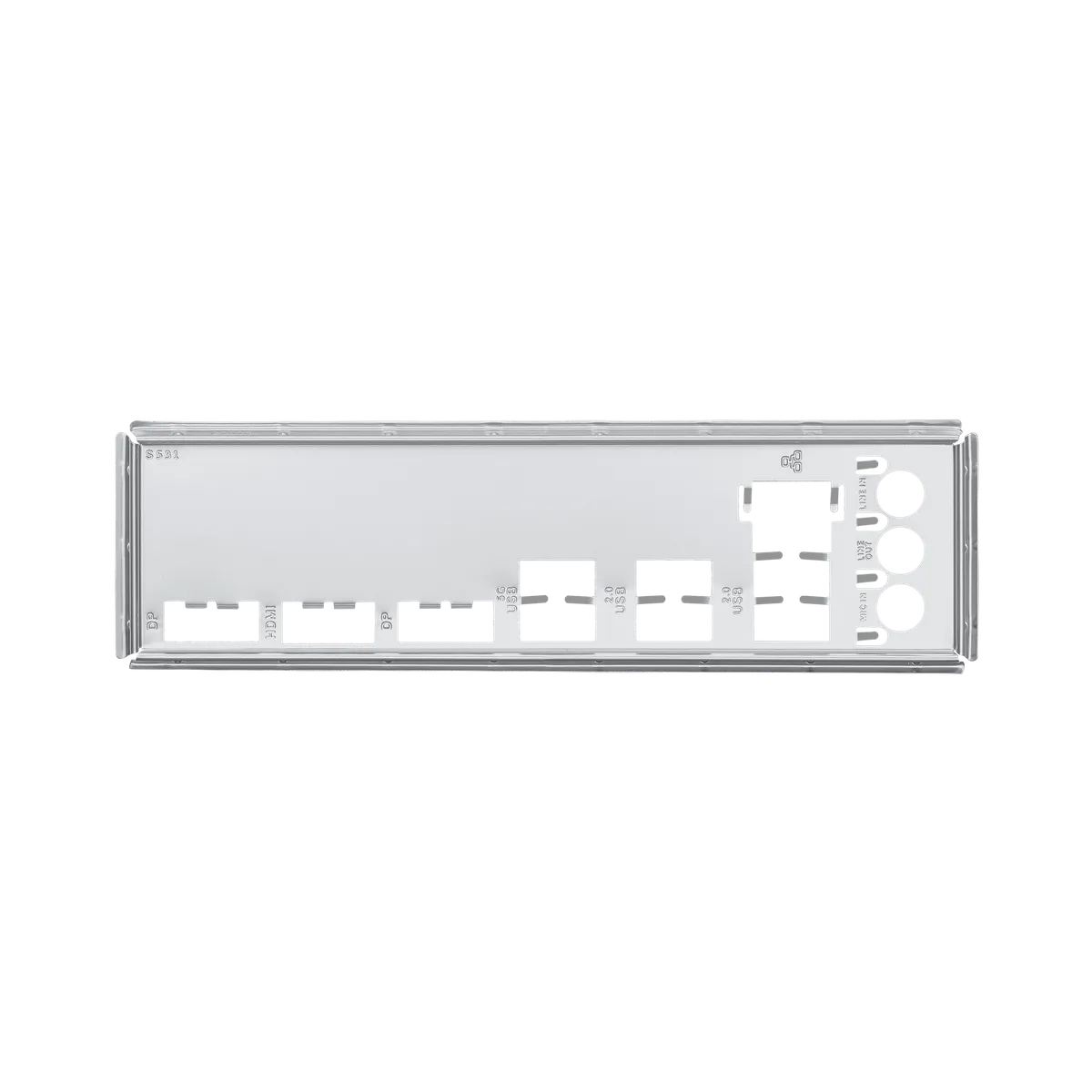

- 1 x I/O shield
- 1 x M.2 anchor package
- Documentation
- 1 x Quick start guide
- 1 x ACC Express activation key card
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
- micro-ATX Form Factor
- 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Physical Dimensions
Length Mm
243.8
Width Mm
222.2
Height Mm
619.8
