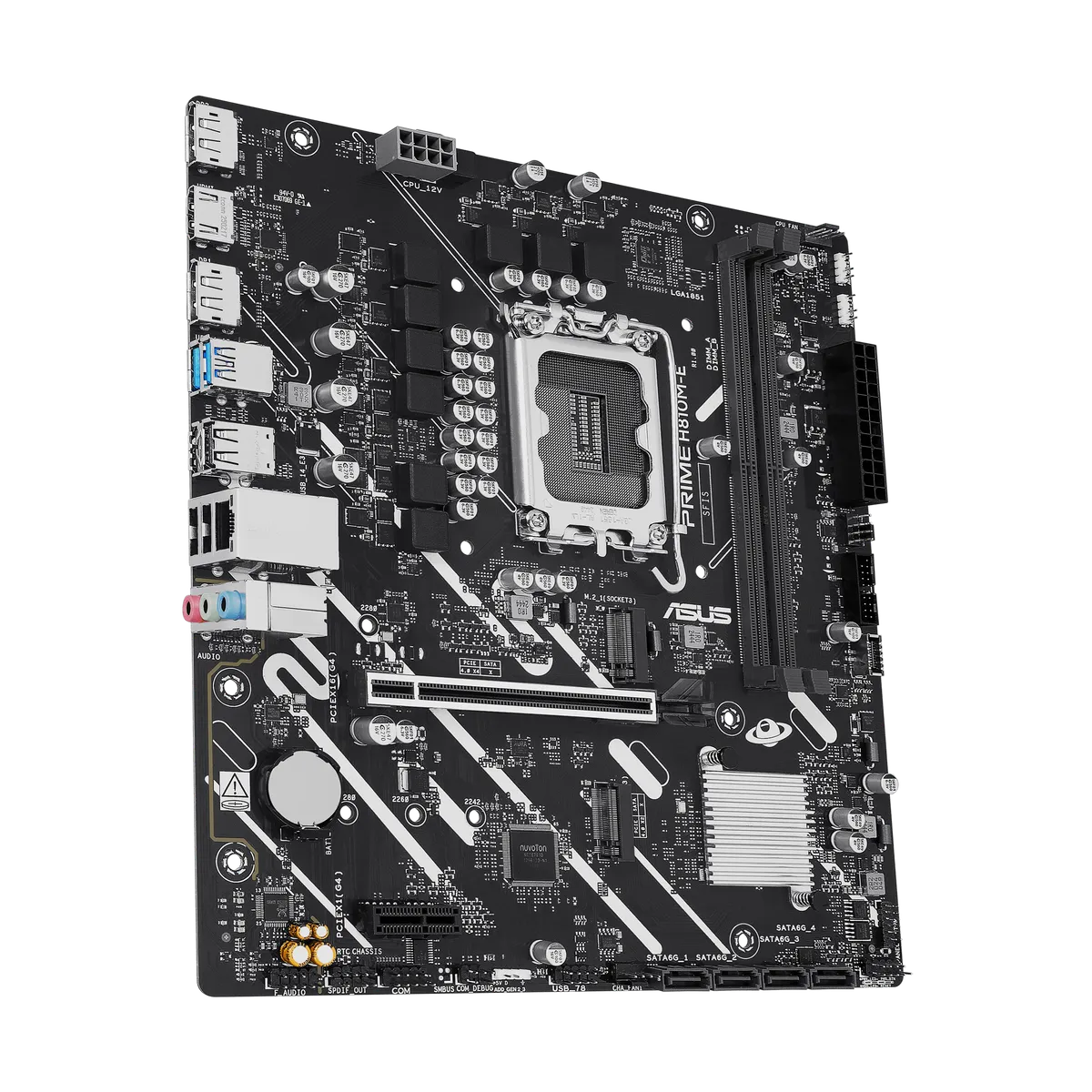

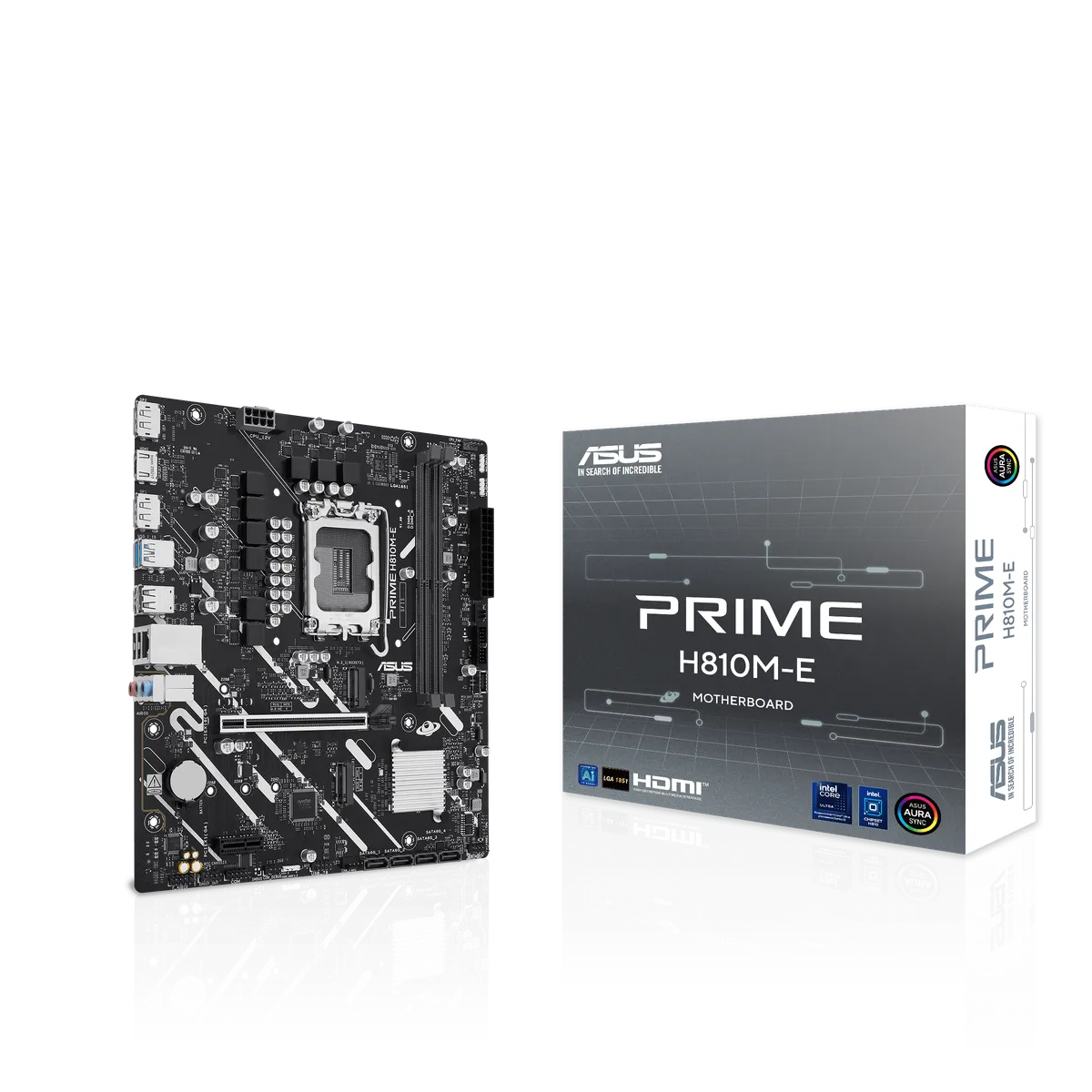

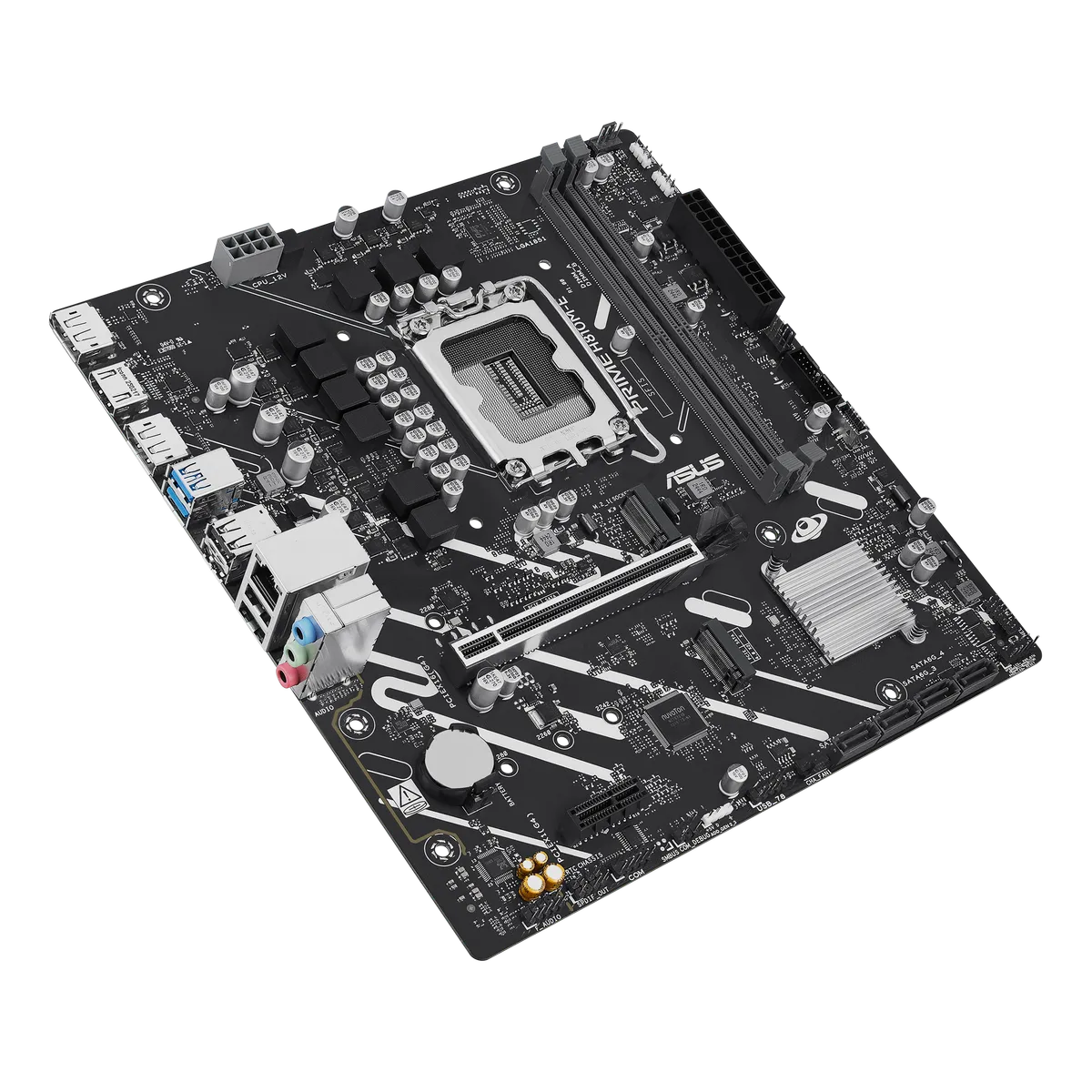

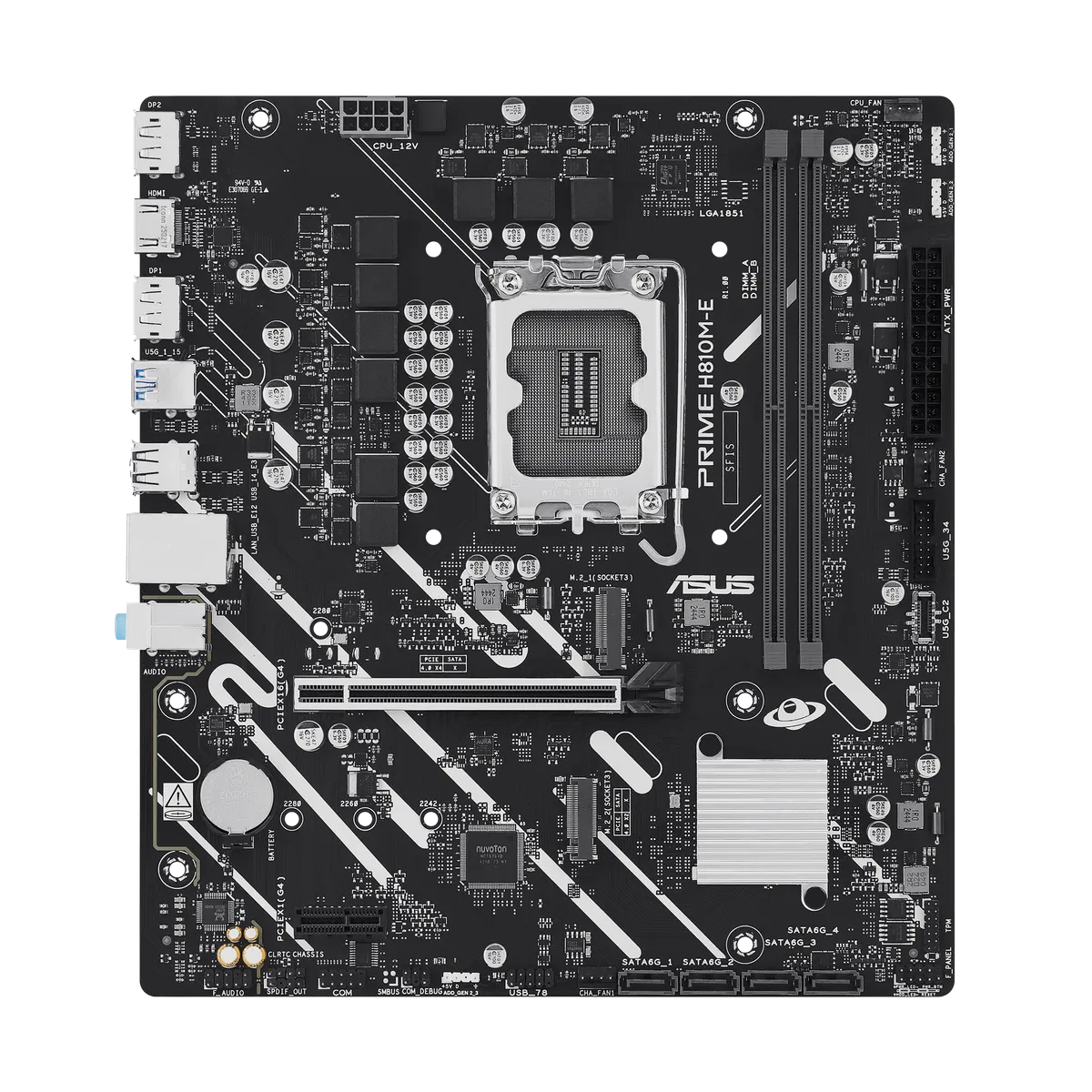

ASUS PRIME H810M-E
MotherboardsAsus

ASUS PRIME H810M-E

Price TBC

Compatibility Data

SocketLGA 1851
ChipsetIntel | ® | H810 Chipset
Memory TypeDDR5
M2 Slots3
Form FactormATX
Model: 32355

Technical Specifications23 specs

General

Model
PRIME H810M-E
News Updates
  • Please see the updated OS support requirements for the Intel
  • ®
  • Core Ultra 200S series below:
  • •Intel
  • ®
  • Core Ultra 200S Series:
  • Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
  • •Intel
  • ®
  • Core Ultra 200S Plus Series:
  • Windows 11 (version 25H2 and later) for full compatibility.
  • , Please visit our
  • GLOBAL website
  • to check and download the latest updates.
Cpu
  • Support Intel
  • ®
  • Core™ Ultra Processors (Series 2) , LGA1851
  • Supports Intel
  • ®
  • Turbo Boost Technology 2.0 and Intel
  • ®
  • Turbo Boost Max Technology 3.0
  • * Refer to
  • https://www.asus.com/support/download-center/
  • for CPU support list.
  • ** Intel
  • ®
  • Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
  • Intel
  • ®
  • H810 Chipset
Memory
  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel
  • ®
  • Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile II (AEMP II)
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
  • https://www.asus.com/support/download-center/
  • . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  • ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
  • 2 x DisplayPort
  • 1 x HDMI™ port
  • * Graphics specifications may vary between CPU types. Please refer to
  • www.intel.com
  • for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
  • Intel
  • ®
  • Core™ Ultra Processors (Series 2)
  • 1 x PCIe 4.0 x16 slot
  • Intel
  • ®
  • H810 Chipset
  • 1 x PCIe 4.0 x1 slot
  • - To ensure compatibility of the device installed, please refer to
  • https://www.asus.com/support/download-center/
  • for the list of supported peripherals.
Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel
  • ®
  • H810 Chipset
  • M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports
Ethernet
  • 1 x Realtek 1Gb Ethernet port
  • ASUS LANGuard
Usb
  • Rear USB (Total 6 ports)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 5 ports)
  • 1 x USB 5Gbps connector (supports USB Type-C
  • ®
  • )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • * USB Type-C
  • ®
  • power delivery output: max. 5V/3A
  • ** USB_E1 port, USB_E2 port and USB_E3 port share the bandwidth.
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

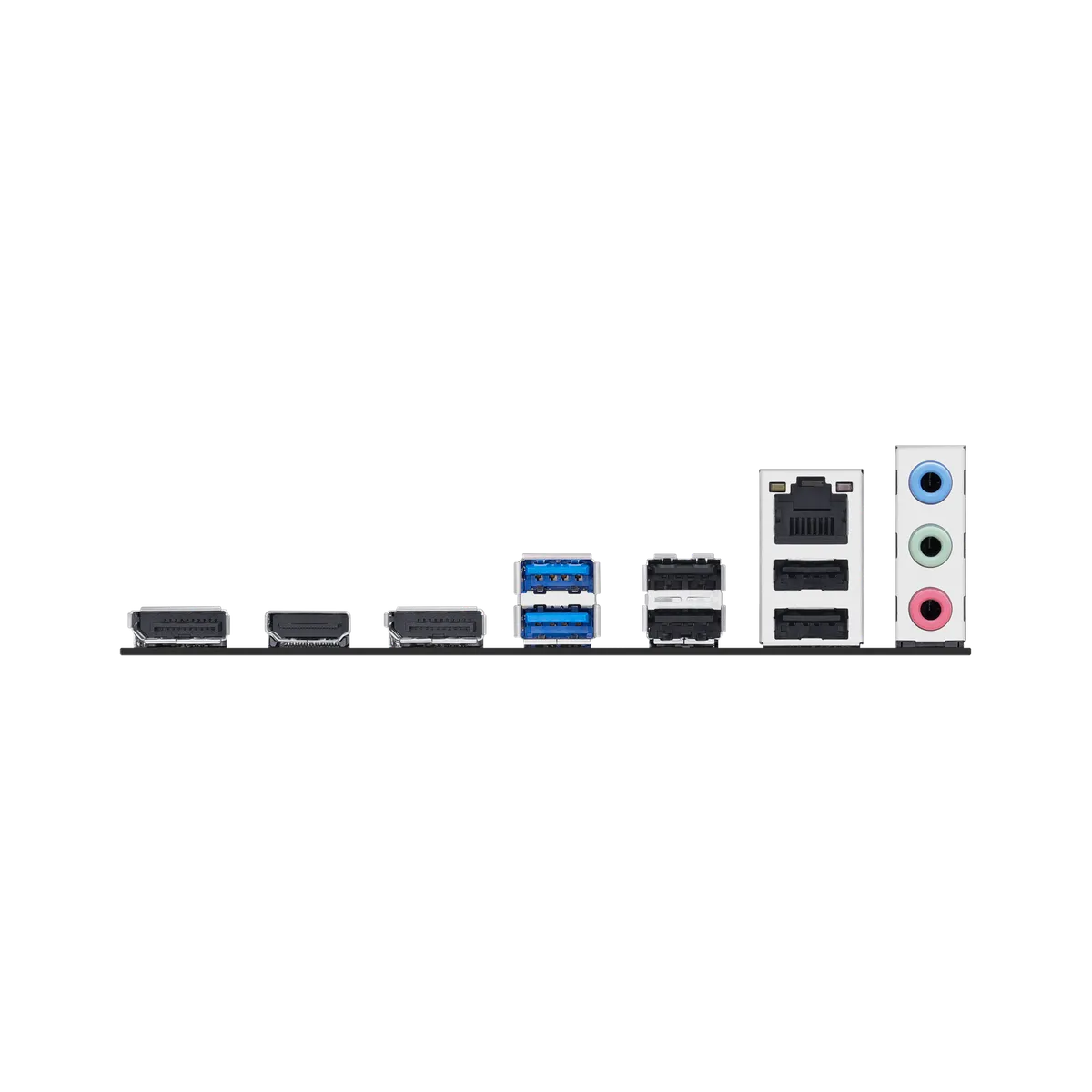

Back Panel I O Ports
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 2 x DisplayPort
  • 1 x HDMI
  • ™
  • port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
Internal I O
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
  • Storage Related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 5Gbps connector (supports USB Type-C
  • ®
  • )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable RGB Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin Front Panel System header
Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage protection
  • - SafeSlot Core+
  • - Stainless-steel back I/O
  • ASUS Q-Design
  • - Q-Dashboard
  • - Q-LED Core
  • - Q-Slot
  • ASUS Thermal Solution
  • - Aluminum heatsink design
  • ASUS EZ DIY
  • - Dual DIMM clips
  • Aura Sync
  • - Addressable RGB Gen 2 headers
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 2+
  • ASUS DriverHub
  • - ASUS CPU-Z
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash
  • - ASUS UEFI BIOS EZ Mode
  • - ASUS MyHotkey
  • DIMM FIT Pro
  • * For more software features, please visit the asus support site or refer to
  • www.asus.com/support
  • for additional information.
Bios
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

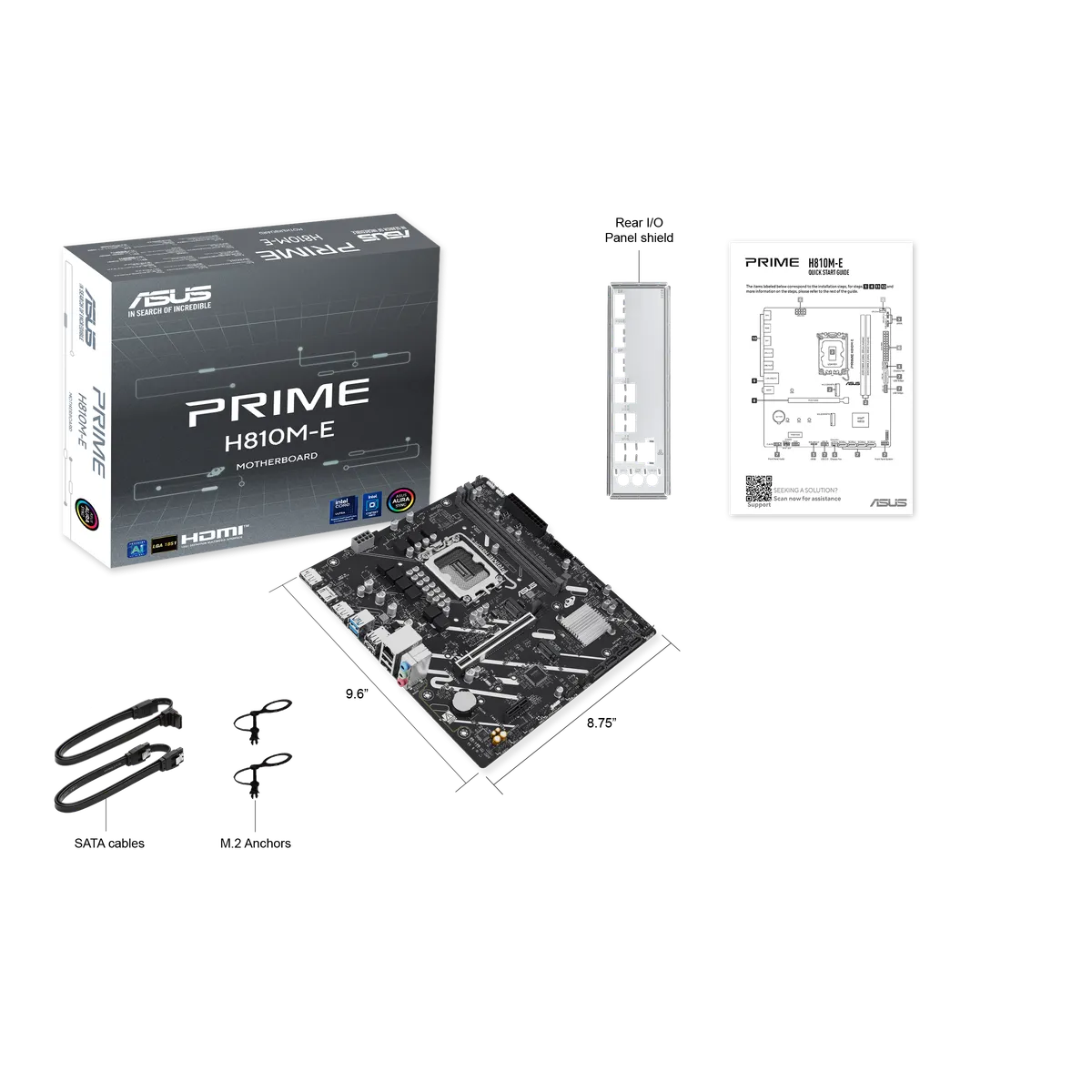

Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous

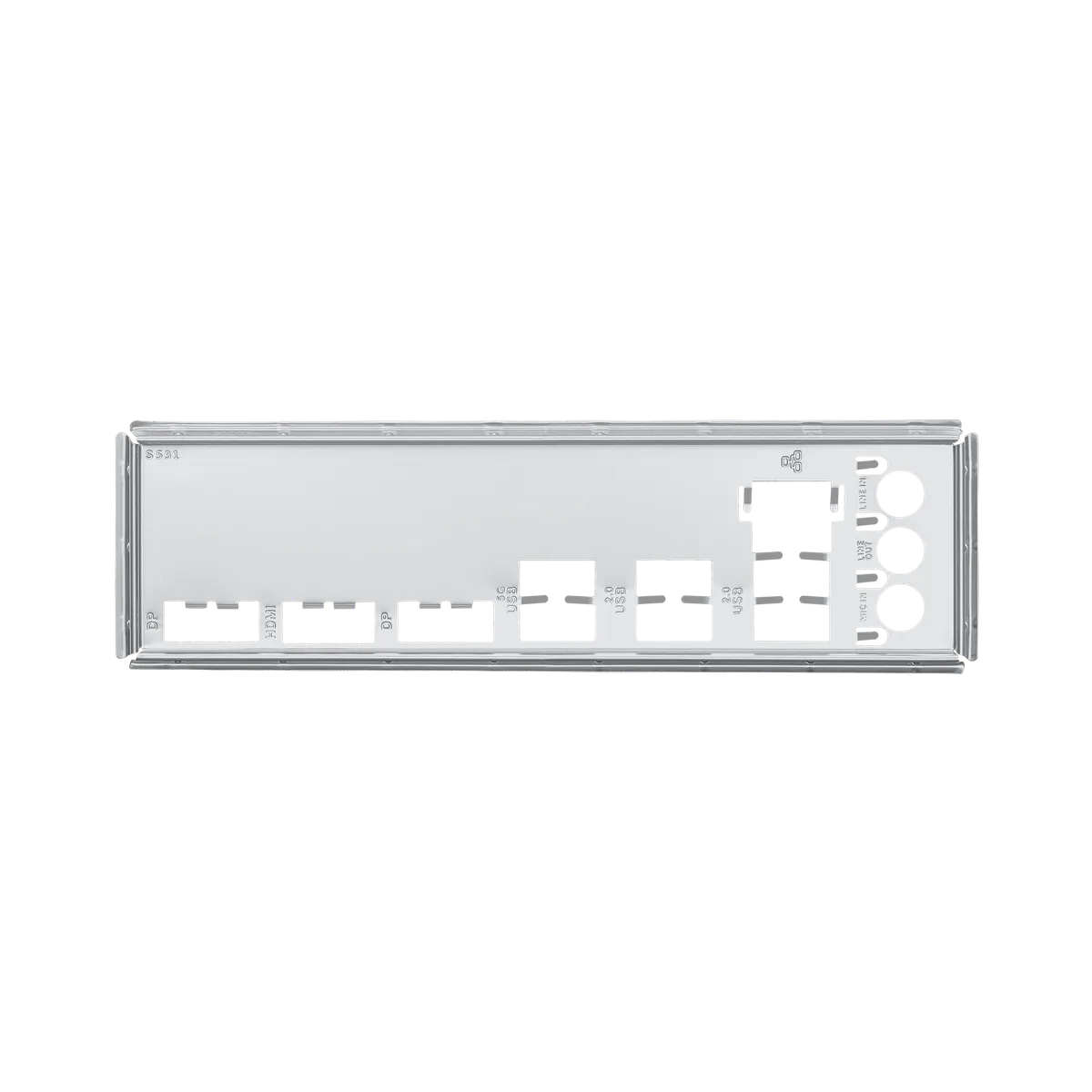

  • 1 x I/O shield
  • 1 x M.2 anchor package
  • Documentation
  • 1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
  • micro-ATX Form Factor
  • 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

Physical Dimensions

Length Mm
243.8
Width Mm
222.2
Height Mm
619.8
