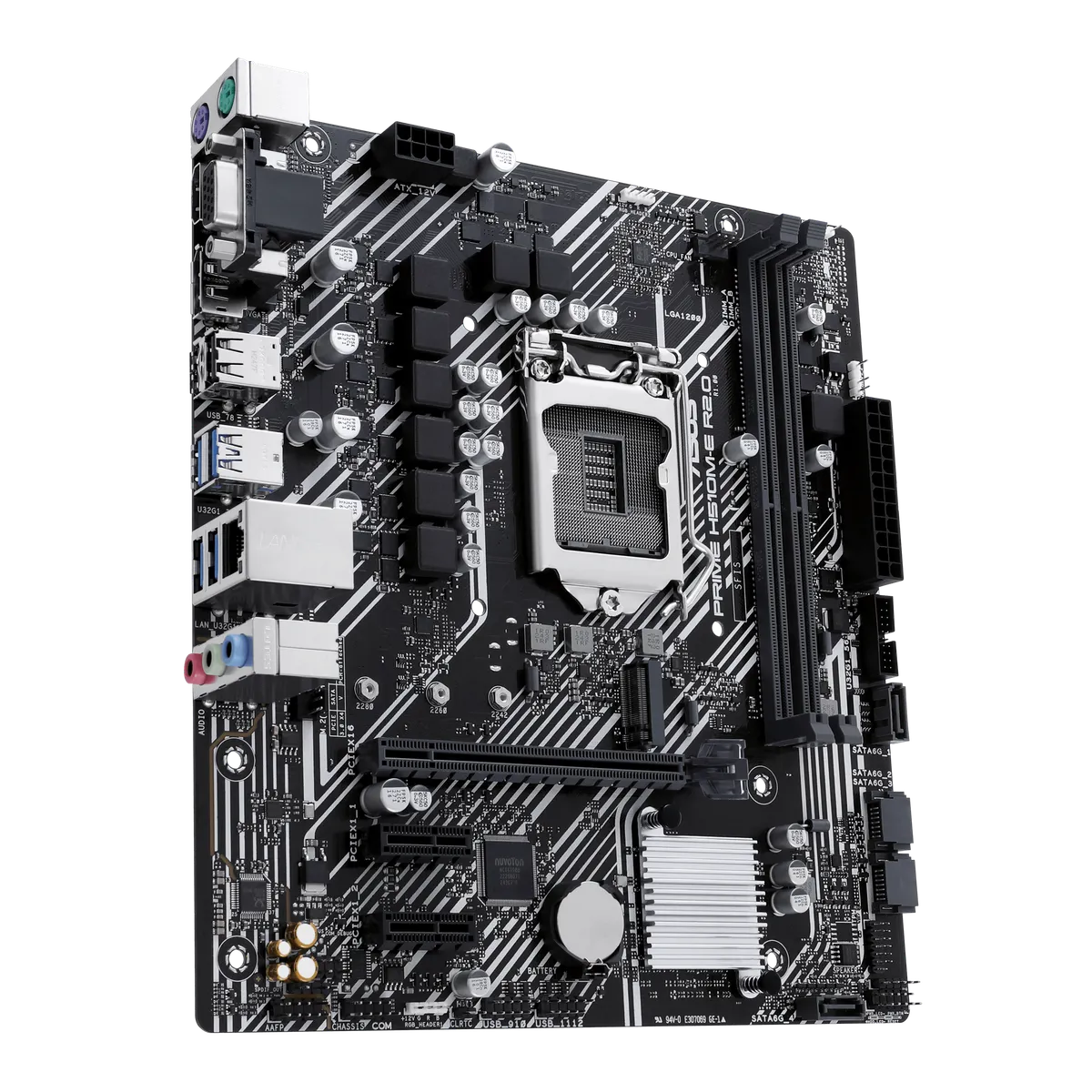

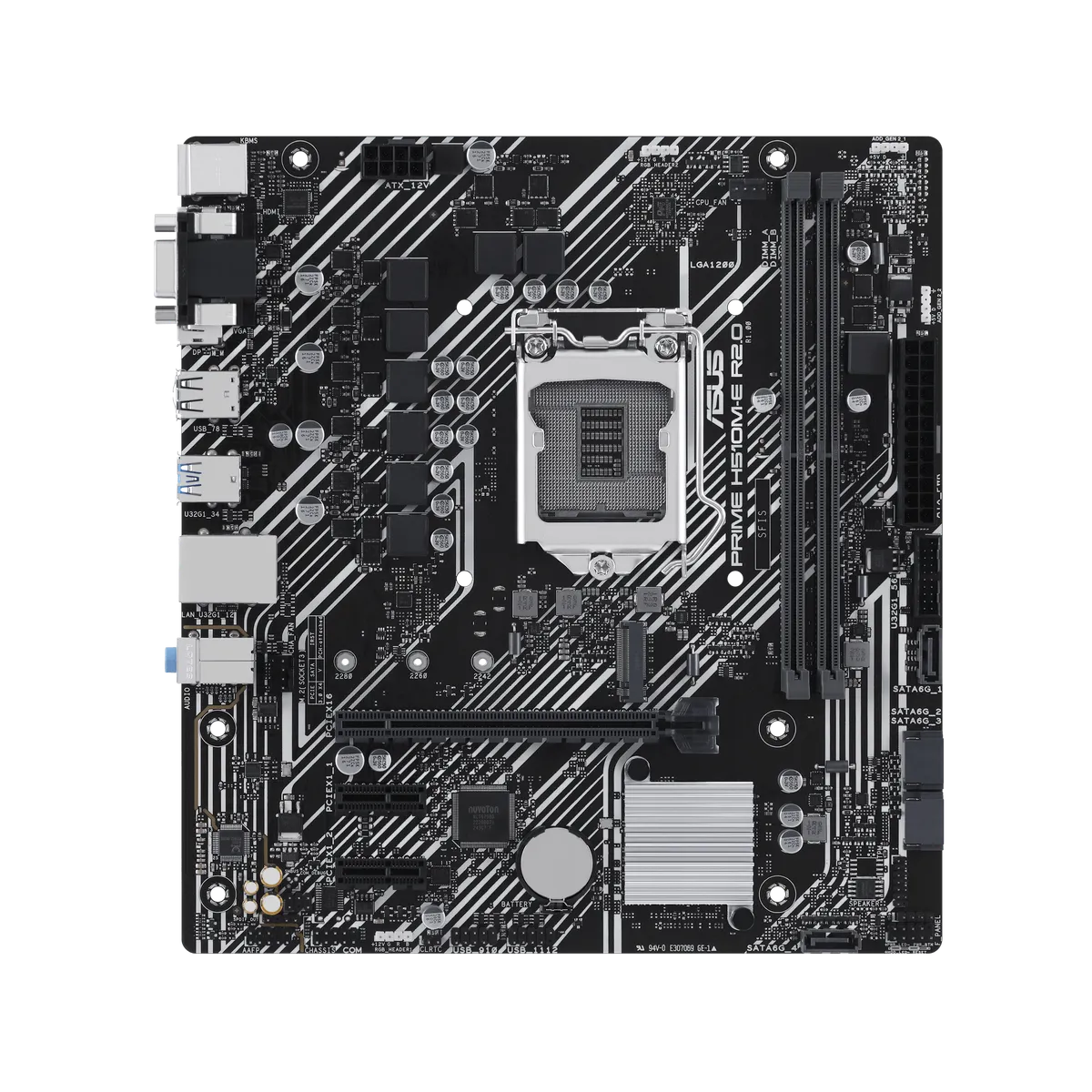

ASUS PRIME H510M-E R2.0
Quick Specs
ChipsetIntel | ® | H470 Chipset
SocketLGA 1200
MemoryDDR4
Form FactormATX
M.2 Slots2
Model: 23678
About this motherboards
Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, DisplayPort/HDMI™/VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps, AURA Addressable Gen 2 headers, AURA SYNC, Armoury Crate, Q-LED Core
Technical Specifications22 specs
General
Model
PRIME H510M-E R2.0
Cpu
- Intel® Socket LGA1200 for 11th Gen Intel
- ®
- Core™ Processors & 10th Gen Intel
- ®
- Core™, Pentium
- ®
- Gold and Celeron
- ®
- Processors
- Supports Intel
- ®
- 14 nm CPU
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- H470 Chipset
Memory
- 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/ 2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- *10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
- *11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/ 2400/2133.
Graphics
- 1 x DisplayPort 1.4
- 1 x VGA
- 1 x HDMI
- TM
- 2.1
- *Graphics specifications may vary between CPU types.
- **Intel
- ®
- 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
- *** Only Intel
- ®
- 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
- Intel
- ®
- 11th & 10th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- - Intel
- ®
- 11th Gen processors support PCIe 4.0 x16
- - Intel
- ®
- 10th Gen processors support PCIe 3.0 x16
- Intel
- ®
- H470 Chipset
- 2 x PCIe 3.0 x1 slots
Storage
- Total supports 1 x M.2 slot and 4 x SATA6Gb/s ports
- Intel
- ®
- H470 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
Usb
- Rear USB (Total 6 ports)
- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
- 2 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard (purple) port
- 1 x PS/2 Mouse (green) port
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- AURA Sync
- - AURA RGB headers
- - Addressable Gen 2 RGB headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- AI Suite 3
- - Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert
- - EZ update
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS
- EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- Documentation
- 1 x User guide
Operating System
- Windows
- ®
- 10 64-bit
Form Factor
- mATX Form Factor
- 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Physical Dimensions
Length Mm
226.1
Width Mm
210.8
Height Mm
574
