MotherboardsAsus
ASUS PRIME H510M-D
Quick Specs
ChipsetIntel® H510 Chipset
SocketLGA 1200
MemoryDDR4
Form FactormATX
M.2 Slots4
Model: 15548
About this motherboards
PRIME H510M-D Intel® H510 (LGA 1200) micro ATX motherboard features PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM port, LPT header, RGB header, FAN Xpert, Armoury Crate, and 5X PROTECTION III. PRIME H510M-D caters to daily users and all builders looking for well-rounded specs and a range of options for performance tuning via intuitive software and firmware.
Technical Specifications22 specs
General
Model
PRIME H510M-D
Cpu
- Intel
- ®
- Socket LGA1200 for 11
- th
- Gen Intel
- ®
- Core™ Processors & 10
- th
- Gen Intel
- ®
- Core™, Pentium
- ®
- Gold and Celeron
- ®
- Processors
- Supports Intel
- ®
- 14 nm CPU
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H510 Chipset
Memory
- 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/ 2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel
- ®
- Extreme Memory Profile (XMP)
- * 10
- th
- Gen Intel
- ®
- Core™ i7/i9 processors support 2933/2800/2666/2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
- * 11
- th
- Gen Intel
- ®
- processors support 2933/2800/2666/2400/2133 natively.
Graphics
- 1 x D-Sub
- 1 x HDMI
- TM
- 2.0
- * Graphics specifications may vary between CPU types.
- ** Only Intel® 11
- th
- Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
- Intel
- ®
- 11
- th
- & 10
- th
- Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- - Intel
- ®
- 11th Gen processors support PCIe 4.0 x16
- - Intel
- ®
- 10th Gen processors support PCIe 3.0 x16
- Intel
- ®
- H510 Chipset
- 1 x PCIe 3.0 x1 slot
Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- Intel
- ®
- H510 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
Ethernet
1 x Intel® I219-V 1Gb Ethernet
Usb
- Rear USB (Total 6 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 4 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
- Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium Japanese audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x Intel
- ®
- I219-V 1Gb Ethernet port
- 3 x Audio jacks
- 1 x COM port
- 1 x PS/2 Keyboard/Mouse combo port
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- ASUS Lighting Control
- - RGB header
Software Features
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- - Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert
- - EZ update
- ASUS CPU-Z
- AI Charger
- DAEMON Tools
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

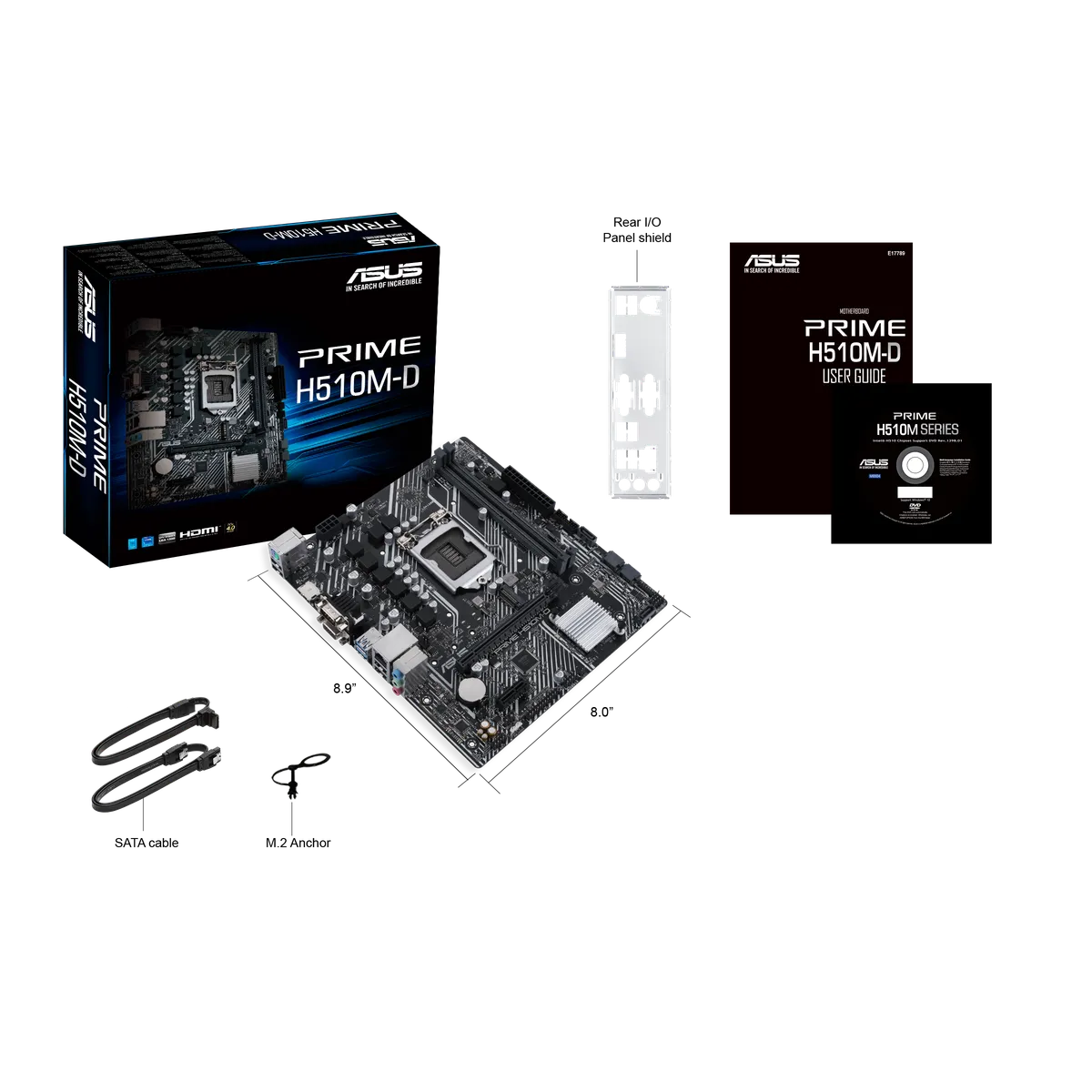

Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 ANCHOR
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x User manual
Operating System
- Windows
- ®
- 11 64-bit, Windows
- ®
- 10 64-bit
Form Factor
- mATX Form Factor
- 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Physical Dimensions
Length Mm
226.1
Width Mm
203.2
Height Mm
574
