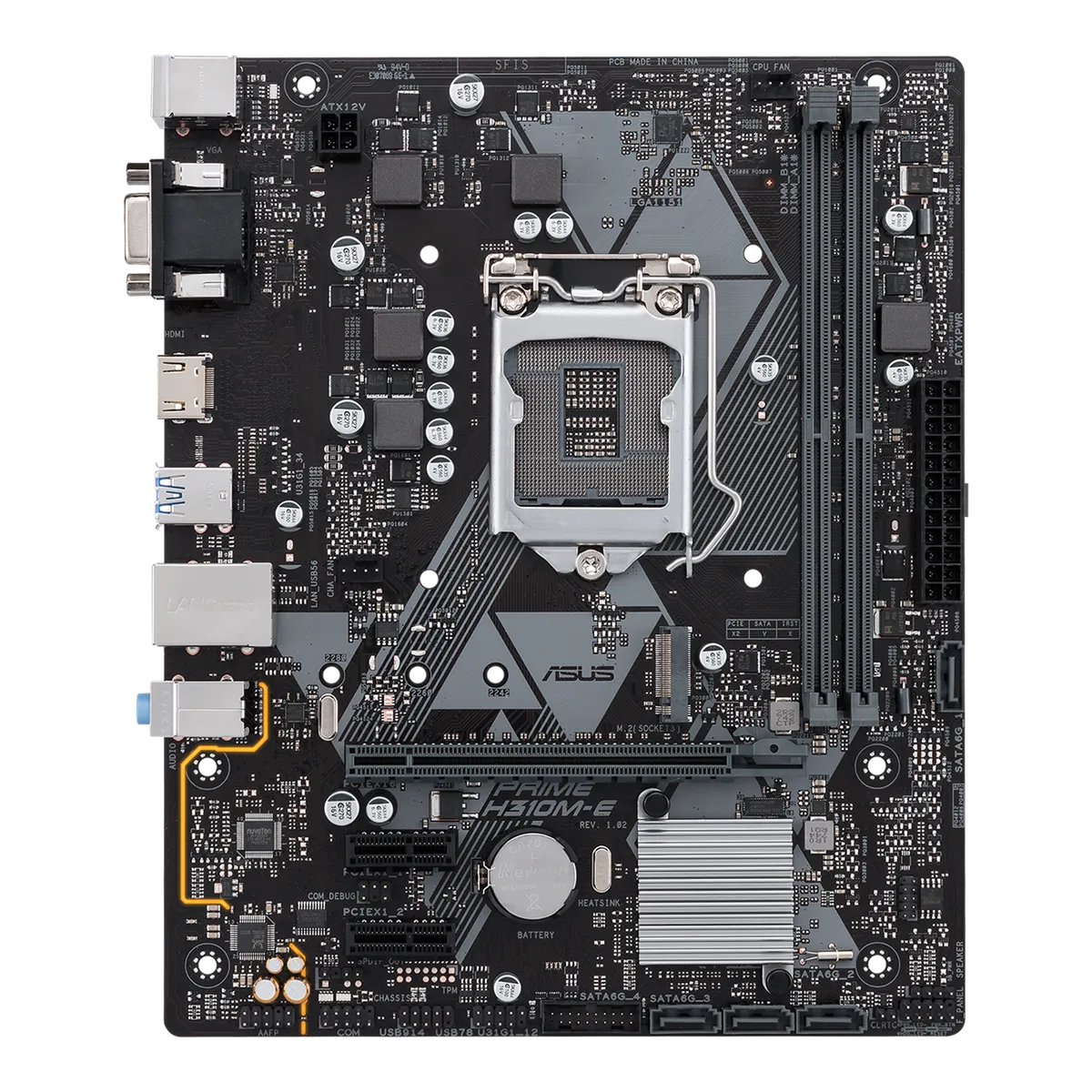

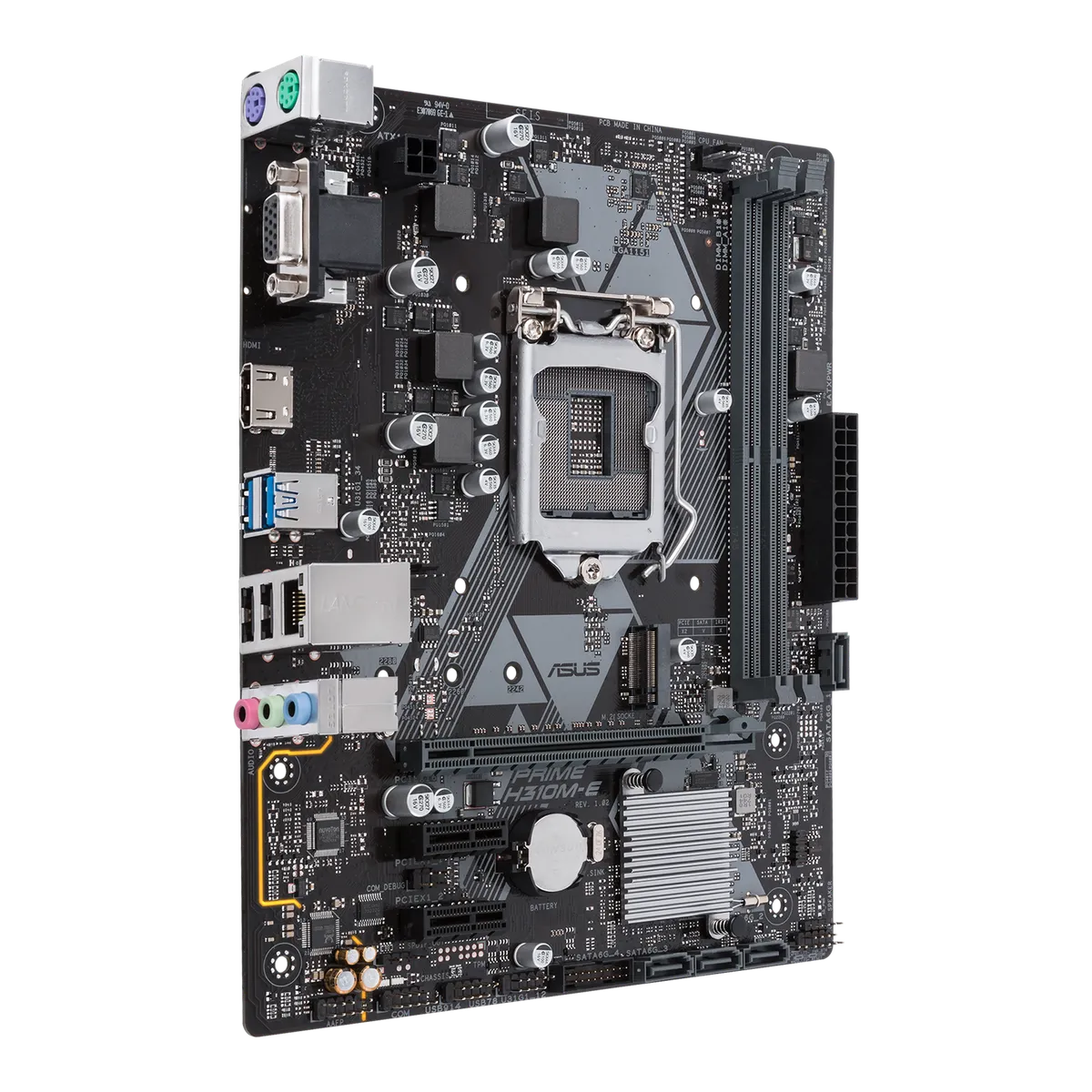

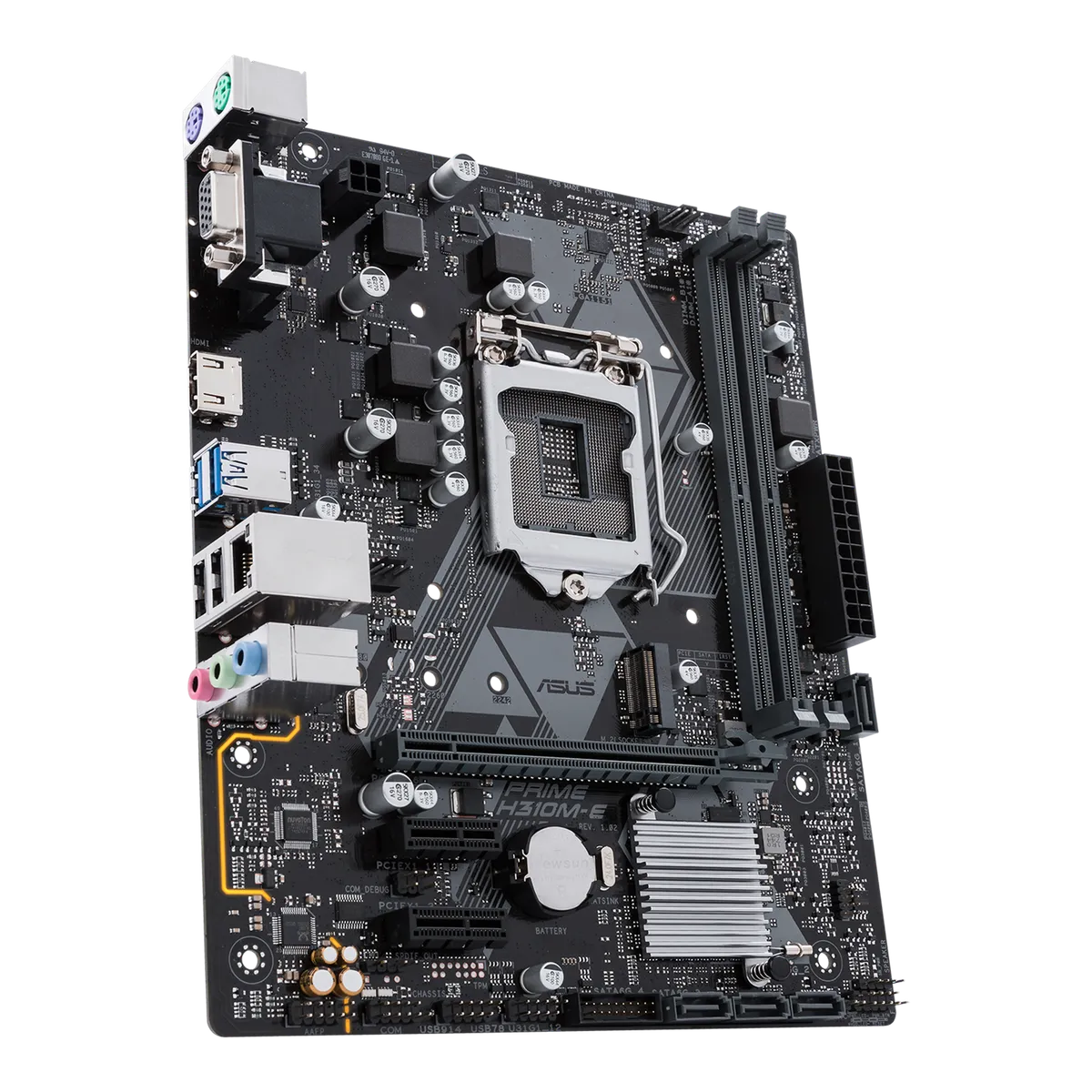

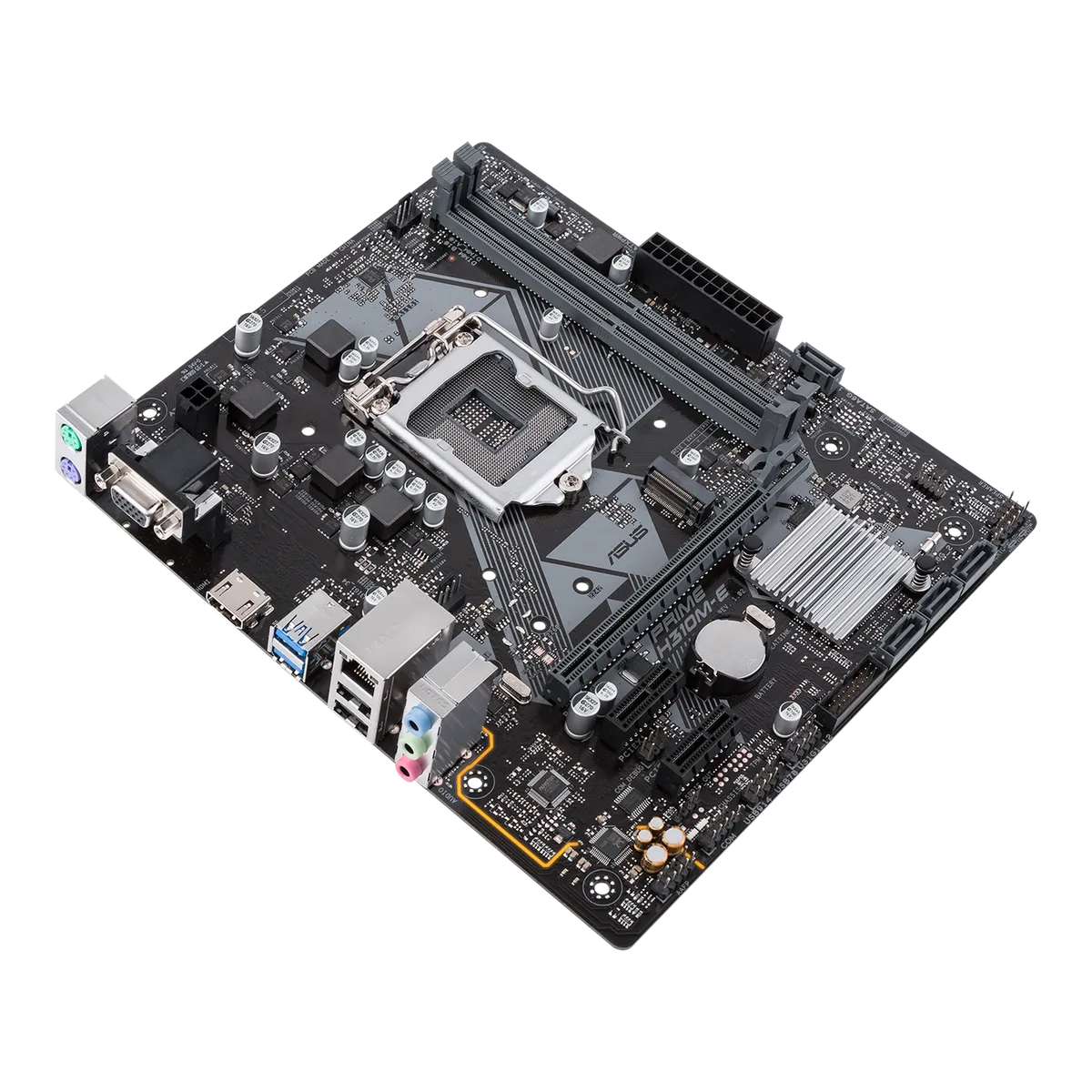

ASUS PRIME H310M-E
Quick Specs
ChipsetIntel® H310
MemoryDDR4
Form FactormATX
M.2 Slots1
Model: 9984
About this motherboards
Experience unparalleled tech with PRIME H310M-E, offering powerful features like LED lighting, DDR4 2666MHz, M.2 support and ASUS OptiMem.
Technical Specifications22 specs
General
Model
PRIME H310M-E
Cpu
- Intel® Socket 1151for 8
- th
- Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,* Refer to
- www.asus.com
- for CPU support list
Chipset
Intel® H310
Memory
- ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.,* The maximum memory frequency supported varies by processor,2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to
- www.asus.com
Graphic
Integrated Graphics Processor- Intel® HD Graphics support,Multi-VGA output support : HDMI/D-Sub ports,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray),2 x PCIe 2.0 x1
Storage
- 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
- 1
- Intel® H310 Chipset :
- ,4 x SATA 6Gb/s port(s), gray
Lan
Realtek® RTL8111H, 1 x Gigabit LAN
Audio
- - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.,- Supports : Jack-detection, Front Panel Jack-retasking
- Audio Feature :
- ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.,Realtek® ALC8878-Channel High Definition Audio CODEC
Usb Ports
- 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
- Intel® H310 Chipset :
- ,6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Special Features
- - File Transfer
- M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)
- ,- ASUS DIGI+ VRM: 4 Phase digital power design,- Optimem (Improved DDR4 stability)
- ASUS 5X Protection III :
- - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS OptiMem：
- ASUS EPU :
- ,- EPU
- ASUS Exclusive Features
- :,- AI Suite 3,- Ai Charger,- PC Cleaner
- ASUS Quiet Thermal Solution
- :,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert
- ASUS EZ DIY :
- ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode
- ASUS Q-Design :
- ,- ASUS Q-DIMM

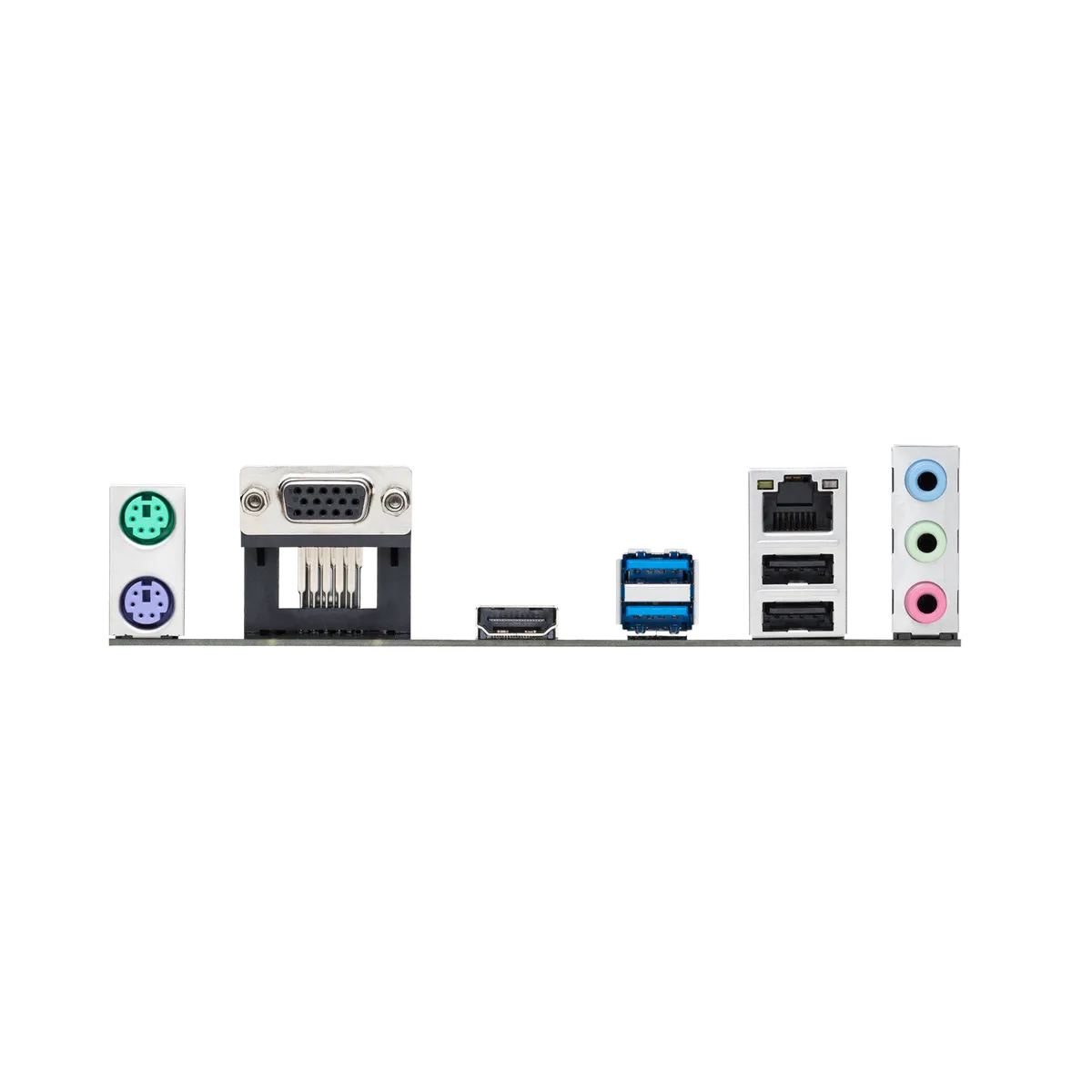

Back I O Ports
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s),1 x PS/2 keyboard (purple),1 x PS/2 mouse (green)
Internal I O
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode),1 x System panel connector,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x Chassis Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x Speaker connector

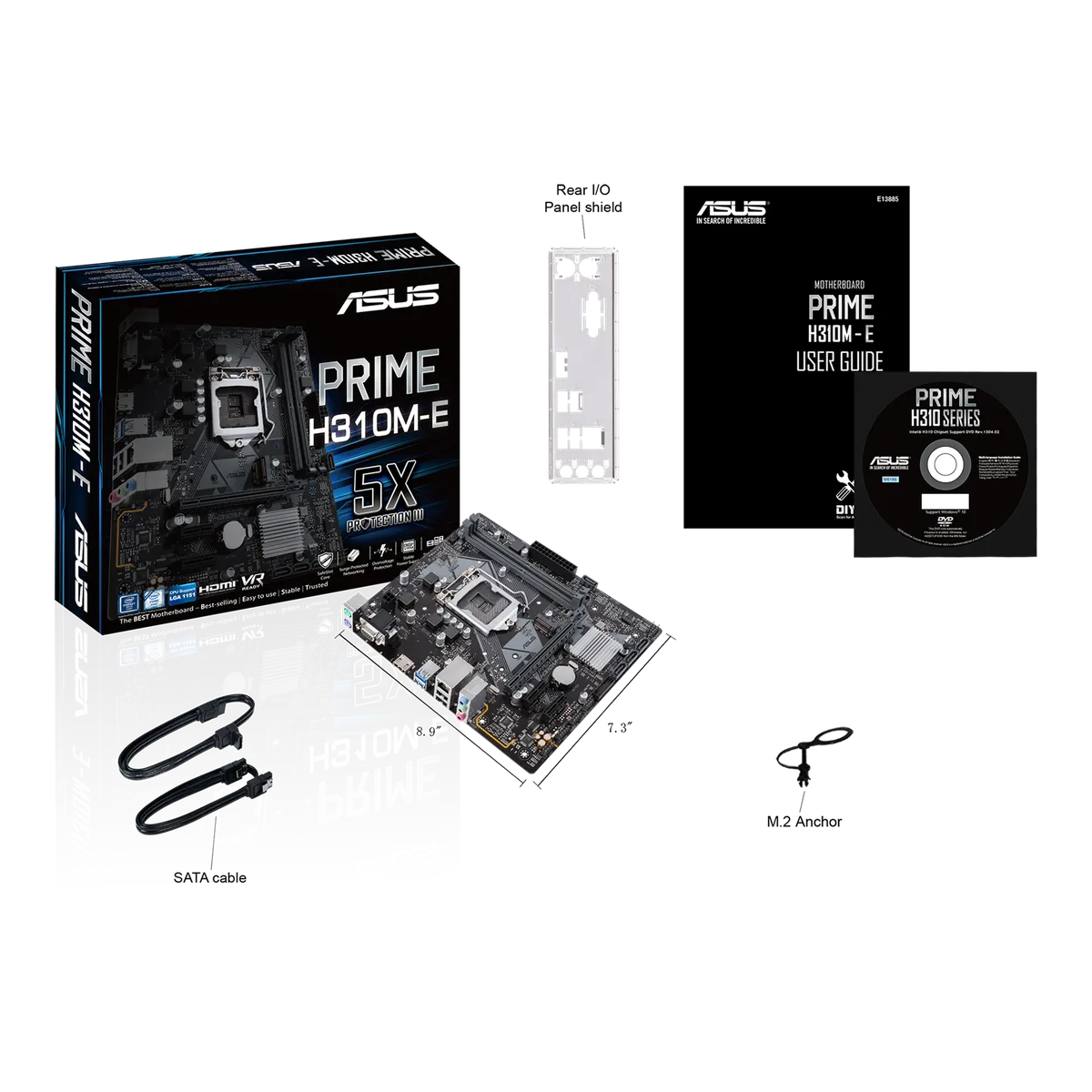

Accessories
1 x M.2 Anchor,User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD
Bios
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ),mATX Form Factor
Note
- *1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
- Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is set
- to PCIe 2.0.
Physical Dimensions
Length Mm
226.1
Width Mm
185.4
Height Mm
574
