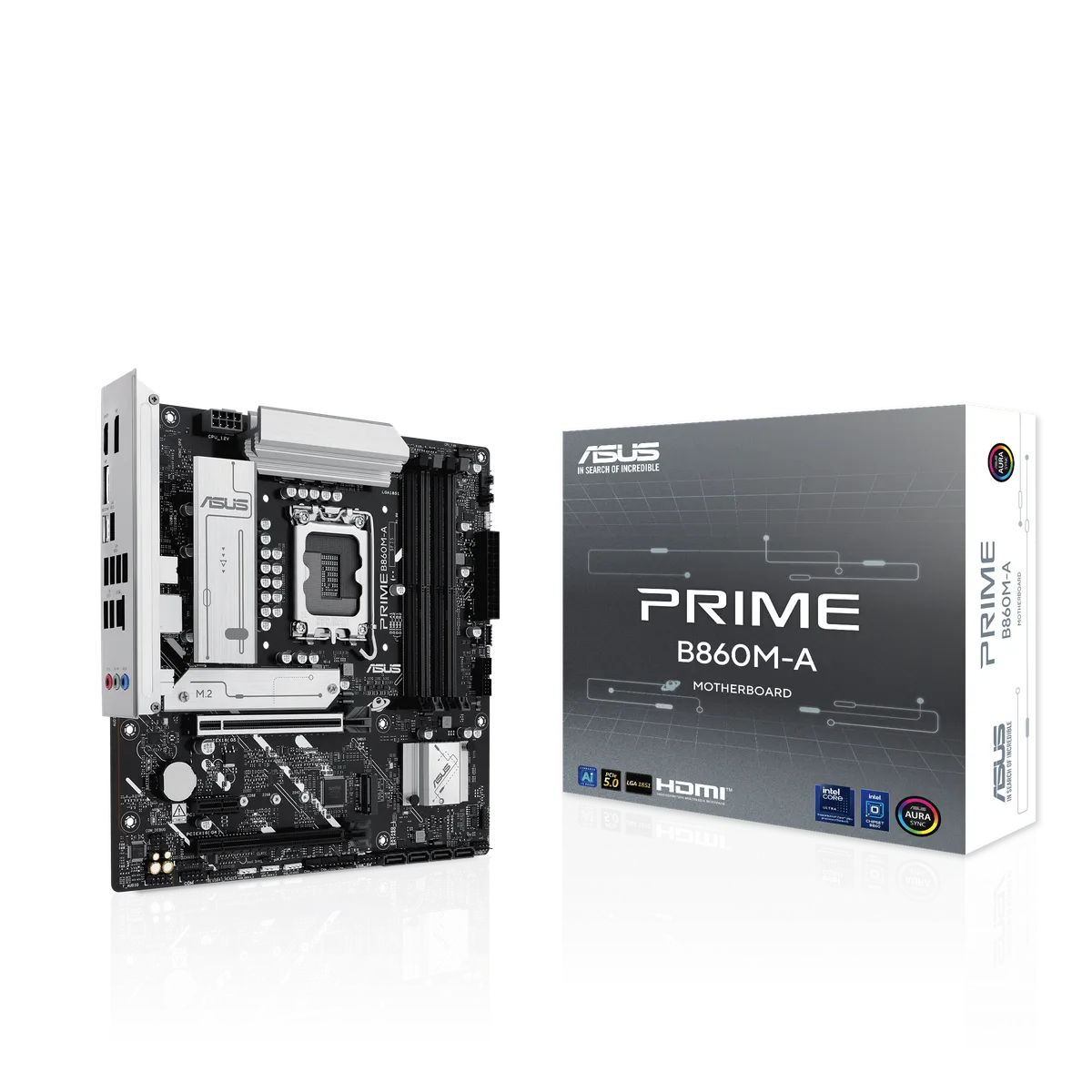

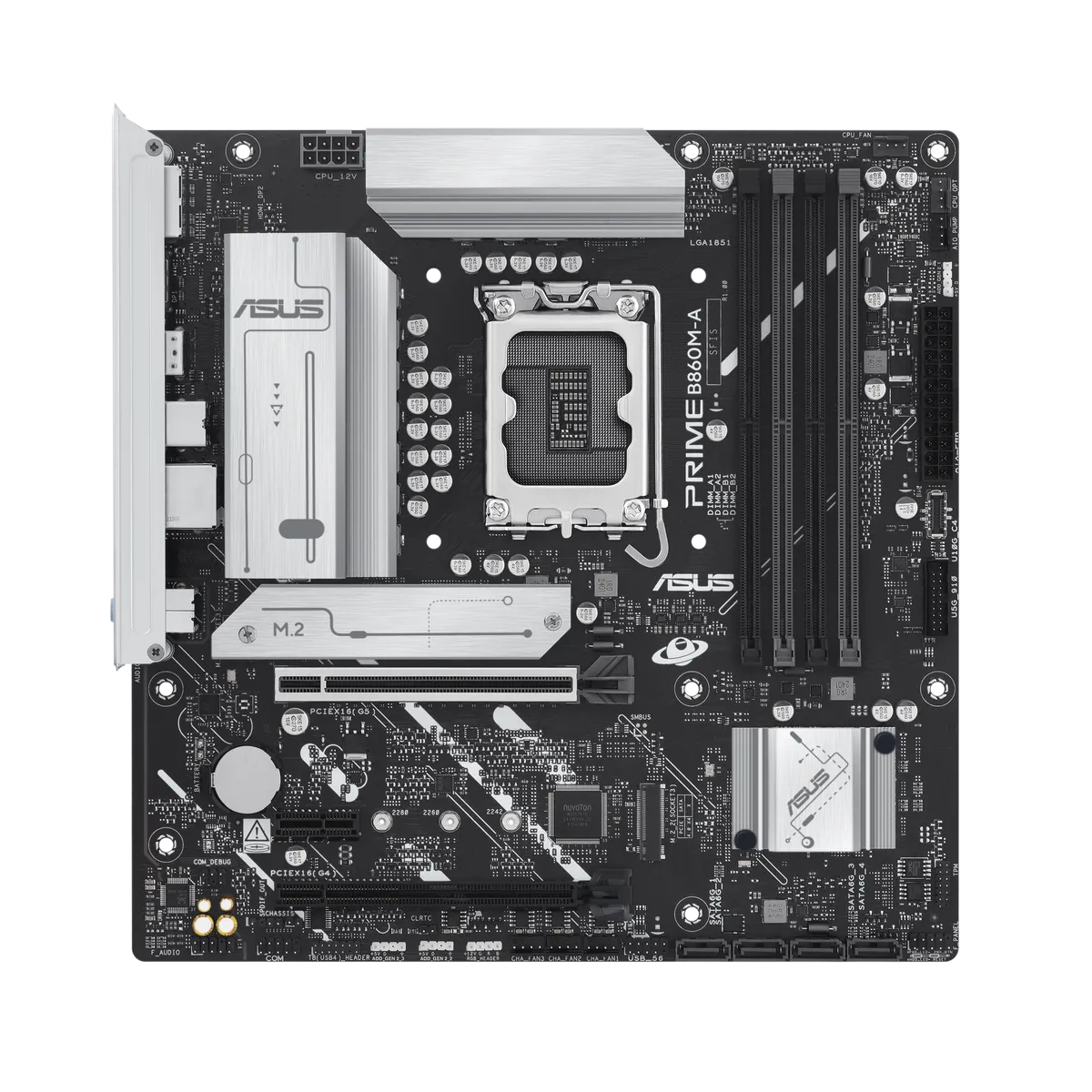

ASUS PRIME B860M-A
MotherboardsAsus

ASUS PRIME B860M-A

Price TBC

Compatibility Data

SocketLGA 1851
ChipsetIntel | ® | B860 Chipset
Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Memory TypeDDR5
M2 Slots3
Model: 30841

Technical Specifications23 specs

General

Model
PRIME B860M-A
News Updates
  • Please see the updated OS support requirements for the Intel
  • ®
  • Core Ultra 200S series below:
  • •Intel
  • ®
  • Core Ultra 200S Series:
  • Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
  • •Intel
  • ®
  • Core Ultra 200S Plus Series:
  • Windows 11 (version 25H2 and later) for full compatibility.
  • Please visit our
  • GLOBALwebsite
  • to check and download the latest updates.
Cpu
  • Support Intel
  • ®
  • Core™ Ultra Processors (Series 2) , LGA1851
  • Supports Intel
  • ®
  • Turbo Boost Technology 2.0 and Intel
  • ®
  • Turbo Boost Max Technology 3.0
  • Refer to
  • https://www.asus.com/support/download-center/
  • for CPU support list.
  • Intel
  • ®
  • Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
  • Intel
  • ®
  • B860 Chipset
Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered,Clocked Unbuffered DIMM (CUDIMM)
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel
  • ®
  • Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
  • *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
  • https://www.asus.com/support/download-center/
  • .
  • * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
  • 2 x DisplayPort
  • 1 x HDMI™ port
  • 1 x USB 20Gbps port (USB Type-C
  • ®
  • ) supports DisplayPort video output
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
  • ***** VGA resolution support depends on processors' or graphic cards' resolution.
  • ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
  • Intel® Core™ Ultra Processors(series 2)
  • *1 x PCIe 5.0 x16 slot
  • Intel® B860 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x1 slot
  • - To ensure compatibility of the device installed, please refer to
  • https://www.asus.com/support/download-center/
  • for the list of supported peripherals.
Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel
  • ®
  • Core™ Ultra Processors (Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
  • Intel
  • ®
  • B860 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
  • 4 x SATA 6Gb/s ports
  • * Intel
  • ®
  • Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • ASUS LANGuard
Usb
  • Rear USB (Total 8 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C
  • ®
  • with DP Alt mode)
  • 1 x USB 10Gbps port (1 x Type-A )
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 5 ports)
  • 1 x USB 10Gbps connector (supports USB Type-C
  • ®
  • )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • *USB Type-C
  • ®
  • power delivery output: max. 5V/3A
  • **USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
  • 1 x USB 20Gbps port (1 x USB Type-C
  • ®
  • with DP Alt mode)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A )
  • 2 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
Internal I O
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
  • Storage Related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 10Gbps connector (supports USB Type-C
  • ®
  • )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thunderbolt™ (USB4
  • ®
  • ) header
Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - ESD Guards
  • - LANGuard
  • - Overvoltage protection
  • - SafeSlot
  • - Stainless-steel back I/O
  • ASUS Q-Design
  • - Q-Dashboard
  • - Q-DIMM
  • - Q-LED Core
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - ProCool
  • - Pre-mounted I/O shield
  • Aura Sync
  • - Aura RGB header
  • - Addressable Gen2 headers
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 2+
  • - Power Saving
  • ASUS DriverHub
  • ASUS CPU-Z
  • Norton 360 for Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash
  • - ASUS UEFI BIOS EZ Mode
  • - ASUS MyHotkey
Bios
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x M.2 rubber package
  • 1 x Screw package for M.2 SSD
  • Documentation
  • 1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Physical Dimensions

Length Mm
243.8
Width Mm
243.8
Height Mm
619.8
