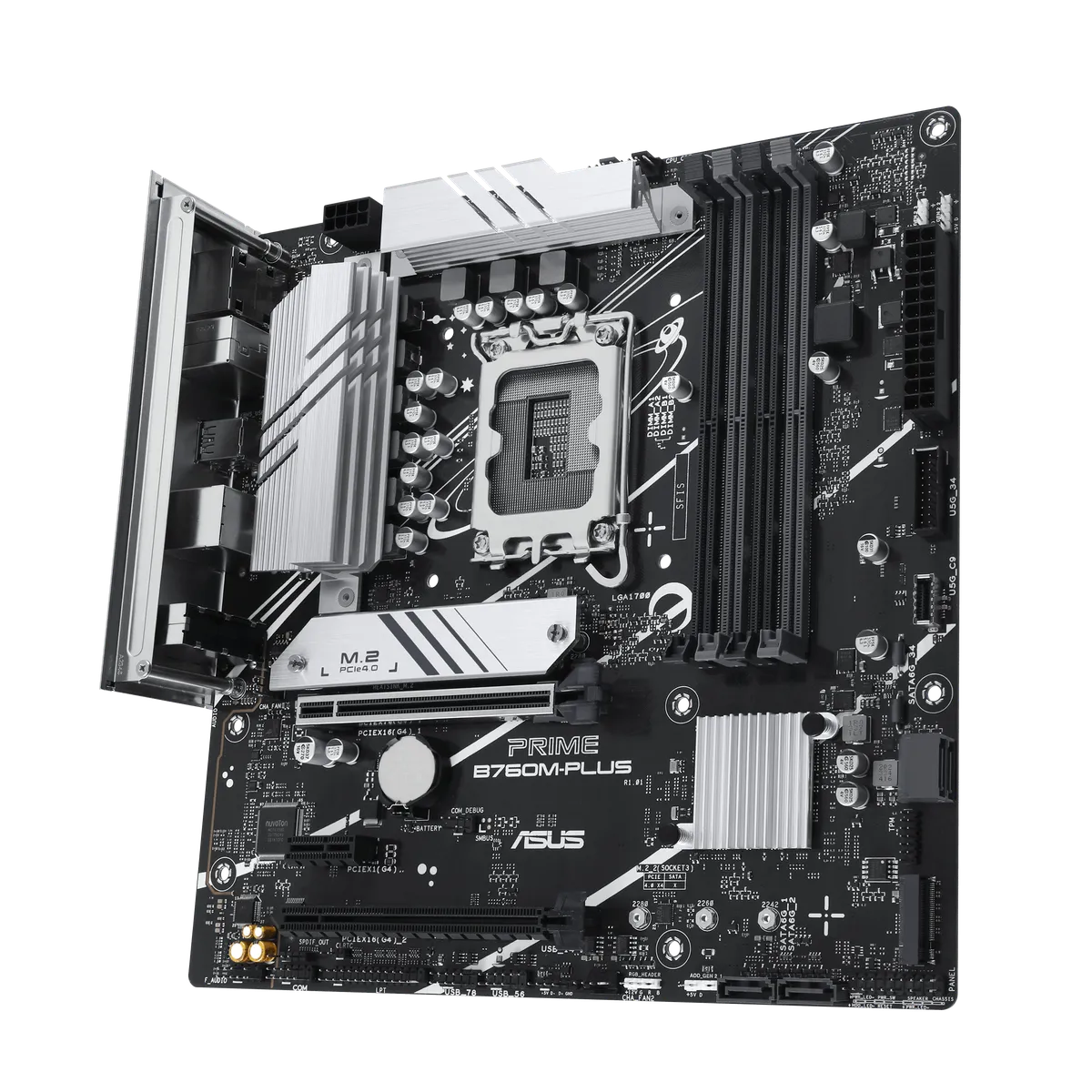

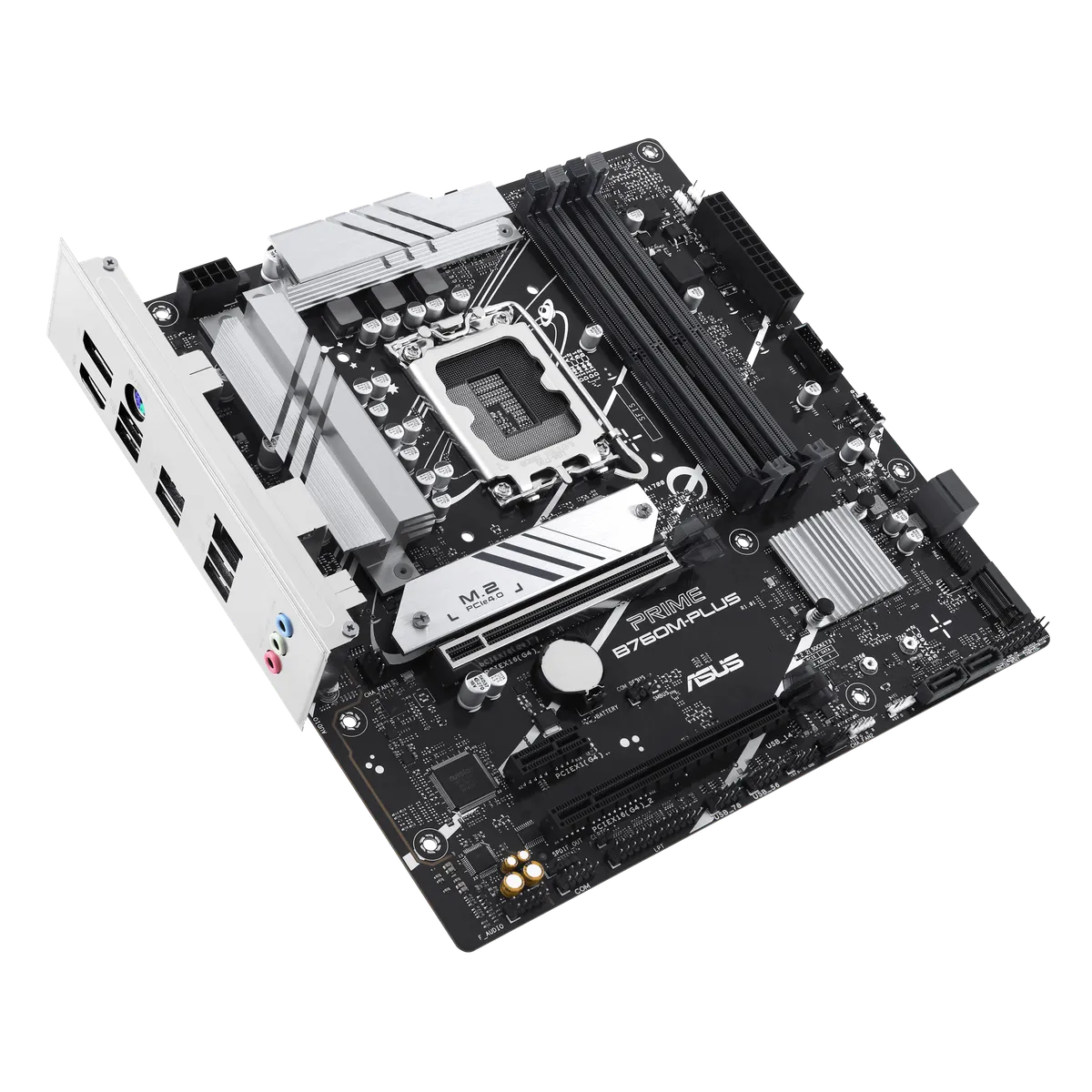

ASUS PRIME B760M-PLUS
Quick Specs
ChipsetIntel | ® | B760 Chipset
SocketLGA 1700
MemoryDDR5
Form FactormATX
M.2 Slots3
Model: 25135
About this motherboards
Intel® B760 (LGA 1700) micro-ATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, rear USB 10Gbps, front USB 5Gbps Type-C®, Aura Sync
Technical Specifications22 specs
General
Model
PRIME B760M-PLUS
Cpu
- Intel
- ®
- Socket LGA1700 for Intel
- ®
- Core™ 14th & 13th Gen Processors, Intel
- ®
- Core™ 12th Gen, Pentium
- ®
- Gold and Celeron
- ®
- Processors
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- B760 Chipset
Memory
- 4 x DIMM slots, max. 192GB, DDR5
- 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- ASUS Enhanced Memory Profile II (AEMP II)
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
- 1 x DisplayPort
- 1 x HDMI
- ™
- port
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
- Intel
- ®
- Core
- TM
- Processors (14th & 13th & 12th Gen)
- 1 x PCIe 4.0 x16 slot
- Intel
- ®
- B760 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x1 slot
- - To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/
- for the list of supported peripherals.
Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel
- ®
- Core
- TM
- Processors (14th & 13th & 12th Gen)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel
- ®
- B760 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Intel
- ®
- Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
- 1 x Realtek 2.5Gb Ethernet
- ASUS LANGuard
Usb
- Rear USB (Total 6 ports)
- 2 x USB 10Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 8 ports
- )
- 1 x USB 5Gbps connector ((supports USB Type-C
- ®
- )
- 1 x USB 5Gbps headers support 2 additional USB 5Gbps ports
- 3 x USB 2.0 header support 5 additional USB 2.0 ports
- * USB Type-C
- ®
- power delivery output: max. 5V/3A
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback"
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 2 x USB 10Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 3 x USB 2.0 header support 5 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front panel audio header (F_AUDIO)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - ESD Guards
- - LANGuard
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - ProCool
- AURA Sync
- - AURA RGB header
- - Addressable Gen 2 headers
Software Features
- AASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- - Fan Xpert 2+
- - Power Saving
- - Two-Way AI Noise Cancelation
- AI Suite 3
- - Digi+ VRM
- - PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
- Documentation
- 1 x Quick start guide
Operating System
- Windows
- ®
- 11, Windows
- ®
- 10 64-bit
Form Factor
- micro-ATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Physical Dimensions
Length Mm
243.8
Width Mm
243.8
Height Mm
619.8
