ASUS PRIME B760-PLUS D4
Quick Specs
ChipsetIntel | ® | B760 Chipset
SocketLGA 1700
MemoryDDR4
Form FactorATX
M.2 Slots4
Model: 22349
About this motherboards
ASUS Prime B760-PLUS D4, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
Technical Specifications23 specs
General
Model
PRIME B760-PLUS D4
Cpu
- Intel
- ®
- Socket LGA1700 for Intel
- ®
- Core™ 14
- th
- & 13
- th
- Gen Processors, Intel
- ®
- Core™ 12
- th
- Gen, Pentium
- ®
- Gold and Celeron
- ®
- Processors
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- * Refer to
- www.asus.com
- for CPU support list.
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- B760 Chipset
Memory
- 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/ 2800/2666/2400/2133 Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel
- ®
- Extreme Memory Profile (XMP)
- OptiMem
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
- https://www.asus.com/support/
- .
Graphics
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI
- ®
- port
- * Graphics specifications may vary between CPU types. Please refer to
- www.intel.com
- for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI
- ®
- 2.1.
Expansion Slots
- Intel
- ®
- Core™ Processors (14
- th
- & 13
- th
- & 12
- th
- Gen)
- 1 x PCIe 5.0 x16 slot
- Intel
- ®
- B760 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots
- Note: To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/
- for the list of supported peripherals.
Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel
- ®
- Core™ Processors (14
- th
- & 13
- th
- & 12
- th
- Gen)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel
- ®
- B760 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6Gb/s ports
- * Intel
- ®
- Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless Bluetooth
- Vertical M.2 slot only (Key E, CNVi & PCIe)
- * Wi-Fi module is sold separately.
Usb
- Rear USB (Total 6 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C
- ®
- )
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C
- ®
- )
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

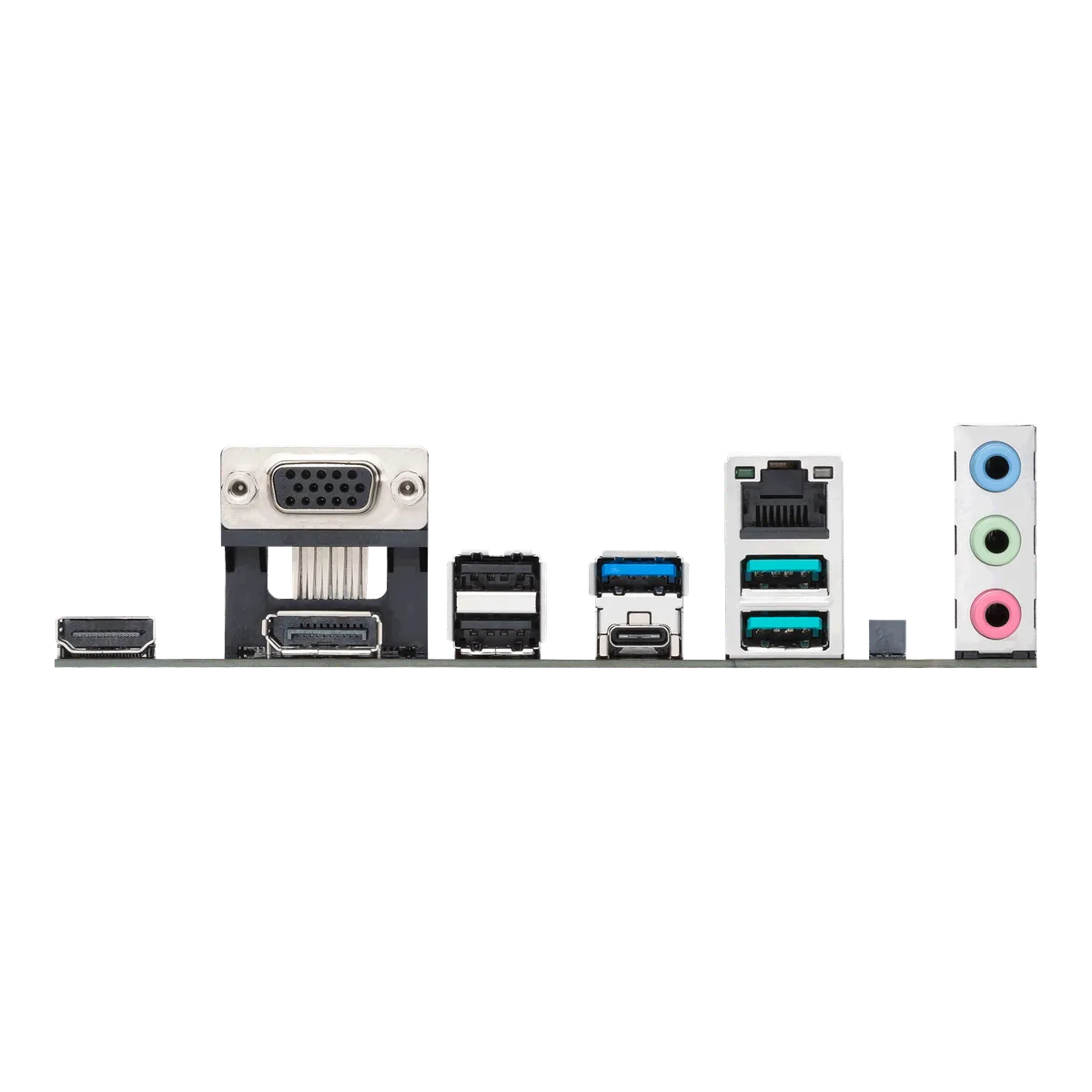

Back Panel I O Ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C
- ®
- )
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI
- ®
- port
- 1 x Vertical M.2 slot (Key E)
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C
- ®
- )
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt™ (USB4
- ®
- ) header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - ProCool
- Aura Sync
- - Aura RGB header
- - Addressable Gen 2 headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 2+
- - Power Saving
- AI Suite 3
- - DIGI+ VRM
- - PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x Screw Packages for M.2 SSD
- Documentation
- 1 x User guide
Operating System
- Windows
- ®
- 11, Windows
- ®
- 10 64-bit
Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Physical Dimensions
Length Mm
304.8
Width Mm
243.8
Height Mm
774.7
