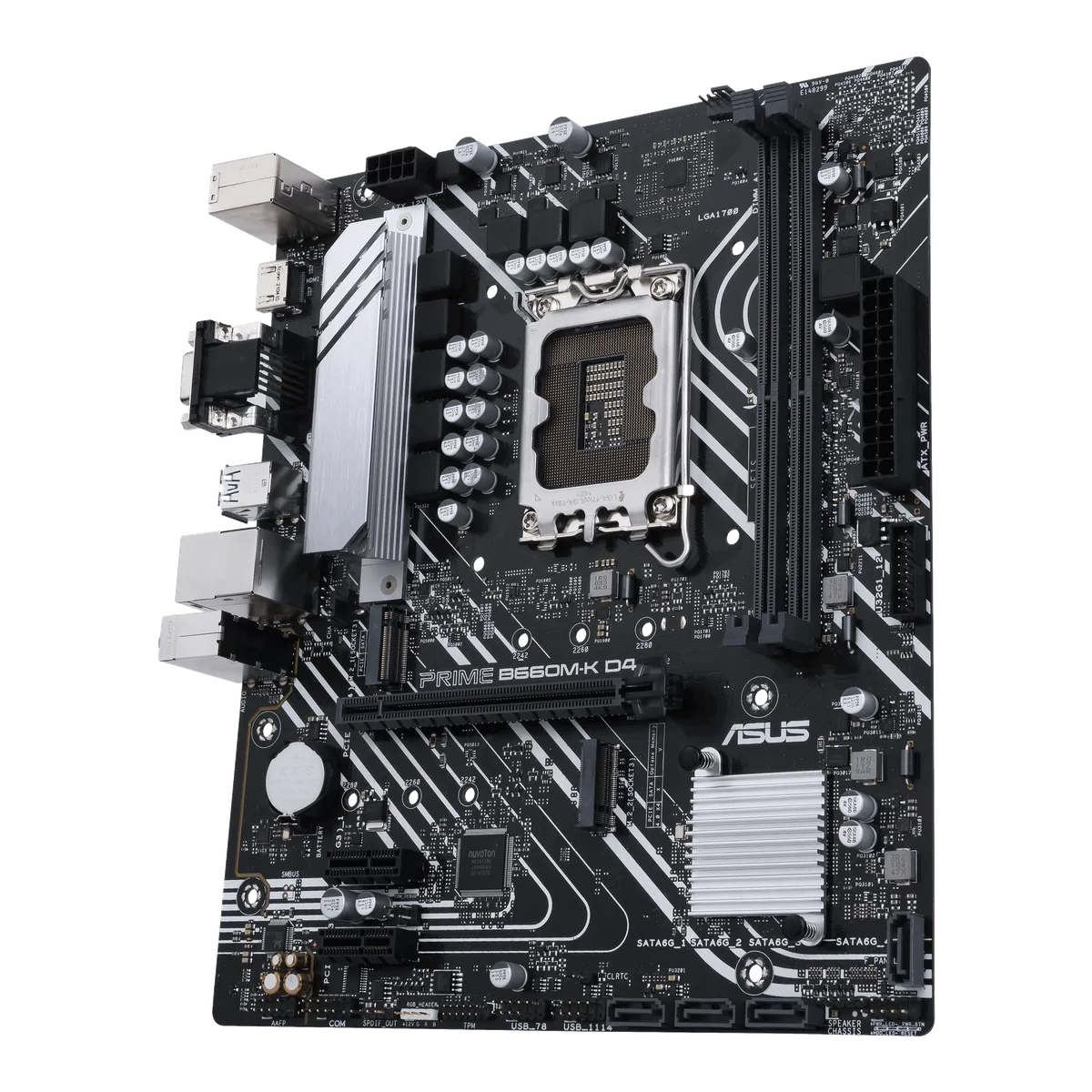

ASUS PRIME B660M-K D4
MotherboardsAsus

ASUS PRIME B660M-K D4

Price TBC

Compatibility Data

SocketLGA 1700
ChipsetIntel | ® | B660 Chipset
Form FactormATX
Memory TypeDDR4
M2 Slots4
Model: 20278

Technical Specifications21 specs

General

Model
PRIME B660M-K D4
Cpu
  • Intel
  • ®
  • Socket LGA1700 for Intel
  • ®
  • Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium
  • ®
  • Gold and Celeron
  • ®
  • Processors
  • Supports Intel
  • ®
  • Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
  • ** Intel
  • ®
  • Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
  • Intel
  • ®
  • B660 Chipset
Memory
  • 2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/ 2800/2666/2400/2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel
  • ®
  • Extreme Memory Profile (XMP)
  • * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to
  • www.asus.com
  • for memory support list.
Graphics
  • 1 x D-Sub port
  • 1 x HDMI
  • TM
  • port
  • * Graphics specifications may vary between CPU types. Please refer to
  • www.intel.com
  • for any updates.
  • ** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
  • Intel
  • ®
  • Core™ Processors (14th &13th & 12th Gen)
  • 1 x PCIe 4.0/3.0 x16 slot
  • Intel
  • ®
  • B660 Chipset
  • 2 x PCIe 3.0 x1 slots
Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel
  • ®
  • Core™ Processors (14th &13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  • Intel
  • ®
  • B660 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • ** Intel
  • ®
  • Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
  • 1 x Realtek 1Gb Ethernet
  • ASUS LANGuard
Usb
  • Rear USB (Total 6 ports)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A）
  • Front USB (Total 6 ports)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback"
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMI
  • TM
  • port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
Internal I O
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-Slot
  • ASUS EZ DIY
  • - ProCool
  • ASUS Thermal Solution
  • - VRM heatsink design
  • ASUS Lighting Control
  • -RGB header
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • Fan Xpert
  • ASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
  • Cables
  • 2x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 2 x M.2 anchors
  • Installation Media
  • 1 x Support DVD
  • Documentation
  • 1 x User manual
Operating System
  • Windows
  • ®
  • 11 64-bit, Windows
  • ®
  • 10 64-bit
Form Factor
microATX24.4cm x 21.1cm

Physical Dimensions

Length Mm
244
Width Mm
211
