ASUS PRIME B560M-K
Quick Specs
ChipsetB560
SocketLGA 1200
MemoryDDR4
M.2 Slots4
Model: 15546
About this motherboards
PRIME B560M-K Intel® B560 (LGA 1200) mATX motherboard features PCIe 4.0 support with SafeSlot core, two M.2 slots, USB 3.2 Gen 1,Intel® 1 Gb Ethernet. PRIME B560M-K caters to daily users and all builders looking for well-rounded specs and a range of options for performance tuning via intuitive software and firmware.
Technical Specifications17 specs
General
Model
PRIME B560M-K
Cpu
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Intel
- ®
- Socket LGA1200 for 11
- th
- Gen Intel
- ®
- Core™ Processors & 10
- th
- Gen Intel
- ®
- Core™, Pentium
- ®
- Gold and Celeron
- ®
- Processors
- Supports Intel
- ®
- 14 nm CPU
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- * Refer to
- www.asus.com
- for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
B560
Memory
- DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/ 4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/ 3200(OC)/2933/2800/2666/2400/ 2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel
- ®
- Extreme Memory Profile (XMP)
- * 10
- th
- Gen Intel
- ®
- Core™ i7/i9 processors support 2933/2800/2666/2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
- * 11
- th
- Gen Intel
- ®
- processors support 2933/2800/2666/2400/2133 natively.
- * Refer to
- www.asus.com
Graphics
- 1 x D-Sub
- 1 x HDMI 2.0
- * Graphics specifications may vary between CPU types.
- ** Only Intel® 11
- th
- Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to
- www.intel.com
- for any updates.
Expansion Slots
- Intel
- ®
- 11
- th
- &10
- th
- Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- - Intel
- ®
- 11
- th
- Gen processors support PCIe 4.0 x16 mode
- - Intel
- ®
- 10
- th
- Gen processors support PCIe 3.0 x16 mode
- Intel
- ®
- B560 Chipset
- 2 x PCIe 3.0 x1 slots
Storage
- Intel
- ®
- 11
- th
- Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280
- - Only Intel
- ®
- 11
- th
- Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
- Intel
- ®
- B560 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 6 x SATA 6Gb/s ports
- * The M.2_2 shares bandwidth with SATA6G_2.When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
Usb
- Total 6 ports
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium Japanese audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

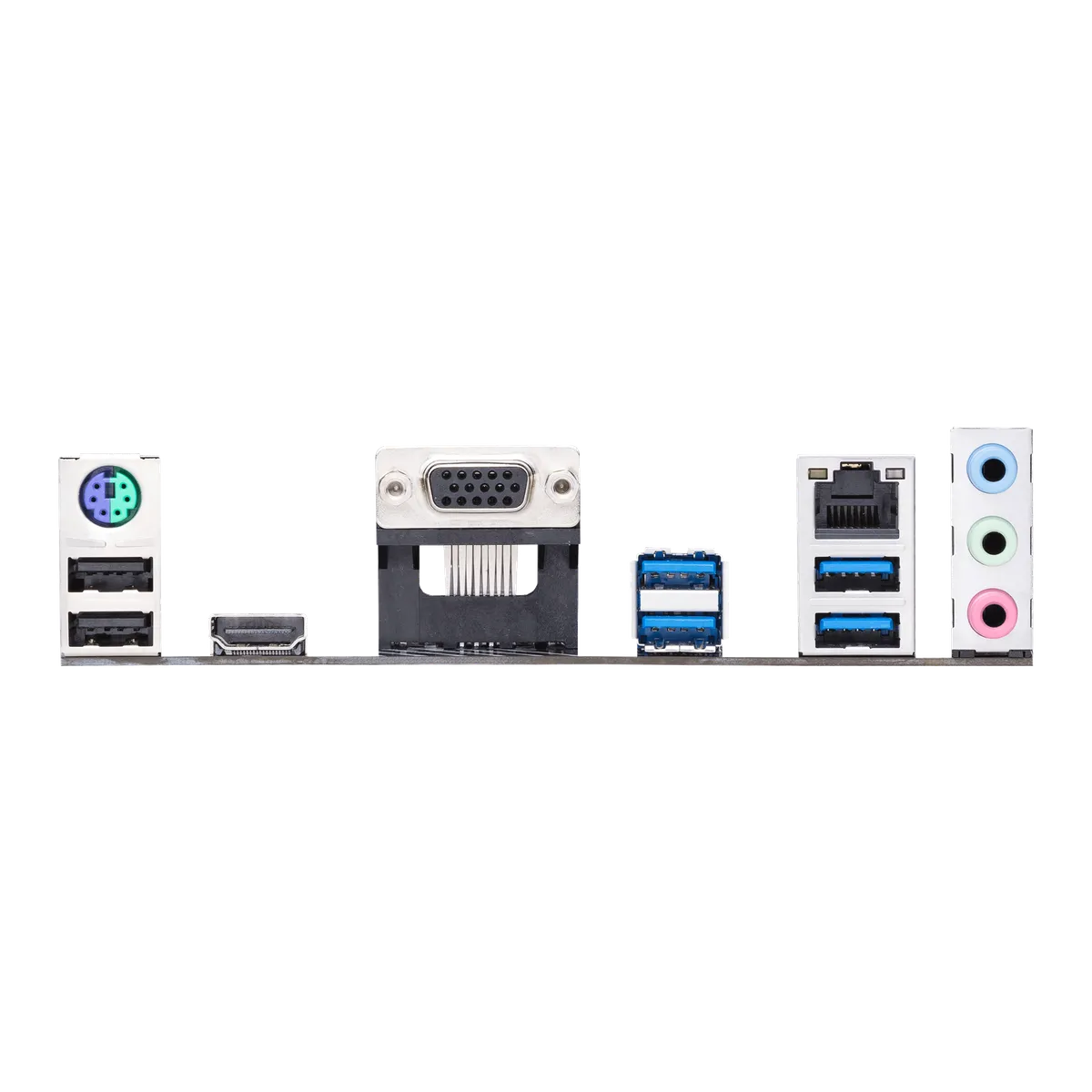

Back Panel I O Ports
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x Intel® I219-V 1Gb Ethernet
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin+12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-Slot
- ASUS Thermal Solution
- - VRM heatsink design
- ASUS Lighting Control
- -RGB header
Software Features
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- - Performance And Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- Fan Xpert
- - EZ update
- ASUS CPU-Z
- AI Charger
- DAEMON Tools
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 2 x M.2 anchors
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x User manual
Operating System
Windows 10 64bit
