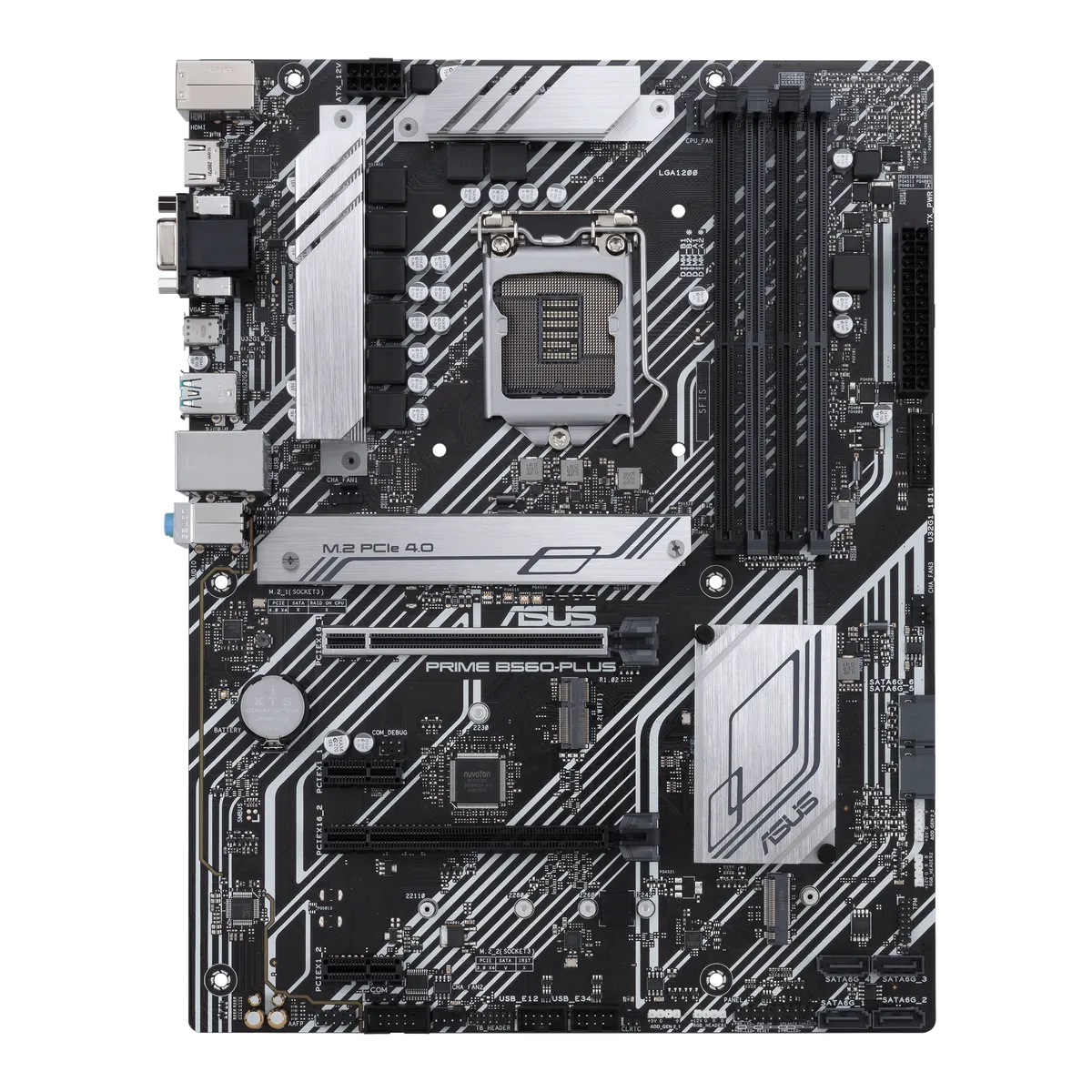

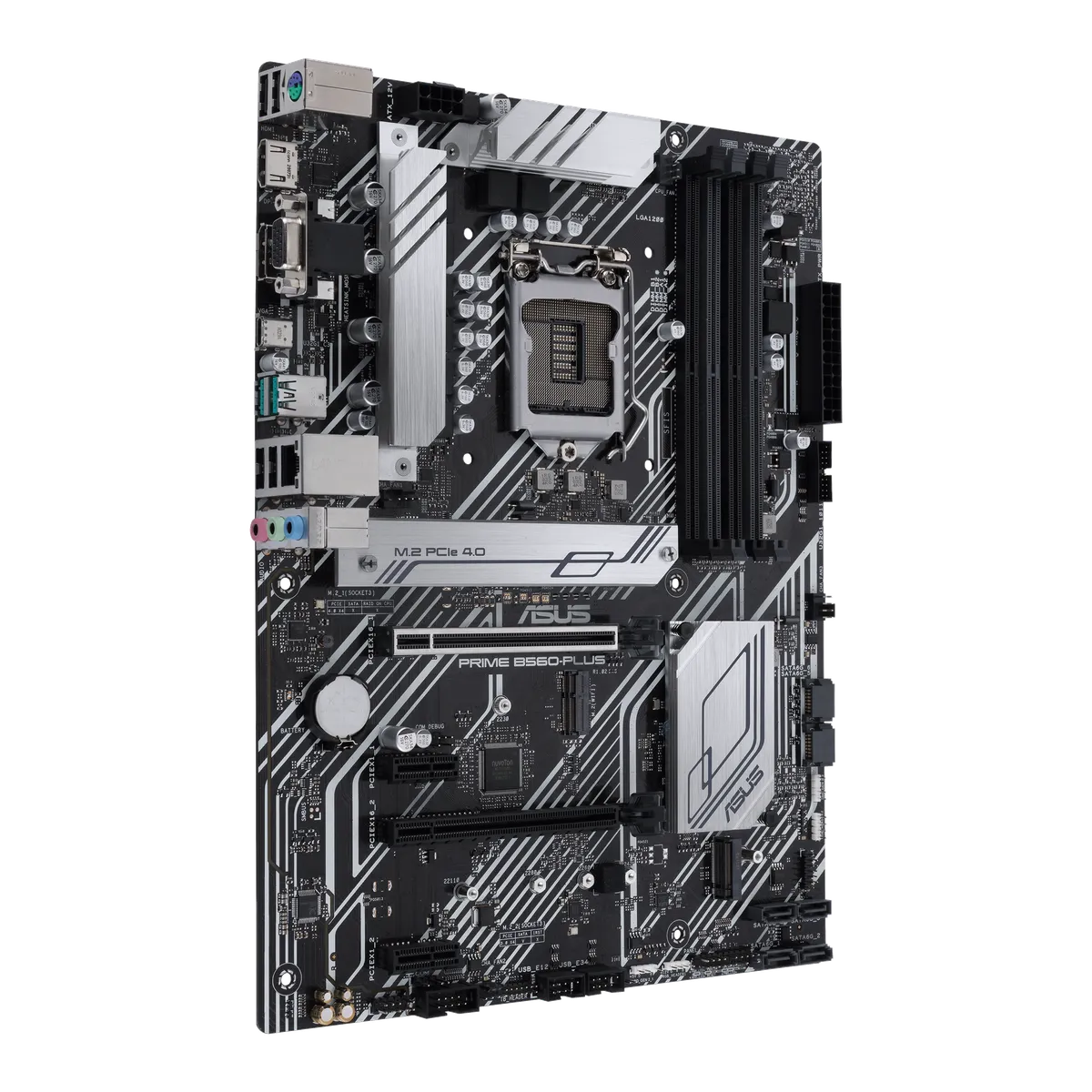

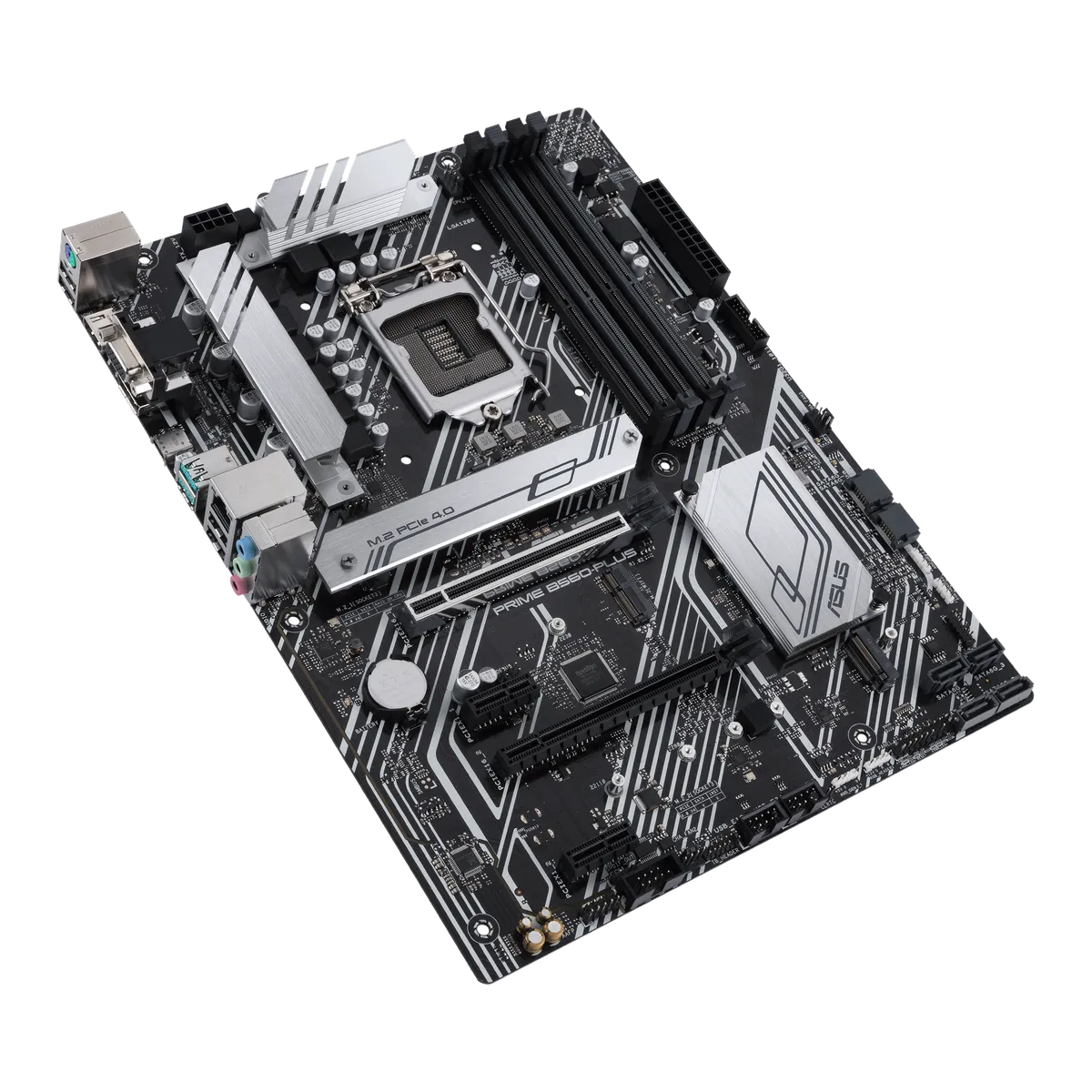

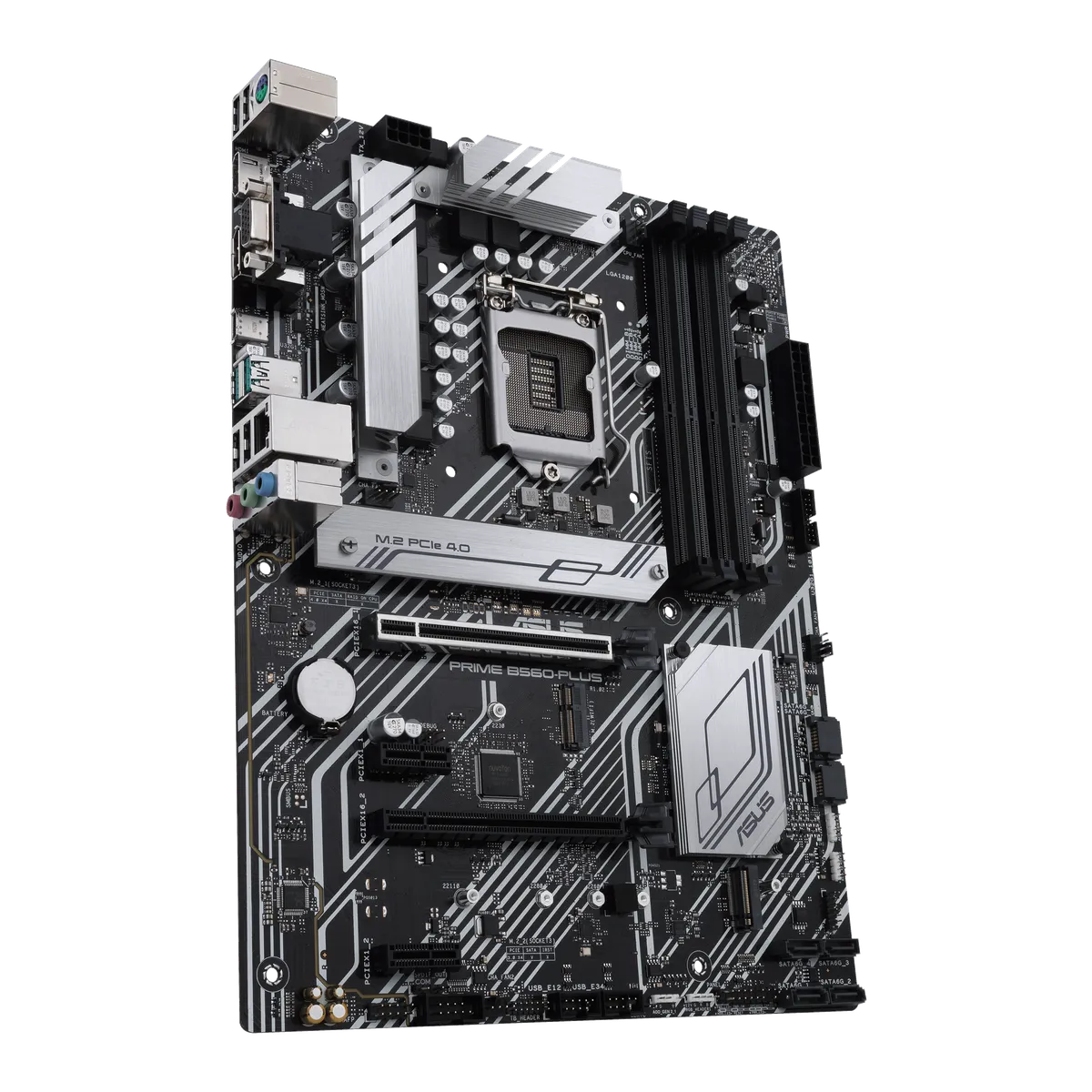

ASUS PRIME B560-PLUS
Quick Specs
ChipsetIntel | ® | B560 Chipset
SocketLGA 1200
MemoryDDR4
Form FactorATX
M.2 Slots4
Model: 15530
About this motherboards
PRIME B560-PLUS Intel® B560 (LGA 1200) ATX motherboard features PCIe 4.0 support with SafeSlot core+, two M.2 slots with one flexible M.2 heatsink, USB 3.2 Gen 2, Thunderbolt™ 4 support and Intel® 1 Gb Ethernet. Prime B560-PLUS caters to daily users and all builders looking for well-rounded specs and a range of options for performance tuning via intuitive software and firmware.
Technical Specifications23 specs
General
Model
PRIME B560-PLUS
Cpu
- Intel
- ®
- Socket LGA1200 for 11
- th
- Gen Intel
- ®
- Core™ processors & 10
- th
- Gen Intel
- ®
- Core™, Pentium
- ®
- Gold and Celeron
- ®
- Processors
- Supports Intel
- ®
- 14nm CPU
- Supports Intel
- ®
- Turbo Boost Technology 2.0 and Intel
- ®
- Turbo Boost Max Technology 3.0
- ** Intel
- ®
- Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel
- ®
- B560 Chipset
Memory
- 4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/ 3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/ 2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- ASUS OptiMem
- * 11
- th
- Gen Intel
- ®
- processors support 2933/2800/2666/2400/2133 natively.
- * 10
- th
- Gen Intel
- ®
- Core™ i7/i9 processors support 2933/2800/2666/2400/ 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Graphics
- 1 x DP 1.4
- 1 x HDMI
- TM
- 1.4 / 2.0
- 1 x D-Sub
- * Graphics specifications may vary between CPU types.
- ** For Intel
- ®
- 11
- th
- & 10
- th
- processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.Please refer to www.intel.com for any update.
- *** Only Intel
- ®
- 11
- th
- processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
- Intel
- ®
- 11
- th
- &10
- th
- Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- - Intel
- ®
- 11
- th
- processors support PCIe 4.0 x16
- - Intel
- ®
- 10
- th
- processors support PCIe 3.0 x16
- Intel
- ®
- B560 Chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots
- *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel
- ®
- Optane Memory.
Storage
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel
- ®
- 11
- th
- Gen Processors
- -M.2_1slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
- -Only Intel
- ®
- 11
- th
- processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
- Intel
- ®
- B560 Chipset
- -M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode
- -6 x SATA 6Gb/s ports
- * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
Ethernet
- Intel
- ®
- I219-V
- ASUS LANGuard
Wireless Bluetooth
- M.2 slot only(Key E,CNVi & PCIe)
- (Wi-Fi module is sold separately)
Usb
- Rear USB (Total 7 ports)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1x USB 3.2 Gen 1 port (1 x USB Type-C®)
- 4 x USB 2.0 ports
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- Realtek ALC887/897 7.1-Channel High Definition Audio CODEC
- - Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

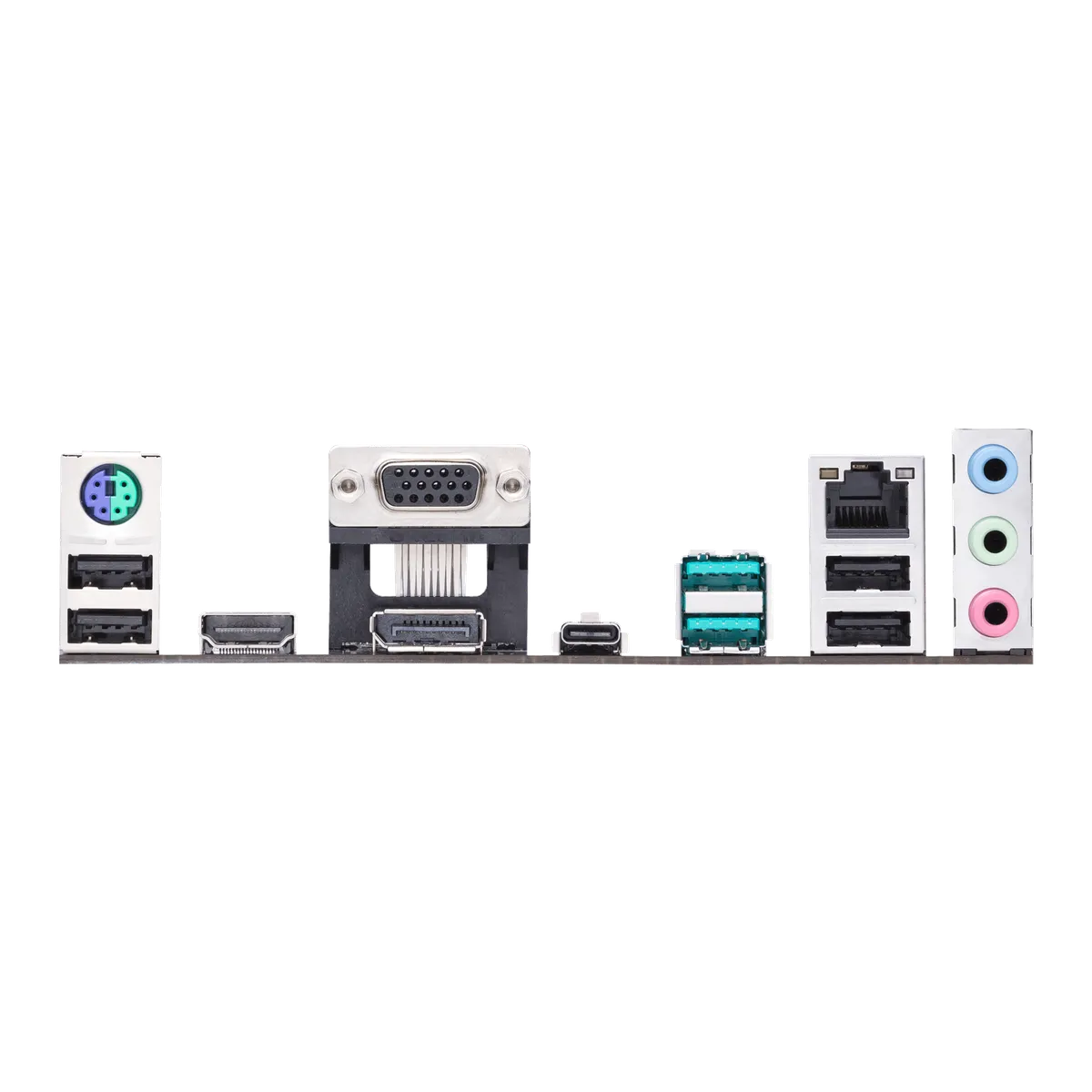

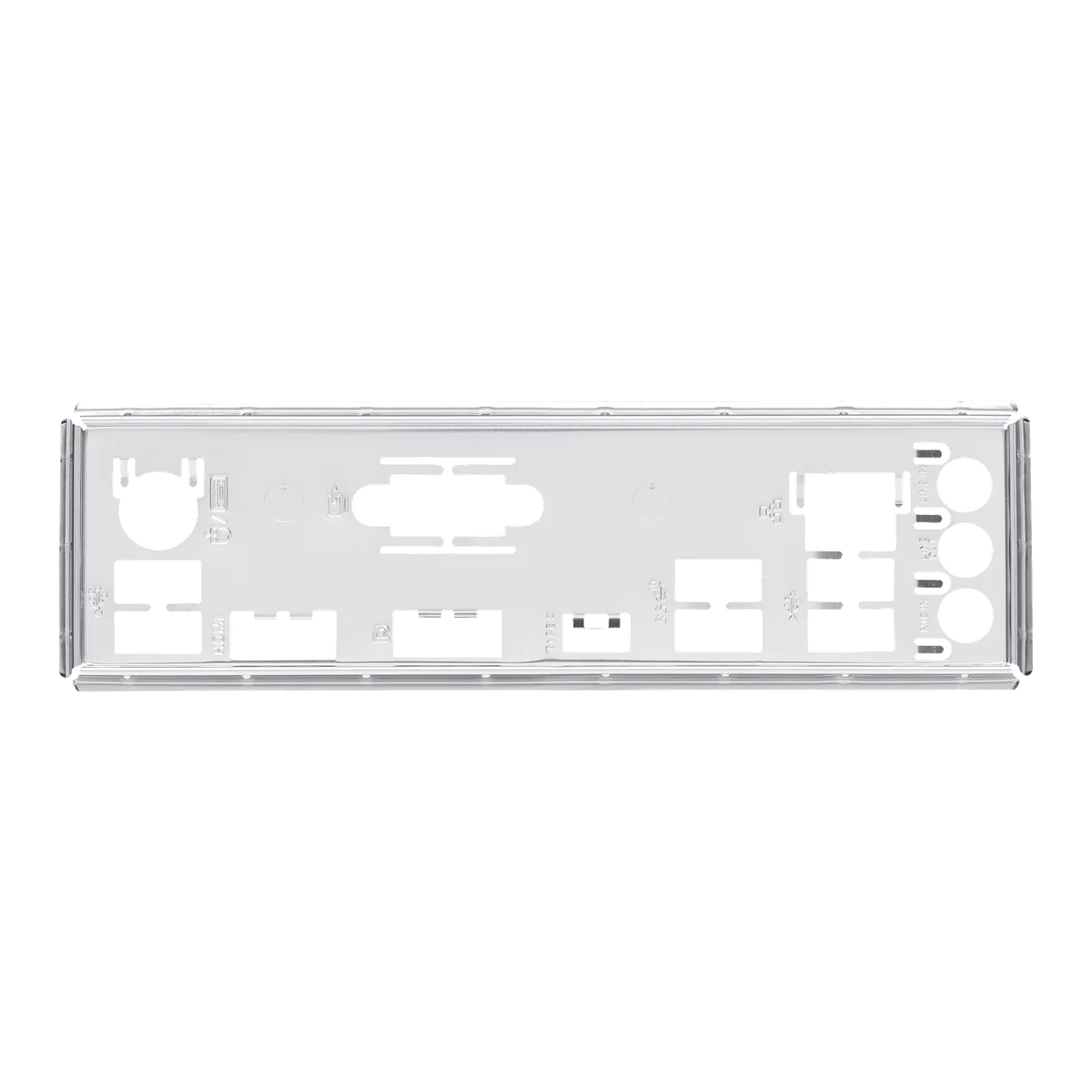

Back Panel I O Ports
- 1 x DP port
- 1 x HDMI port
- 1 x D-Sub port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
- 1 x Intel
- ®
- I219-V 1Gb Ethernet port
- 4 x USB 2.0 ports (4 x Type-A)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x USB Type-C
- ®
- )
Internal I O
- Fan and cooling-related
- 1 x 4-pin CPU Fan header
- 3 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS jumper
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF out header
- 1 x 20-3pin System Panel header with
- Chassis intrude function
- 1 x SPI TPM header (14-1 pin)
- 1 x M.2 slot (key E)
- 1 x Thunderbolt 4 header
Special Features
- ASUS 5X PROTECTION III
- - ASUS DIGI+VRM
- - ASUS LANGuard
- - ASUS Overvoltage Protection
- -ASUS SafeSlot Core+
- -ASUS Stainless-Steel Back I/O
- ASUS Q-Design:
- -ASUS Q-DIMM
- -ASUS Q-Slot
- ASUS Thermal Solution
- - Flexible M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - Box Headers
- AURA SYNC
- - AURA RGB headers
- - Addressable Gen 2 RGB headers
Software Features
- ASUS Exclusive Software:
- Armoury Crate
- - AURA Creator
- -AURA Sync
- AI Suite 3
- -Performance And Power Saving Utility
- Turbo EVO
- Digi+ VRM
- EPU
- Fan Xpert 2+
- - EZ update
- ASUS CPU-Z
- DAEMON Tools
- Norton Anti-virus software(Free Trial for 60 days)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x M.2 Rubber Package
- 1 x IO Shield
- 1 x M.2 SSD screw package
- 1 x M.2 Key E screw package
- Installation Media
- 1 x Supporting DVD
- Documentation
- 1 x User's manual
Operating System
- Windows
- ®
- 10 - 64 bit
Form Factor
- ATX Form Factor
- 12.0 inch x 9.2 inch (30.5 cm x 23.4cm)
Physical Dimensions
Length Mm
304.8
Width Mm
233.7
Height Mm
774.7
