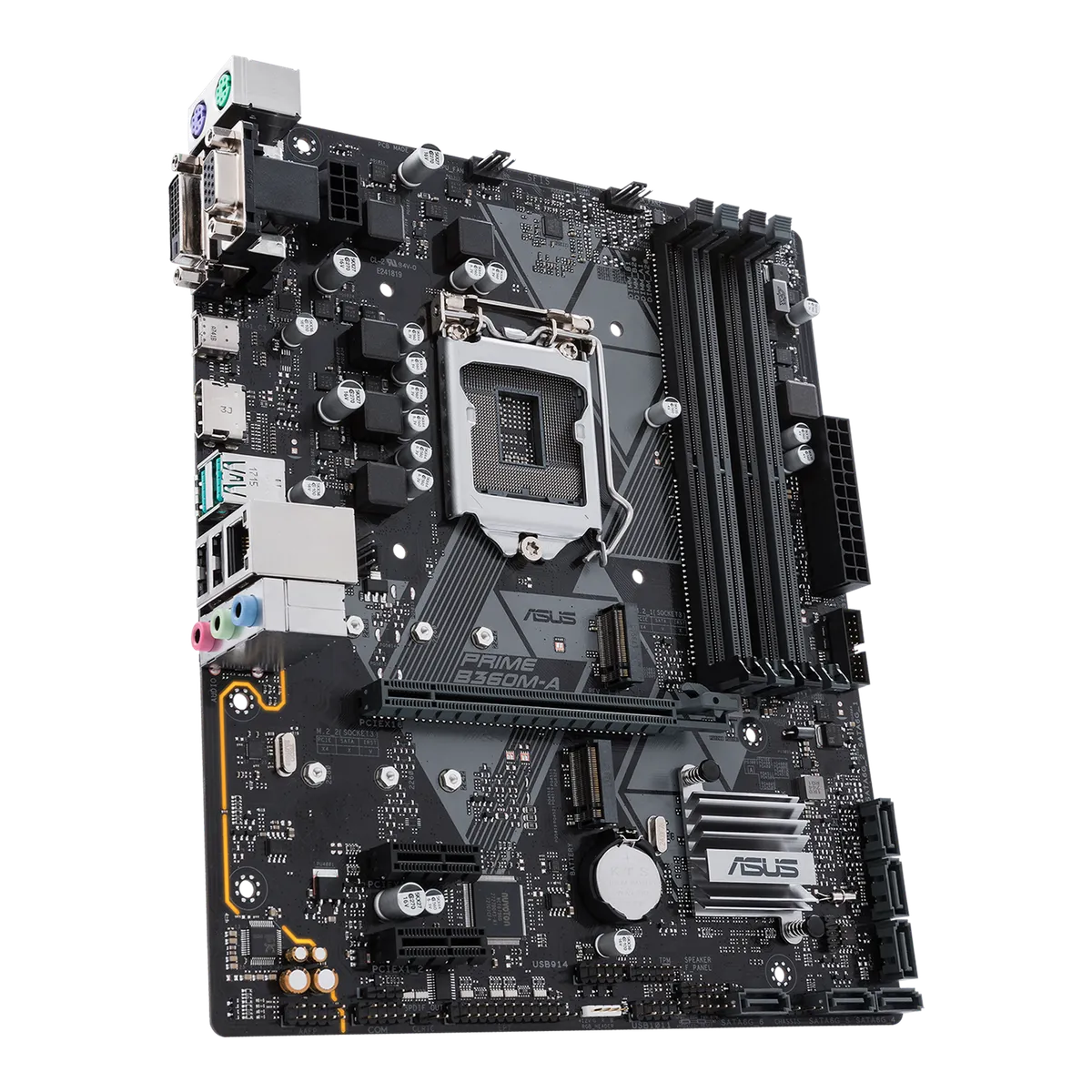

ASUS PRIME B360M-A

Name: ASUS PRIME B360M-A
Brand: Asus
SKU: 9976

Check Price

Quick Specs

ChipsetIntel® B360

MemoryDDR4

Form FactormATX

M.2 Slots2

Model: 9976

About this motherboards

Experience groundbreaking tech with PRIME B360M-A: Aura Sync RGB, DDR4 2666MHz, M.2 support & Intel Optane memory. Elevate your daily tech interaction.

Technical Specifications21 specs

General

Model

PRIME B360M-A

Cpu

Intel® Socket 1151for 8
th
Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,* Refer to
www.asus.com
for CPU support list

Chipset

Intel® B360

Memory

Intel® B360 Chipset
,4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.,* The maximum memory frequency supported varies by processor,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture,* Refer to
www.asus.com

Graphic

Multi-VGA output support : HDMI/DVI-D/RGB ports,- Supports DVI with max. resolution 1920 x 1200 @ 60Hz,Integrated Graphics Processor- Intel® HD Graphics support,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

Expansion Slots

2 x PCIe 3.0/2.0 x1,1 x PCIe 3.0 x16 (x16 mode)

Storage

Intel® B360 Chipset :
,1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),6 x SATA 6Gb/ s port(s), gray

Lan

Realtek® RTL8111H, 1 x Gigabit LAN,ASUS LAN Guard

Audio

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.,- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.,Realtek® ALC8878-Channel High Definition Audio CODEC

Usb Ports

6 x USB 2.0/1.1 port(s) (2 at back panel, +black, Type-A, 4 at mid-board),2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A),3 x USB 3.1 Gen 1 up to 5Gbps port(s) (1 at back panel, , USB Type-C
TM
, 2 at mid-board)
Intel® B360 Chipset :

Special Features

- File Transfer,- ASUS DIGI+ VRM: 5 Phase digital power design,- Optimem (Improved DDR4 stability)
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
,- ASUS Fan Xpert 2+
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS OptiMem：
ASUS EPU :
,- EPU
ASUS Exclusive Features
:,- AI Suite 3,- Ai Charger,- PC Cleaner
ASUS Quiet Thermal Solution
:,- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
,- ASUS Q-DIMM

Back I O Ports

1 x USB 3.1 Gen 1 USB Type-C
TM
, up to 5Gbps,2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps,1 x 8-channel Audio I/O,1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green)

Internal I O

1 x LPT header,1 x Chassis intrusion header,1 x Aura RGB Strip Header,2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices,2 x Chassis Fan connector(s),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x Speaker connector

Accessories

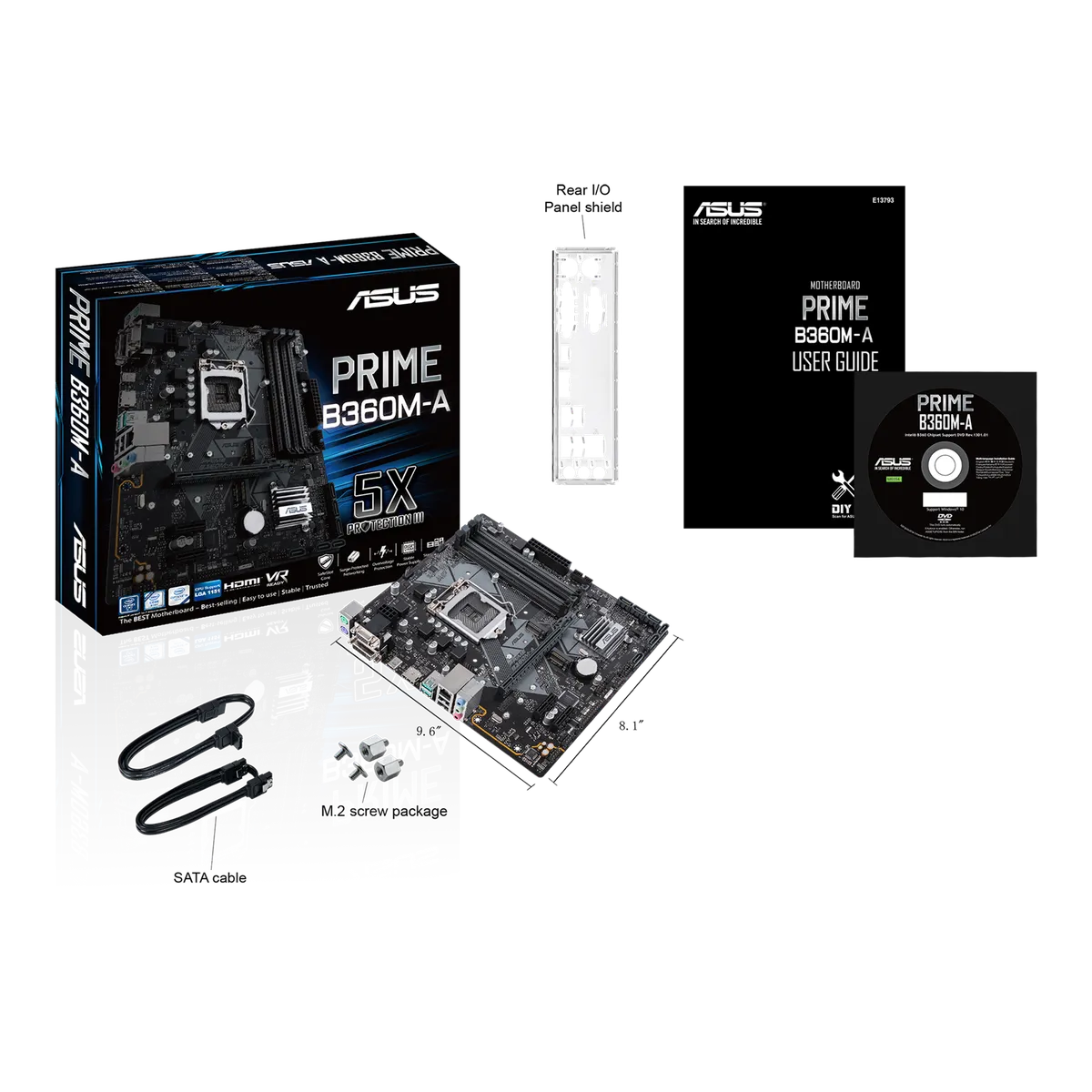

2 x M.2 screws,User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD

Bios

128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial
Presence Detect) memory information

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

9.6 inch x 8.1 inch ( 24.4 cm x 20.6 cm ),mATX Form Factor
