ASUS PRIME A620M-E
Quick Specs
ChipsetAMD A620 Chipset
SocketAM5
MemoryDDR5
Form FactormATX
M.2 Slots2
Model: 23656
About this motherboards
PRIME A620M-E is equipped with excellent features, including 2 Ounce copper PCB design, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, SATA 6 Gbps, USB 3.2 Gen 1 Type-A, DisplayPort/HDMI™/VGA, Addressable Gen 2 headers, Aura RGB header, Aura Sync, Q-LED Core, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation, Armoury Crate, ASUS 5X PROTECTION III and SafeSlot Core+, which will bring users maximizing performance, stability and compatibility for the very best DIY PC experiences.
Technical Specifications22 specs
General
Model
PRIME A620M-E
Cpu
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Supports up to AMD 120W CPU
- * Refer to
- www.asus.com
- for CPU support list.
Chipset
AMD A620 Chipset
Memory
- 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/ 5200/5000/4800 Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
- https://www.asus.com/support/
- .
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI™ port
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD A620 Chipset
- 2 x PCIe 3.0 x1 slots
- * Please check the PCIe bifurcation table on the support site (
- https://www.asus.com/support/FAQ/ 1037507/
- ).
- ** Specifications vary by CPU types.
- - To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/
- for the list of supported peripherals.
Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD A620 Chipset
- 4 x SATA 6Gb/s ports
- * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Realtek 1Gb Ethernet
Usb
- Rear USB (Total 8 ports)
- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

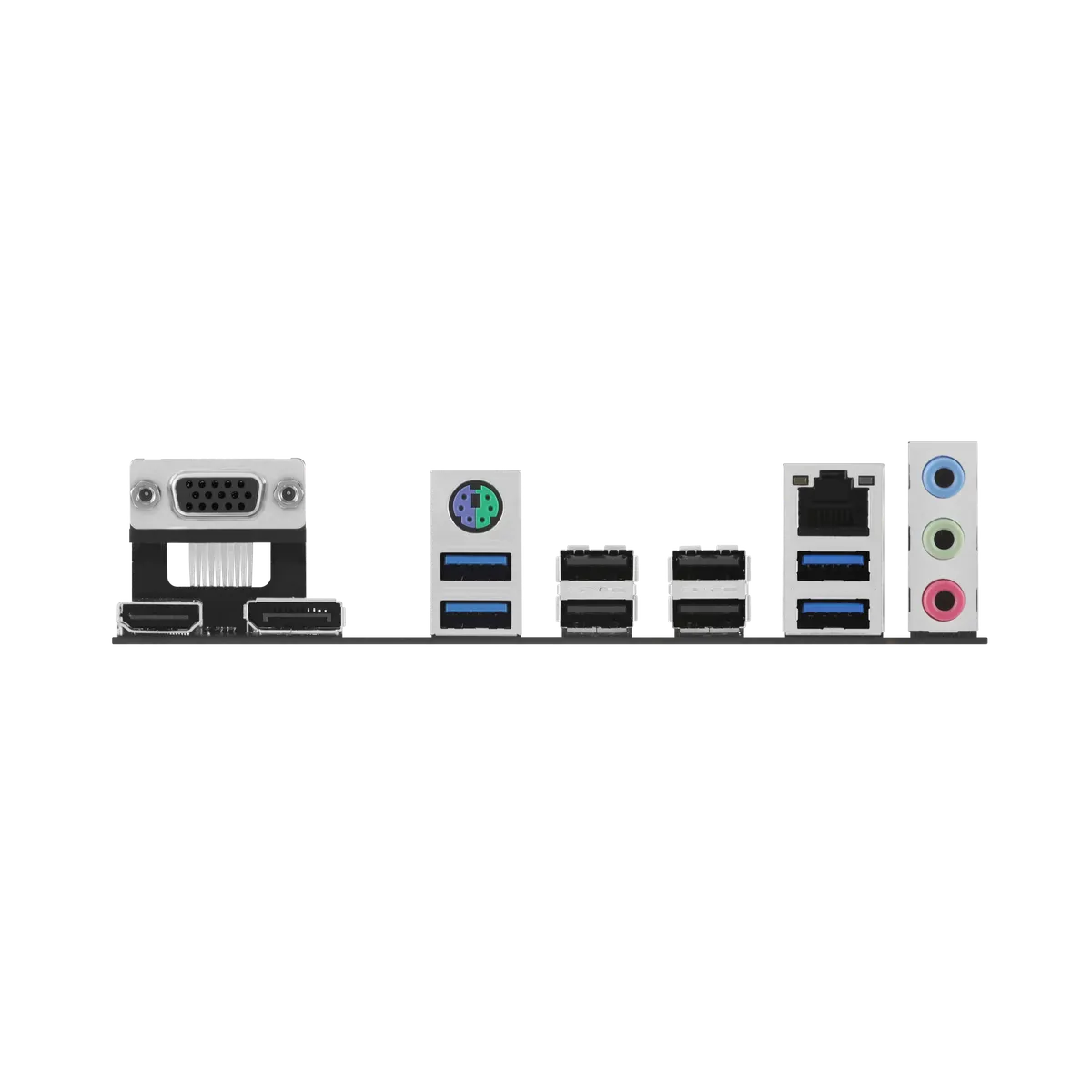

Back Panel I O Ports
- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 2 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- Aura Sync
- - Aura RGB header
- - Addressable Gen 2 headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 2+
- - Power Saving
- - Two-Way AI Noise Cancellation
- AI Suite 3
- - TurboV EVO
- - DIGI+ VRM
- - PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

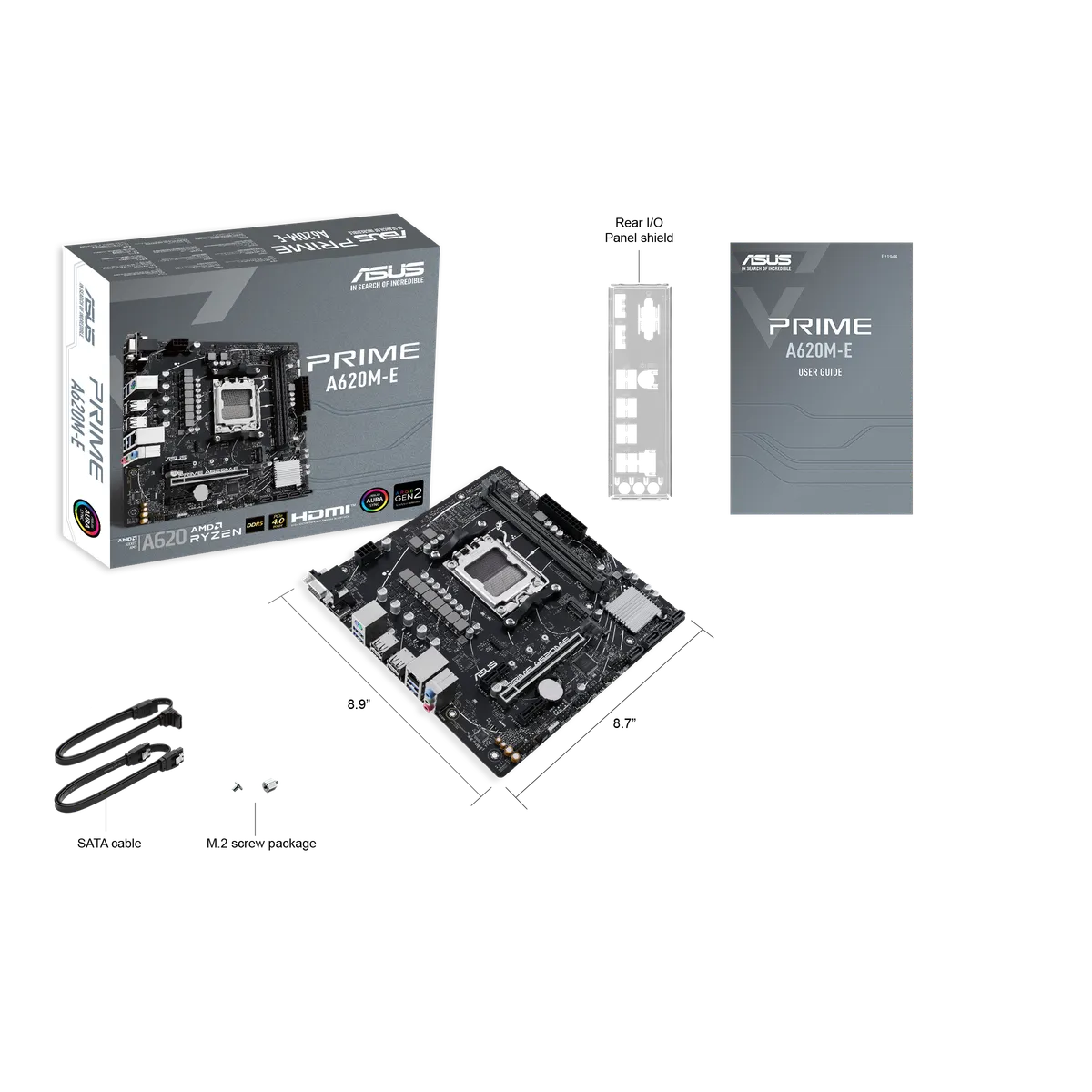

Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous

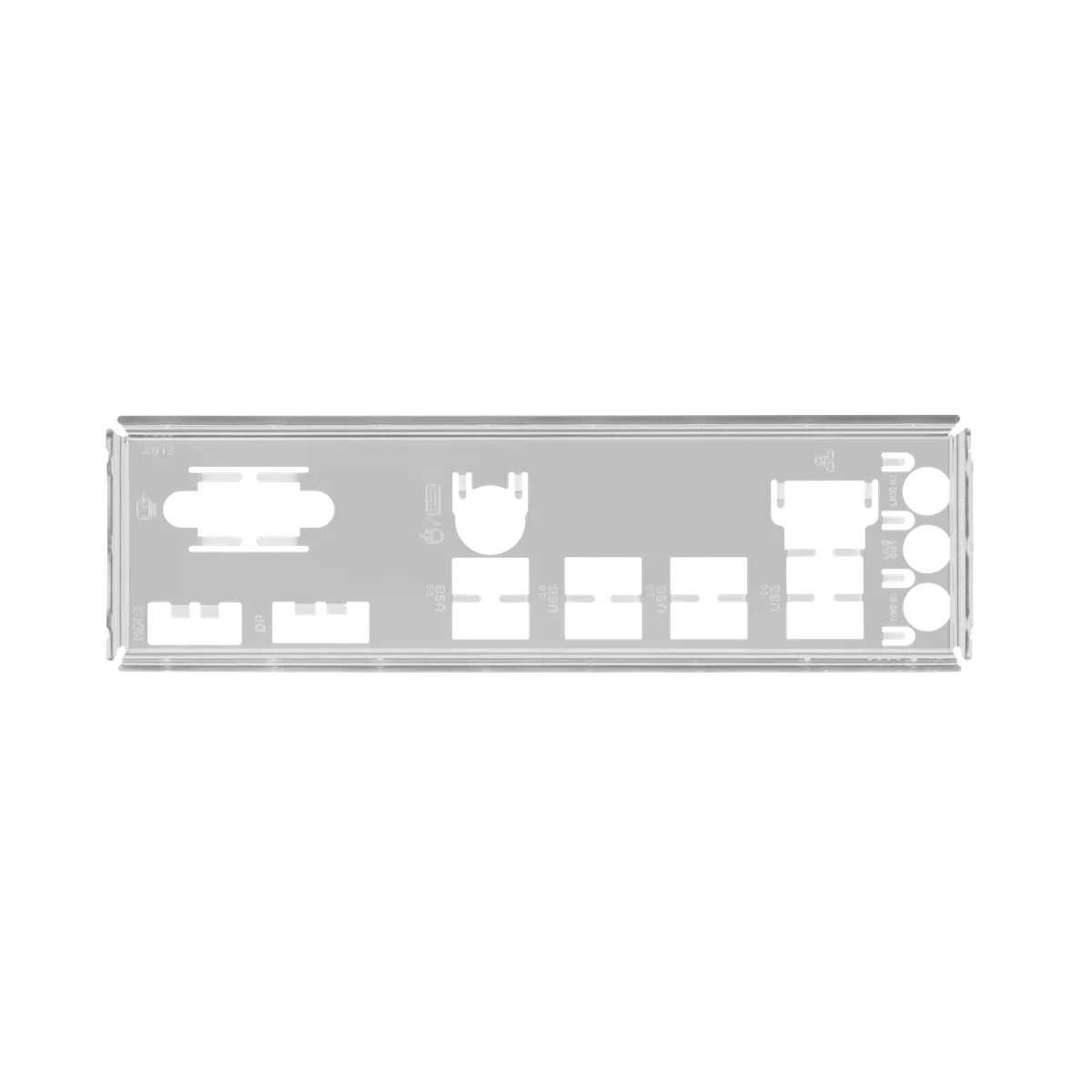

- 1 x I/O Shield
- 1 x Screw package for M.2 SSD
- Documentation
- 1 x User guide
Operating System
- Windows
- ®
- 11, Windows
- ®
- 10 64-bit
Form Factor
- micro-ATX Form Factor
- 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
Physical Dimensions
Length Mm
226.1
Width Mm
221
Height Mm
574
