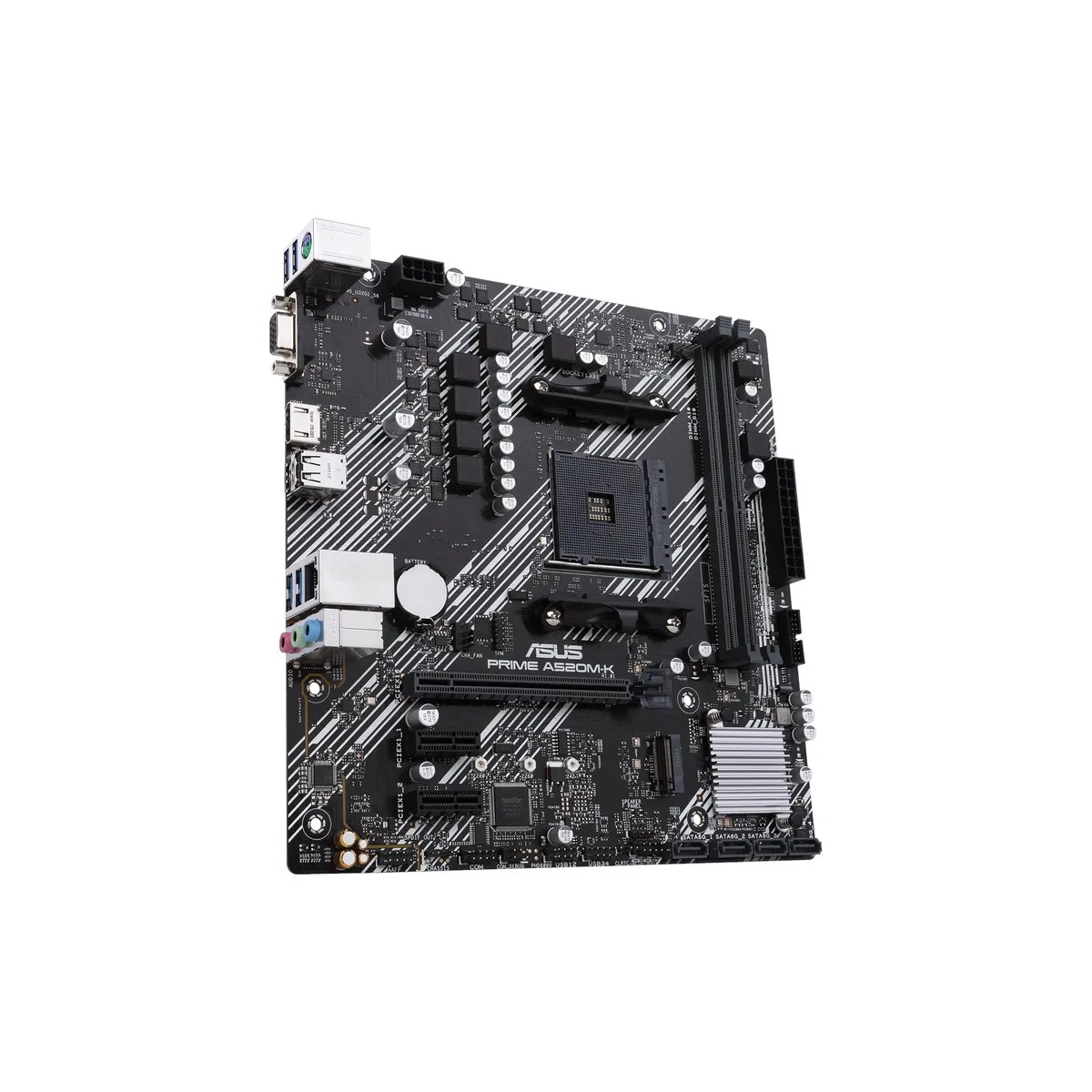

ASUS PRIME A520M-K
MPN: 14920
Key specifications
SocketAM4
Form factormATX
ChipsetAMD A520 Chipset
Memory typeDDR4
M.2 slots2
Max MemoryUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Add this to your build in the PC Builder to automatically check dimensions, sockets, and power draw.
Full Specifications23 fields
General
Model
PRIME A520M-K
News Updates
- Socket AM4
- Please visit our
- GLOBAL website
- to check and download the latest updates.
Cpu
- AMD Socket AM4 for AMD Ryzen
- ™
- 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- *Refer to
- www.asus.com
- for CPU support list.
Chipset
AMD A520 Chipset
Memory
- 2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory
- Dual Channel Memory Architecture
- *ECC memory(ECC mode) support varies by CPU.
- *Refer to
- www.asus.com
Graphics
- 1 x D-Sub
- 1 x HDMI
- ™
- 2.1(4K@60HZ)
Expansion Slots
- AMD Ryzen
- ™
- 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- 1 x PCIe 3.0 x16 slot (supports x16 mode)
- AMD A520 Chipset
- 2 x PCIe 3.0 x1 slots
Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- AMD Ryzen
- ™
- 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- AMD A520 Chipset
- 4 x SATA 6Gb/s ports
- Support RAID 0, 1, 10
Ethernet
1 x Realtek RTL8111H 1Gb Ethernet
Usb
- Rear USB (Total 6 ports)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Dedicated audio PCB layers
- *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x D-Sub port
- 1 x HDMI
- ™
- port
- 1 x Realtek RTL8111H 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Internal I O
- Fan and cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
- ASUS 5X PROTECTION III
- - ASUS DIGI+ VRM
- - ASUS LANGuard
- - ASUS Overvoltage Protection
- - ASUS SafeSlot Core
- - ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- - ASUS Q-DIMM
- - ASUS Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
Software Features
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- - Performance and Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- Fan Xpert
- - EZ update
- ASUS CPU-Z
- AI Charger
- DAEMON Tools
- Norton Anti-virus software (Free Trial for 60 days)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x User manual
Operating System
Windows 11, Windows 10 64-bit
Form Factor
- mATX Form Factor
- 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Physical Dimensions
Length Mm
226.1
Width Mm
221
Height Mm
574
