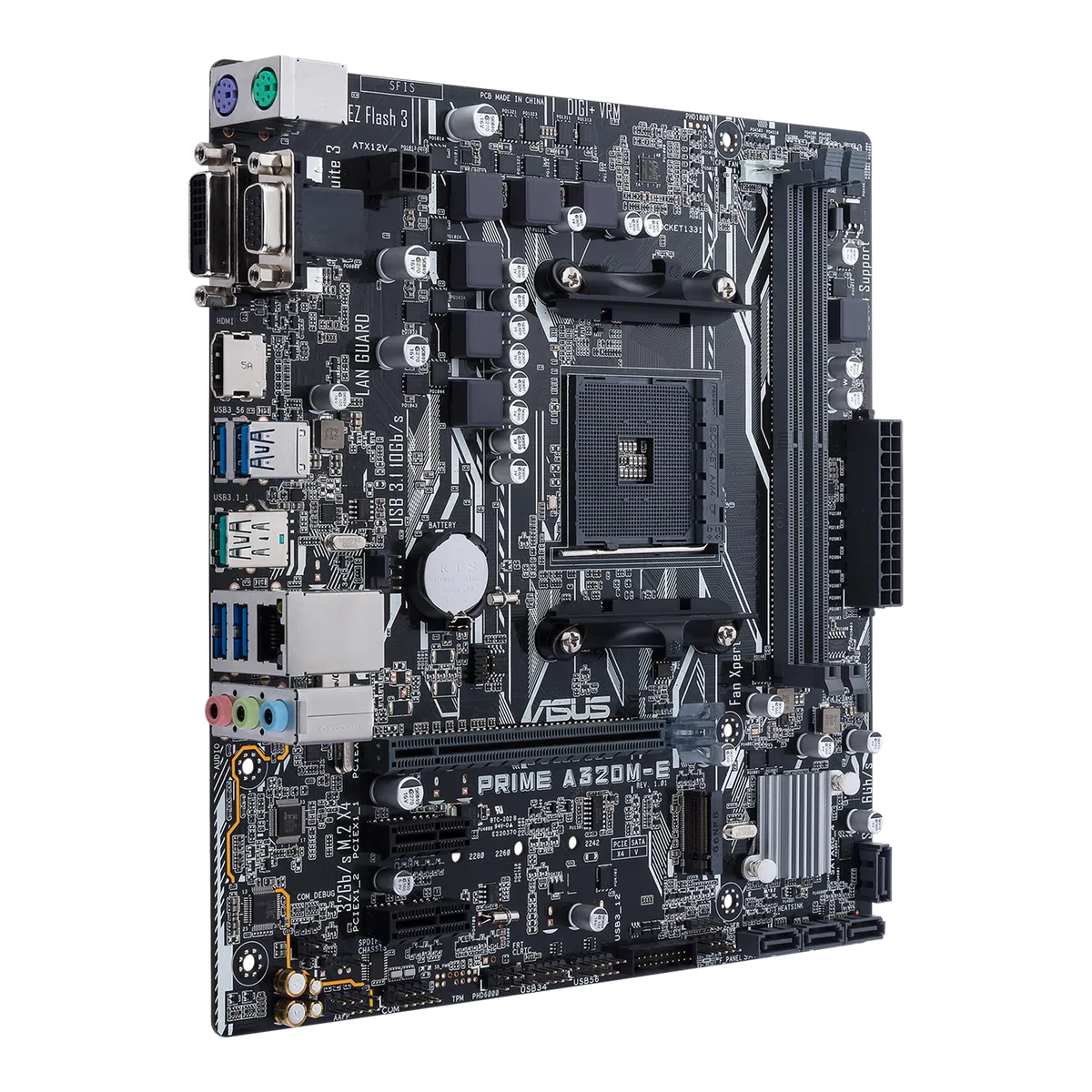

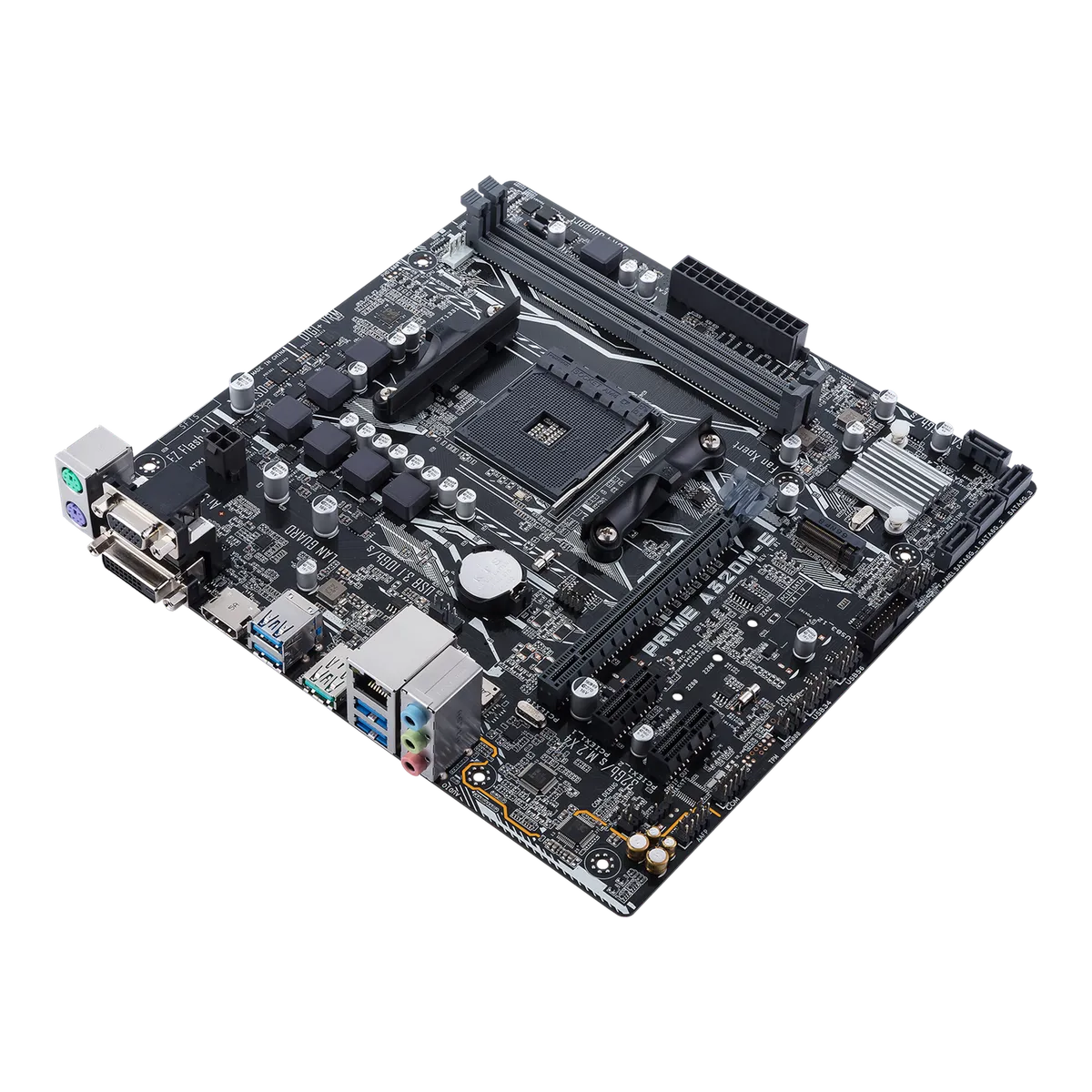

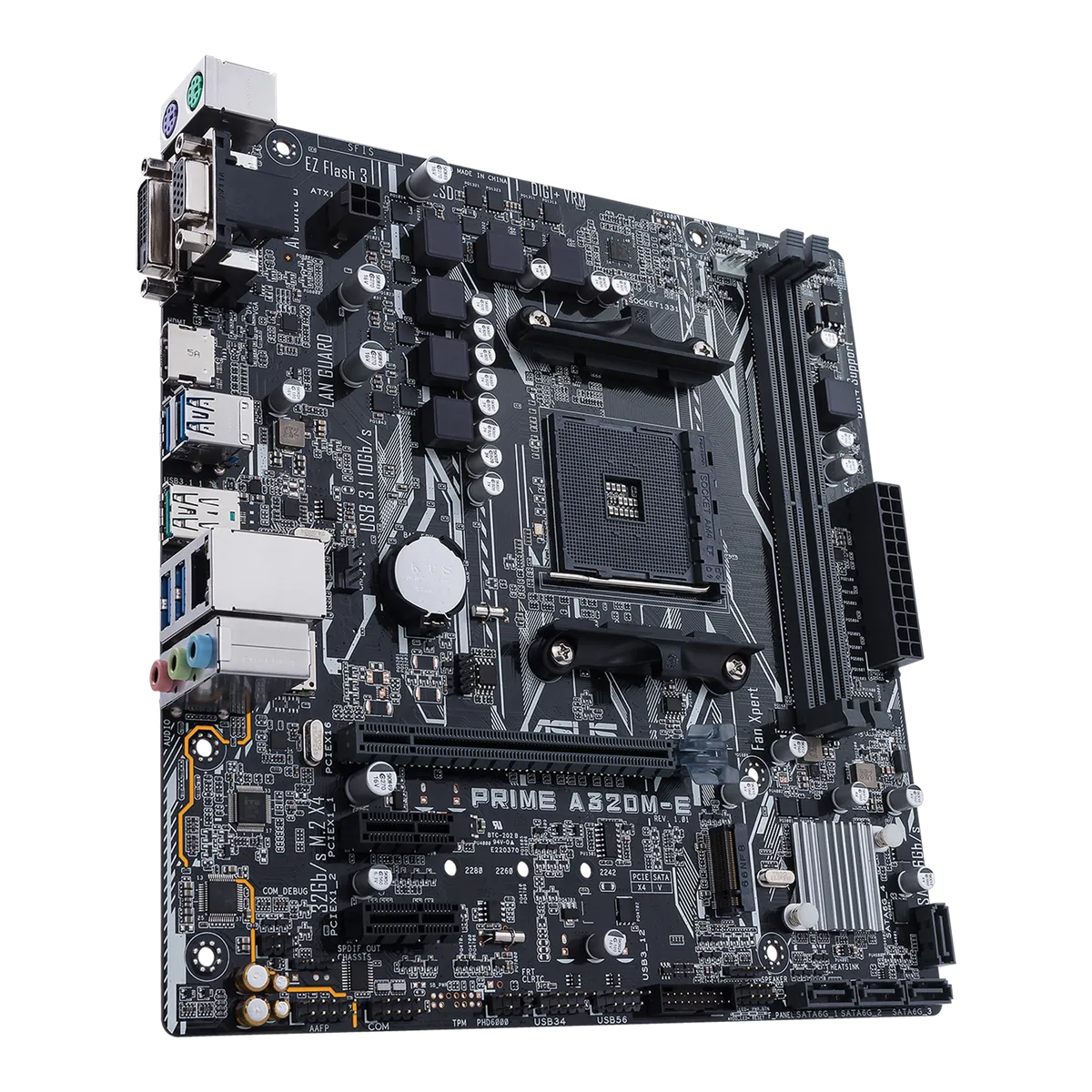

ASUS PRIME A320M-E

Name: ASUS PRIME A320M-E
Brand: Asus
SKU: 9535

Check Price

Quick Specs

ChipsetAMD A320

SocketAM4

MemoryDDR4

Form FactormATX

M.2 Slots2

Model: 9535

About this motherboards

Experience the PRIME A320M-E: A tech-lover's dream with top-tier LED illumination, lightning-fast storage, & state-of-the-art connectivity features.

Technical Specifications21 specs

General

Model

PRIME A320M-E

Cpu

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/ 7
th
Generation A-series/Athlon X4 Processors,* Refer to
www.asus.com
for CPU support list

Chipset

AMD A320

Memory

2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/ 2400/2133 MHz ECC and non-ECC, Un-buffered Memory
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
,2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
,Dual Channel Memory Architecture,* Hyper DIMM support is subject to the physical characteristics of individual CPUs.,* Refer to
www.asus.com

Graphic

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
1
,Multi-VGA output support : HDMI/DVI-D/RGB ports,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz,- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz,Maximum shared memory of 2048 MB (for iGPU exclusively)

Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
,1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
,2 x PCIe 2.0 x1
AMD Athlon™ with Radeon™ Vega Graphics Processors
,1 x PCIe 3.0/2.0 x16 (max at x4 mode)

Storage

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
AMD Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon™ X4 Processors :
,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD A320 chipset :
,4 x SATA 6Gb/s port(s), gray,,Support Raid 0, 1, 10

Lan

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC8878-Channel High Definition Audio CODEC

Usb Ports

ASMedia® USB 3.2 Gen 2 controller :
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
,1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A),4 x USB 2.0 port(s) (4 at mid-board),4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue),2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD A320 chipset :

Special Features

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features
:,- AI Suite 3,- Ai Charger
ASUS Quiet Thermal Solution
:,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert
ASUS EZ DIY :
,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,- Multi-language BIOS
ASUS Q-Design :
,- ASUS Q-Slot,- ASUS Q-DIMM

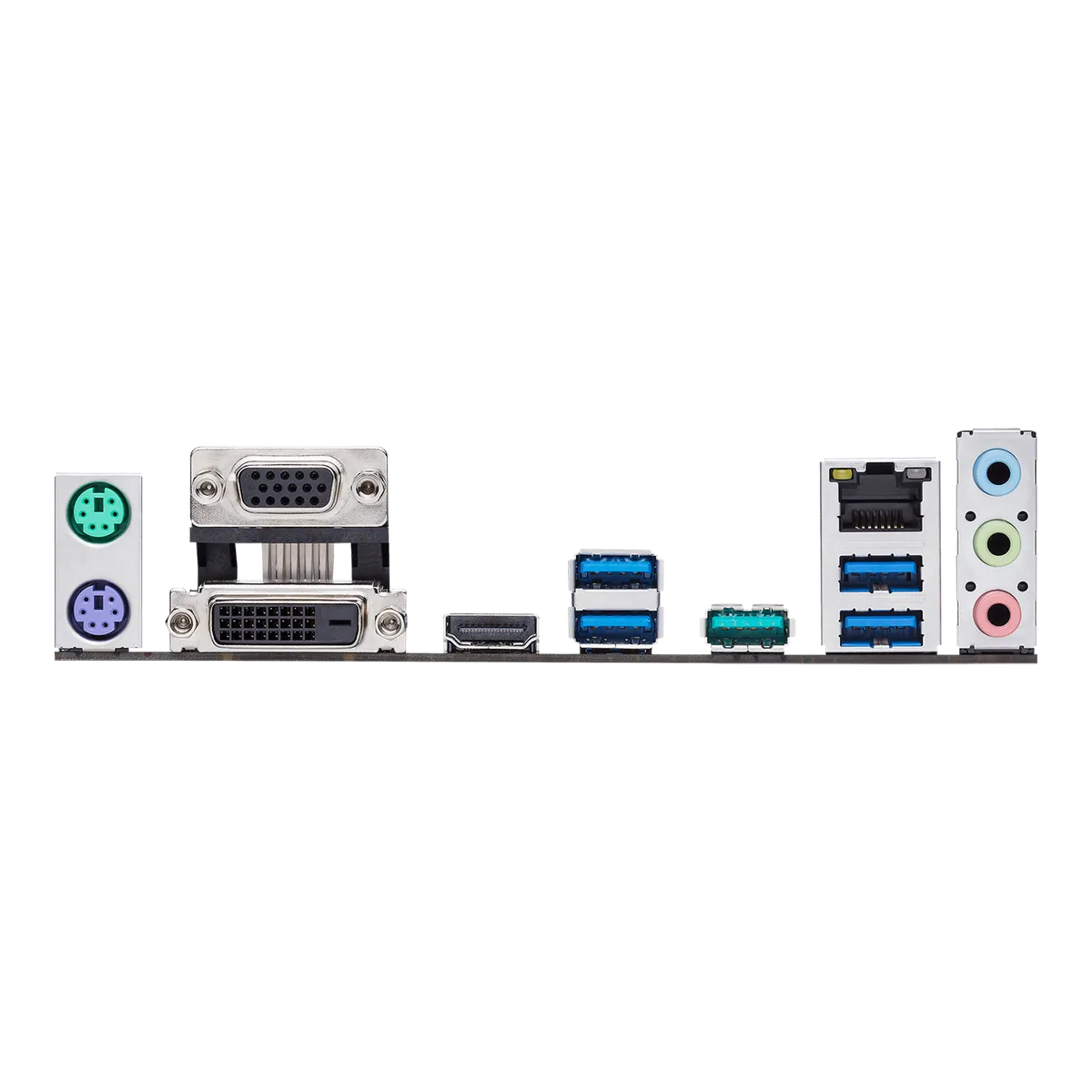

Back I O Ports

1 x USB 3.1 Gen 2 (teal blue),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),3 x Audio jack(s),4 x USB 3.1 Gen 1 (blue),1 x PS/2 keyboard (purple),1 x PS/2 mouse (green)

Internal I O

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x Chassis Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x Speaker connector

Accessories

1 x M.2 Anchor,User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD

Bios

128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Operating System

Windows® 7 64-bit
2
,Windows® 10 64-bit

Form Factor

mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Note

*1：AMD Ryzen™ Processor does not support
*2:Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
