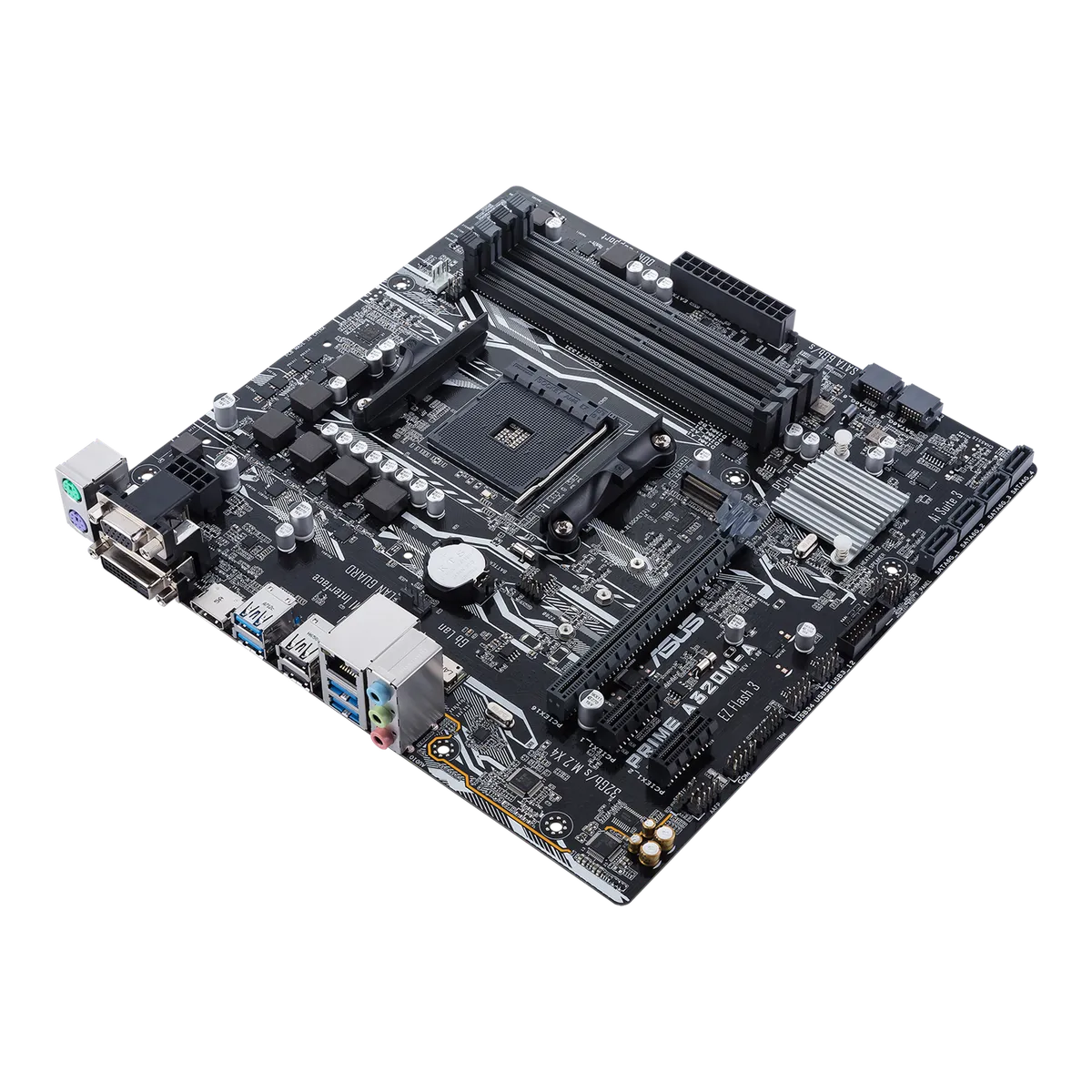

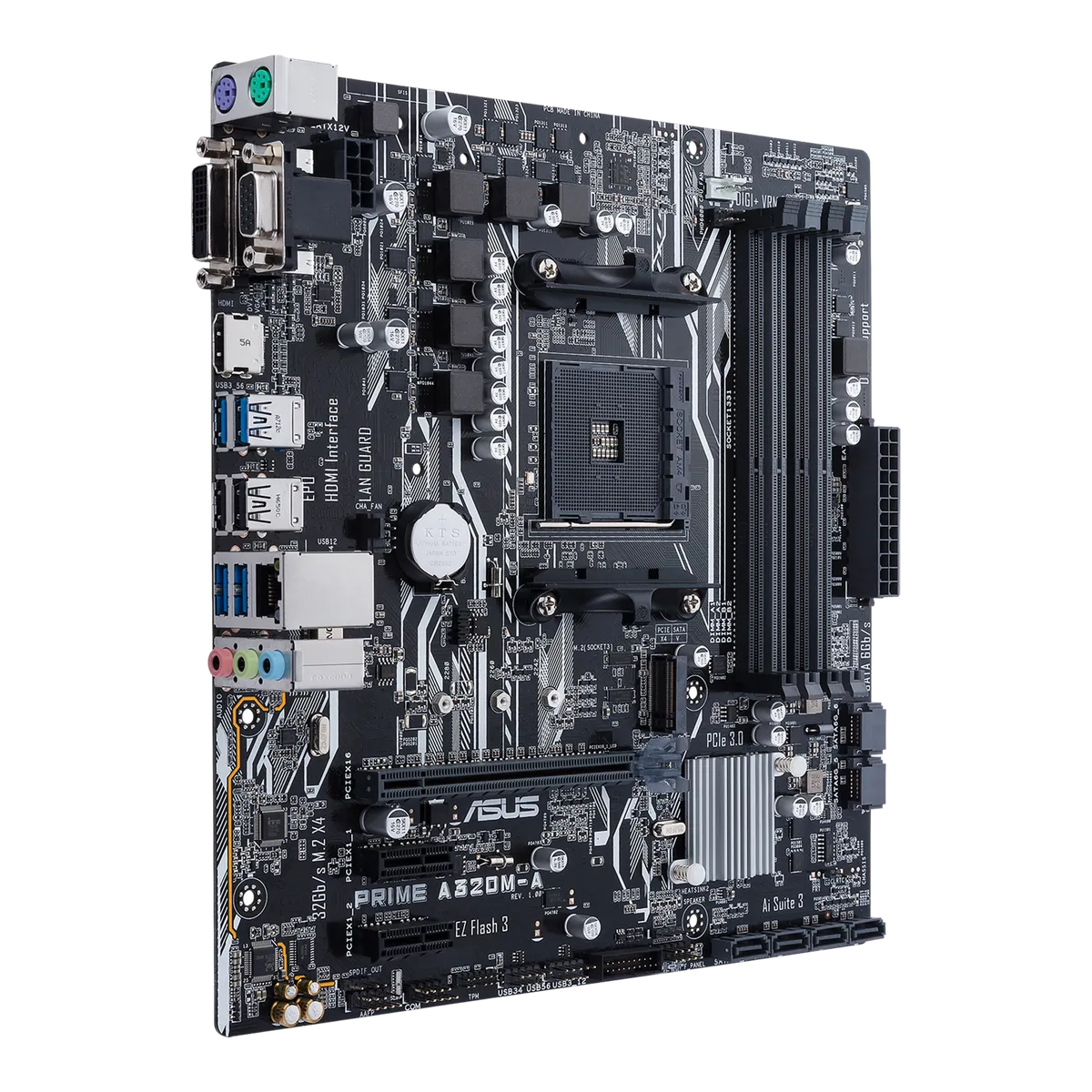

ASUS PRIME A320M-A
Quick Specs
ChipsetAMD A320
SocketAM4
MemoryDDR4
Form FactormATX
M.2 Slots3
Model: 9488
About this motherboards
Experience next-level tech with PRIME A320M-A, boasting lightning-fast speeds, unrivalled protection, and top-notch performance for an elevated user journey.
Technical Specifications21 specs
General
Model
PRIME A320M-A
Cpu
- AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/ 7
- th
- Generation A-series/Athlon X4 Processors,* Refer to
- www.asus.com
- for CPU support list
Chipset
AMD A320
Memory
- 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/ 2400/2133 MHz Memory
- 1
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- AMD 7th Generation A-Series/Athlon X4 Processors
- ,Dual Channel Memory Architecture,* Hyper DIMM support is subject to the physical characteristics of individual CPUs.,* Refer to
- www.asus.com
Graphic
- Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
- 2
- ,Multi-VGA output support : HDMI/DVI/RGB ports,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz,- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz,Maximum shared memory of 2048 MB (for iGPU exclusively)
Expansion Slots
- 3rd/2nd/1st Gen AMD Ryzen™ Processors
- 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
- ,1 x PCIe 3.0/2.0 x16 (x8 mode)
- AMD A320 chipset
- ,2 x PCIe 2.0 x1,1 x PCIe 3.0/2.0 x16 (x16 mode)
- AMD Athlon™ with Radeon™ Vega Graphics Processors
- ,1 x PCIe 3.0/2.0 x16 (max at x4 mode)
Storage
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
- AMD A320 chipset :
- ,4 x SATA 6Gb/s port(s), gray,,Support Raid 0, 1, 10,2 x SATA 6Gb/s port(s), gray
- AMD 7th Generation A-Series/Athlon X4 Processors :
- ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 3
- ,1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
- 4
- AMD Athlon™ with Radeon™ Vega Graphics Processors :
- ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
- 4
Lan
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC8878-Channel High Definition Audio CODEC
Usb Ports
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
- ,4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue),2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
- AMD A320 chipset :
- ,6 x USB 2.0 port(s)
Special Features
- ASUS 5X Protection III :
- - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: 6 Phase digital power design
- ASUS Exclusive Features
- :,- AI Suite 3,- Ai Charger,- PC Cleaner
- ASUS Quiet Thermal Solution
- :,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert
- ASUS EZ DIY :
- ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,- Multi-language BIOS
- ASUS Q-Design :
- ,- ASUS Q-Slot,- ASUS Q-DIMM
Back I O Ports
1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s),4 x USB 3.1 Gen 1 (blue),1 x PS/2 keyboard (purple),1 x PS/2 mouse (green)
Internal I O
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & PCIE mode),1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x Chassis Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x Speaker connector
Accessories
User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD
Bios
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System
- Windows® 10 64-bit,Windows® 7 64-bit
- 5
Form Factor
mATX Form Factor,9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
Note
- 1*Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel.
- 2*AMD Ryzen™ Processor does not support.
- 3*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
- 4*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
- 5* Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
Physical Dimensions
Length Mm
243.8
Width Mm
240
Height Mm
619.8
