About this power supplies

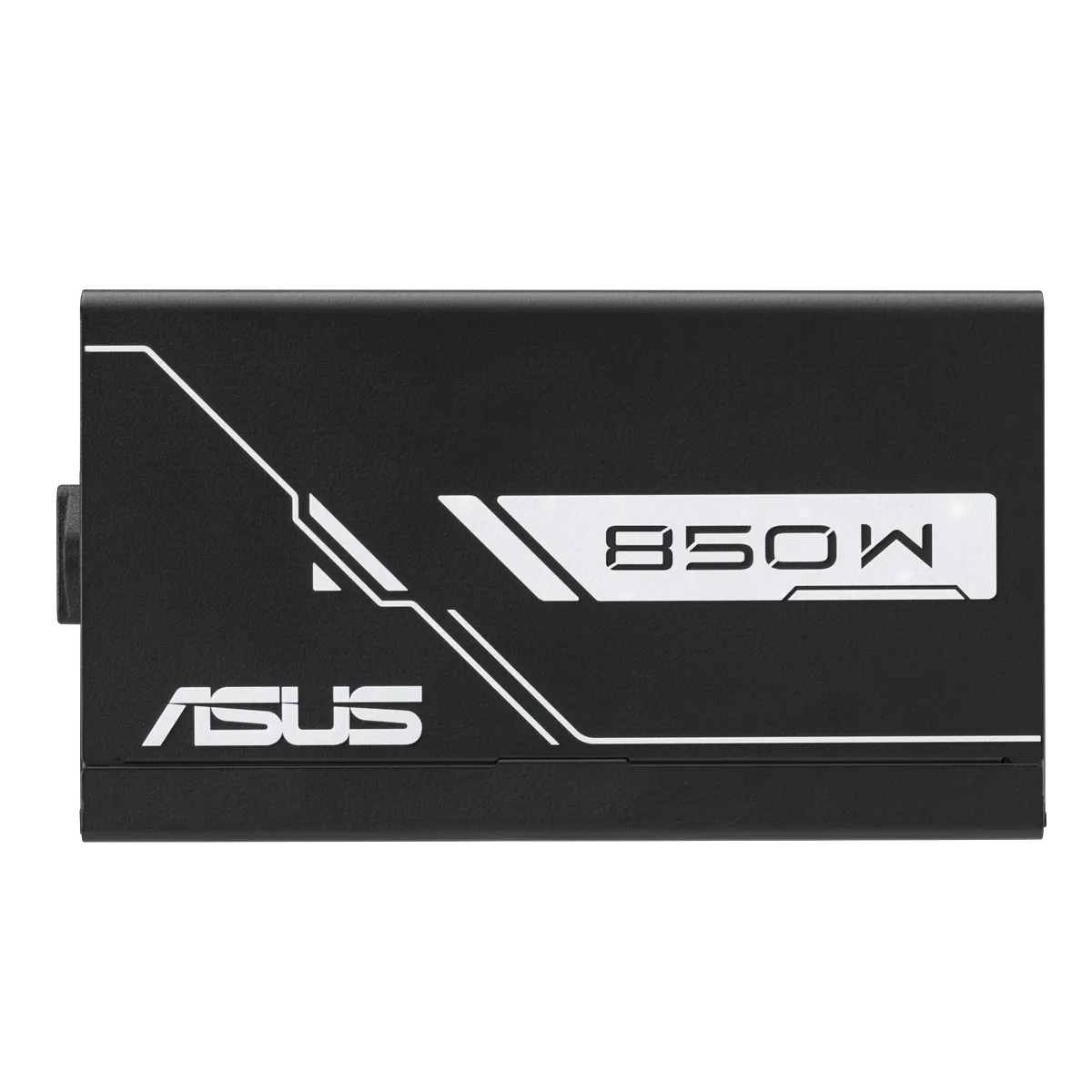

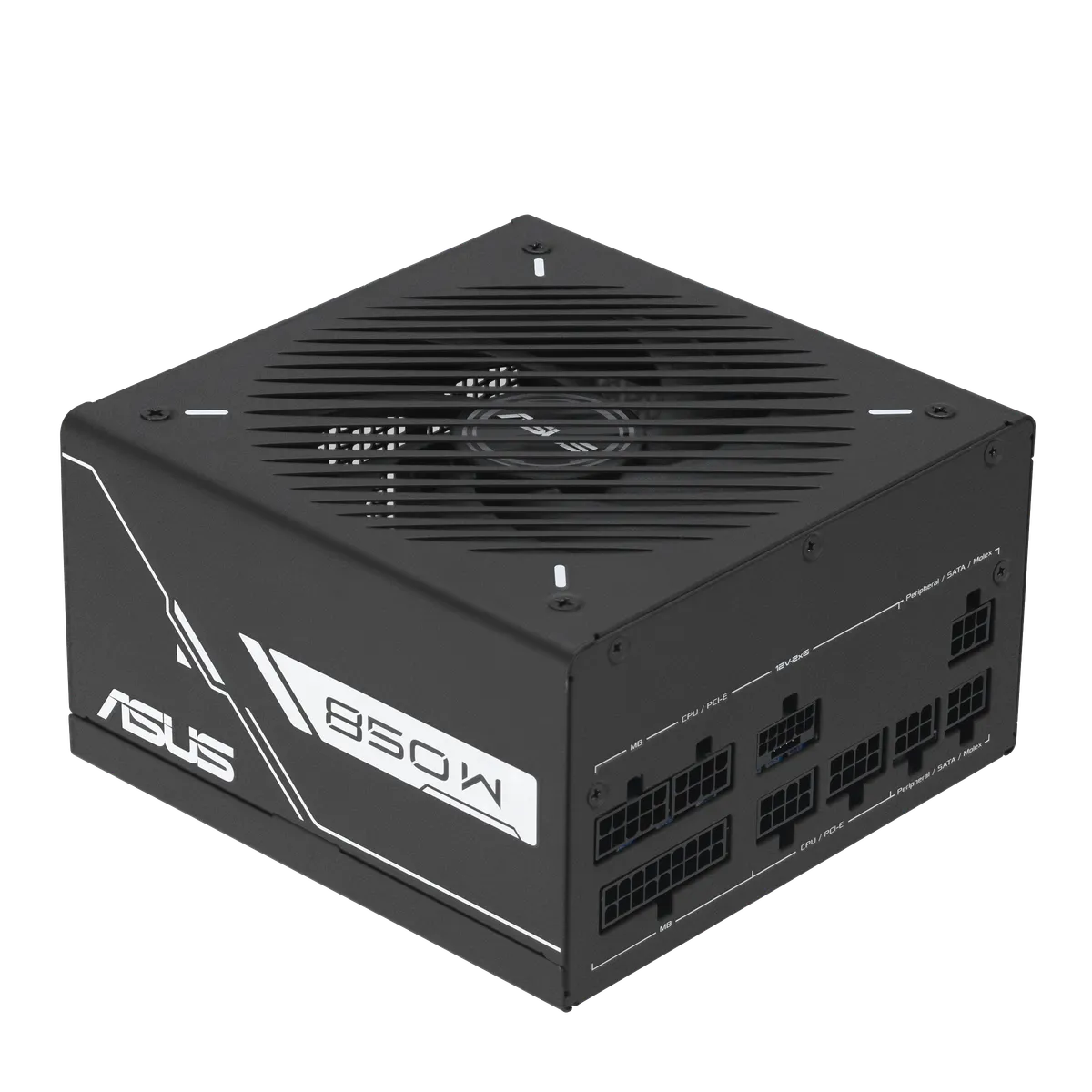

ASUS Prime 850W Gold Black Edition PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
Technical Specifications23 specs
General
Model
PRIME-850G
Intel Form Factor
ATX12V
Pfc Type
Active PFC
Atx Standard
ATX 3.1
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Mtbf
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/
OTP
Hazardous Materials
ROHS
Ac Input Range
100-240Vac
Dc Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 70.5A 0.3A 2.5A
Combined Load
110W 110W 846W 3.6W 12.5W
Total Output
850W
Cable Connectors
- MB 20+4pin x 1
- CPU 4+4pin x 2
- PCI-E 16pin x1 (12V-2x6)
- PCI-E 6+2pin x 3
- SATA x 5
- PERIPHERAL x 4
Package Contents
- Power Cord x 1
- Motherboard Power cable x 1 (600mm)
- CPU 1-to-2 Cable x 1 (650mm+150mm)
- PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (600mm)
- PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 1 (600mm)
- PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (600+150mm)
- SATA 1-to-2 Cable x 1 (400+120mm)
- SATA 1-to-3 Cable x 1 (400+120+120mm)
- Peripheral 1-to-4 Cable x1 (400+150+150+150mm)
- User Manual x 1
Weight
1.48 kg (single PSU)
Cybenetics Noise Level Certification
NA
0db Technology
No
Physical Dimensions
Length Mm
150
Width Mm
150
Height Mm
86
Weight G
1480
