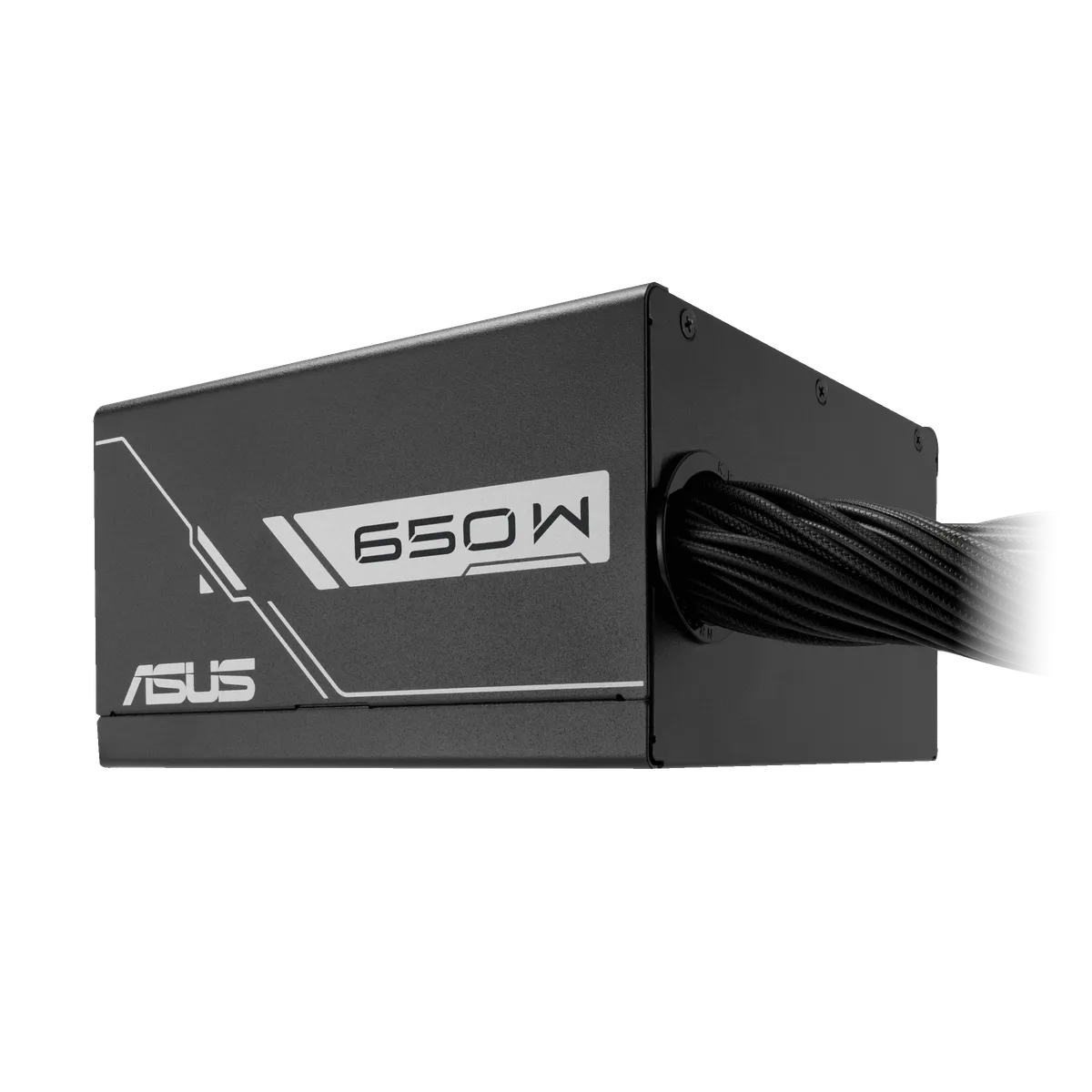

About this power supplies
Featuring advanced power delivery, exceptional efficiency, and reliable performance, ASUS Prime series power supplies are the perfect choice for daily users. With comprehensive cooling solutions and reliable power delivery, these PSUs ensure optimal performance and stability. Experience the power of ASUS Prime and
Technical Specifications23 specs
General
Model
PRIME-650B-BLACK
Intel Form Factor
ATX12V
Pfc Type
Active PFC
Atx Standard
NA
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Bronze
Mtbf
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/
OTP
Hazardous Materials
ROHS
Ac Input Range
100-240Vac
Dc Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 54A 0.3A 2.5A
Combined Load
110W 110W 648W 3.6W 12.5W
Total Output
650W
Cable Connectors
- MB 24/20-pin x 1
- CPU 4+4-pin x 1
- PCI-E 8-pin x 2
- SATA x 5
- PERIPHERAL x 3
Package Contents
- Power Cord x 1
- CPU cable x 1 (800mm)
- PCI-E 1-to-2 x 1 (600mm)
- SATA 1-to-2 cable x 1 (400+120mm)
- SATA 1-to-3 cable x 1 (400+120+120mm)
- Peripheral 1-to-3 cable x 1 (400+120+120mm)
- User Manual x 1
Weight
- Single PSU : 2.2KG
- Product Weight (with packing) : 3.067KG
Cybenetics Noise Level Certification
NA
0db Technology
No
Physical Dimensions
Length Mm
150
Width Mm
150
Height Mm
86
Weight G
2200
