Graphics CardsAsus

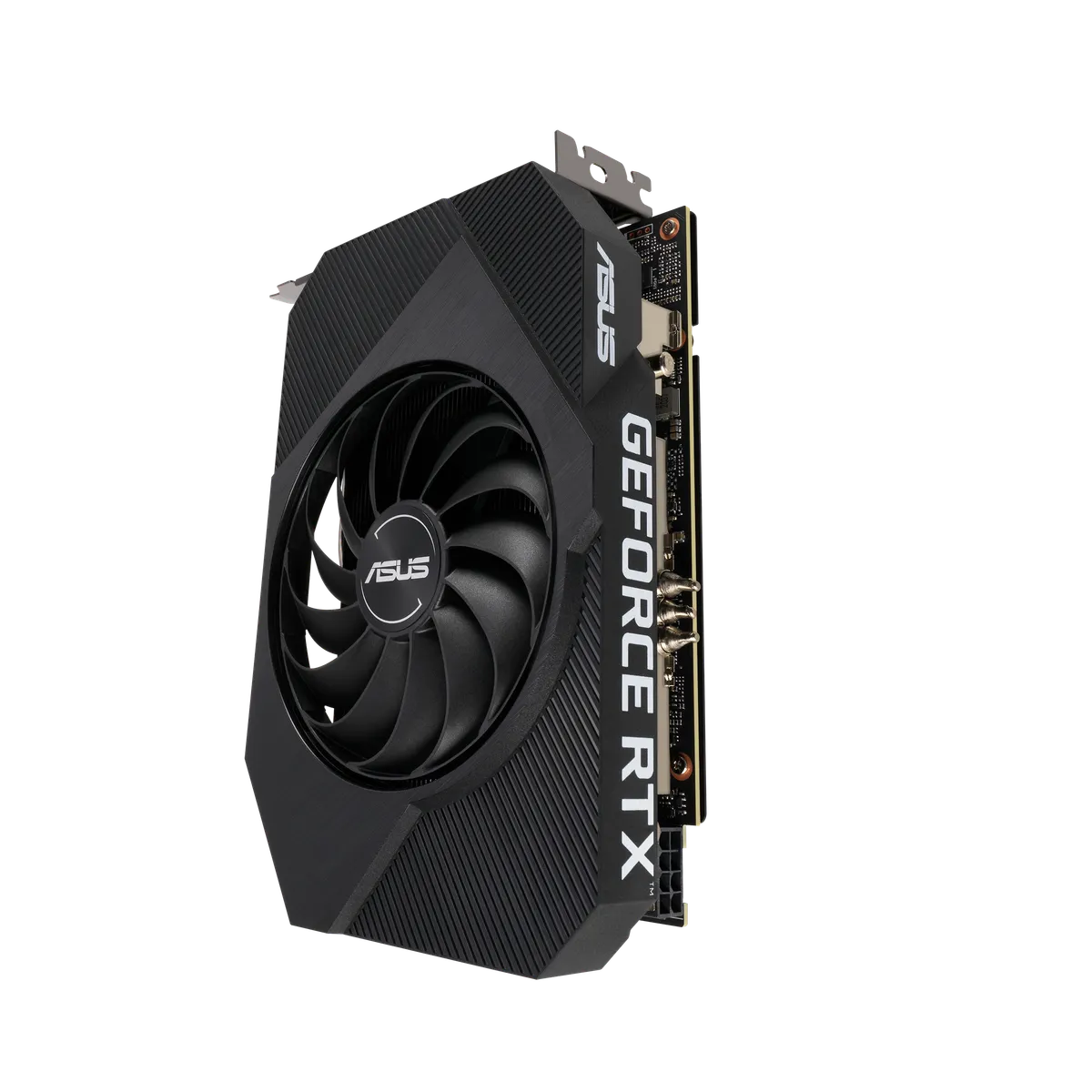

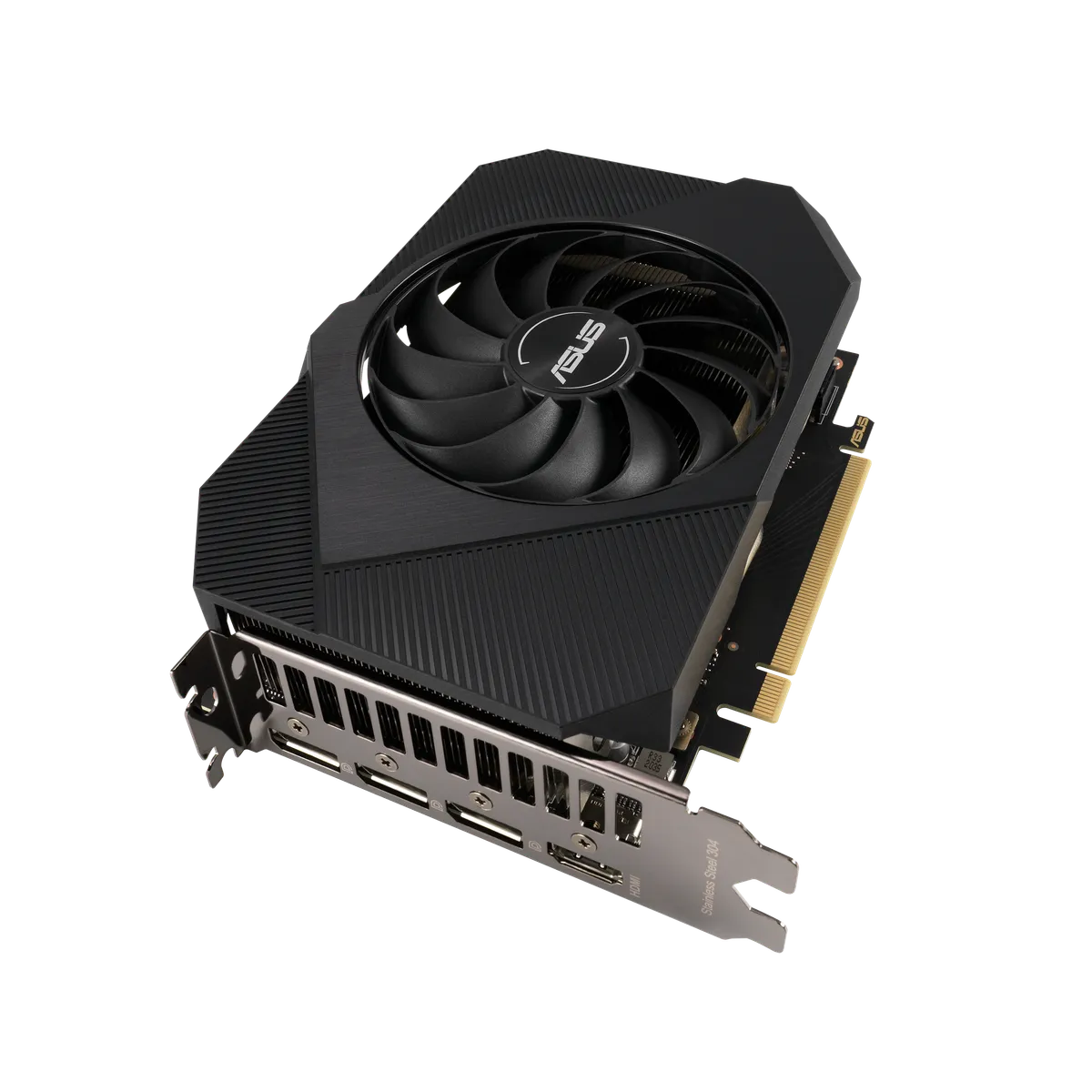

ASUS PH-RTX3060-12G
MPN: 15635
Key specifications
ChipsetRTX 3060
VRAM12 GB
Memory typeGDDR6
Length177 mm
Slot width2.55
Min PSU650 W
Best indexed price
Price unavailable
Retailer offers
Amazon UKSearch link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
177mm length — check your case's max GPU clearance.
650W minimum PSU recommended by manufacturer.
Full Specifications23 fields
General
Model
Phoenix GeForce RTX™ 3060
Graphic Engine
NVIDIA® GeForce RTX™ 3060
Bus Standard
PCI Express 4.0
Opengl
OpenGL®4.6
Memory Size
12GB GDDR6
Engine Clock
- OC Mode - 1807 MHz (Boost Clock)
- Gaming Mode - 1777 MHz (Boost Clock)
Cuda Core
3584
Memory Speed
15 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1), Yes x 3 (Native DisplayPort 1.4a), HDCP Support Yes (2.3)
Maximum Display Support
4
Nvlink Crossfire Support
No
Accessories
- 1 x Collection card
- 1 x Speedsetup manual
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
- 6.97 " x 5.04 " x 2.01 " Inch
- 17.7 x 12.8 x 5.1 cm
Recommended Psu
650W
Power Connectors
1 x 8-pin
Slot
2.55 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/
ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
Physical Dimensions
Length Mm
177
Width Mm
128
Height Mm
51.1
