ASUS MB168B
Quick Specs
Resolution1366x768
Refresh60 Hz
PanelTN
Response11 ms
Model: 5795
About this monitors

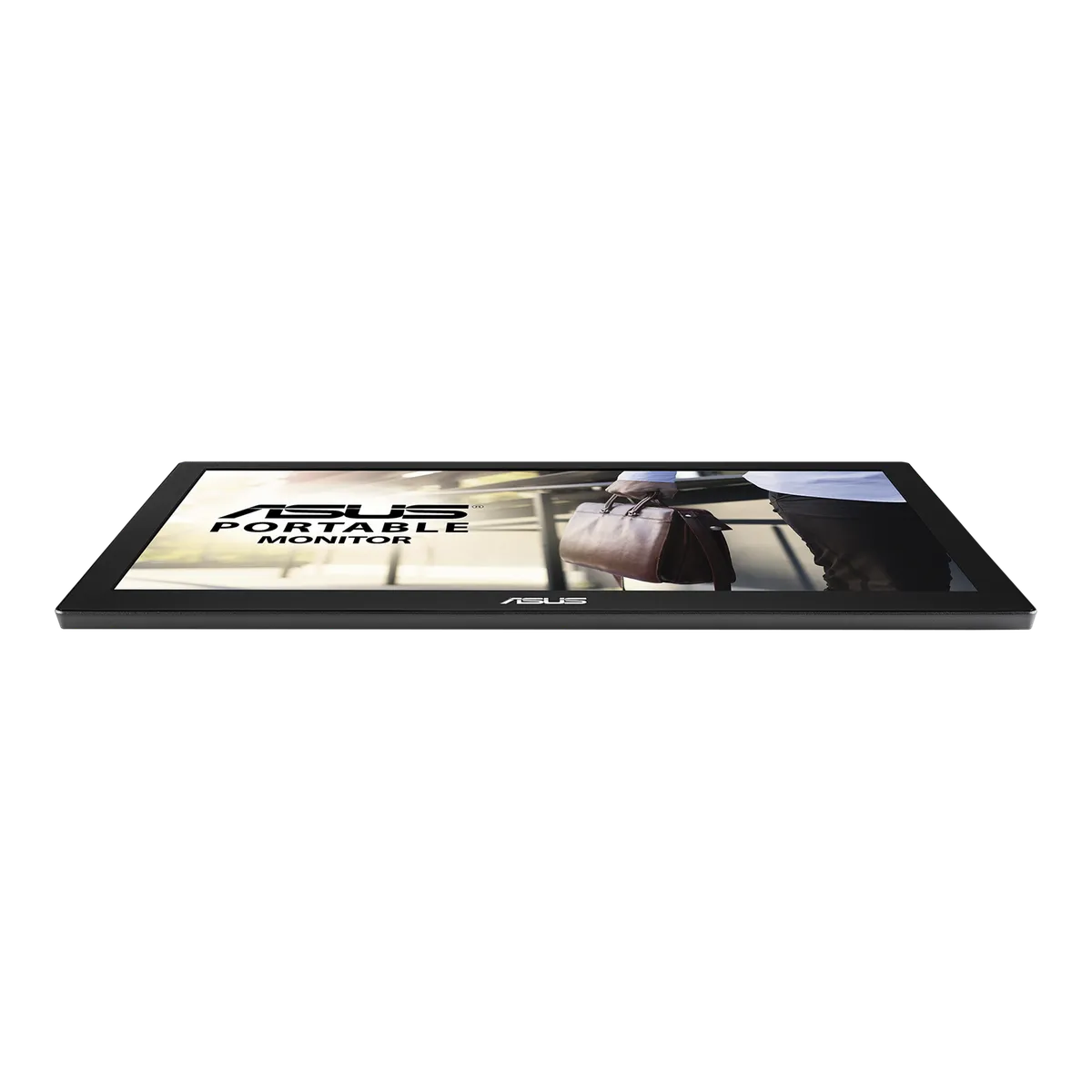

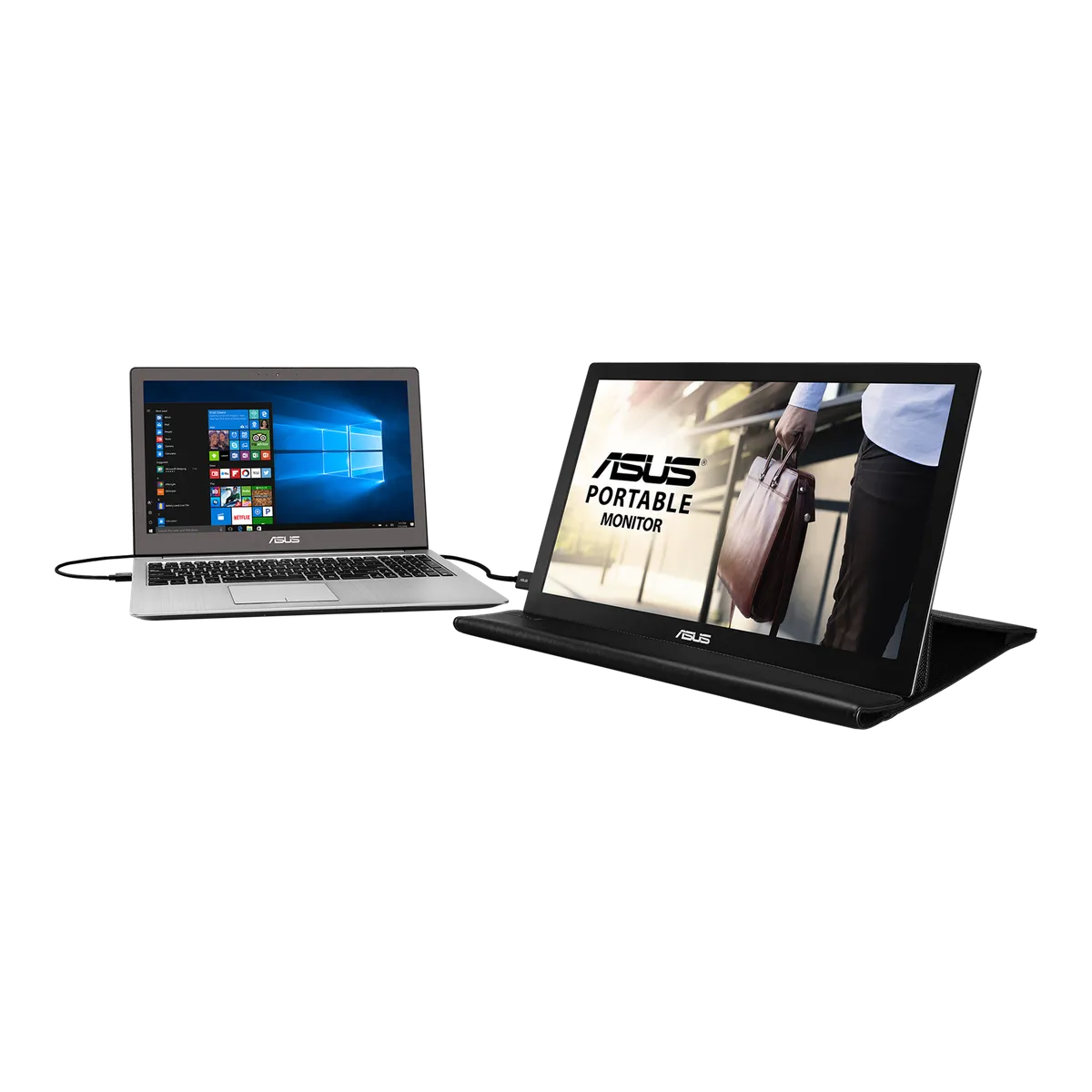

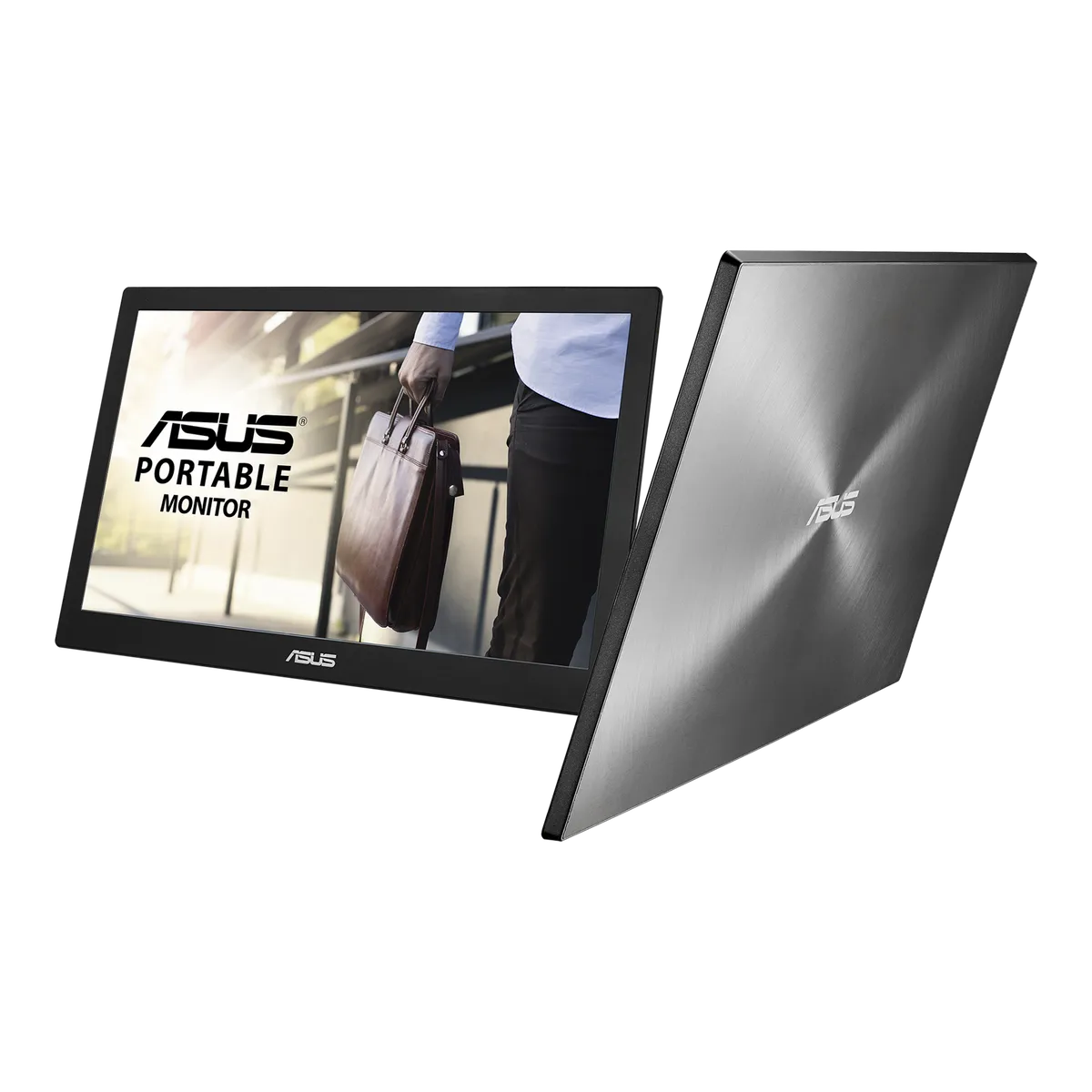

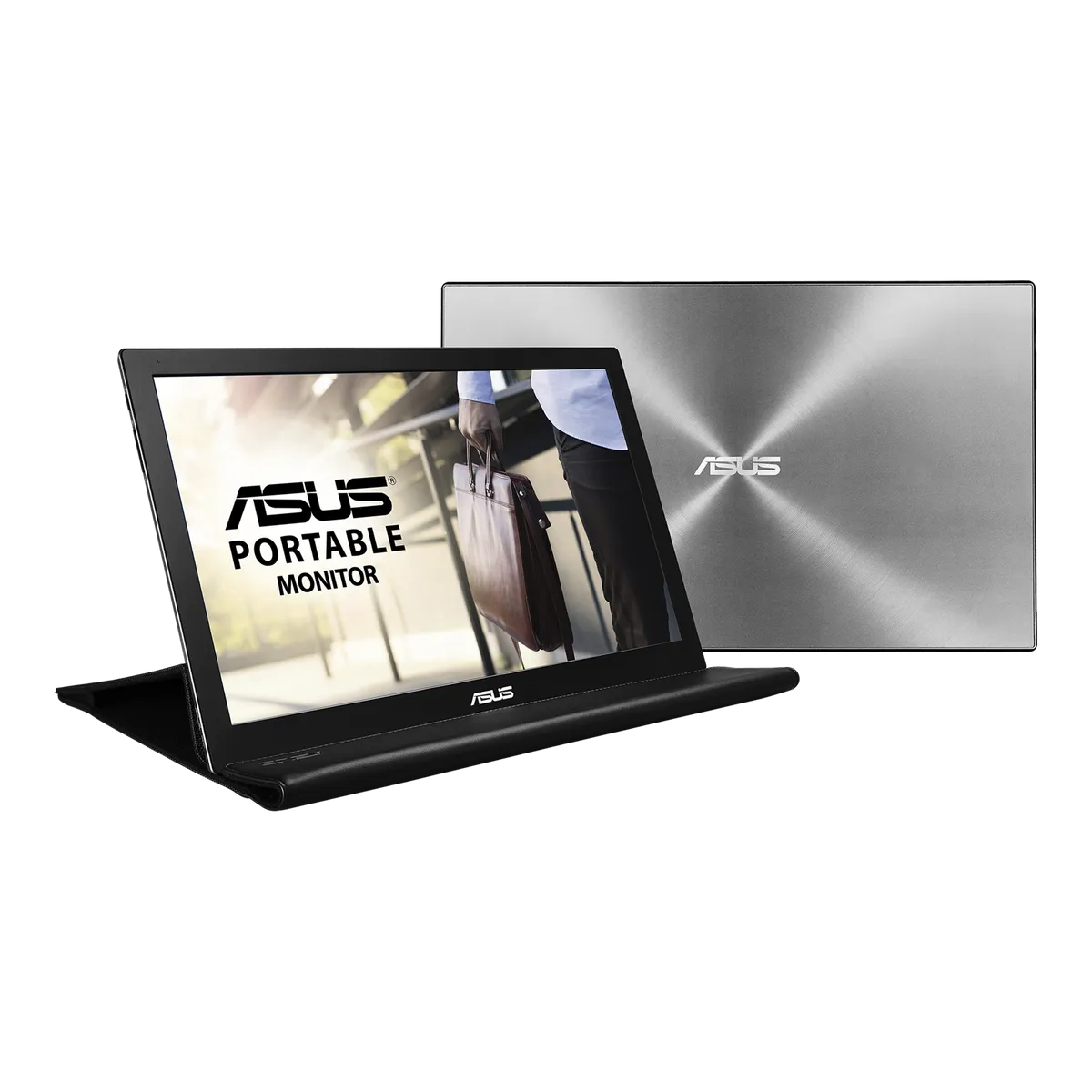

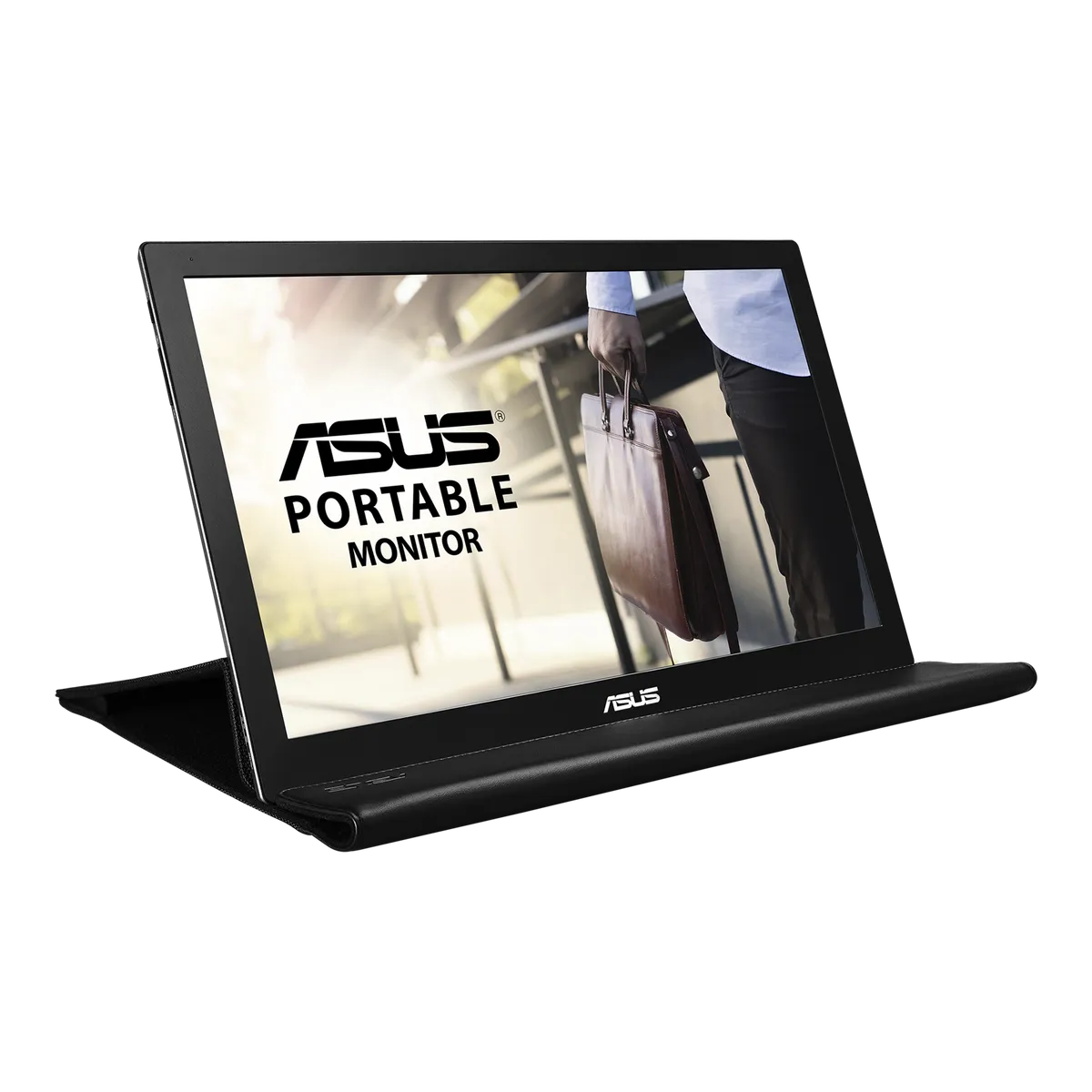

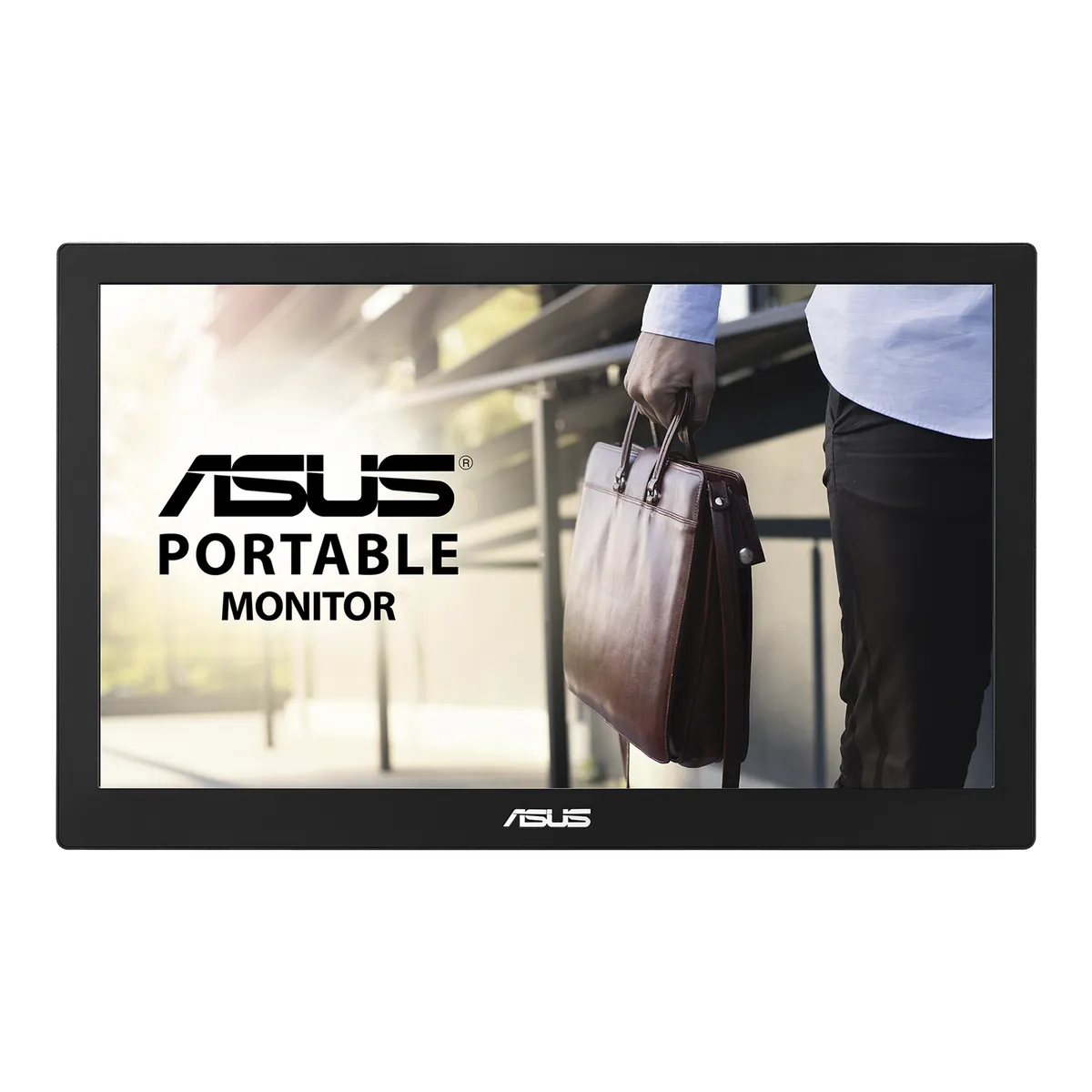

ASUS MB168B Portable USB Monitor - 15.6 inch, HD, USB-powered, Ultra-slim, Smart Case, ZenScreen
Technical Specifications15 specs
General
Model
MB168B
Display
- Panel Size (inch) : 15.6
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 344.23 x 193.53 mm
- Backlight Type : LED
- Panel Type : TN
- Viewing Angle (CR≧10, H/V) : 90°/ 65°
- Pixel Pitch : 0.252mm
- Resolution : 1366x768 (WXGA )
- Brightness (Typ.) : 200cd/㎡
- Contrast Ratio (Typ.) : 500:1
- Display Colors : 260K
- Response Time : 11ms(Tr+Tf)
- Refresh Rate (Max) : 60Hz
Features
- HDCP : Yes
- DisplayWidget : Yes
Audio
Speaker : No
I O Ports
USB 3.2 (Signal) : x 1
Power Consumption
- Power Consumption : <7.5W
- Power Saving Mode : 0W
- Power Off Mode : 0W (hard switch)
- Voltage : 100-240V, 50/60Hz
Mechanical Design
- Tilt : Yes (with supportive case)
- Height Adjustment : No
- Ambient Light Sensor : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 37.90 x 23.60 x 0.80 cm (14.92" x 9.29" x 0.31")
- Box Dimension (W x H x D) : 43.50 x 29.70 x 5.70 cm (17.13" x 11.69" x 2.24")
Weight Esti
- Net Weight : 0.80 kg (1.76 lbs)
- Gross Weight : 2.0 kg (4.41 lbs)
Accessories Vary By Regions
- Warranty Card
- USB 3.0 cable
- Quick start guide
- ASUS Smart Case
Note
*To support brightness adjustment and auto rotation functions, for Win7 and Win8 & 8.1 users, please download and install EZLink; for Win10 users, please download and install DisplayWidget. (Both Ezlink and DisplayWidget are working under Windows OS only)
Physical Dimensions
Length Mm
379
Width Mm
236
Height Mm
8
Weight G
800
