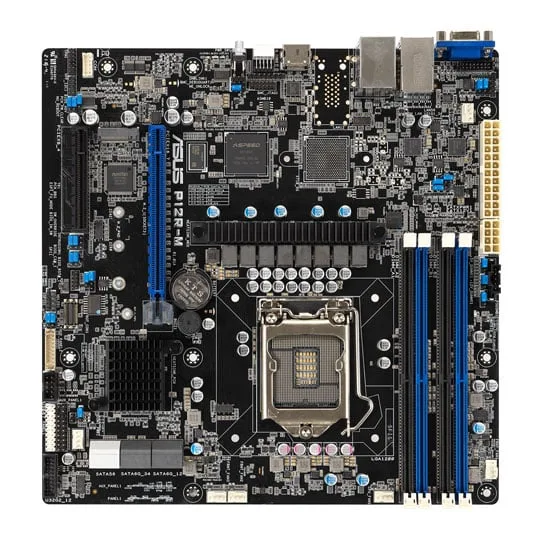

ASUS Intel Xeon P12R-M MicroATX Server Motherboard
MPN: 90SB09X0-M1UAY0
Key specifications
SocketLGA 1200
Form factormATX
ChipsetIntel C252
Memory typeDDR4
M.2 slots1
Max Memory128 GB
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Add this to your build in the PC Builder to automatically check dimensions, sockets, and power draw.
Full Specifications31 fields
Additional Information
Model Number
90SB09X0-M1UAY0
Gtin
4711081684749
Additional Specifications
Water Cooled
No
Cooling
Passive Heatsinks
Qpi Speed
N/A
Dimensions
-
Note
-
Core Specifications
Edition
P12R-M Server Board
Form Factor
MicroATX
Socket
1200
Chipset
Intel C252
External Connectivity
Network Interface Type
Dual Wired Gigabit LAN (10/100/1000) + Mgmt LAN
Network Chip Modules
2 x Intel® I210AT (Gigabit LAN)
1 x Mgmt LAN
Rear I O Connectors
1 x HDMI
1 x Mgmt LAN
2 x RJ-45
2 x USB 3.2 Gen2 Type-A
1 x VGA
Graphics Support
Primary Gpu Interface
PCIe 4.0 (x16)
Nvidia Sli Support
N/A
Amd Crossfire Support
N/A
Integrated Graphics
Integrated ASPEED AST2600
On Board Graphics Connectors
D-Sub (VGA)
Internal Connectivity
Expansion Slots
1 x M.2, 22-42/60/80, PCIe Gen4x4
1 x PCIe 4.0 x16
1 x PCIe 4.0 x8
6 x SATA 6GB/s
Sata Support
N/A
Raid Support Via
-
Storage Mode Support
-
Internal I O
1 x 24-pin (Power)
6 x 4-pin CHA_FAN connector
1 x 8-pin (Power)
1 x Chassis Intruder
4 x Front LAN LED
1 x M.2
1 x Management Connector
1 x Serial (COM) Header
1 x SMBus header
1 x TPM Header
1 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
2 x USB 3.2 Gen2 Header
1 x VGA Port Header
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type Ecc
-
Memory Type R U
UDIMM (Unbuffered)
Memory Speed Mhz
DDR4 - 2666
DDR4 - 2933
DDR4 - 3200
Max Memory Capacity
128GB
