About this monitors

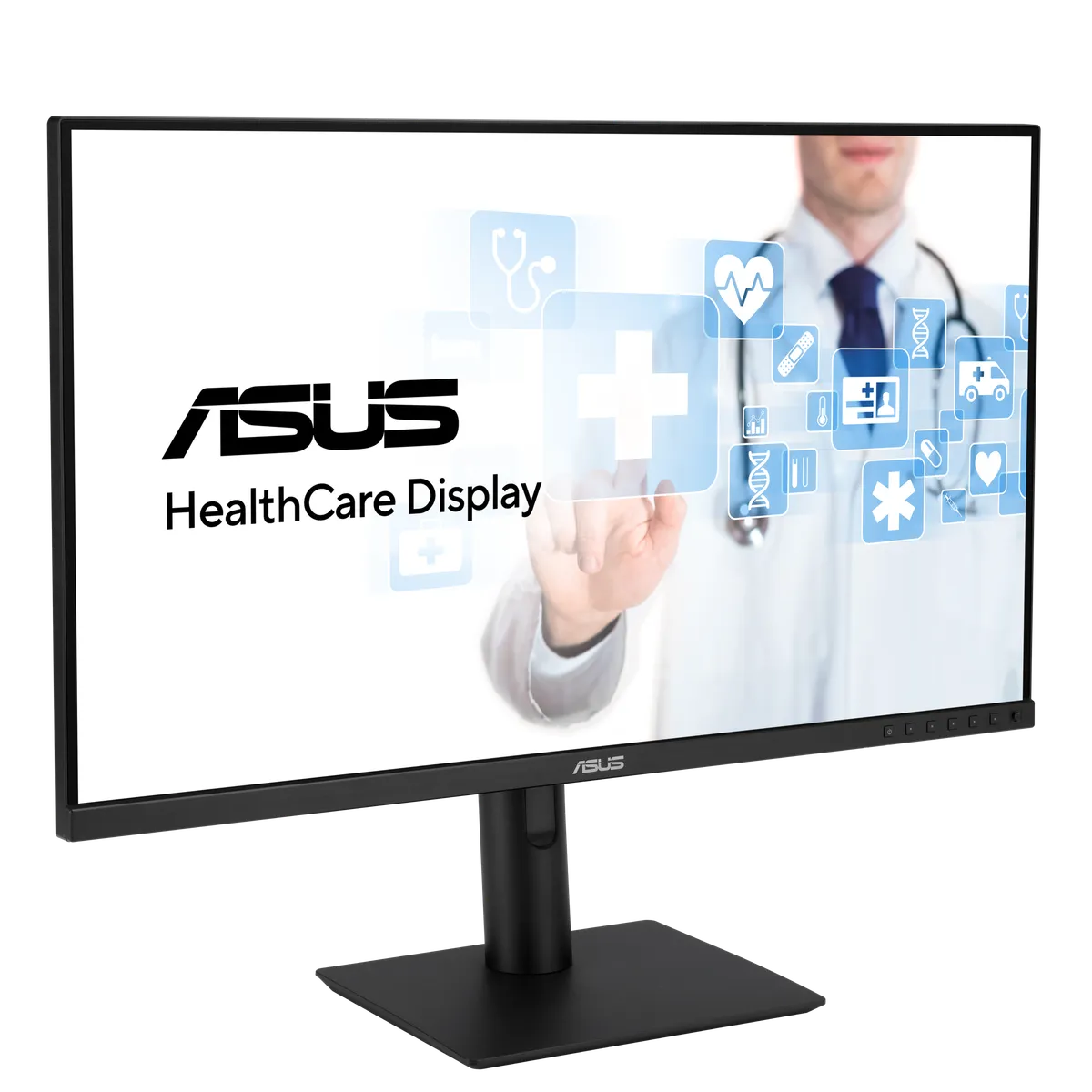

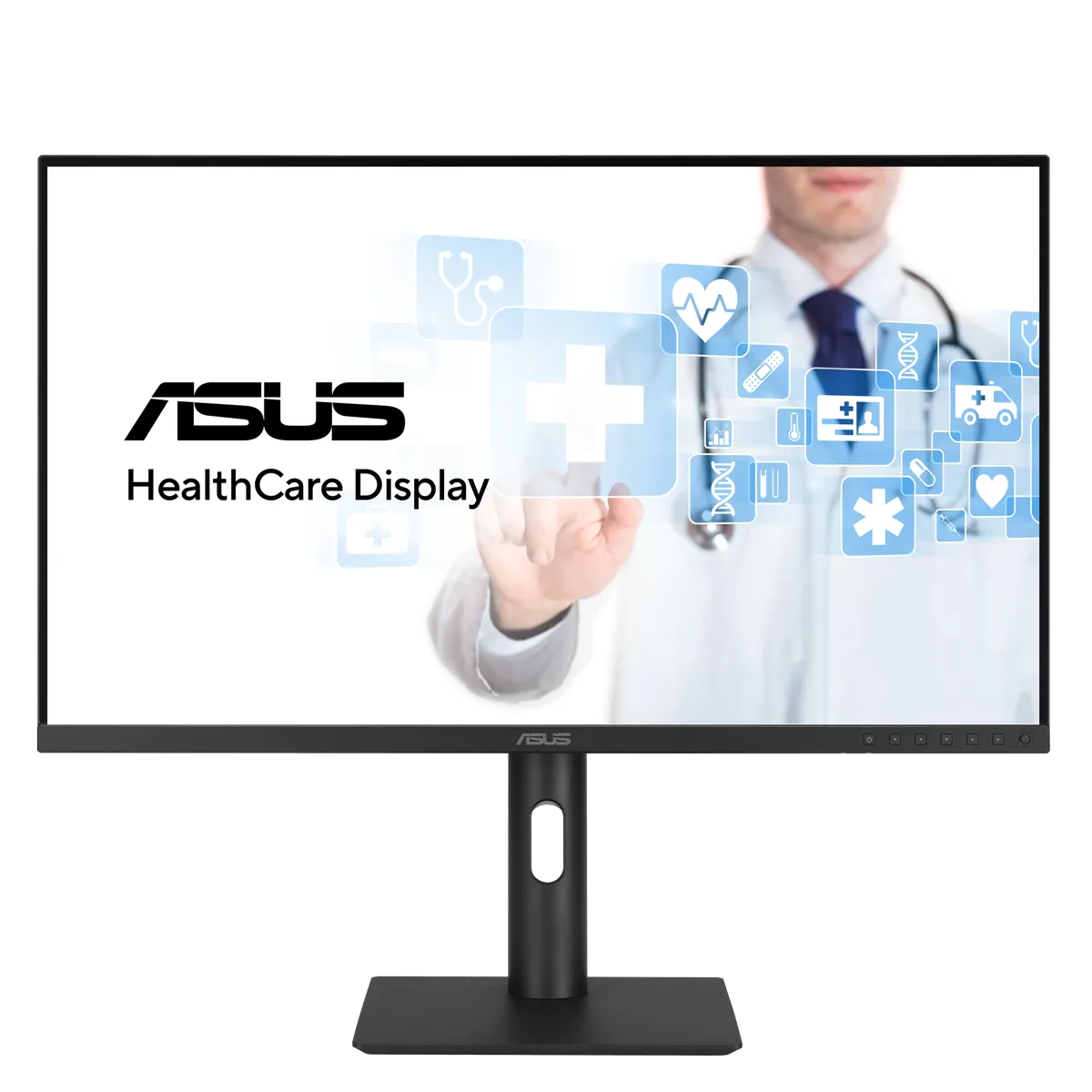

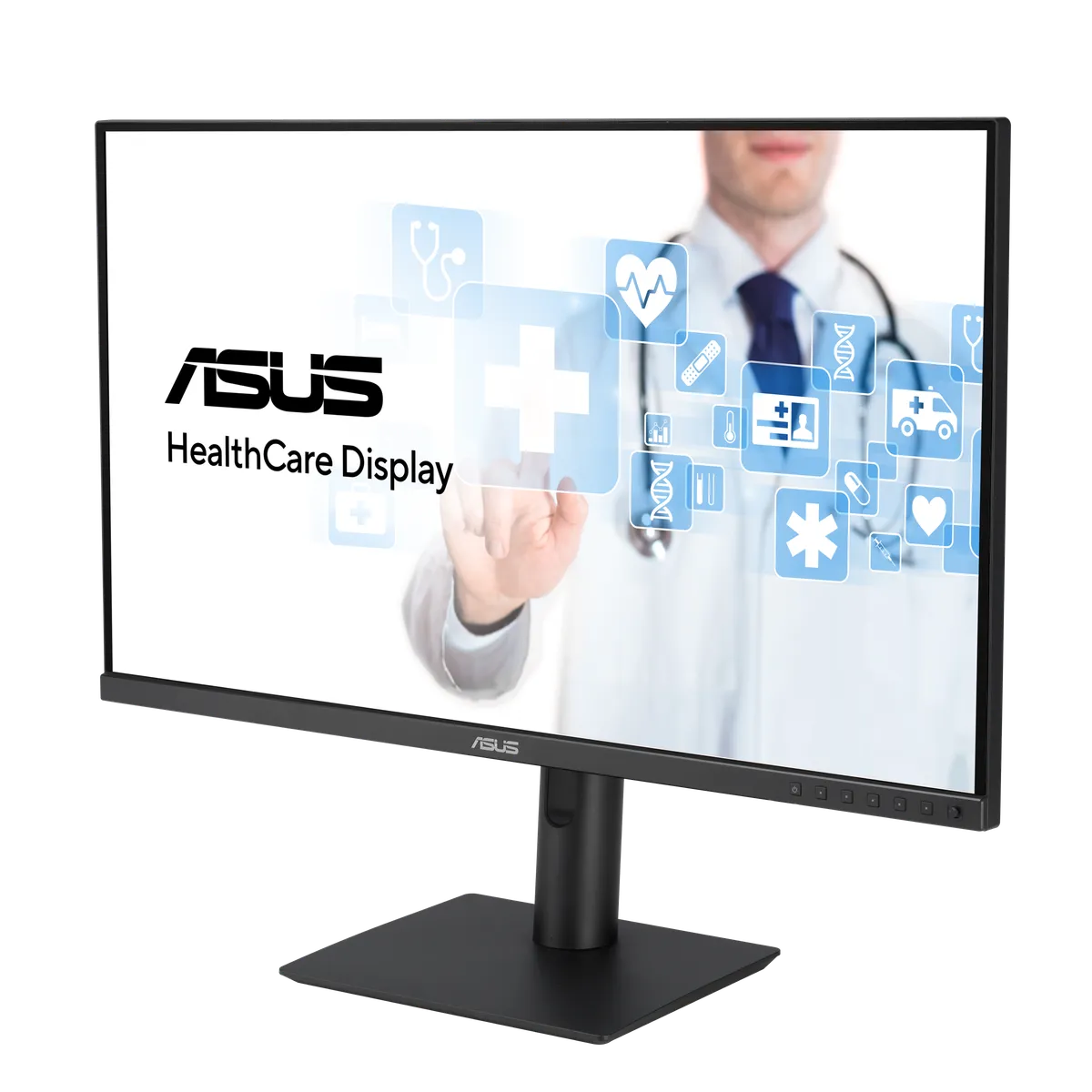

ASUS HA2741A HealthCare Monitor – 27-inch, 3.6MP (2560 x 1440), AGLR, DICOM Part 14 GSDF, DICOM Preset, Auto Calibration, JND < 10%, Antibacterial Treatment, USB-C, HDMI, DisplayPo
Technical Specifications17 specs
General
Model
HA2741A
Display
- Panel Size (inch) : 27
- Aspect Ratio : 16:9
- Resolution : 2560x1440
- Pixel Pitch : 0.233mm
- Display Viewing Area (H x V) : 596.74 x 335.66 mm
- Display Surface : AGLR (Anti-Glare, Low-Reflection)
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Brightness (Typ.) : 350cd/㎡
- Contrast Ratio (Typ.) : 900:1
- Display Colors : 16.7M
- Response Time : 5ms(GTG)
- Flicker-free : Yes

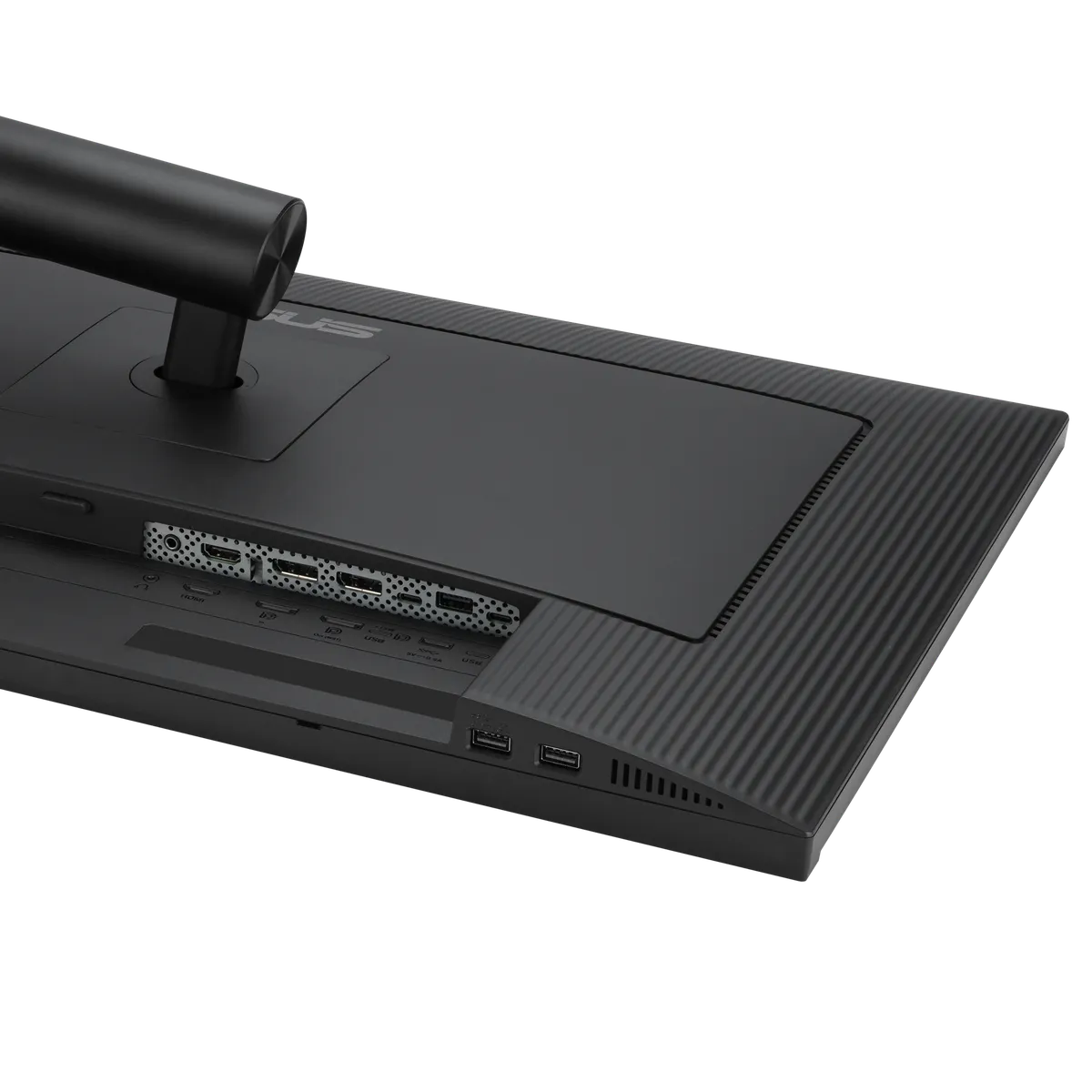

Video Inputs
- USB-C x 1 (DP Alt Mode)
- HDMI(v2.0) x 1
- DisplayPort 1.4 x 2 (Daisy Chain)
- USB-C Power Delivery : 15W
- USB Hub : 1x USB 3.2 Gen 1 Type-C
- 3x USB 3.2 Gen 1 Type-A
- Earphone Jack : Yes
Features
- Preset Mode : User Mode 1
- DICOM_Auto
- DICOM_100 lux
- DICOM_50 lux
- DICOM_0 lux
- sRGB
- Native
- Color Temp. Selection : Yes (5000K, 5500K, 6500K, 7500K, 9300K, 12000K)
- Monochrome : Off / Positive / Negative
- Gamma adjustment : Yes (Support Gamma 2.0/2.2/2.4)
- Aspect Control : Full / Dot to Dot / 1:1 Ratio
- Pixel : 4MP / 3MP
- PIP(PbP) Technology : Yes
- ASUS Hardware Calibration : Yes
- HDCP : Yes, 2.2
- Low Blue Light : Yes
- Eye Care+ Technology : Yes
Audio
Speaker : No
Sensor
Ambient Light Sensor : Yes
Power Consumption
- Power Consumption : < 13W
- Power Saving Mode : < 0.5W
- Power Off Mode : <0.3W
- Voltage : 100-240V, 50/60Hz
Mechanical Design

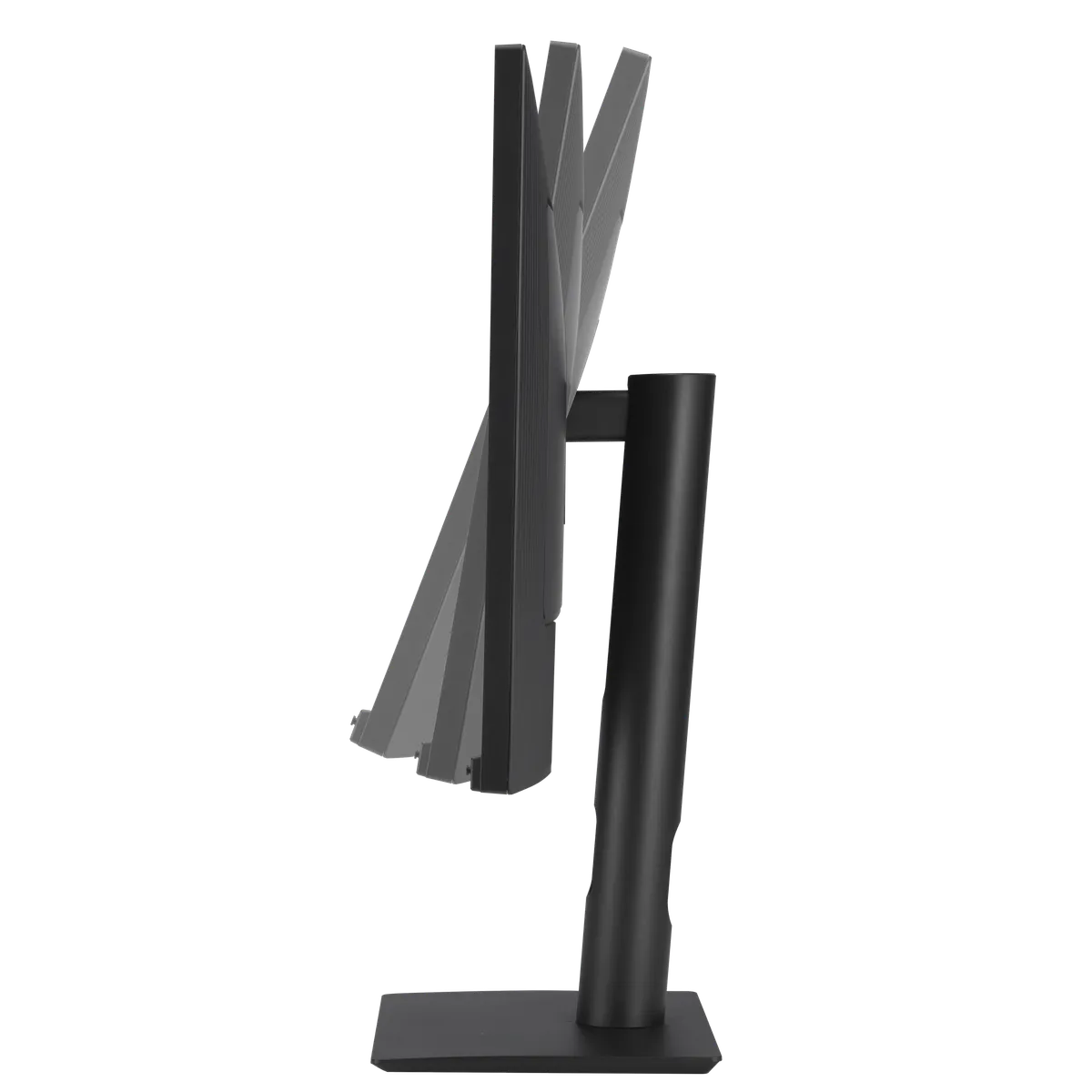

- Tilt : Yes (+23° ~ -5°)
- Height Adjustment : 0~130mm

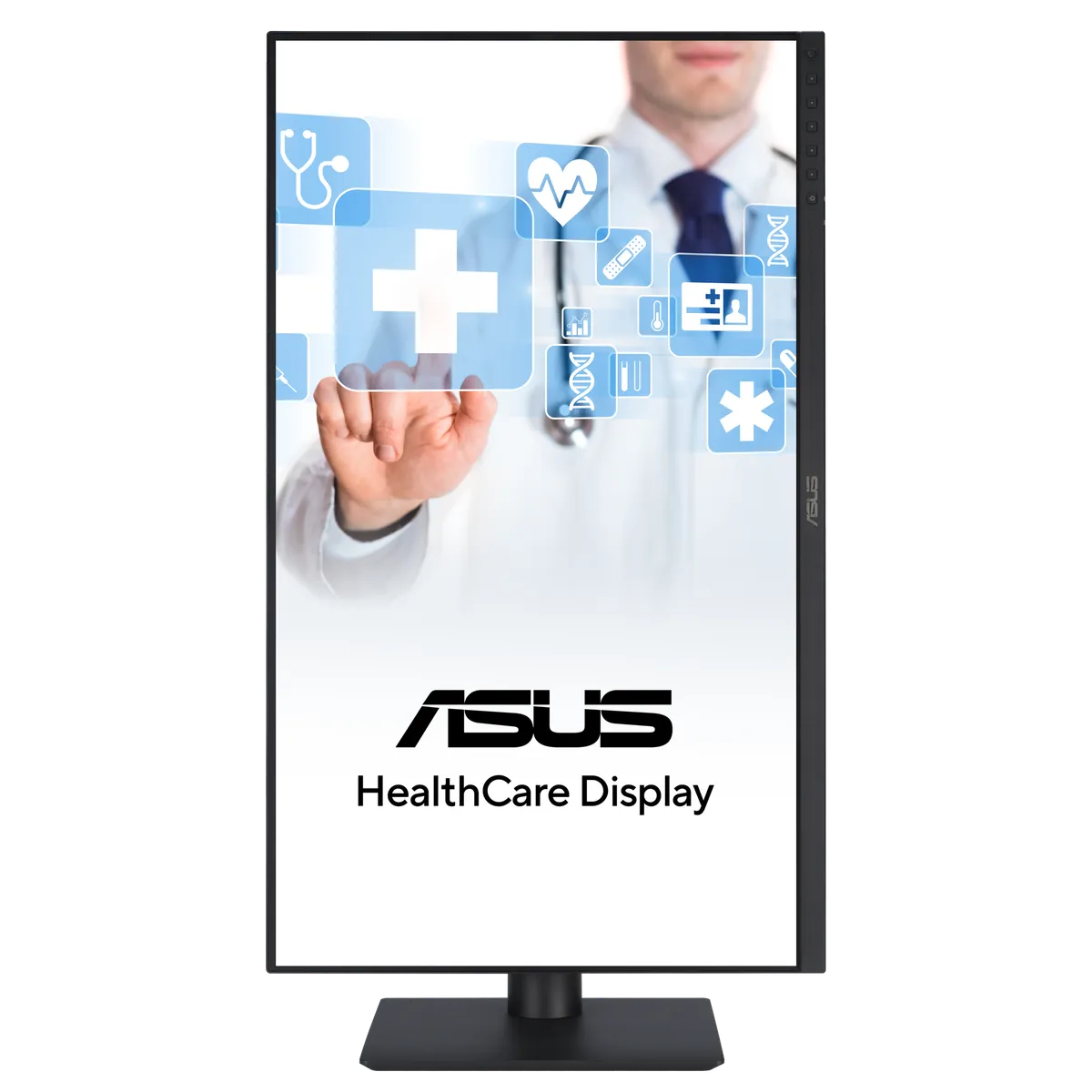

- Pivot : Yes (+90° ~ -90°)
- Swivel : Yes (+30° ~ -30°)
- Antibacterial treatment : Yes
- VESA Wall Mount : 100x100mm
- Kensington Lock : Yes
Dimensions Esti
- Phys. Dimension with Stand (W x H x D) : 61.33 x 53.67 x 19.72 cm (24.15" x 21.13" x 7.76")
- Phys. Dimension without Stand (W x H x D) : 61.33 x 36.34 x 4.49 cm (24.15" x 14.31" x 1.77")
- Box Dimension (W x H x D) : 69.5 x 42.1 x 13.3 cm (27.36" x 16.57" x 5.24")
Weight Esti
- Net Weight : 6.7 kg (14.77 lbs)
- Net Weight without Stand : 5.0 kg (11.02 lbs)
- Gross Weight : 9.3 kg (20.50 lbs)
Reliability
- Operation Temperature : 0°C ~ 40°C
- Operation Humidity : 5% ~ 90%
Compliance Standard
- IEC 62563-1
- AAPM TG270
- IEC 60601-1-2
- ISO 13485
- FSC MIX
- TÜV Low Blue Light
- TÜV Flicker-free
- Energy Star
Accessories Vary By Regions
- Warranty Card
- USB-C cable
- Quick start guide
- Quick release stand
- Power cord
- Power adapter
- HDMI cable
- DisplayPort cable
- Color pre-calibration report
Physical Dimensions
Length Mm
613.3
Width Mm
536.7
Height Mm
197.2
Weight G
6700
