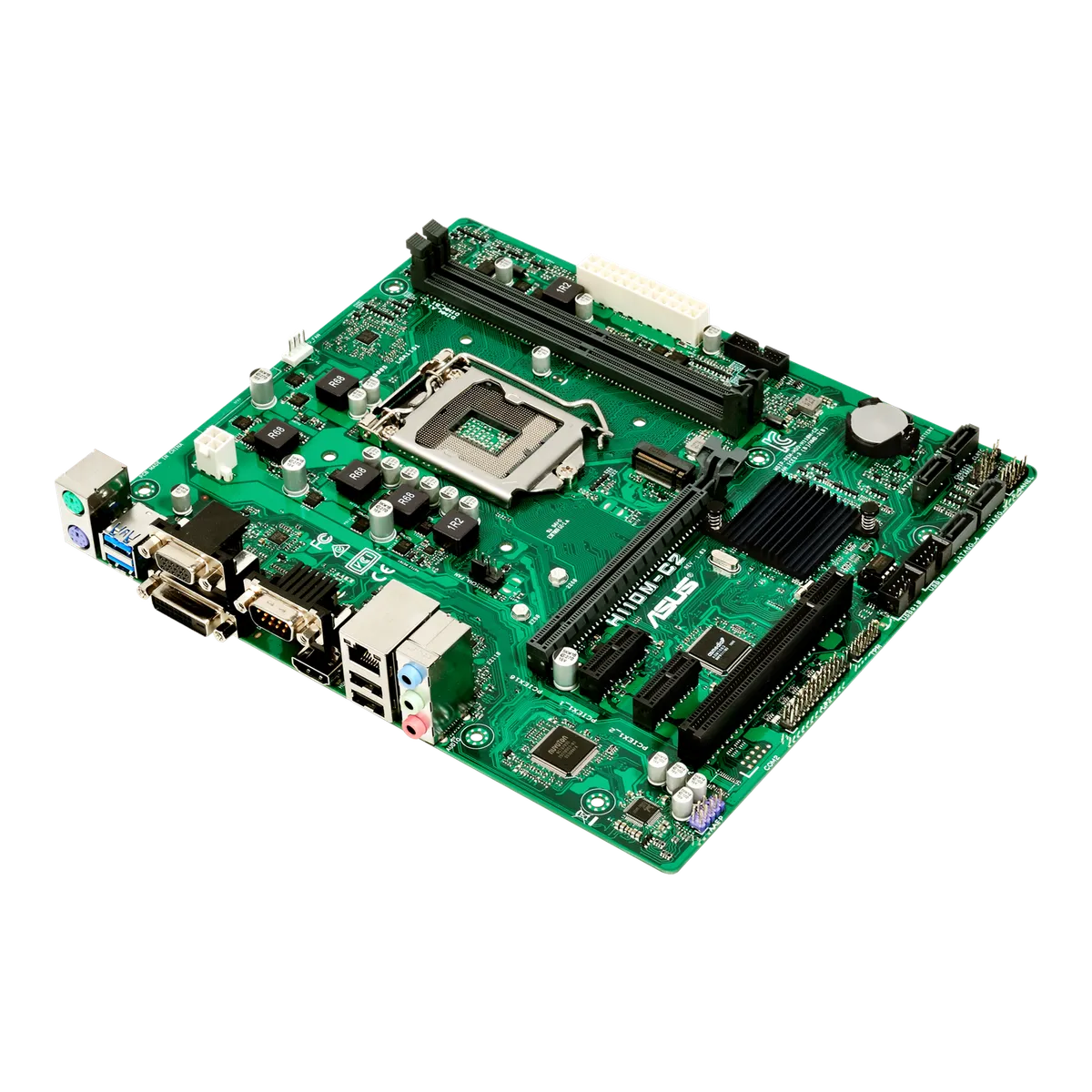

ASUS H110M-C2/CSM

Name: ASUS H110M-C2/CSM
Brand: Asus
SKU: 9478

Price TBC

Compatibility Data

ChipsetIntel® H110

Memory TypeDDR4

M2 Slots1

Form FactormATX

Model: 9478

Technical Specifications19 specs

General

Model

H110M-C2/CSM

Cpu

Intel® for 7
th
/6
th
Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0,* Refer to
www.asus.com
for CPU support list

Chipset

Intel® H110

Memory

2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Memory,* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.,** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.,Supports Intel® Extreme Memory Profile (XMP),* Refer to
www.asus.com

Graphic

Supports Intel® Quick Sync Video, Clear Video HD Technology,- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz,Multi-VGA output support : HDMI/DVI-D/RGB ports,- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz,Integrated Graphics Processor- Intel® HD Graphics support,Maximum shared memory of 1024 MB (for iGPU exclusively),- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz

Expansion Slots

1 x PCI,1 x PCIe 3.0/2.0 x1,2 x PCIe 2.0 x1

Storage

1 x M.2 Socket 3,,4 x SATA 6Gb/s port(s)

Lan

Intel® I219V, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC8877.1-Channel High Definition Audio CODEC

Usb Ports

Intel® H110 chipset :
,4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board),6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Special Features

- ASUS DIGI+ VRM - 5 Phase digital power design
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance,- ASUS Overvoltage Protection - World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability,- ASUS ESD Guards - Electrostatic discharge protection
ASUS Q-Design :
,- ASUS Q-Slot,- ASUS Q-DIMM

Back I O Ports

2 x USB 3.1 Gen 1 ,,1 x COM port(s),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s),1 x PS/2 keyboard (purple),1 x PS/2 mouse (green)

Internal I O

1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only),1 x LPT header,1 x Chassis intrusion header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s),1 x 14-1 pin TPM connector,1 x Chassis Fan connector(s),1 x Internal speaker connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x 24-pin EATX Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s)

Accessories

1 x SCD,User´s manual,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package

Operating System

Windows® 8.1 64-bit,Windows® 7 32-bit,Windows® 7 64-bit

Form Factor

9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm ),mATX Form Factor
