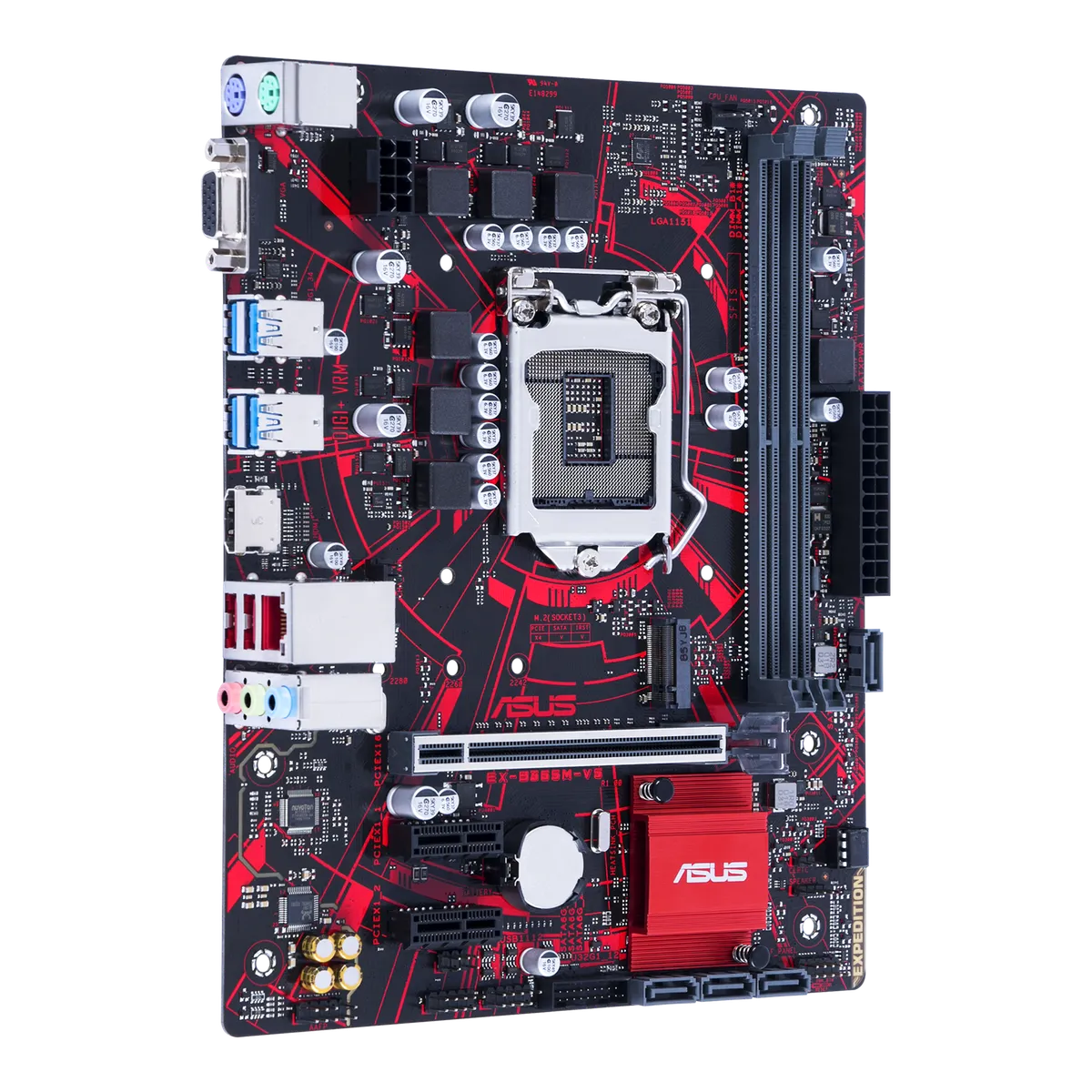

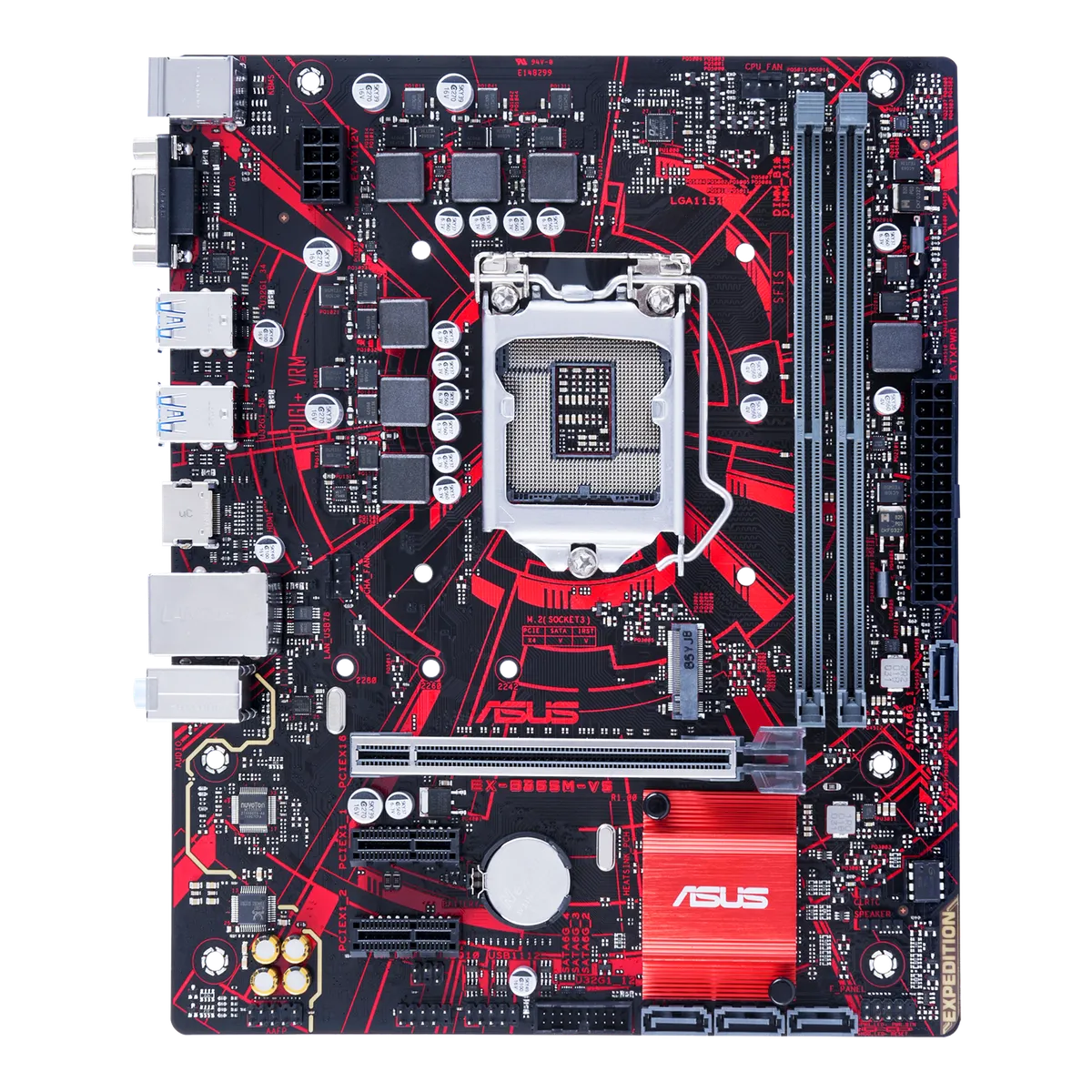

ASUS EX-B365M-V5
Quick Specs
ChipsetIntel® B365
MemoryDDR4
Form FactorATX
M.2 Slots1
Model: 11005
About this motherboards
Experience the unbeatable EX-B365M-V5 motherboard with luminous anti-moisture coating, DDR4 2666MHz, HDMI and top-tier features for tech-enthusiasts.
Technical Specifications20 specs
General
Model
EX-B365M-V5
Cpu
- Intel® Socket 11519th / 8th Gen Intel
- ®
- Core™, Pentium
- ®
- Gold and Celeron
- ®
- Processors,Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.,* Refer to
- www.asus.com
- for CPU support list
Chipset
Intel® B365
Memory
- * The maximum memory frequency supported varies by processor,2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory,Supports Intel® Extreme Memory Profile (XMP),* Refer to
- www.asus.com
Graphic
Integrated Graphics Processor- Intel® HD Graphics support,Multi-VGA output support : HDMI/D-Sub ports,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
2 x PCIe 3.0/2.0 x1,1 x PCIe 3.0/2.0 x16 (x16 mode)
Storage
- Intel® B365 Chipset :
- ,4 x SATA 6Gb/s port(s),,1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode),Intel® Optane™ Memory Ready
Lan
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.,Realtek® ALC8878-Channel High Definition Audio CODEC
Usb Ports
- 6 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
- Intel® B365 Chipset :
- ,6 x USB 2.0/1.1 port(s) (2 at back panel, red, 4 at mid-board)
Special Features
- - ASUS SafeSlot Core+ - Prevent graphics card damage
- Non-stop Durability :
- - Anti-moisture coating - Outstanding protection against moisture and corrosion,- USBGuard- 120% higher voltage tolerance
- Non-stop Gaming :
- - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Non-stop Challenger :
- - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
- ASUS 5X Protection III :
- - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: 6 Phase digital power design
- ASUS Q-Design :
- ,- ASUS Q-Slot,- ASUS Q-DIMM
Operating System Support
Windows® 10 64-bit
Back I O Ports
1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s),4 x USB 3.2 Gen 1 (up to 5Gbps) ports,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green)
Internal I O
1 x AAFP connector,1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices,1 x Chassis Fan connector(s),1 x 8-pin EATX 12V Power connectors,1 x Internal speaker connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x 24-pin EATX Power connector(s),1 x System panel(s),1 x Clear CMOS jumper(s),1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
1 x M.2 Anchor,User´s manual,I/O Shield
Operating System
Windows® 10 64-bit
Form Factor
uATX Form Factor,8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm )
Physical Dimensions
Length Mm
226.1
Width Mm
182.9
Height Mm
574
