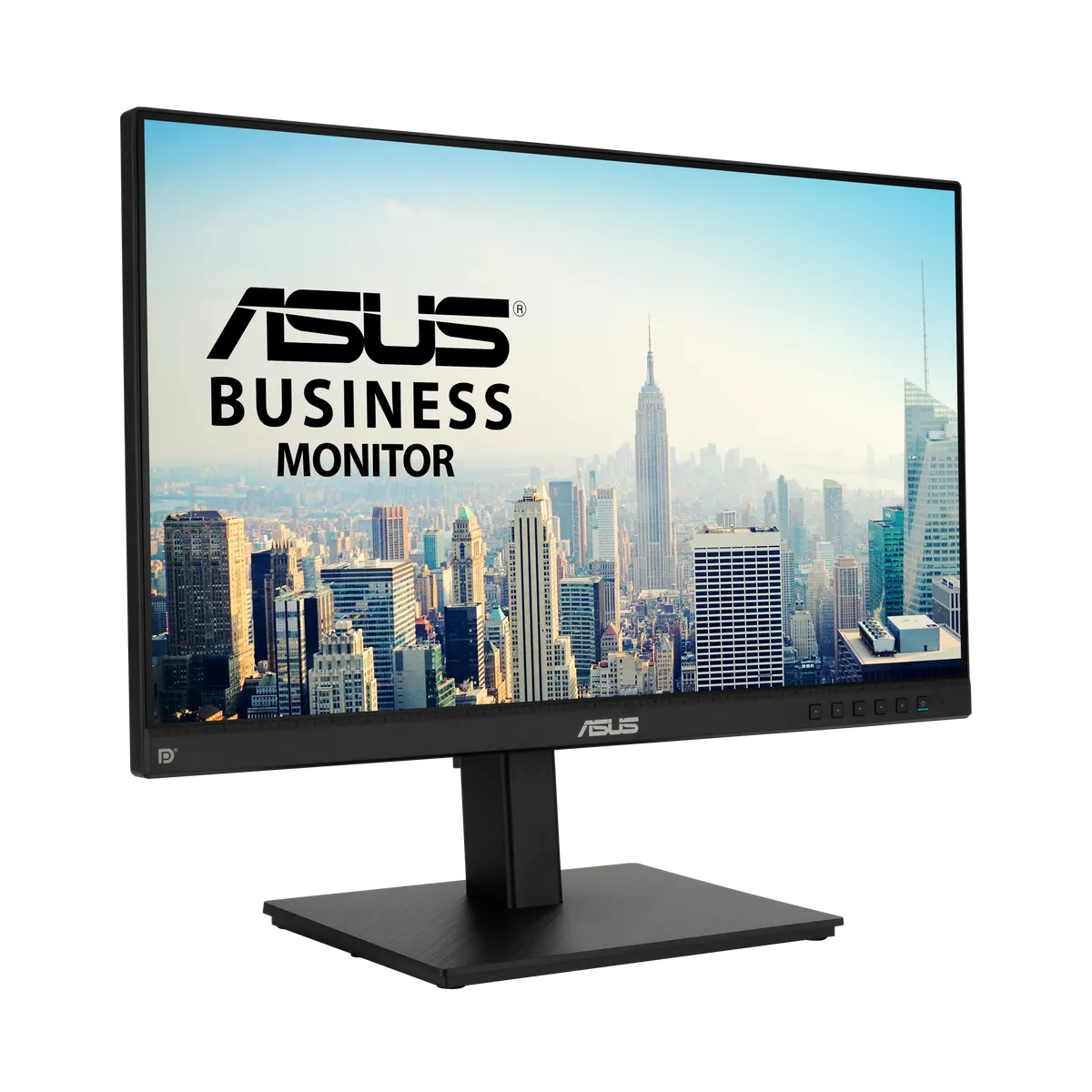

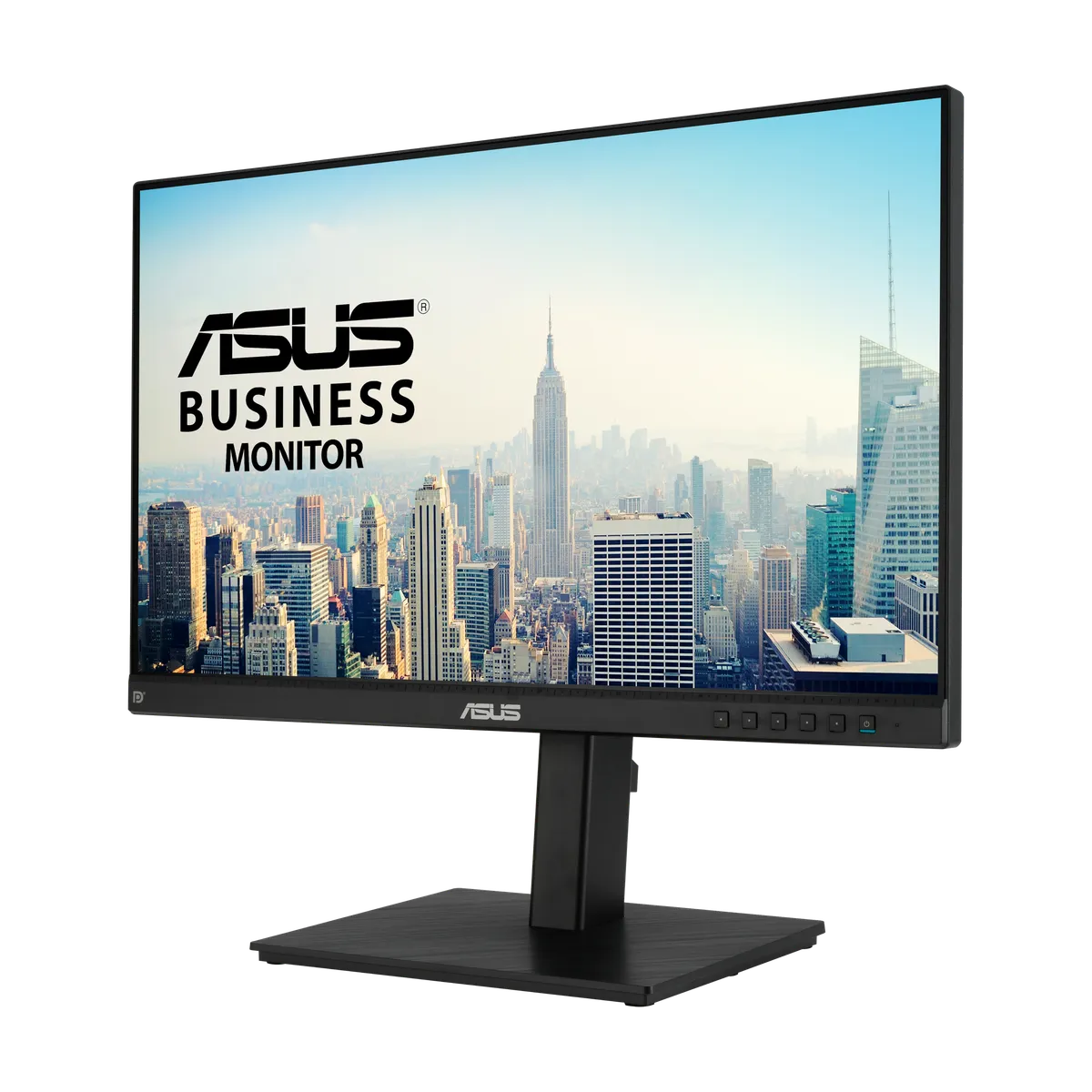

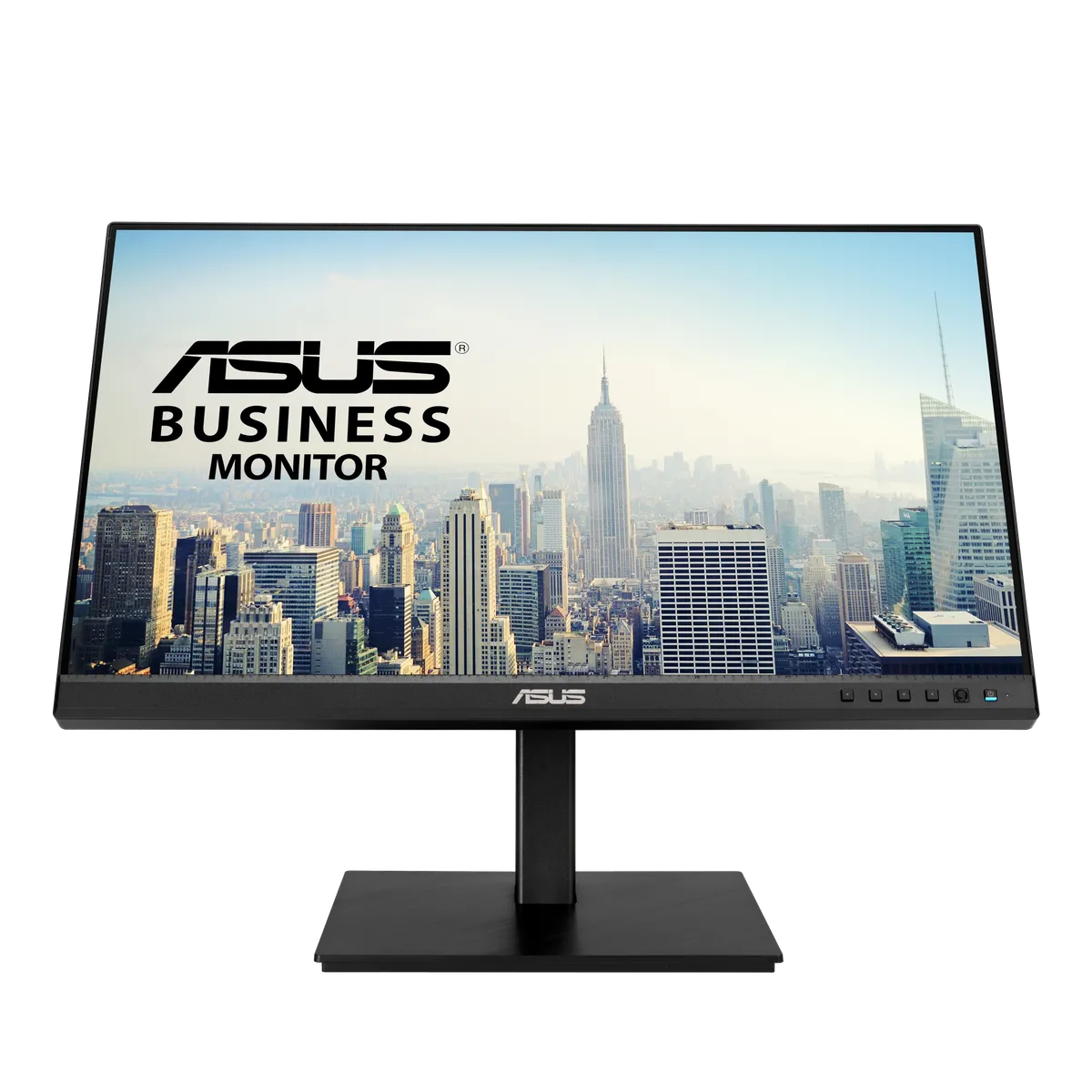

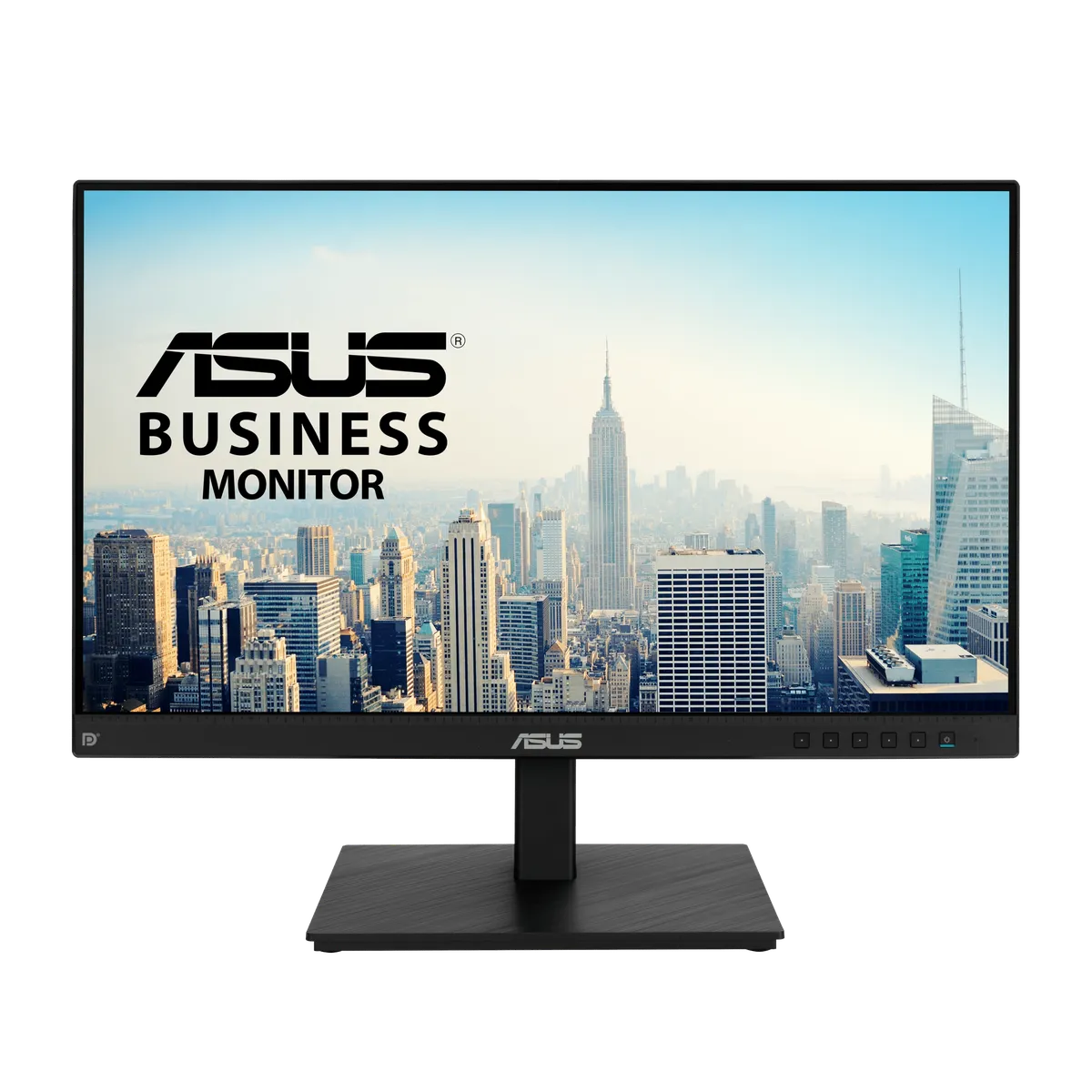

ASUS BE24ECSBT
Quick Specs
Size24"
Resolution1920x1080
Refresh75 Hz
PanelIPS
Response5 ms
Model: 21048
About this monitors
ASUS BE24ECSBT Monitor is a 23.8-inch FHD IPS monitor with 10-point multi-touch support. Rich connectivity including HDMI, DisplayPort, USB-C DisplayPort Alt mode plus up to 80W power delivery and USB hub. With flicker-free, low blue light technology and ergonomic stand design, it’s comfortable for everyday computing.
Technical Specifications15 specs
General
Model
BE24ECSBT
Display
- Panel Size (inch) : 23.8
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 527.04 × 296.46 mm
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.2745mm
- Resolution : 1920x1080
- Color Space (sRGB) : 100%
- Brightness (Typ.) : 300cd/㎡
- Contrast Ratio (Typ.) : 1000:1
- Display Colors : 16.7M
- Response Time : 5ms(GTG)
- Refresh Rate (Max) : 75Hz
- Touch : Yes, Projective Capacitive 10-point Touch
- Flicker-free : Yes
Features
- Trace Free Technology : Yes
- SPLENDID Technology : Yes
- Color Temp. Selection : Yes (4 modes)
- QuickFit : Yes (Document/Letter/Photo/Alignment Grid)
- HDCP : Yes, 1.4
- Low Blue Light : Yes
- Eye Care+ Technology : Yes
Audio
Speaker : Yes(2Wx2)

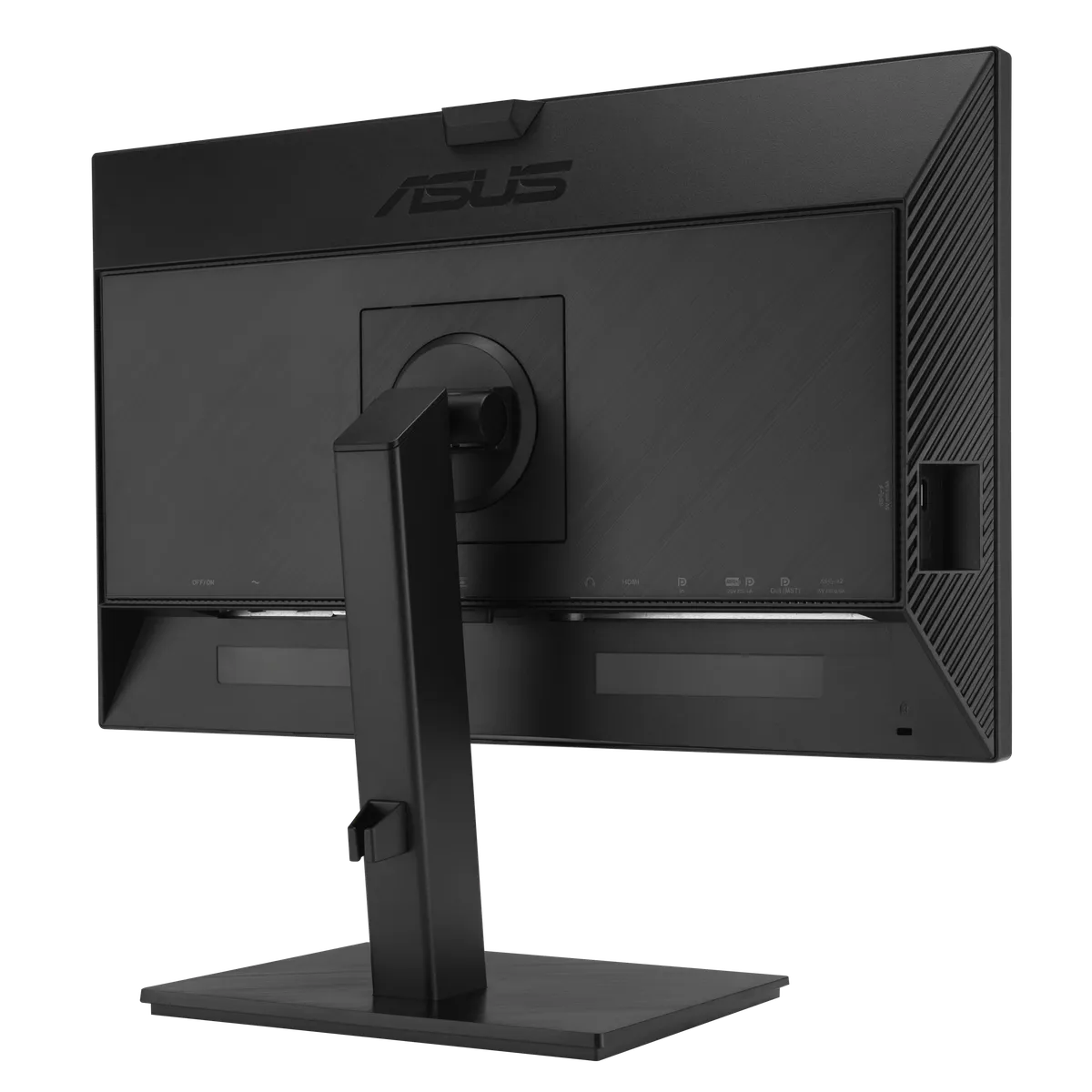

I O Ports
- USB-C x 1 (DP Alt Mode)
- DisplayPort 1.4 x 2 (Daisy Chain)
- HDMI(v1.4) x 1
- USB Hub : 3x USB 3.2 Gen 1 Type-A
- Earphone Jack : Yes
- USB-C Power Delivery : 80W
Power Consumption
- Power Consumption : 13.2 W
- Power Saving Mode : <0.5W
- Power Off Mode : 0W (hard switch)
- Voltage : 100-240V, 50/60Hz
Mechanical Design

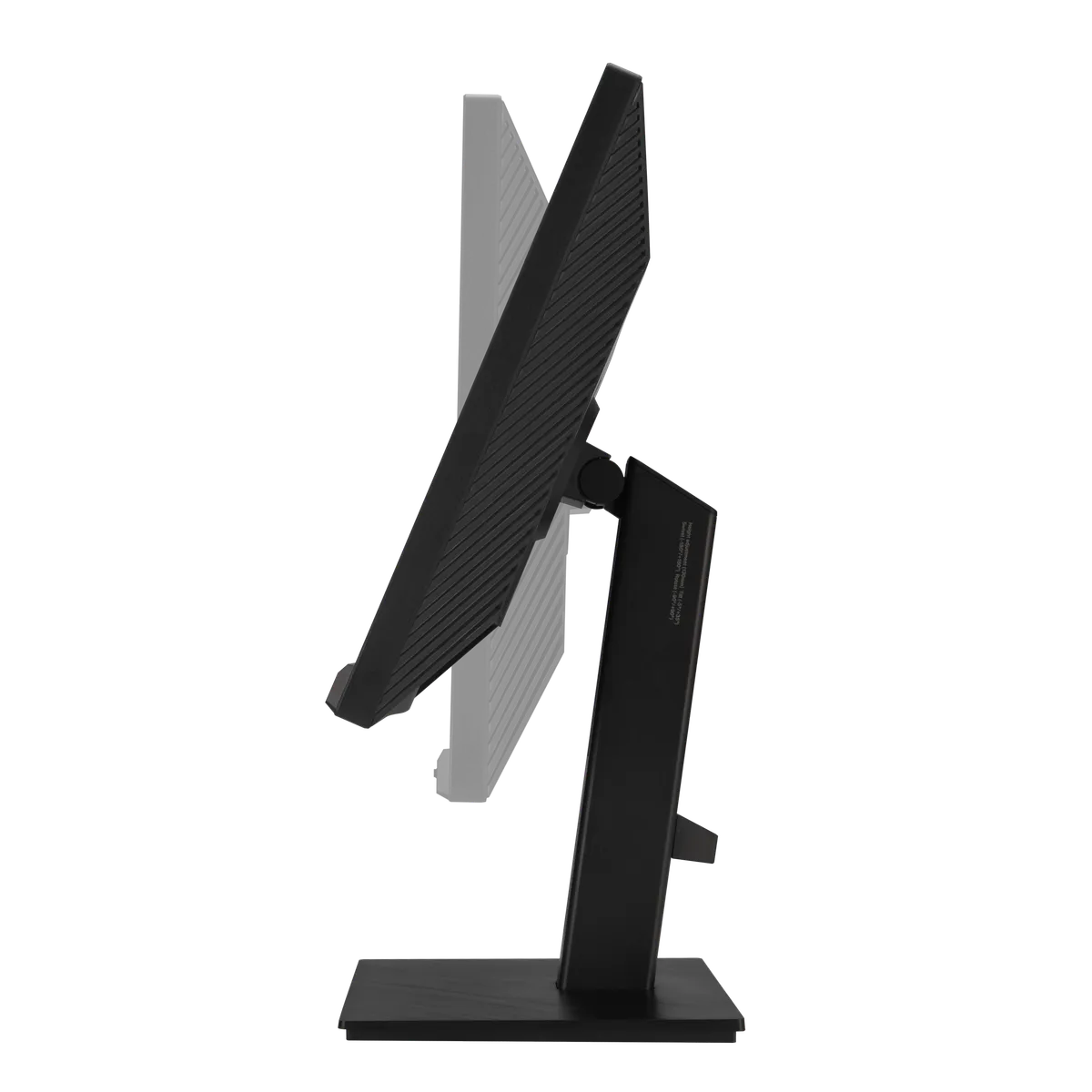

- Tilt : Yes (+35° ~ -5°)

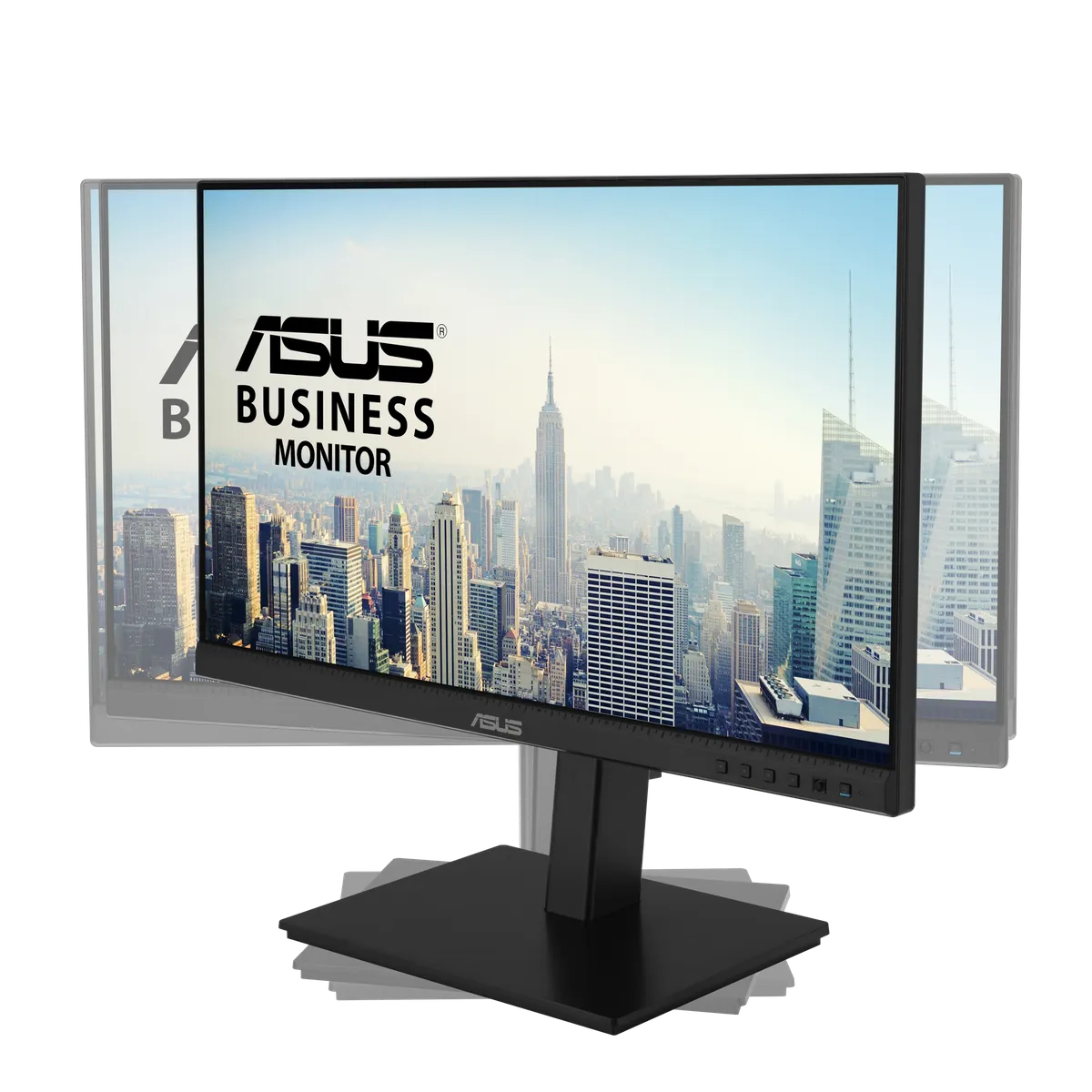

- Swivel : Yes (+180° ~ -180°)

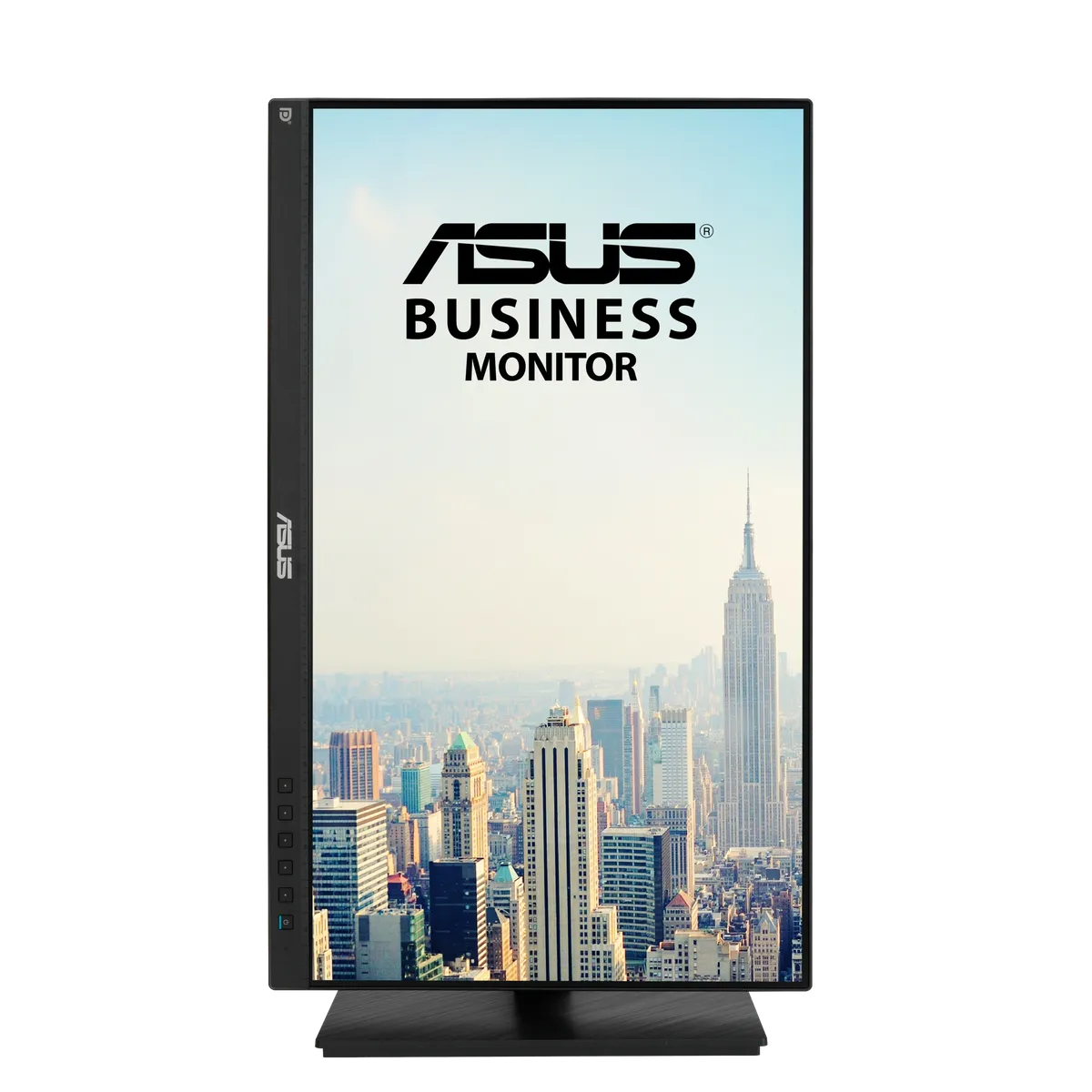

- Pivot : Yes (+90° ~ -90°)

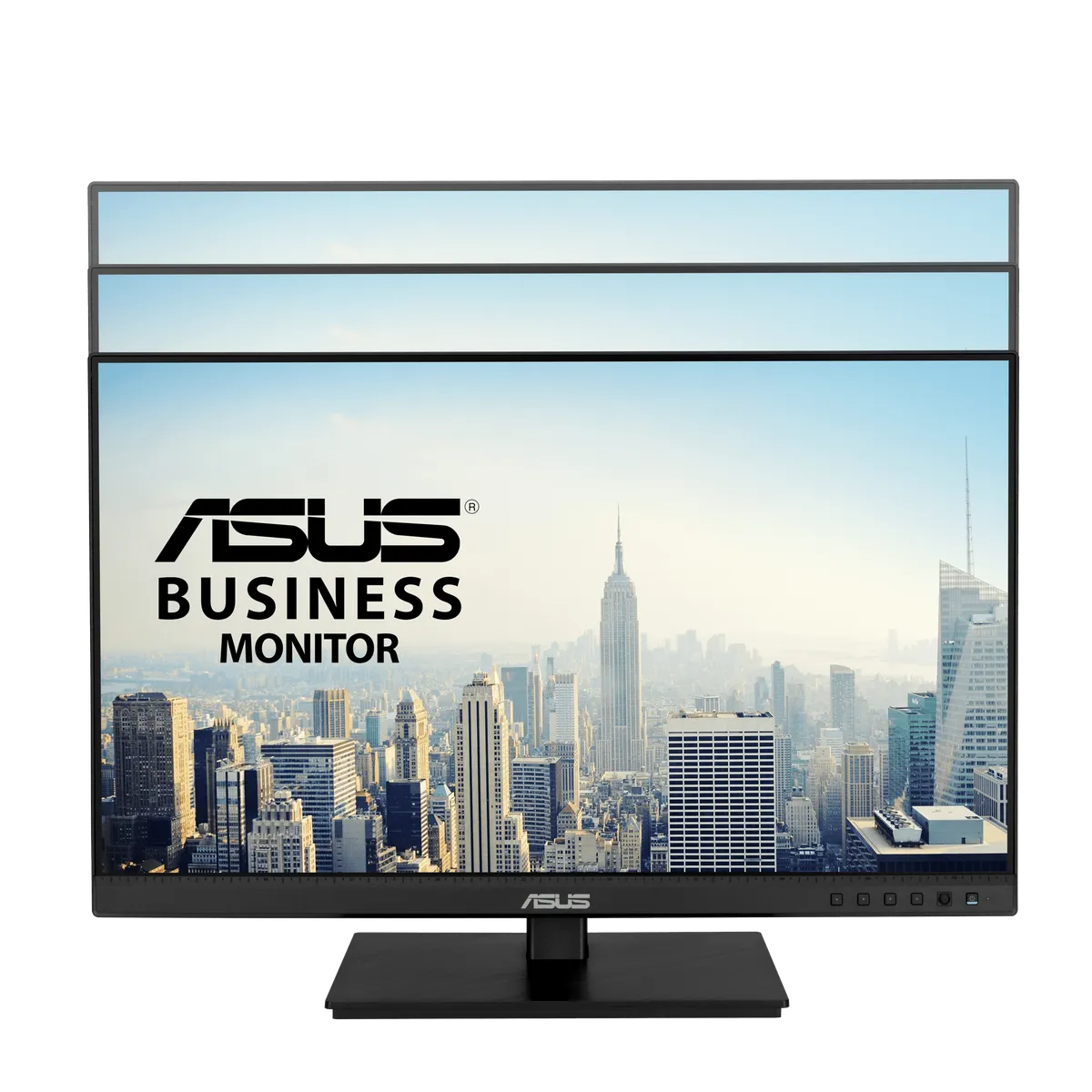

- Height Adjustment : 0~130mm
- Ambient Light Sensor : Yes
- VESA Wall Mounting : 100x100mm
- Kensington Lock : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 53.97 x 45.94 x 21.14 cm (21.25" x 18.09" x 8.32")
- Phys. Dimension without Stand (W x H x D) : 53.97 x 32.99 x 5.28 cm (21.25" x 12.99" x 2.08")
- Box Dimension (W x H x D) : 74.60 x 44.00 x 17.00 cm (29.37" x 17.32" x 6.69")
Weight Esti
- Net Weight : 6.1 kg (13.45 lbs)
- Net Weight without Stand : 4.1 kg (9.04 lbs)
- Gross Weight : 8.3 kg (18.30 lbs)
Accessories Vary By Regions
- Warranty Card
- USB-C cable
- Quick start guide
- Quick release stand
- Power cord
- HDMI cable
Certificate
- TÜV Low Blue Light
- TÜV Flicker-free
- TCO Certified
- EPEAT Silver
- Energy Star
Physical Dimensions
Length Mm
539.7
Width Mm
459.4
Height Mm
211.4
Weight G
6100
