About this power supplies
ASUS 850W-ATS Gold PSU: 80+ Gold certified, dual ball fan bearings, etched cables, and a 3-year warranty.
Technical Specifications23 specs
General
Model
ASUS-ATS-850G
Intel Form Factor
ATX12V
Pfc Type
Active PFC
Atx Standard
NA
Dimensions
140 x 150 x 86 mm
Efficiency
80Plus Gold
Mtbf
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/
OTP
Hazardous Materials
ROHS
Ac Input Range
110-240Vac
Dc Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 70.83A 0.3A 3A
Combined Load
100W 100W 850W 3.6W 15W
Total Output
850W

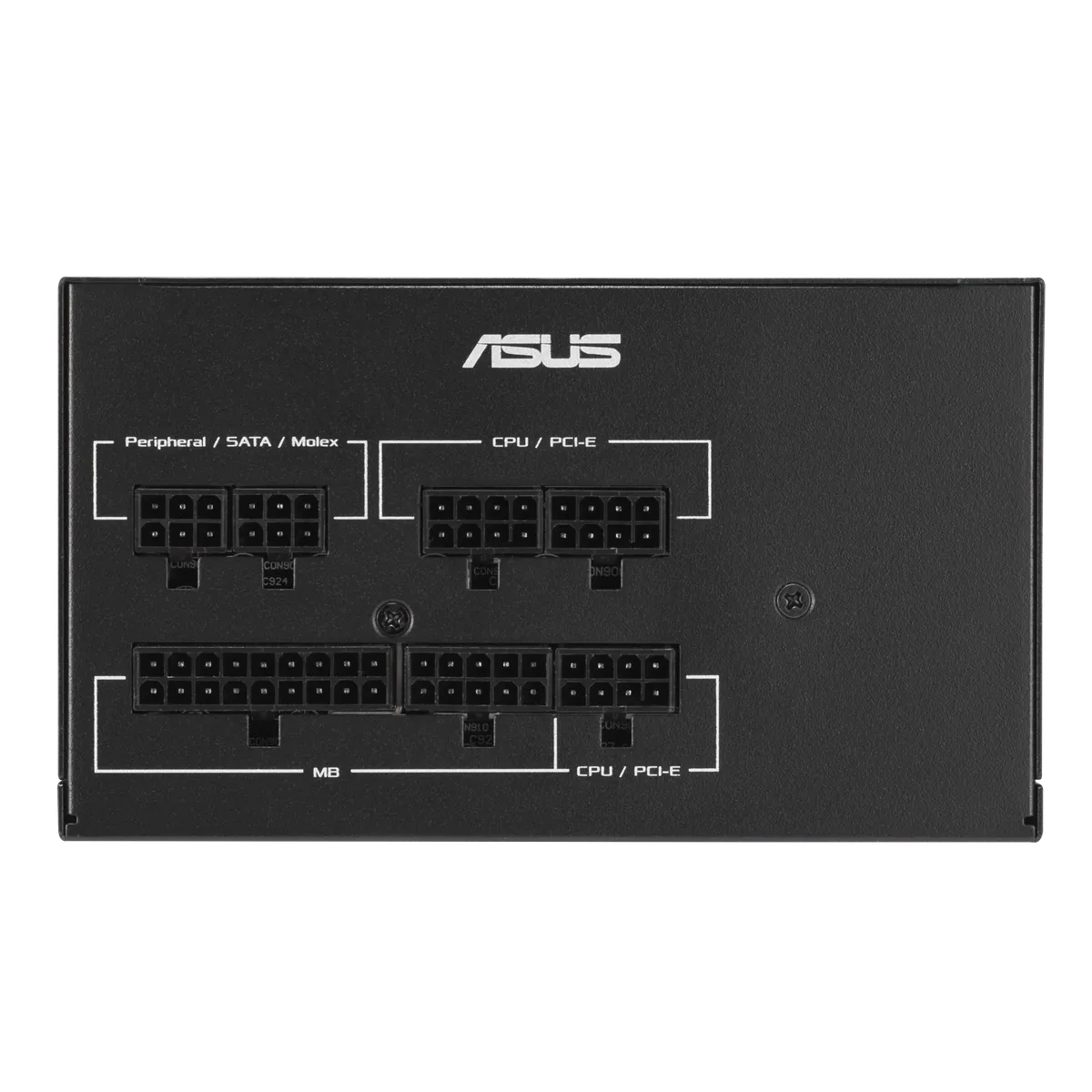

Cable Connectors
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 6+2-pin x 3
- SATA x 3
- PERIPHERAL x 3
Package Contents
- Power Cord x 1
- Motherboard Power Cable x 1 (550mm)
- CPU 1-to-2 Cable x 1 (650+100mm)
- PCI-E 1-to-1 Cable x 1 (675mm)
- PCI-E 1-to-2 Cable x 1 (675+100mm)
- PCI-E Gen 5 (8-pin-8-pin-to-16-pin) Cable x 1 (675mm)
- SATA 1-to-3 Cable x 1 (400+120+120mm)
- Peripheral 1-to-3 Cable x 1 (400+120+120mm)
- Chassis Screws Package x 1
- Quick Start Guide x 1
Weight
1.552 kg (single PSU)
Cybenetics Noise Level Certification
NA
0db Technology
No
Physical Dimensions
Length Mm
140
Width Mm
150
Height Mm
86
Weight G
1552
