About this power supplies
ASUS Prime 750W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
Technical Specifications23 specs
General
Model
AP-750G
Intel Form Factor
ATX12V
Pfc Type
Active PFC
Atx Standard
ATX 3.1
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Mtbf
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/
OTP
Hazardous Materials
ROHS
Ac Input Range
100-240Vac
Dc Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A20A62A 0.3A 2.5A
Combined Load
110W 110W 744W 3.6W 12.5W
Total Output
750W

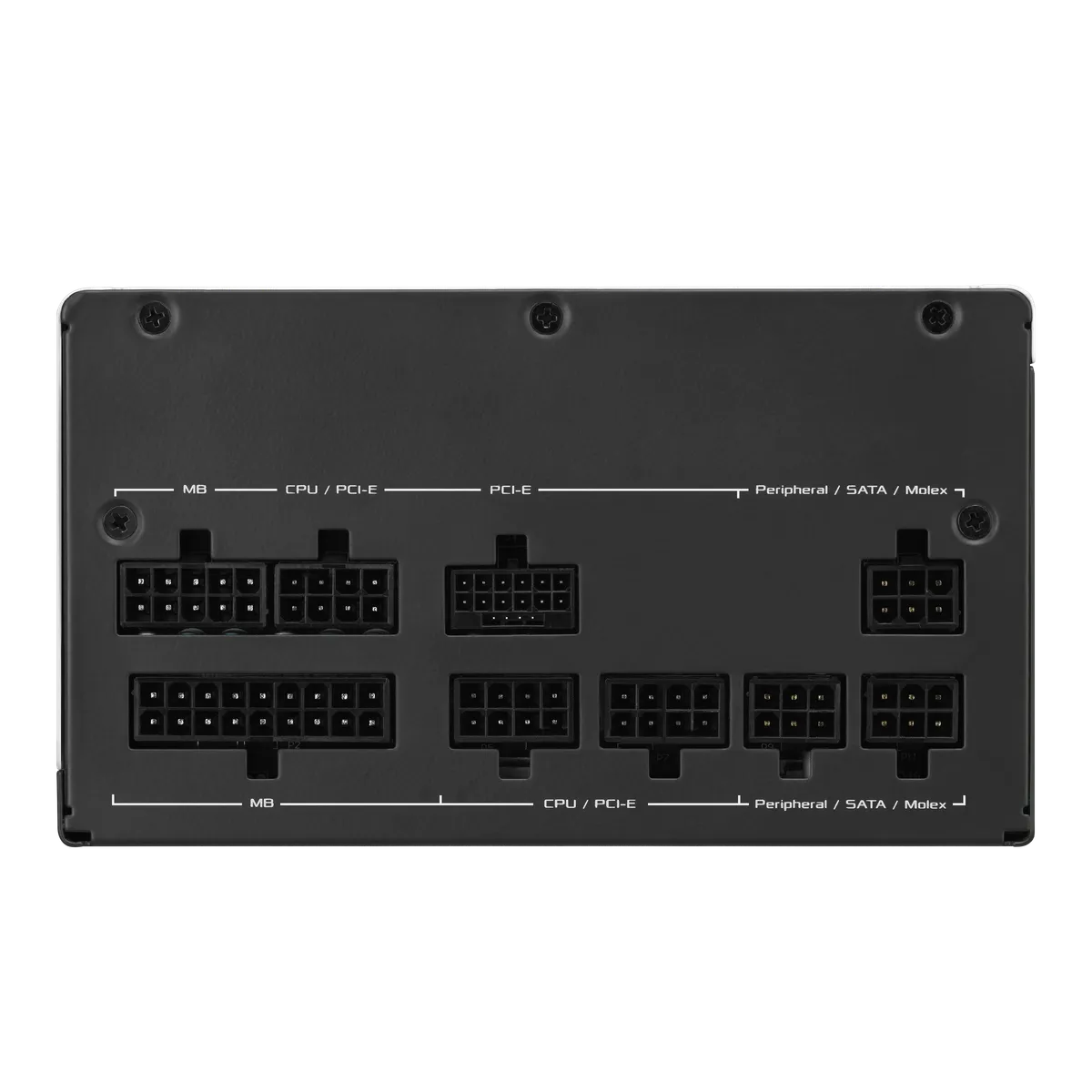

Cable Connectors
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 16-pin x 1 (both PSU & connector side)
- PCI-E 8-pin x 3
- SATA x 5
- PERIPHERAL x 3

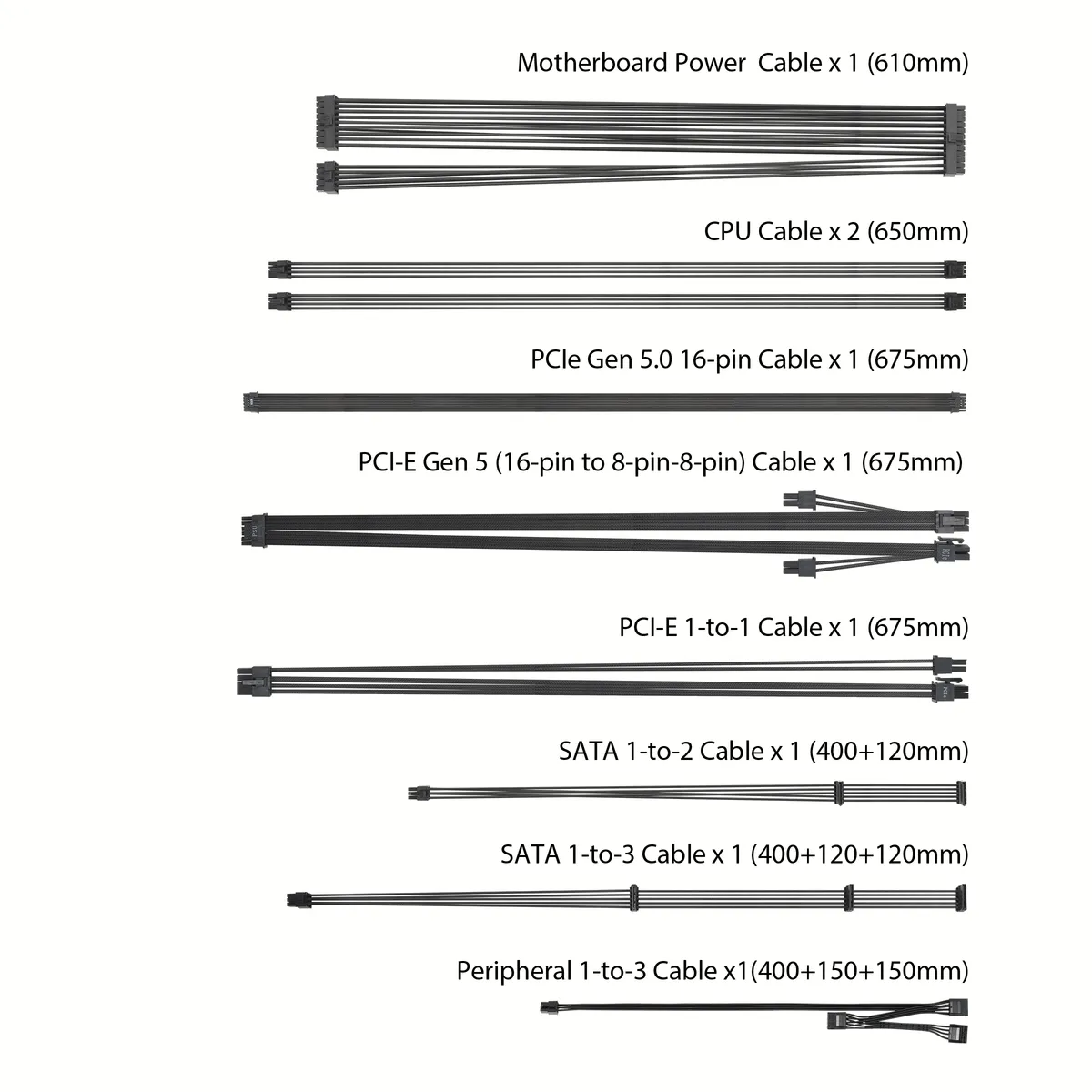

Package Contents
- Power Cord x 1
- Motherboard Power Cable x 1 (610mm)
- CPU Cable x 2 (650mm)
- PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
- PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
- PCI-E 1-to-1 Cable x 1 (675mm)
- SATA 1-to-2 Cable x 1 (400+120mm)
- SATA 1-to-3 Cable x 1 (400+120+120mm)
- Peripheral 1-to-3 Cable x 1 (400+150+150mm)
- User Manual x 1
Weight
1.466 kg (single PSU)
Cybenetics Noise Level Certification
NA
0db Technology
No
Physical Dimensions
Length Mm
150
Width Mm
150
Height Mm
86
Weight G
1466
