ASRock SPC621D8-2L2T Server Motherboard
Quick Specs
SocketLGA 4189
MemoryRDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Form FactorATX
Model: SPC621D8-2L2T
Technical Specifications30 specs
Additional Information
Model Number
SPC621D8-2L2T
Additional Specifications
Water Cooled
No
Cooling
-
Qpi Speed
N/A
Dimensions
304.8 x 243.84 mm
Note
-
Core Specifications
Edition
SPC621D8-2L2T
Form Factor
ATX
Socket
4189
Chipset
-
External Connectivity
Network Interface Type
Dedicated Management Ports
Wired 10G LAN
Wired Gigabit LAN (10/100/1000)
Network Chip Modules
1 x Dedicated Management Ports
2 x Intel® I210 (Gigabit LAN)
2 x Intel® X710-AT2 (10G LAN)

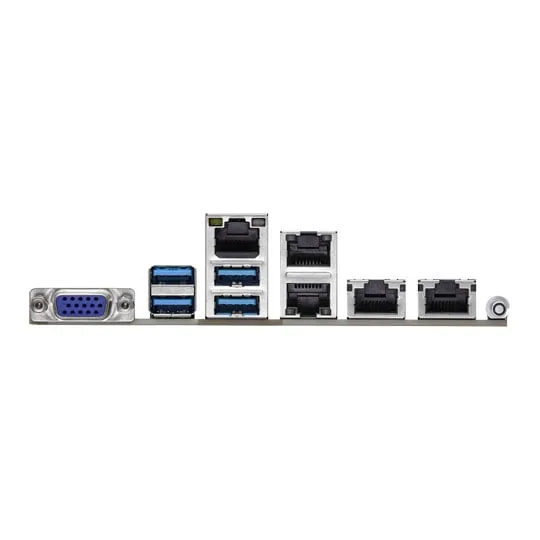

Rear I O Connectors
2 x 10/100/1000 (LAN)
2 x 10GbE RJ45
1 x Mgmt LAN
1 x UID Button/UID LED
4 x USB 3.2 Gen1 Type-A
1 x VGA
Graphics Support
Primary Gpu Interface
PCIe 4.0 (x16)
Nvidia Sli Support
N/A
Amd Crossfire Support
N/A
Integrated Graphics
-
On Board Graphics Connectors
None
Internal Connectivity
Expansion Slots
4 x PCIe 4.0 x16
4 x PCIe 4.0 x8
Sata Support
N/A
Raid Support Via
-
Storage Mode Support
RAID 0
RAID 1
RAID 10
RAID 5
Internal I O
1 x 24-pin (Power)
1 x 4-pin (Power)
1 x 8-pin (Power)
1 x Auxiliary Panel Header
1 x Buzzer
1 x Chassis Intrusion connector
1 x Clear CMOS (Short Pad)
5 x Fan Header
1 x IPMB Connector/Header
1 x LAN Activity LEDs
1 x ME/SPS Recovery
1 x PMBUS Header
1 x Serial (COM) Header
1 x SGPIO header
1 x SMBus header
1 x speaker header
1 x System panel connector
1 x Temperature Sensor Header
1 x TPM Header
1 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
2 x USB 3.2 Gen2 Header
1 x VGA connector
1 x VROC Connector
RAM Memory Support
Memory Type
DDR4
Memory Channel
-
Memory Type Ecc
-
Memory Type R U
RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Memory Speed Mhz
DDR4 - 3200
Max Memory Capacity
256GB
