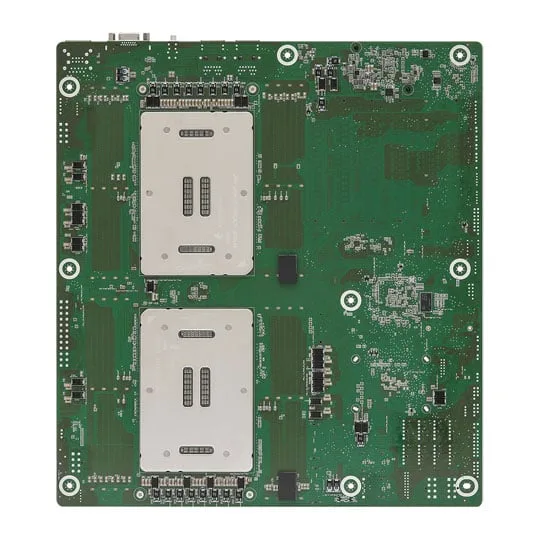

ASRock SP2C741D16-2T EEB Server Motherboard
Quick Specs
ChipsetIntel
SocketLGA 4677
MemoryRDIMM / RDIMM 3DS
Form FactorEEB
M.2 Slots1
Model: SP2C741D16-2T
Technical Specifications30 specs
Additional Information
Model Number
SP2C741D16-2T
Additional Specifications
Water Cooled
No
Cooling
-
Qpi Speed
N/A
Dimensions
307 x 337.82 mm
Note
-
Core Specifications
Edition
ASRock SP2C741D16-2T
Form Factor
EEB
Socket
4677
Chipset
Intel
External Connectivity
Network Interface Type
Dual Wired 10G LAN
Network Chip Modules
-
Rear I O Connectors
1 x D-Sub (VGA)
2 x RJ-45
1 x RJ45 Dedicated IPMI port
1 x UID Button/UID LED
2 x USB 2.0
Graphics Support
Primary Gpu Interface
PCIe 5.0 (x16)
Nvidia Sli Support
N/A
Amd Crossfire Support
N/A
Integrated Graphics
Requires Processor Graphics or Discrete GPU
On Board Graphics Connectors
D-Sub (VGA)
Internal Connectivity
Expansion Slots
1 x M.2, 22-80/110, PCIe Gen5x4
2 x MCIO (PCIe 5.0 x 8)
5 x PCIe 5.0 x16
1 x PCIe 5.0 x8
13 x SATA 6GB/s
Sata Support
SATA3
Raid Support Via
-
Storage Mode Support
-
Internal I O
1 x 24-pin (Power)
4 x 8-pin (Power)
1 x Auxiliary Panel Header
1 x Clear CMOS (Short Pad)
1 x IPMB Connector/Header
1 x NMI Header
1 x PMBus Connector
1 x Serial (COM) Header
1 x SGPIO header
1 x SMBus header
8 x System Fan header
1 x System panel connector
1 x TPM Header
1 x USB 3.2 Gen1 Header
1 x VGA connector
1 x VROC Connector
RAM Memory Support
Memory Type
DDR5
Memory Channel
Dual (2)
Memory Type Ecc
-
Memory Type R U
RDIMM / RDIMM 3DS
Memory Speed Mhz
DDR5 - 4800
DDR5 - 5600
Max Memory Capacity
-
General
Audio
-
