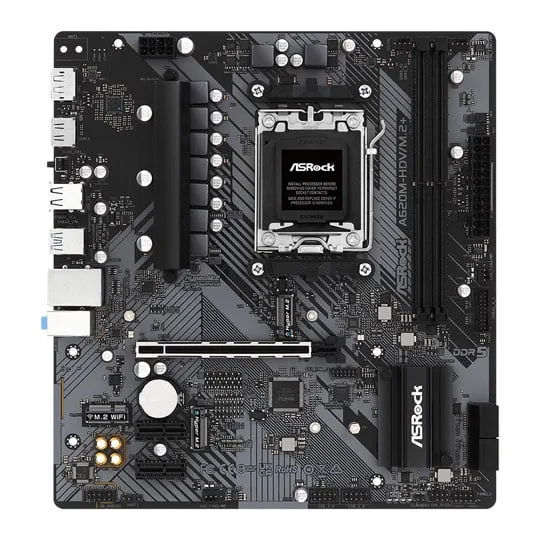

ASRock AMD A620M-HDV/M.2+ MicroATX Motherboard
MPN: 90-MXBLK0-A0UAYZ
Key specifications
SocketAM5
Form factormATX
ChipsetAMD A620
Memory typeDDR5
M.2 slots4
Max Memory64 GB
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Add this to your build in the PC Builder to automatically check dimensions, sockets, and power draw.
Related Products
Full Specifications31 fields
Additional Information
Model Number
90-MXBLK0-A0UAYZ
Gtin
4710483943034
Additional Specifications
Water Cooled
No
Cooling
Passive Heatsinks
Qpi Speed
N/A
Dimensions
244 x 226 mm
Note
-
Core Specifications
Edition
A620M-HDV/M.2+
Form Factor
MicroATX
Socket
AM5
Chipset
AMD A620
External Connectivity
Network Interface Type
Wired Gigabit LAN (10/100/1000)
Network Chip Modules
1 x Realtek RTL8111H (Gigabit LAN)
Rear I O Connectors
1 x BIOS Flashback Button
1 x DisplayPort 1.4
1 x Front Speaker Out
1 x HDMI 2.1
1 x Line In
1 x Mic-In
1 x RJ-45
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
2 x WiFi Antenna connectors
Graphics Support
Primary Gpu Interface
PCIe 4.0 (x16)
Nvidia Sli Support
N/A
Amd Crossfire Support
Supported
Integrated Graphics
Requires Processor Graphics or Discrete GPU
On Board Graphics Connectors
DisplayPort 1.4 (DSC)
HDMI 2.1
Internal Connectivity
Expansion Slots
1 x M.2 Key E
1 x M.2, 22-60/80, PCIe Gen3
1 x M.2, 22-60/80, PCIe Gen4x4
1 x M.2, 22-80, PCIe Gen4x4
2 x PCIe 3.0 x1
1 x PCIe 4.0 x16
4 x SATA 6GB/s
Sata Support
SATA3
Raid Support Via
-
Storage Mode Support
RAID 0
RAID 1
RAID 10
Internal I O
1 x 24-pin (Power)
3 x 4-pin CHA_FAN connector
1 x 8-pin (Power)
1 x CPU Fan Connector
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Power LED / Speaker Header
1 x RGB LED connector
1 x TPM (SPI_TPM) header
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
RAM Memory Support
Memory Type
DDR5
Memory Channel
Dual (2)
Memory Type Ecc
Non-ECC
Memory Type R U
UDIMM (Unbuffered)
Memory Speed Mhz
DDR5 - 5600(OC)
Max Memory Capacity
64GB (2x32GB)
General
Audio
Realtek ALC897 7.1 HD Audio
