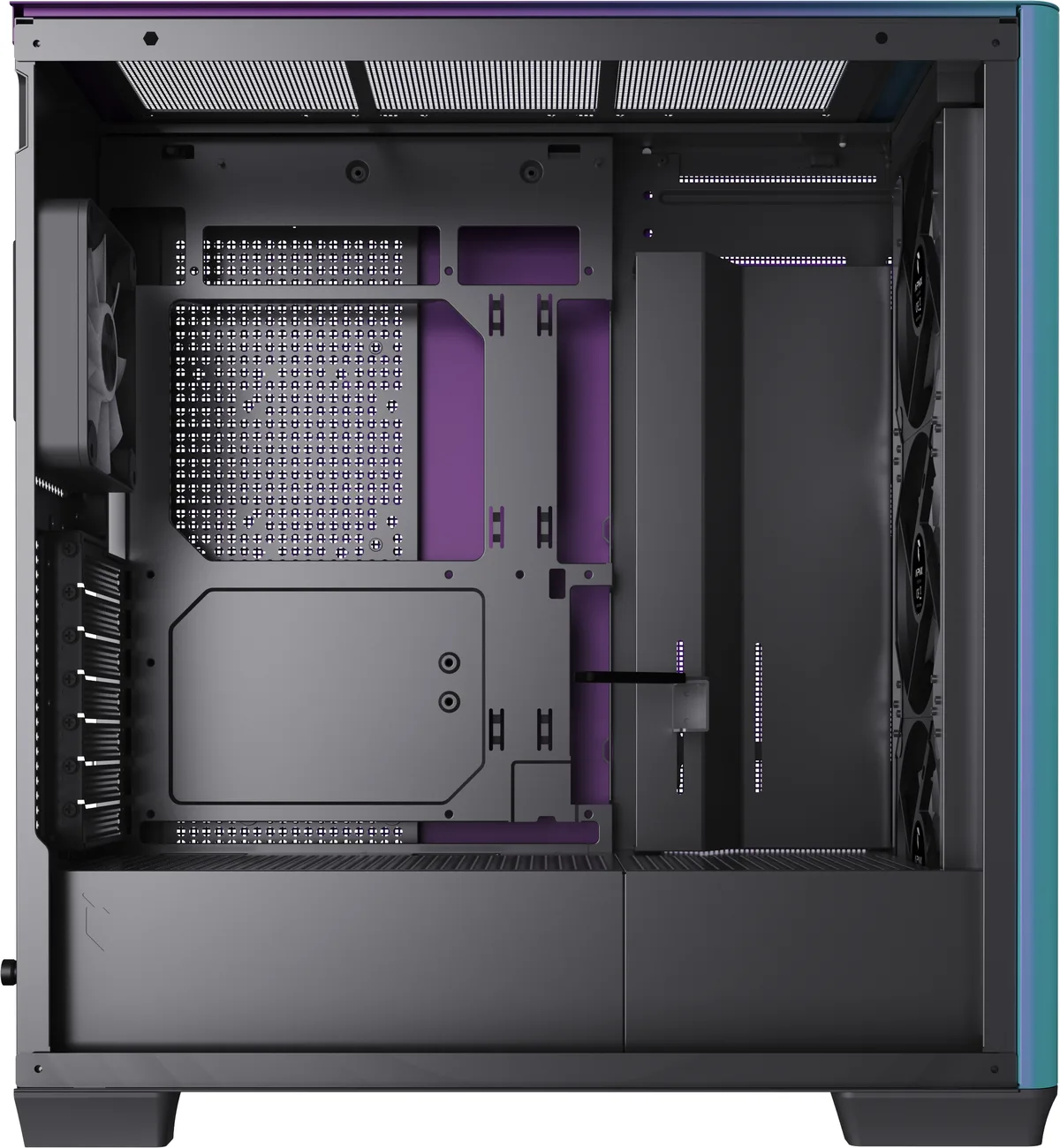

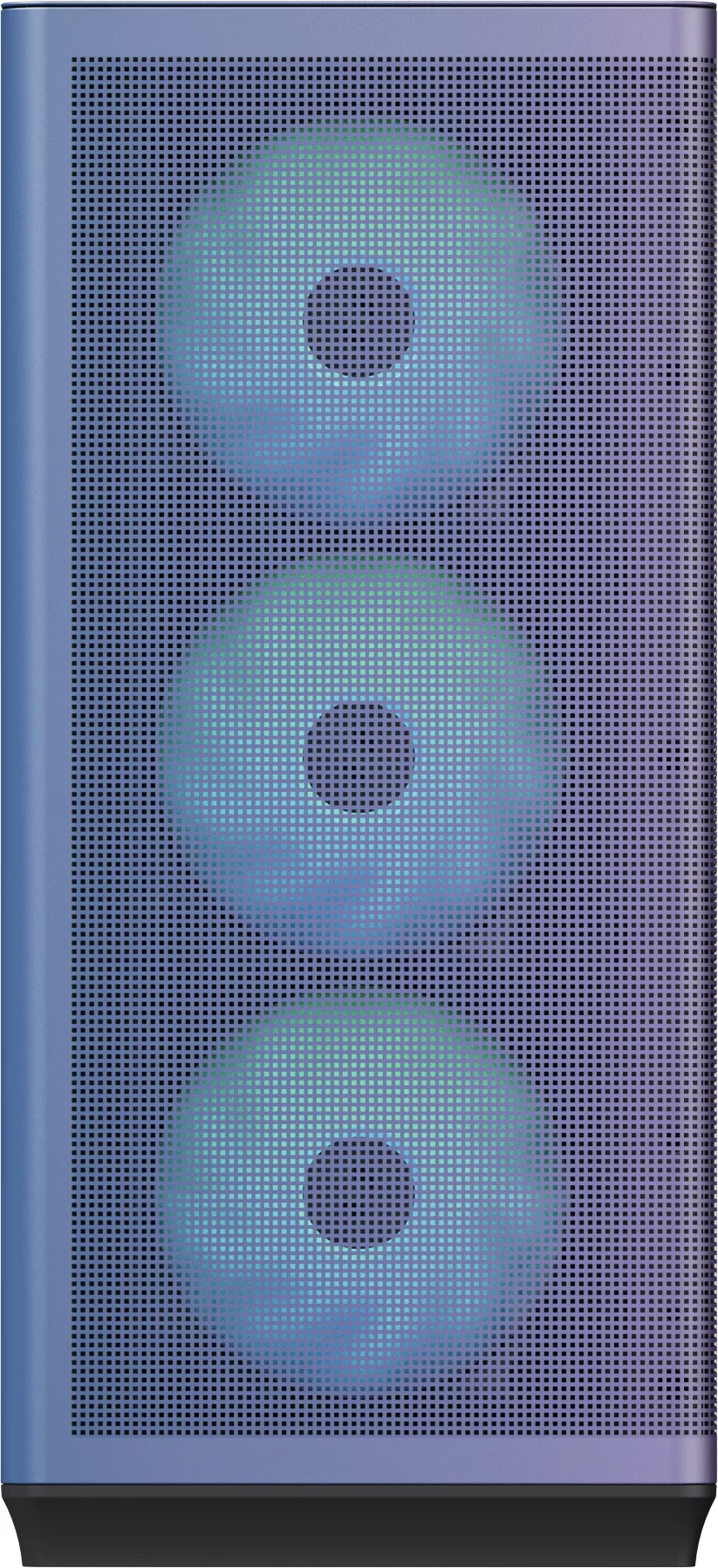

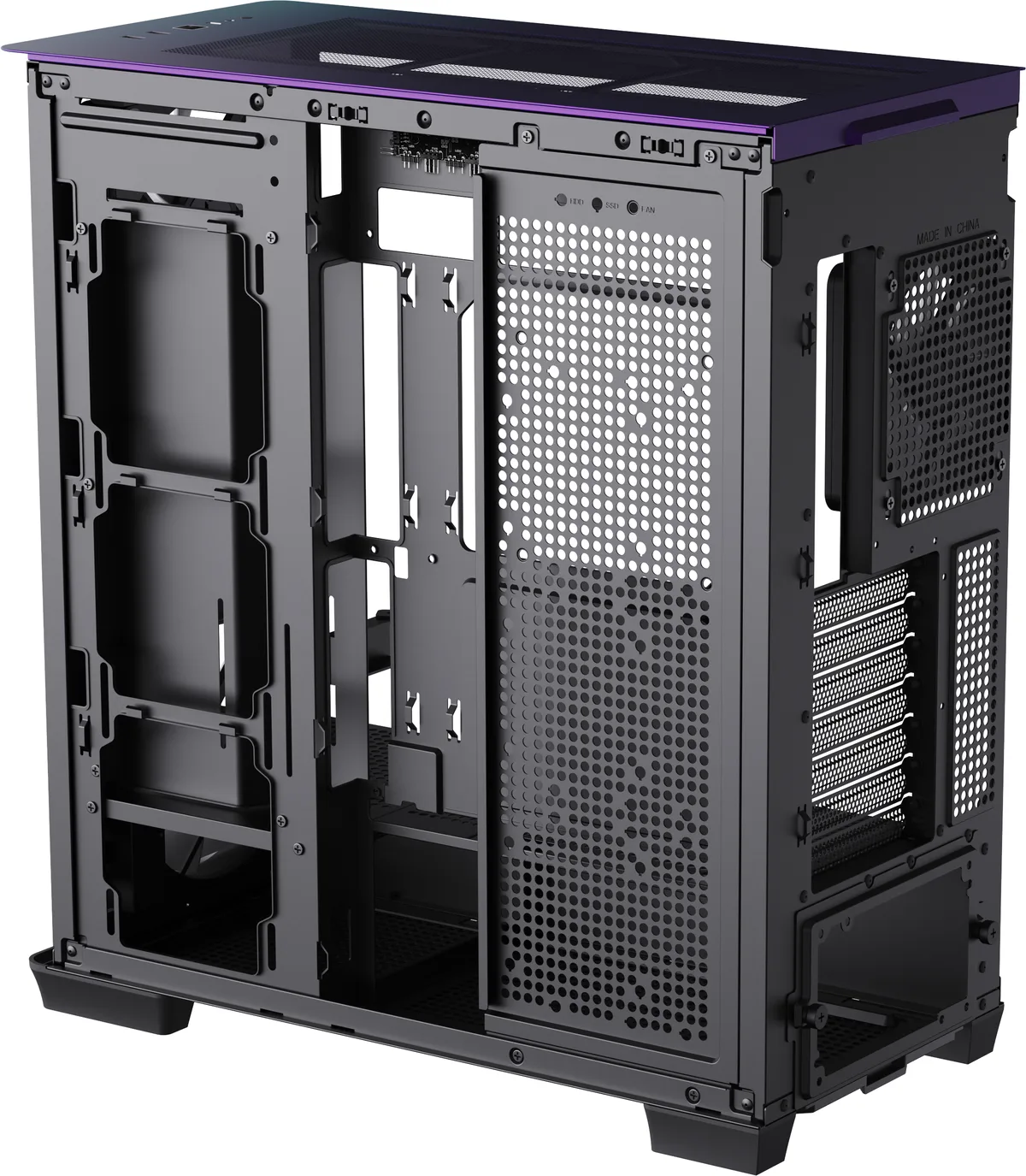

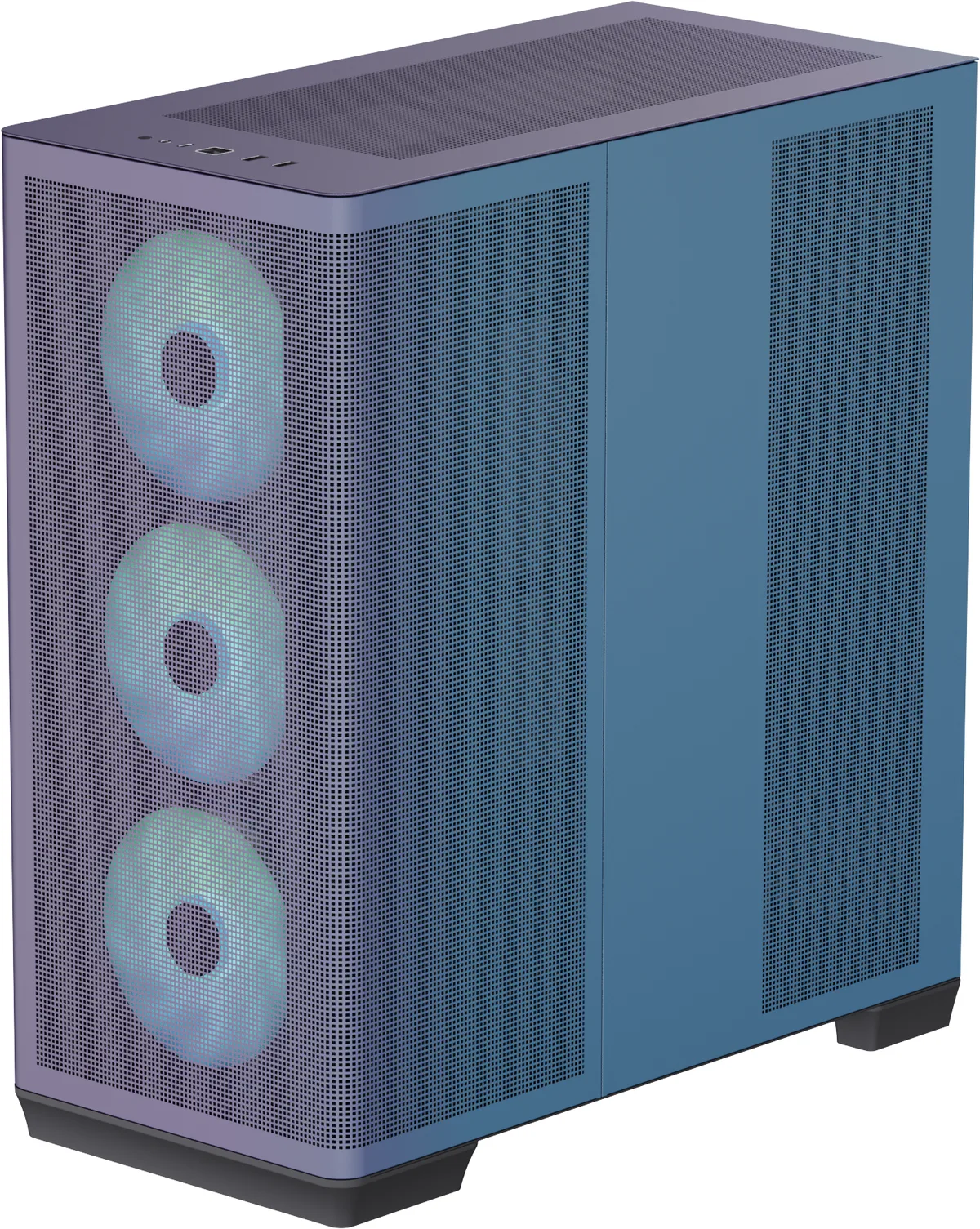

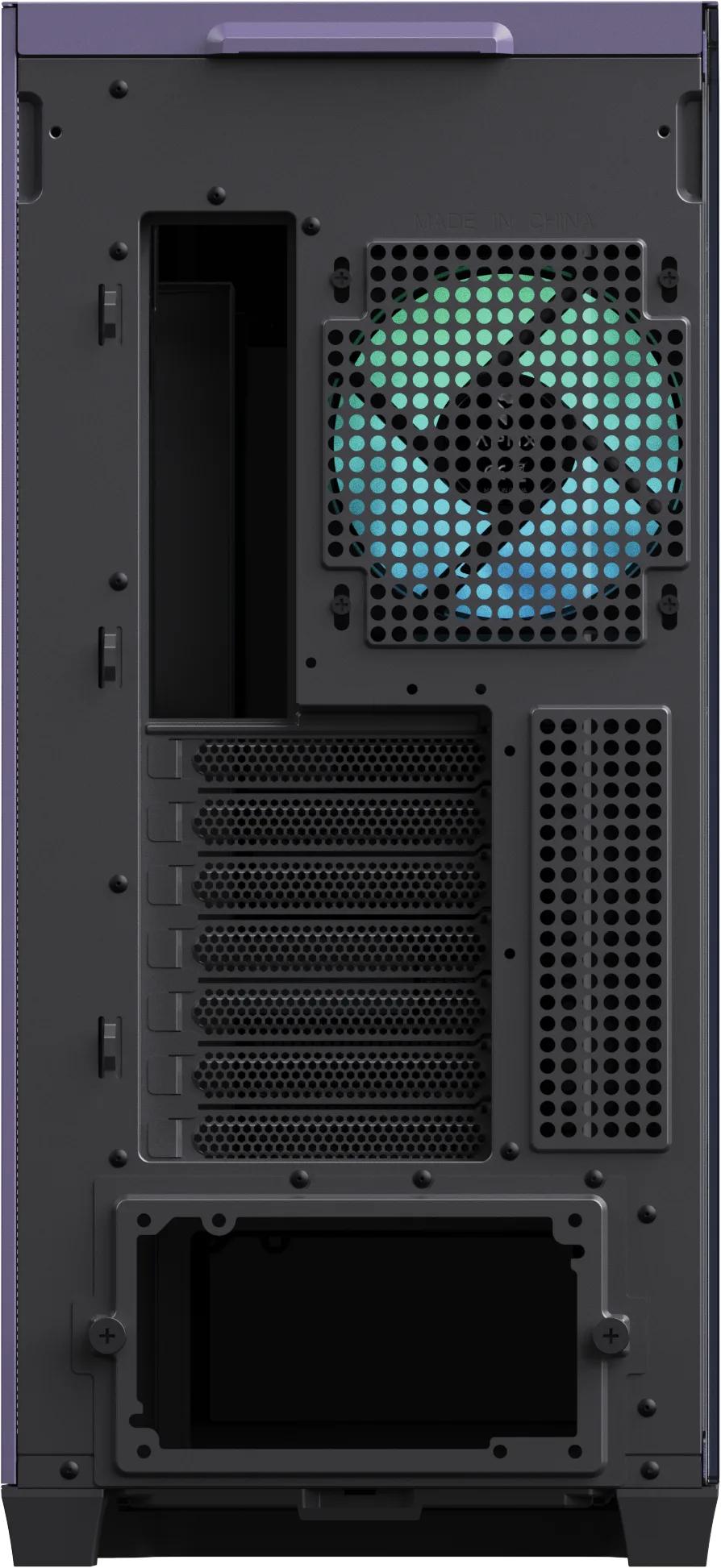

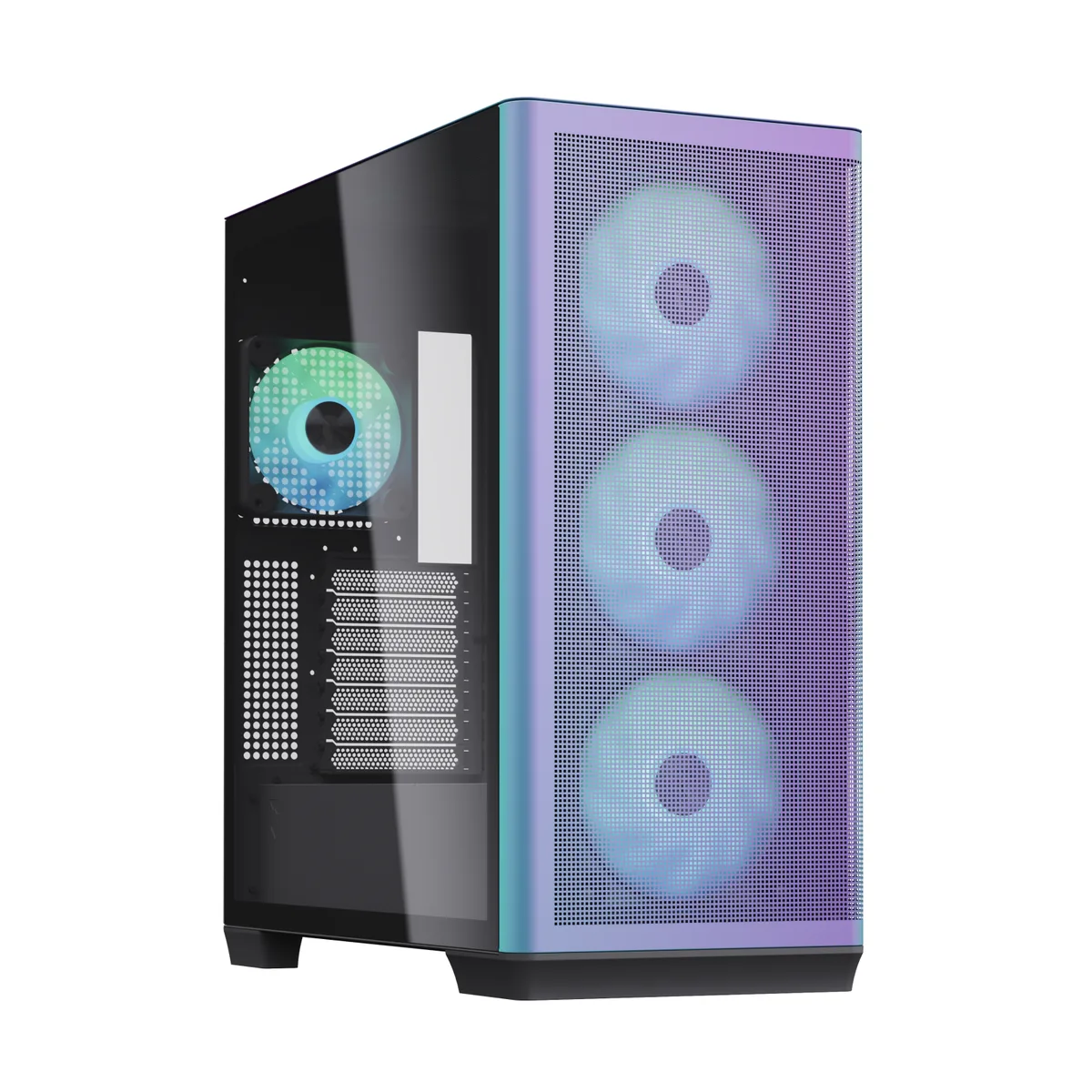

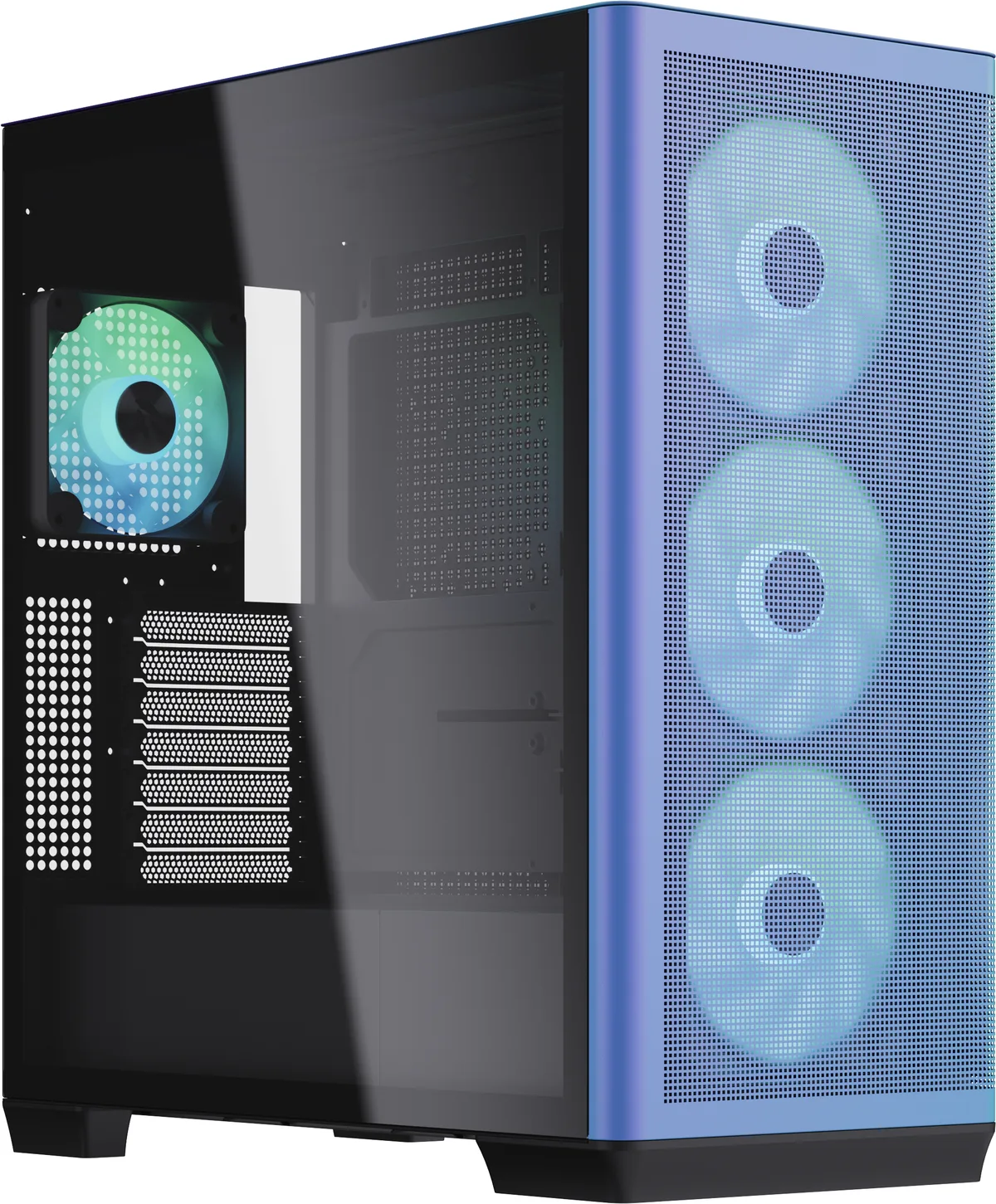

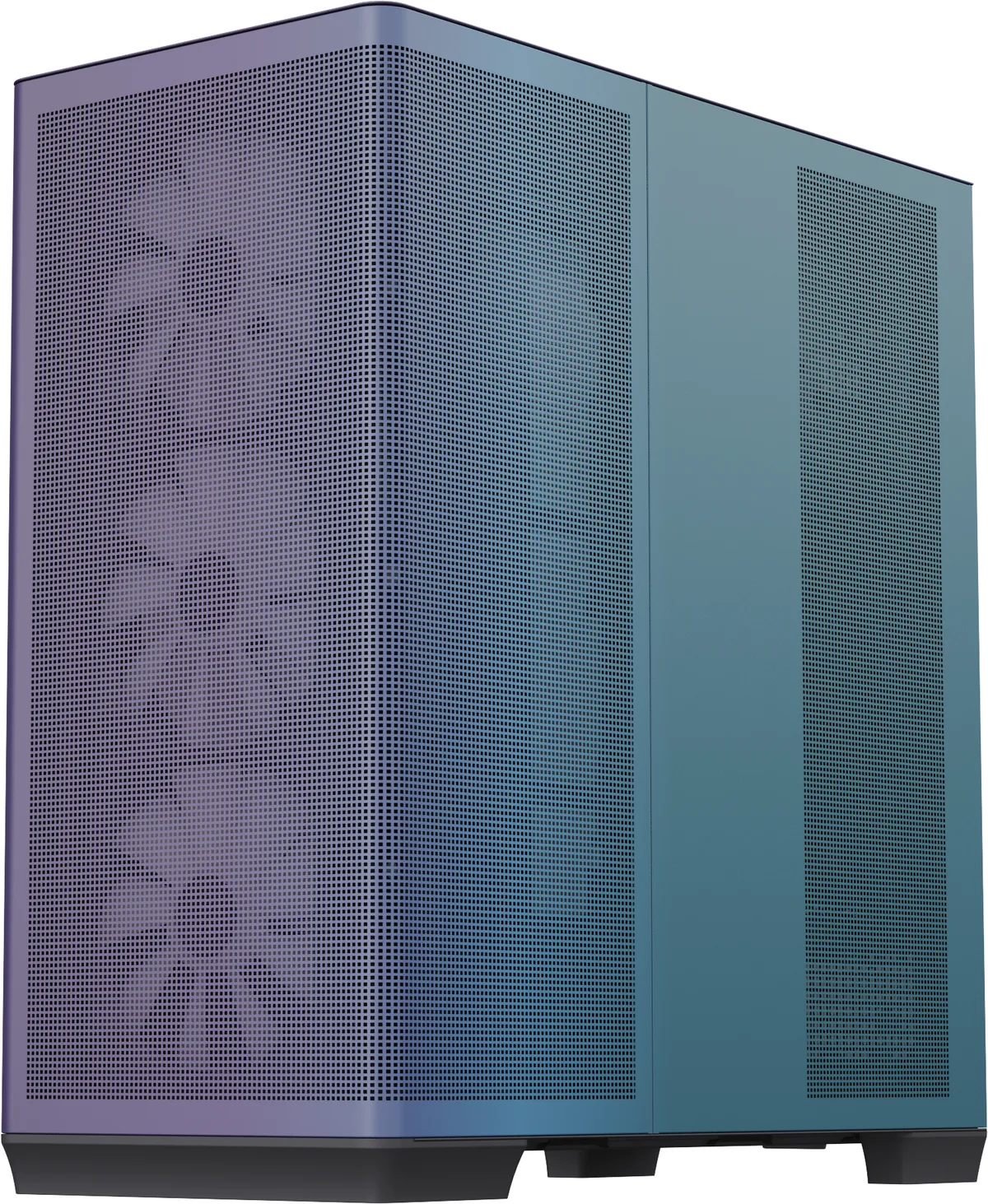

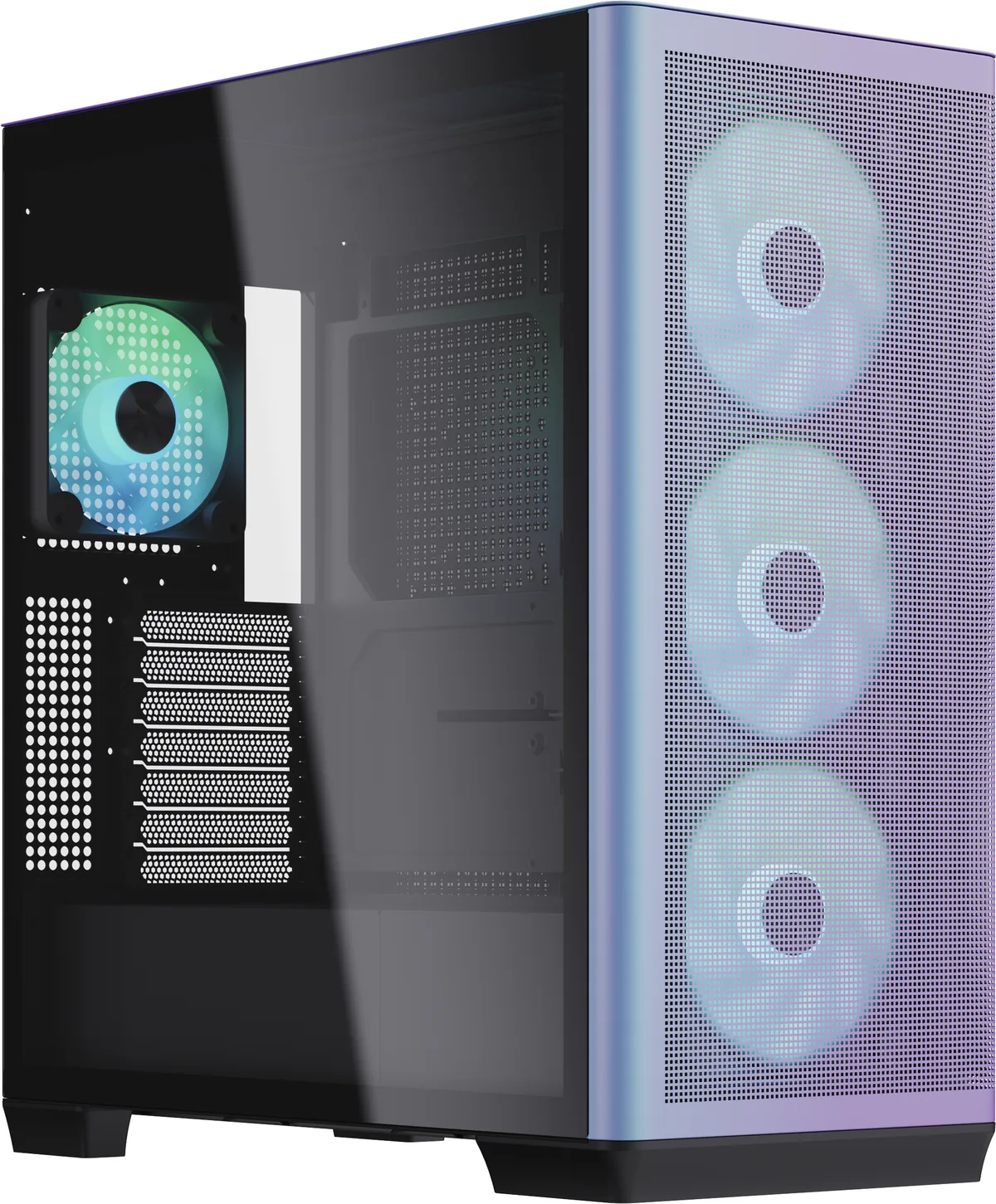

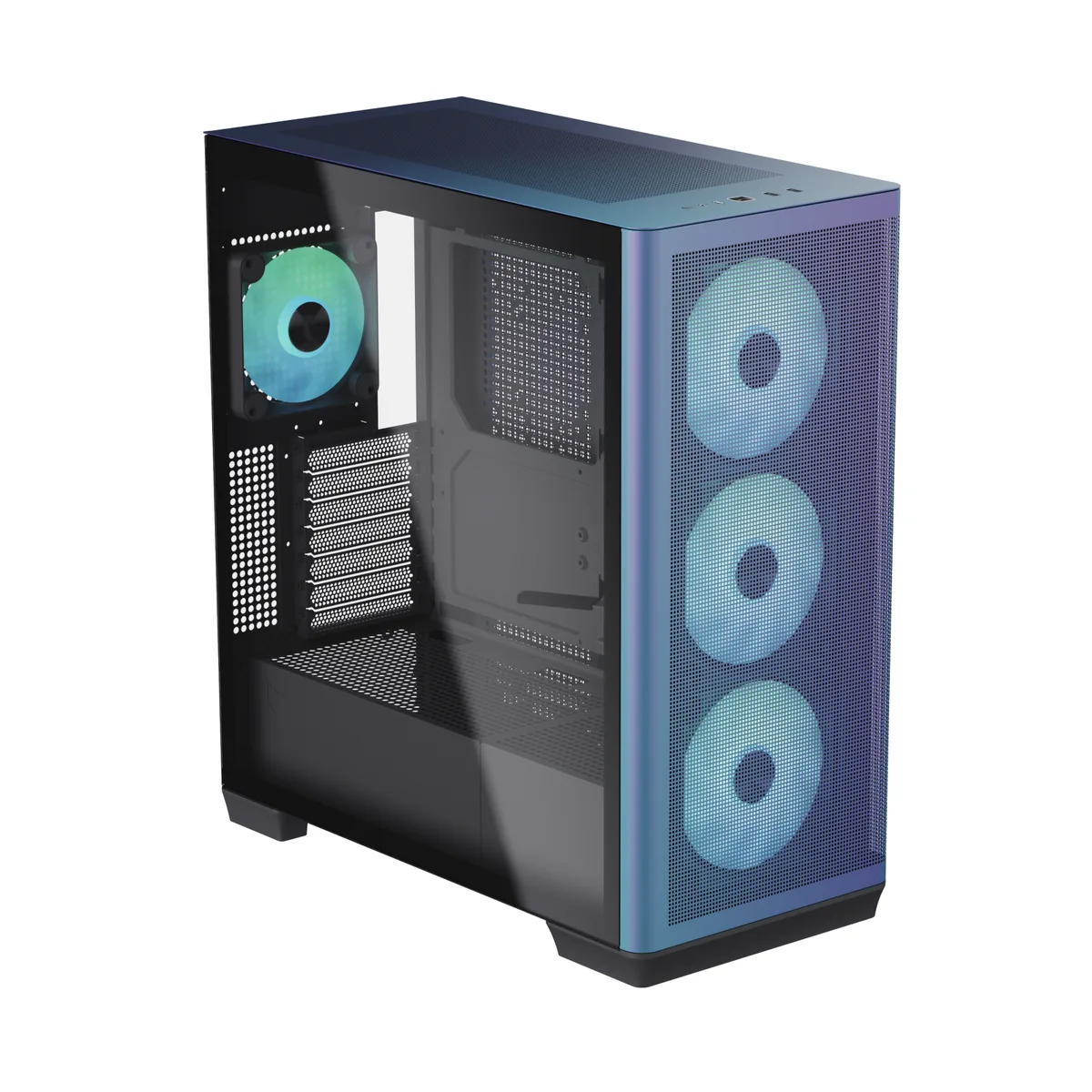

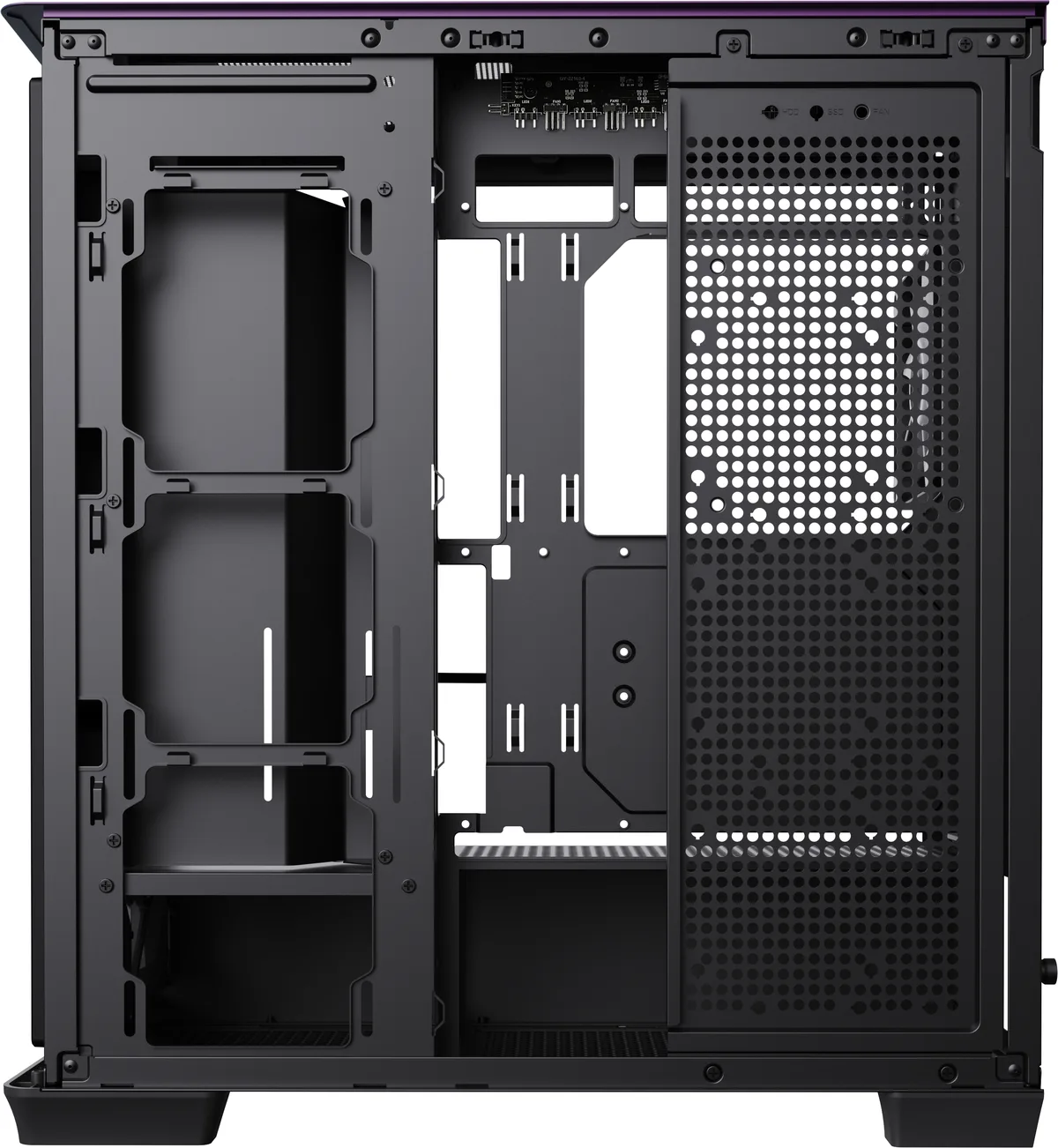

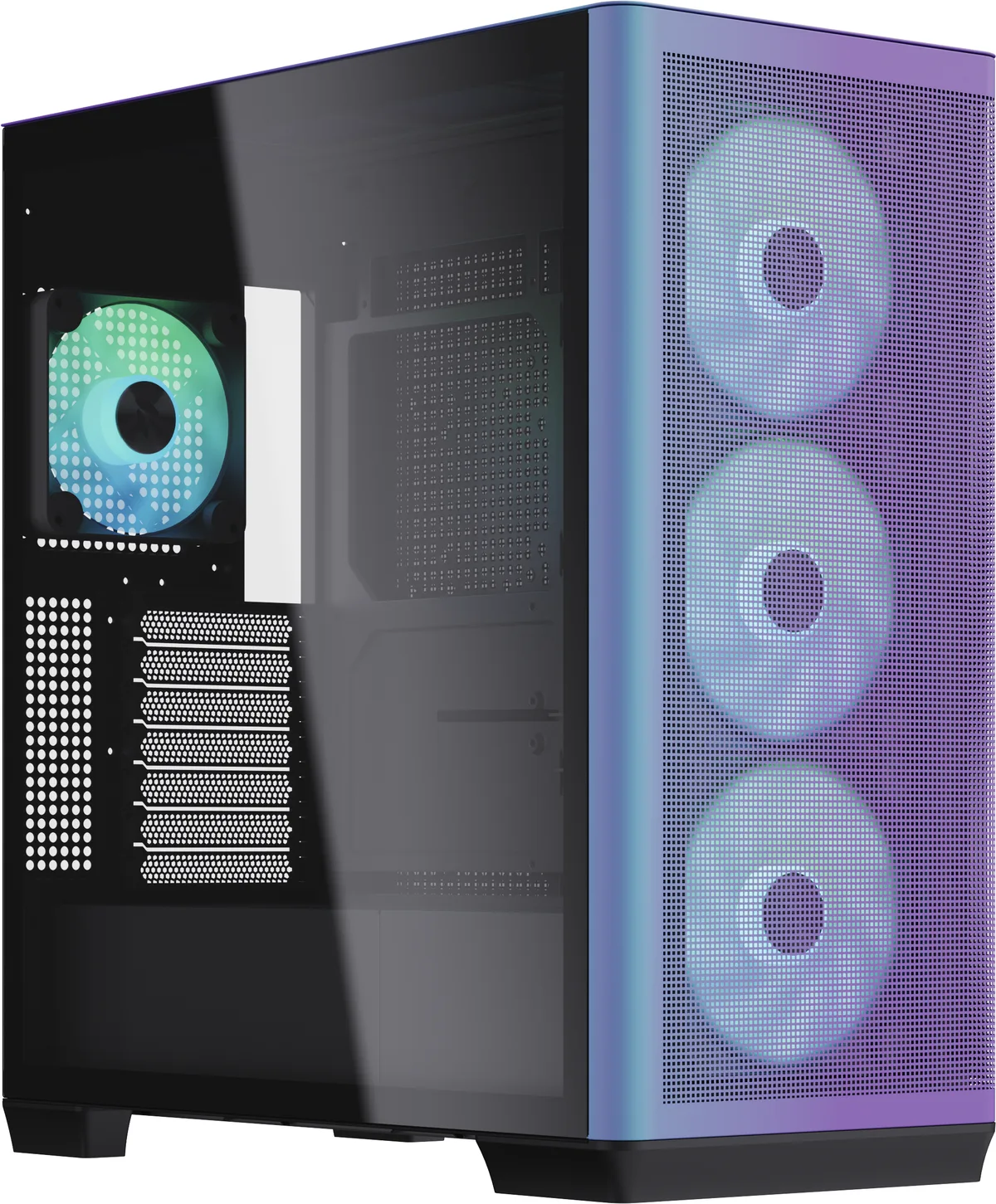

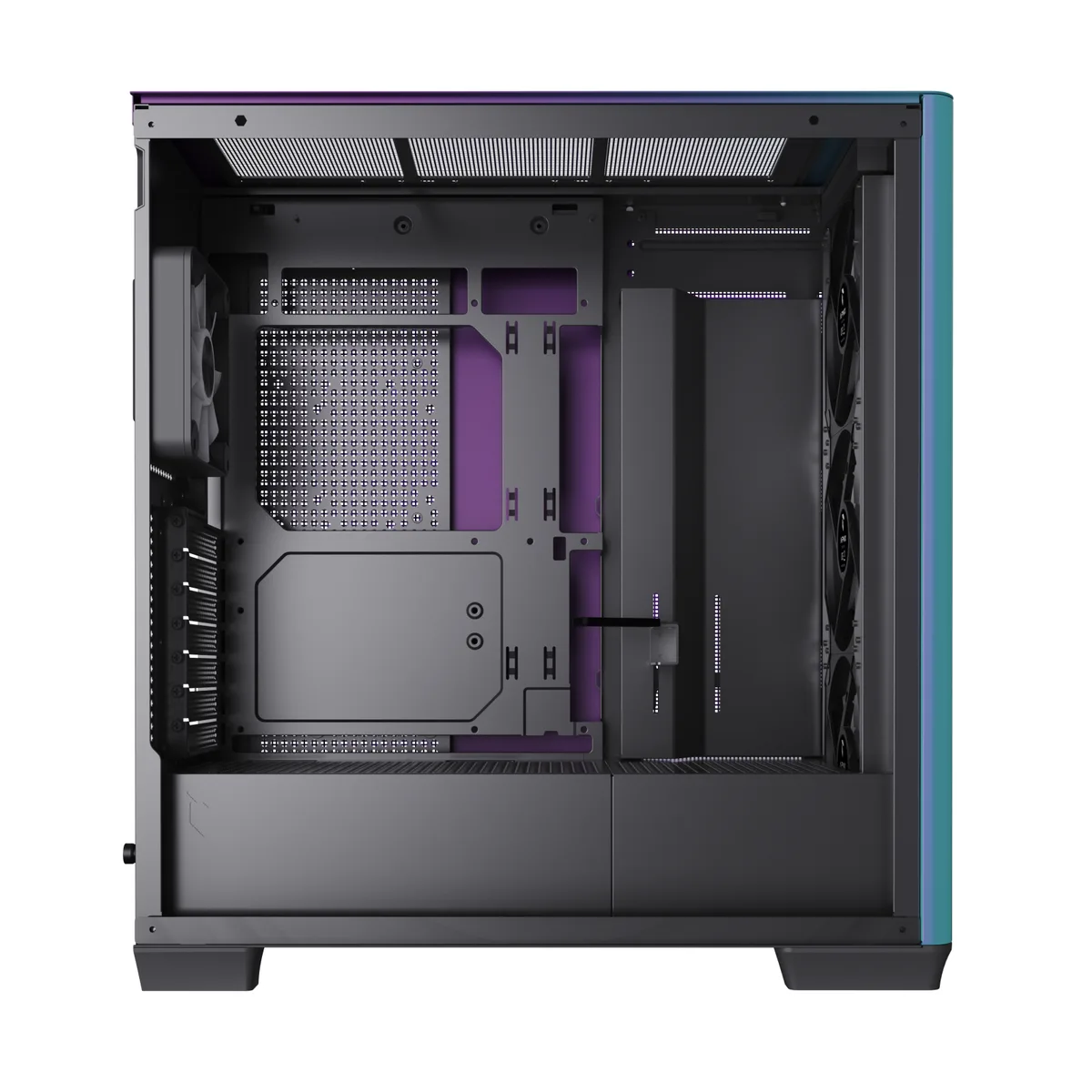

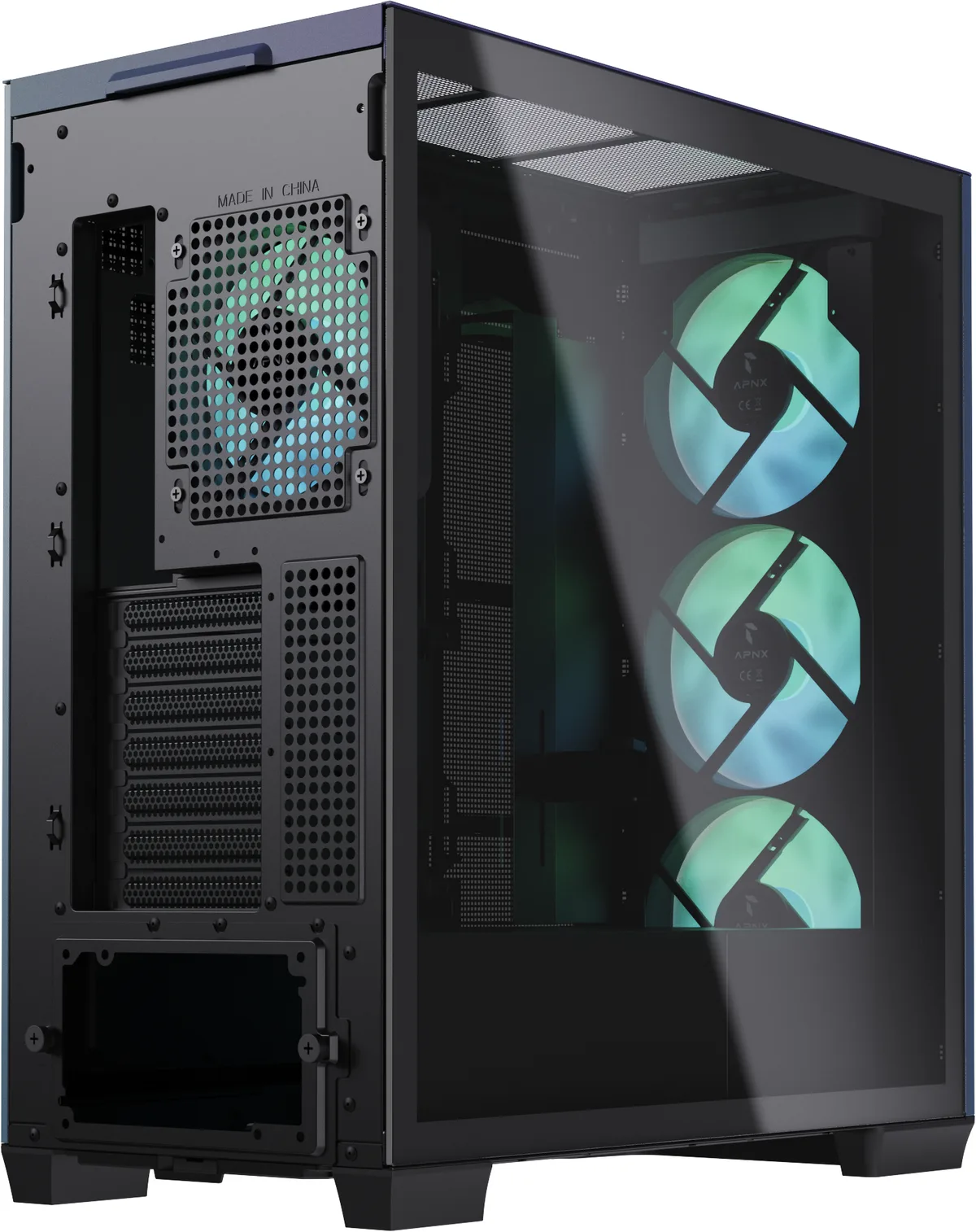

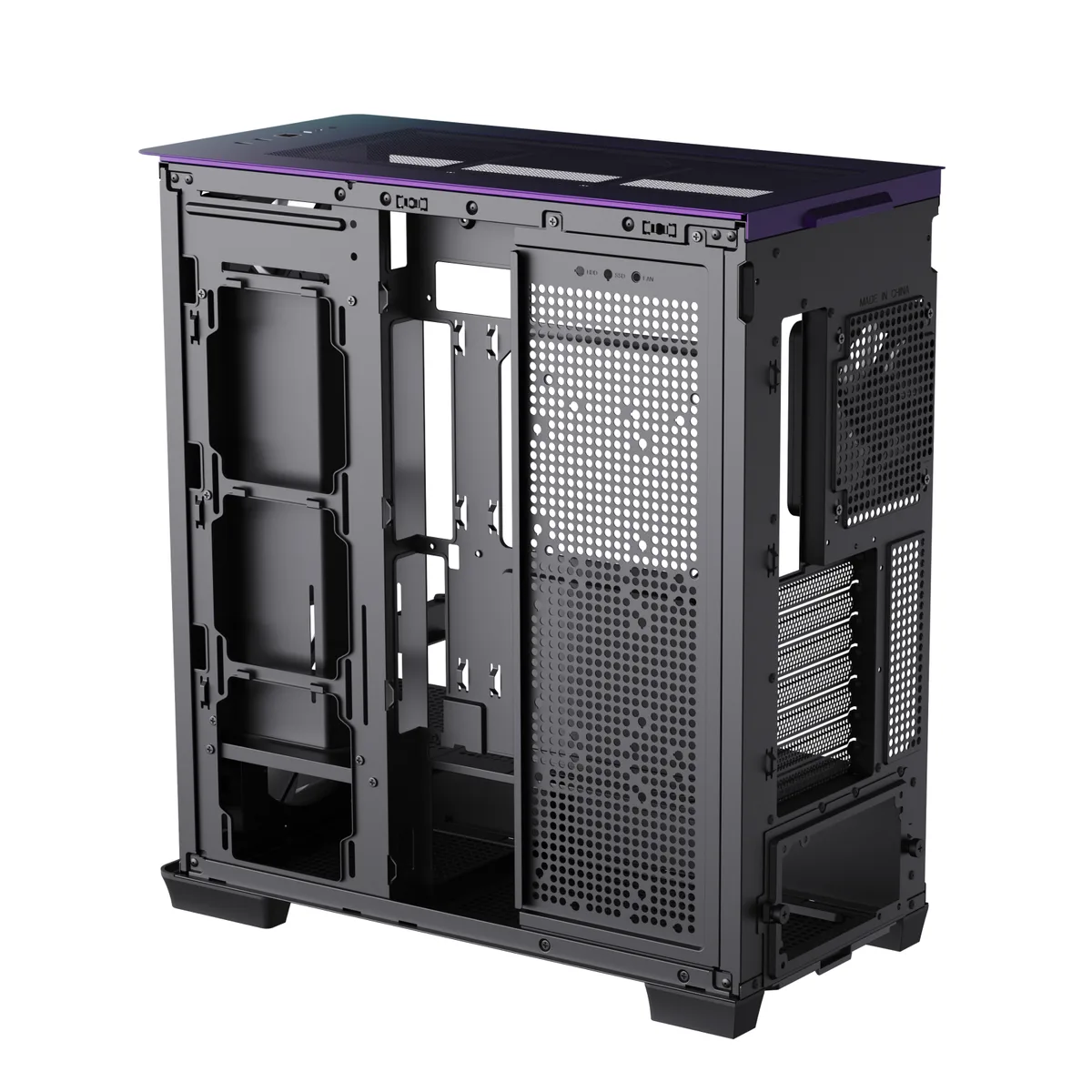

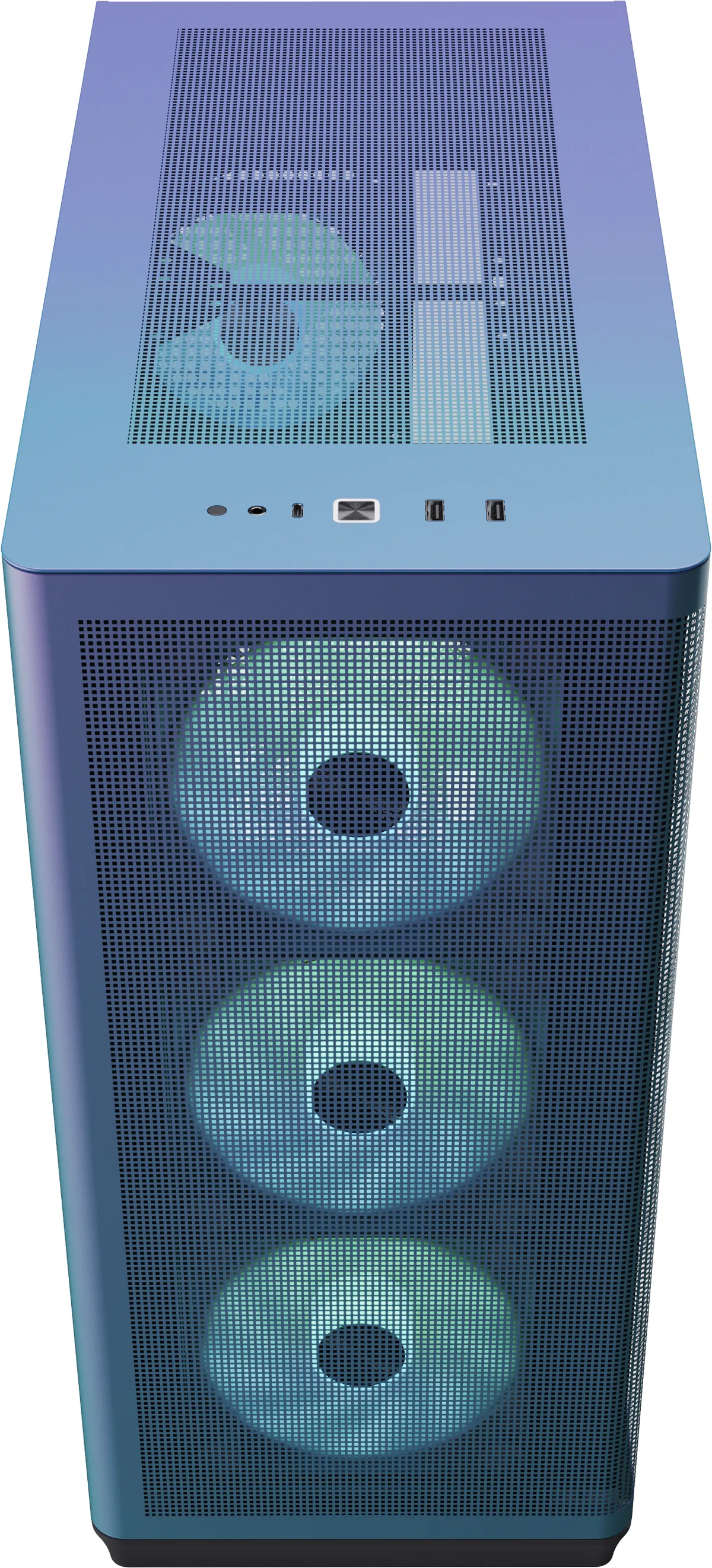

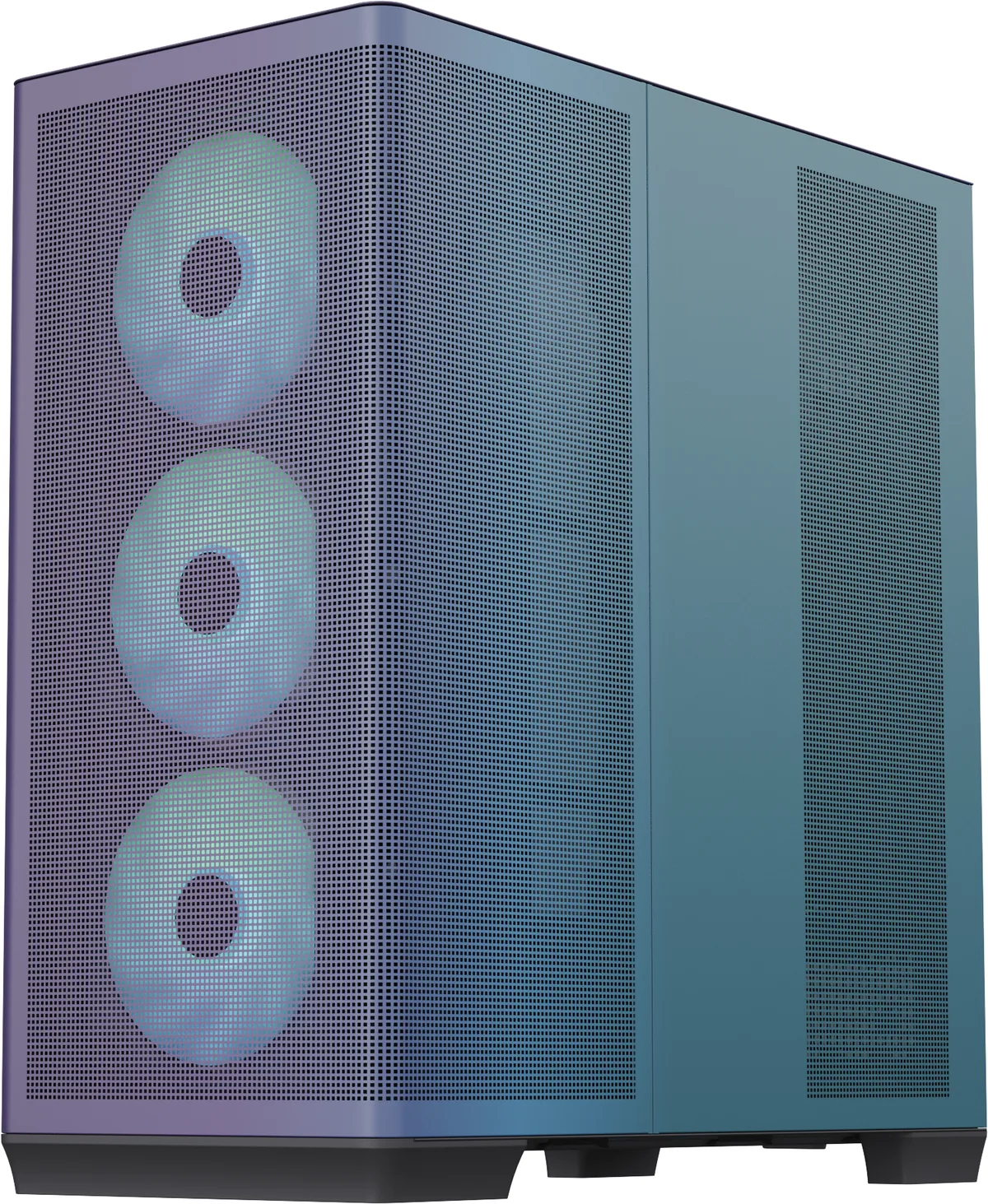

APNX Creator C1 ChromaFlair Mid Tower Case
MPN: APCM-CR01043.C1
Key specifications
Max GPU395.0 mm
Max Cooler166.0 mm
Max PSU270.0 mm
Form factorUnknown
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 395.0mm GPU clearance.
Supports up to 166.0mm CPU cooler height.
Full Specifications70 fields
Additional Contents
Fans Included
Yes
Included Fans
1x 120 mm, 3x 140 mm
Additional Information
Model Number
APCM-CR01043.C1
Gtin
4711099474349
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Front
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Blue
Secondary Colour
Purple
Special Colour
Pearlescent
Compliance
Compliance Documents
APNX Case Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Dimensions
Length Depth
464 mm
Width
230 mm
Height
502 mm
Weight
9.5 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
3
Max 3 5 Inch Drives
3
Max 5 25 Inch Drives
0
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
3
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports

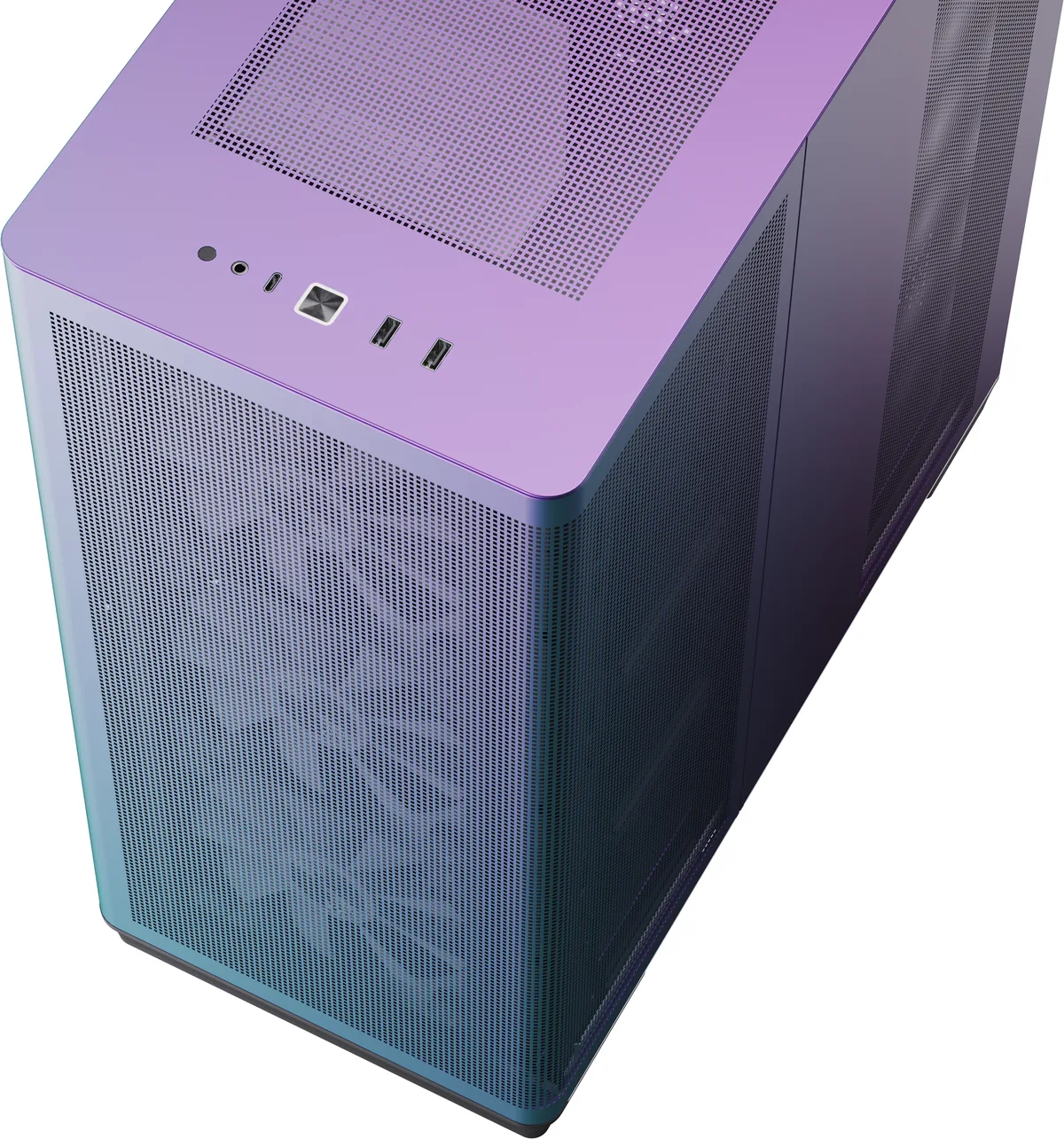

Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Side
120mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
10
120 Mm Fans
11
140 Mm Fans
5
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
166 mm
Max Gpu Length
395 mm
Max Psu Length Depth
270 mm
Lighting
Lighting Rgb
No
Materials
Materials
Tempered Glass, SGCC (Steel)
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
C1
Radiator Support
Radiator Aio Support Rear
120mm Radiator
Radiator Aio Support Top
120mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Side
120mm Radiator, 240mm Radiator, 360mm Radiator
Max Radiator Compatibility
2x Triple (360 mm)
