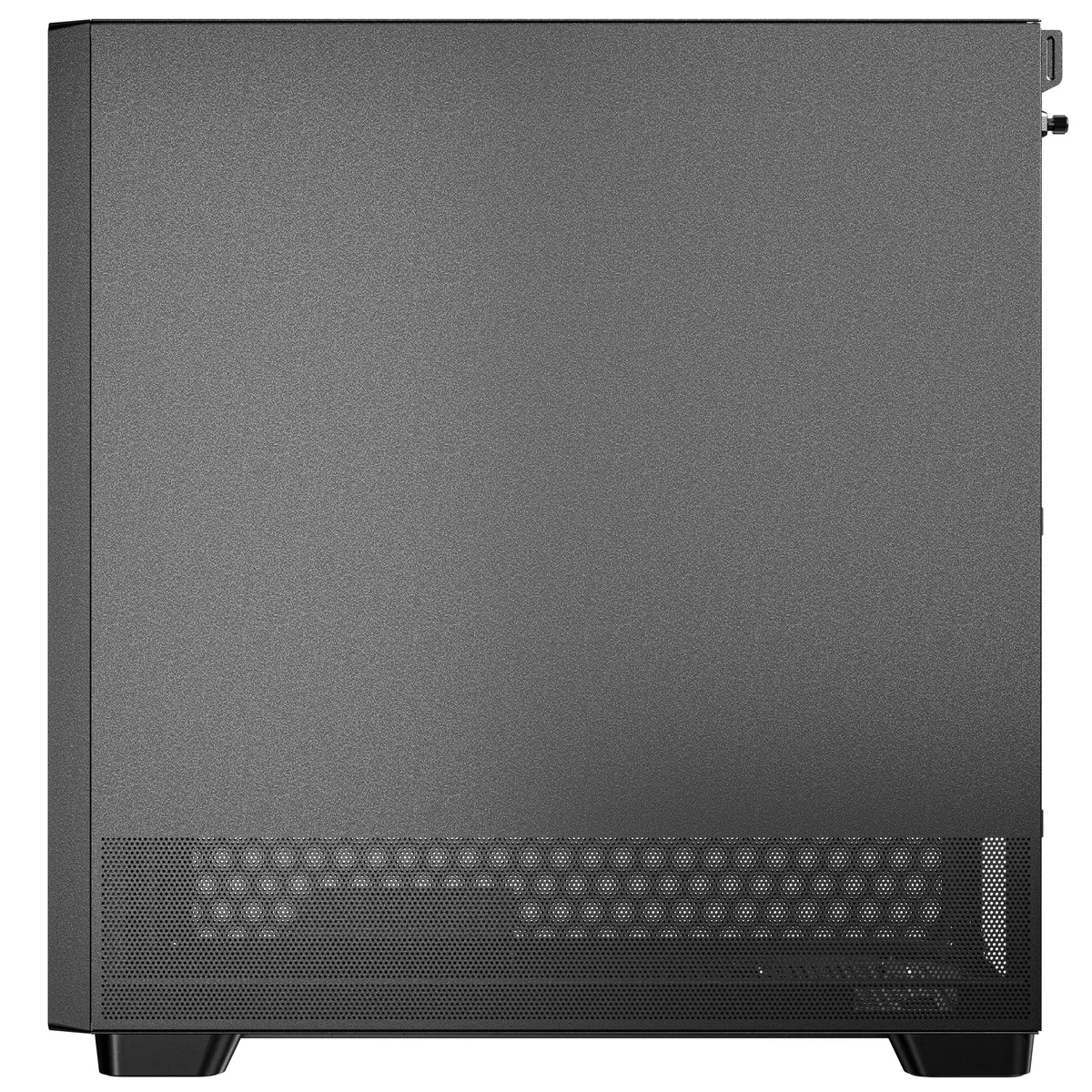

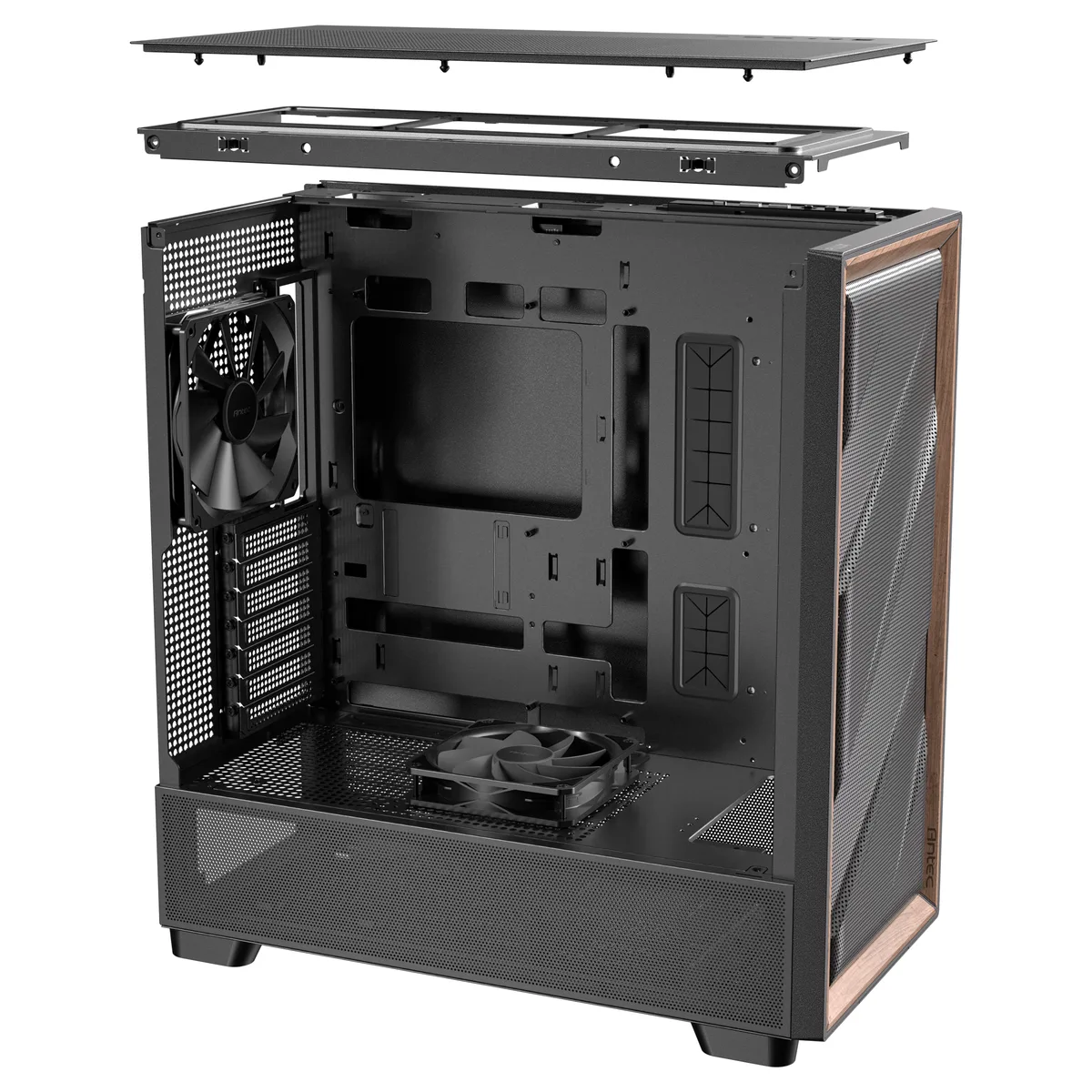

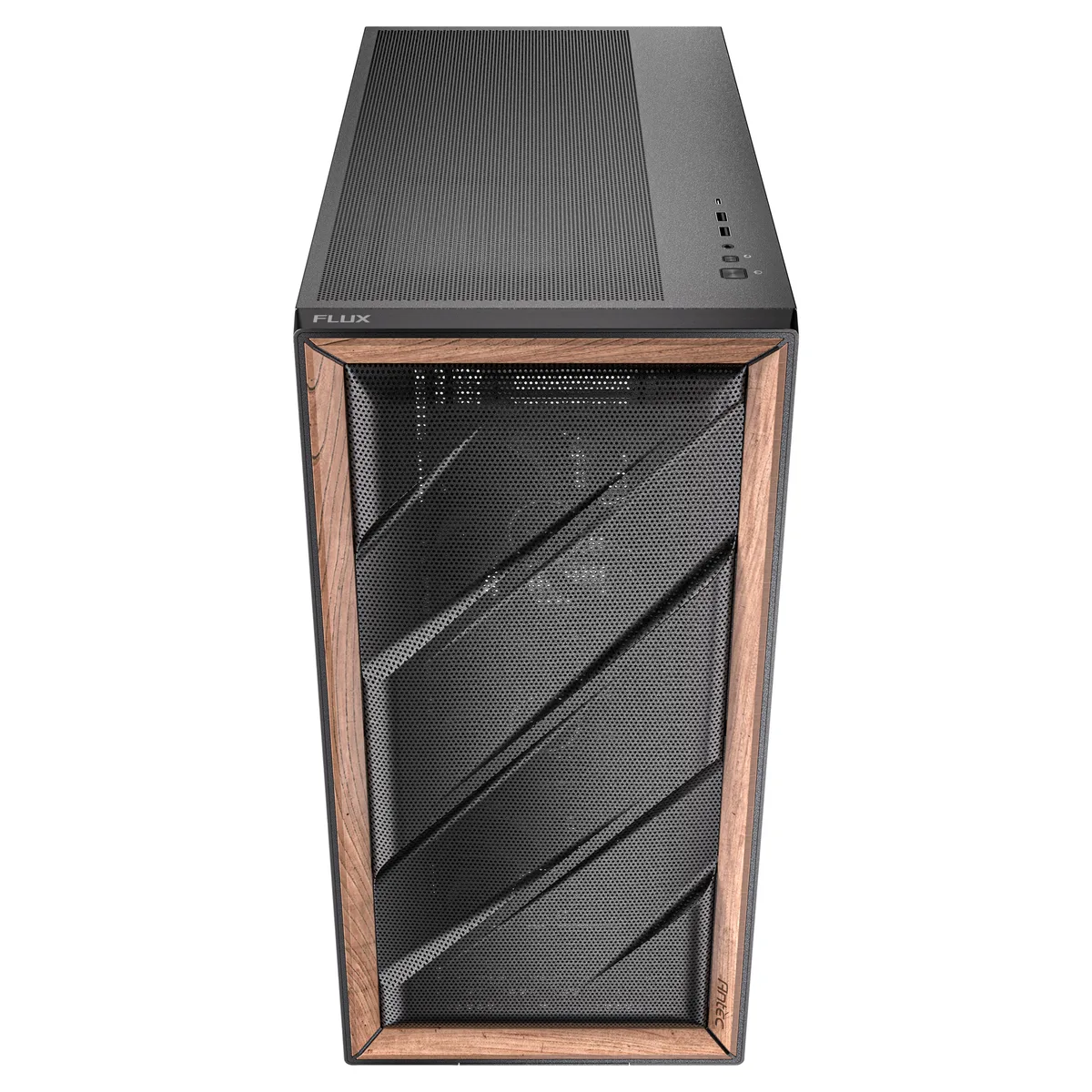

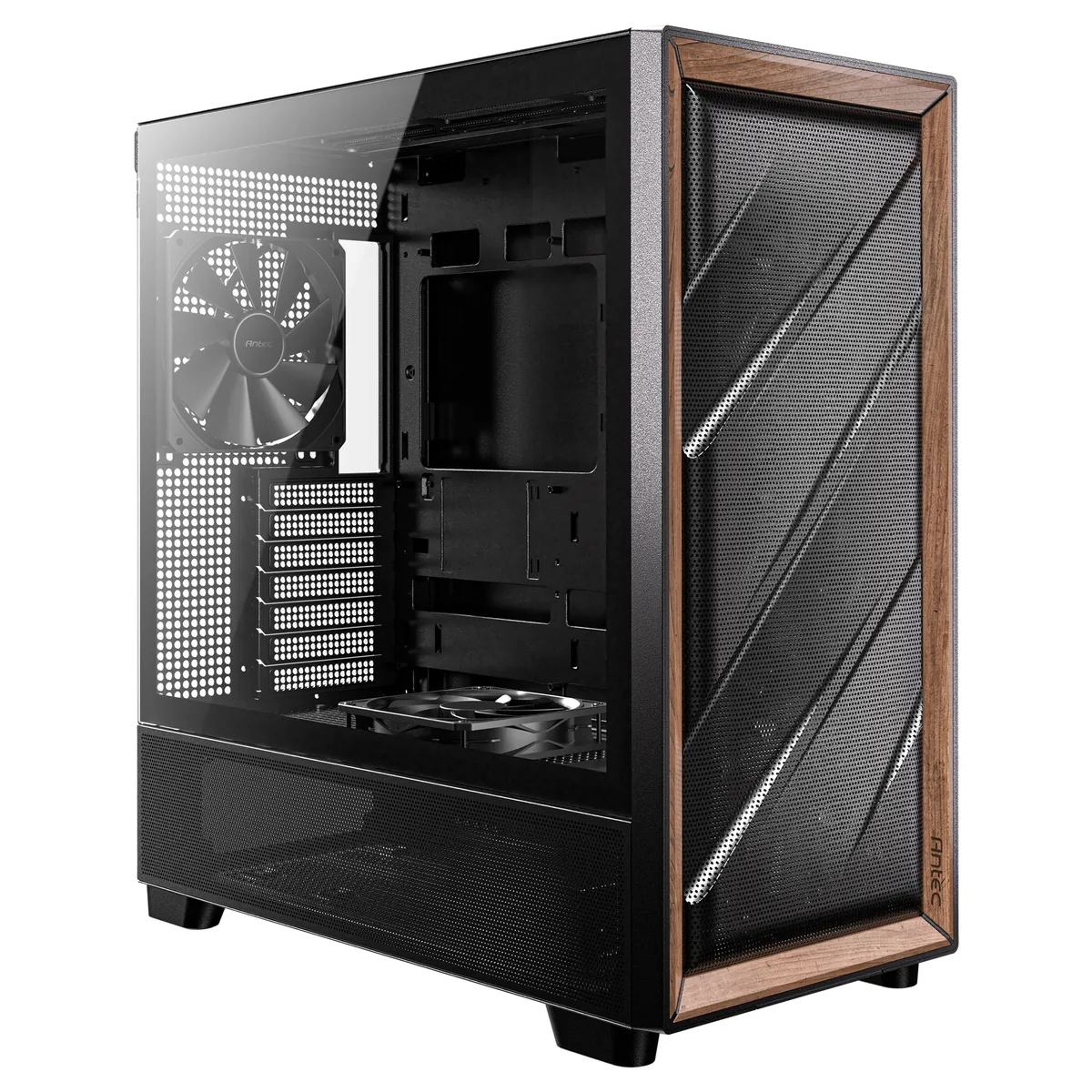

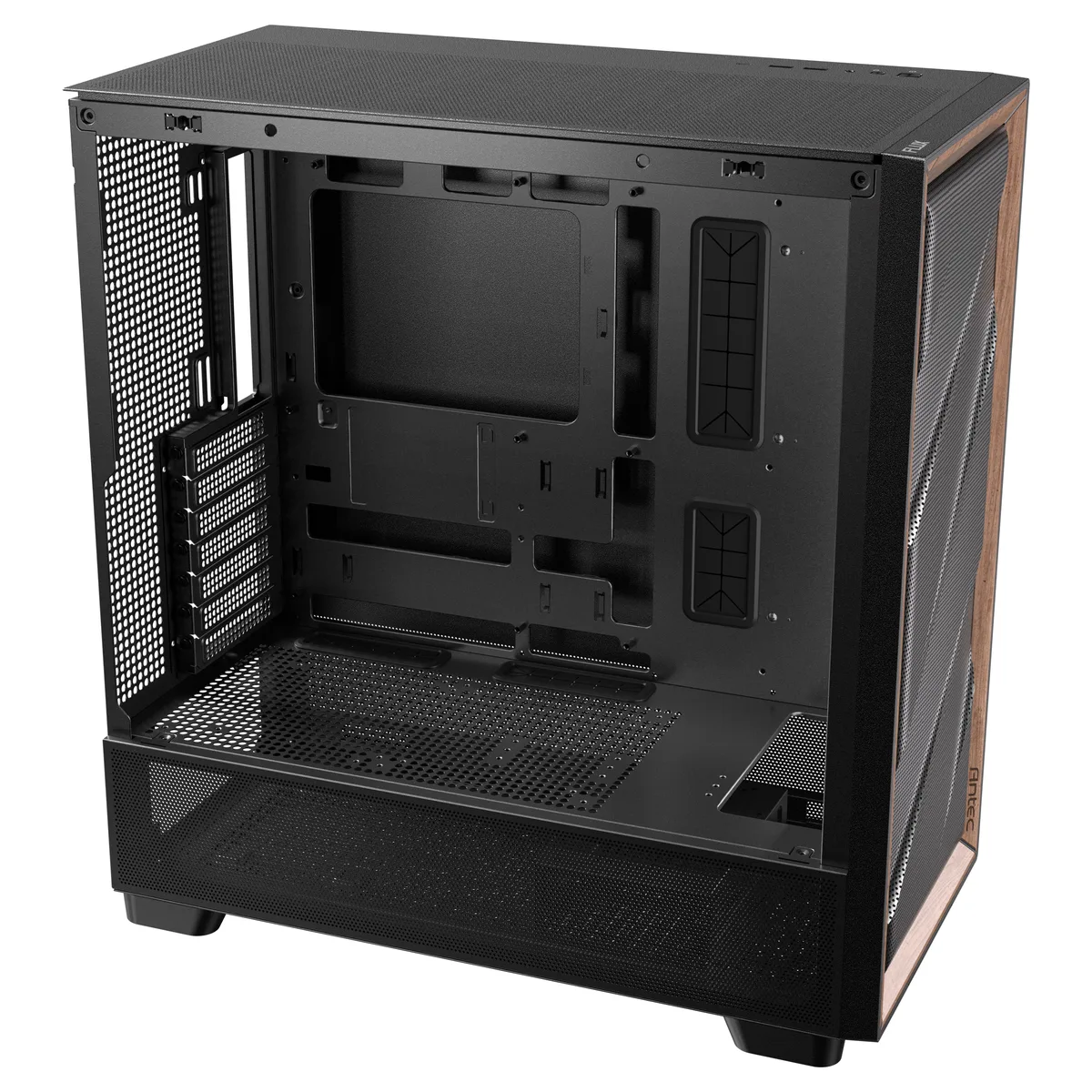

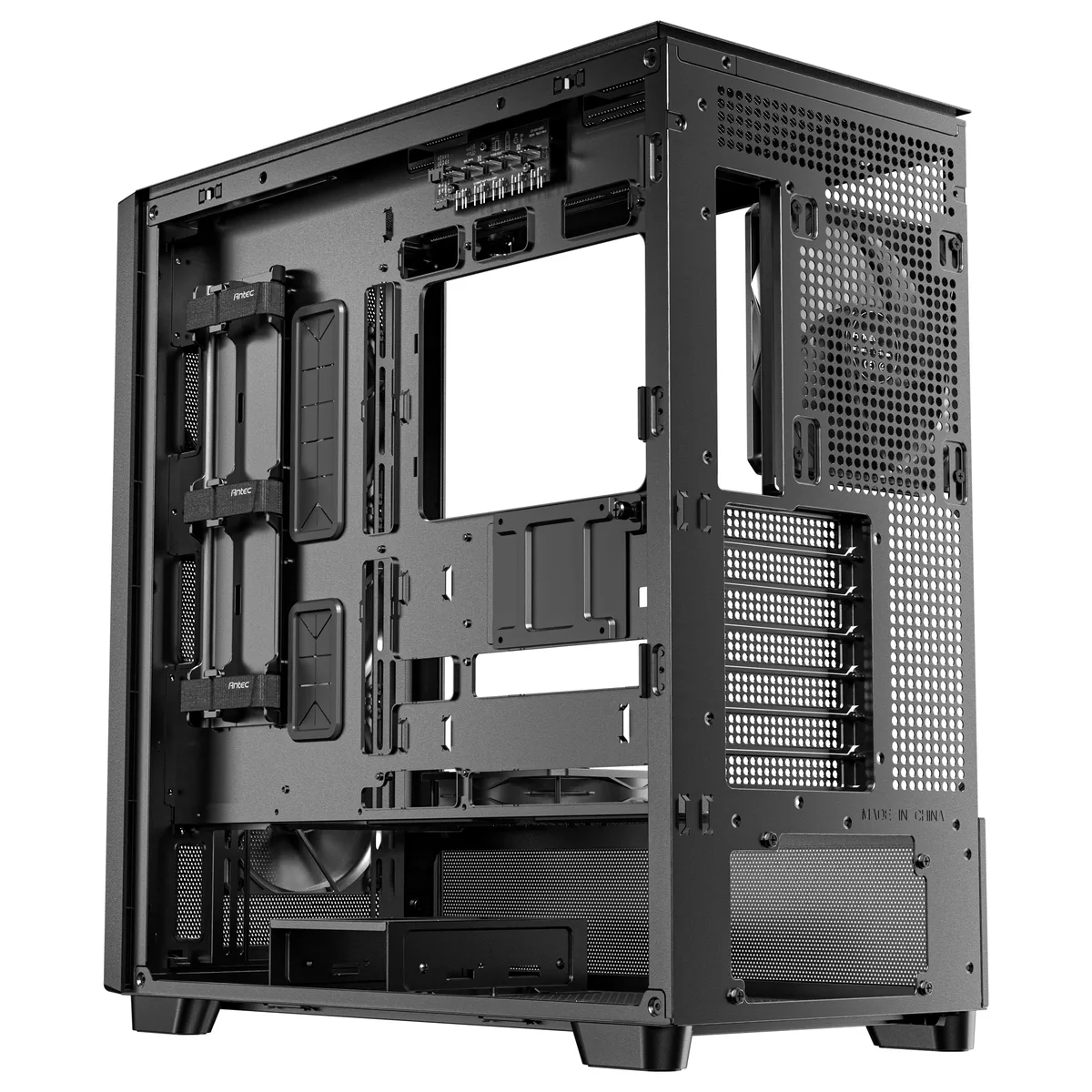

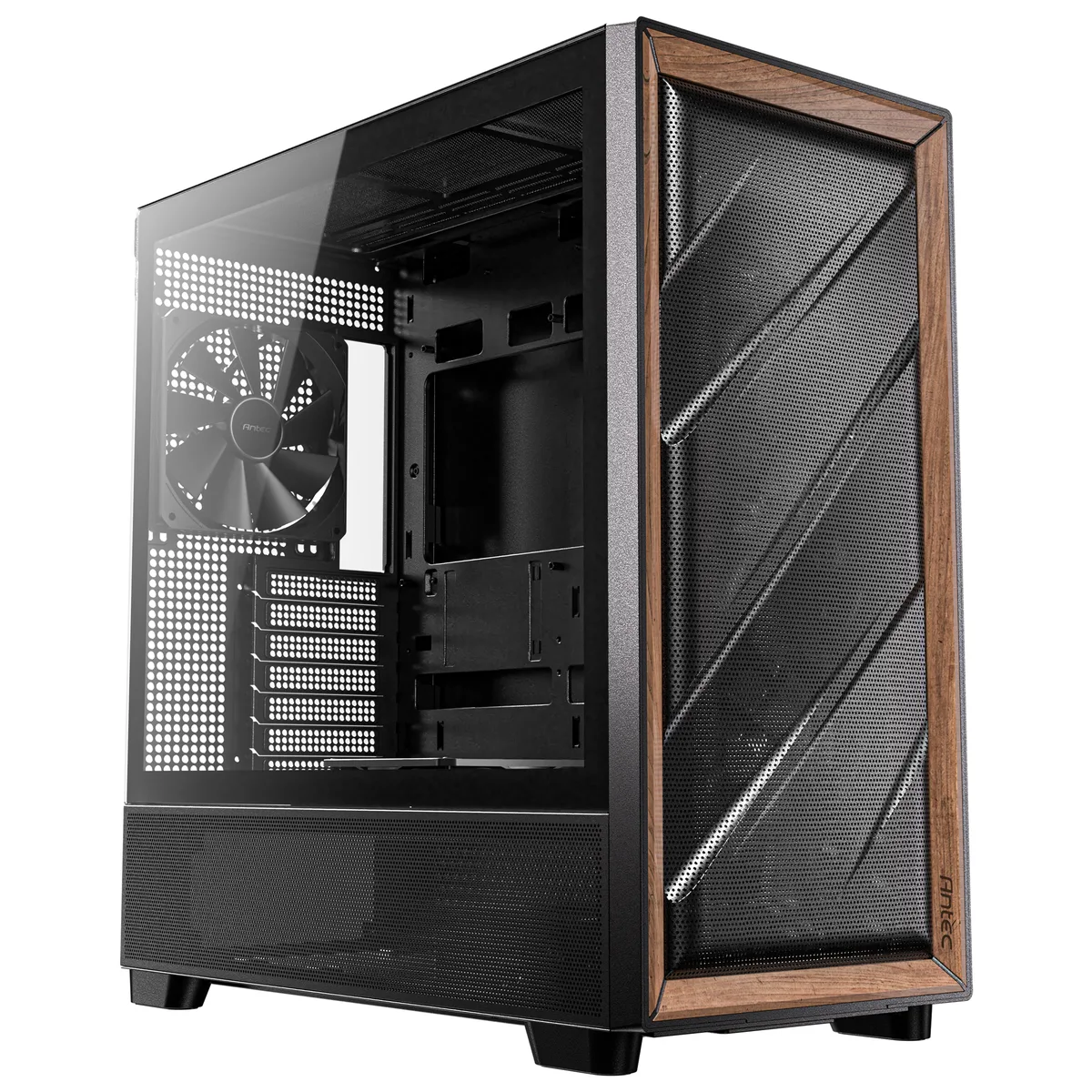

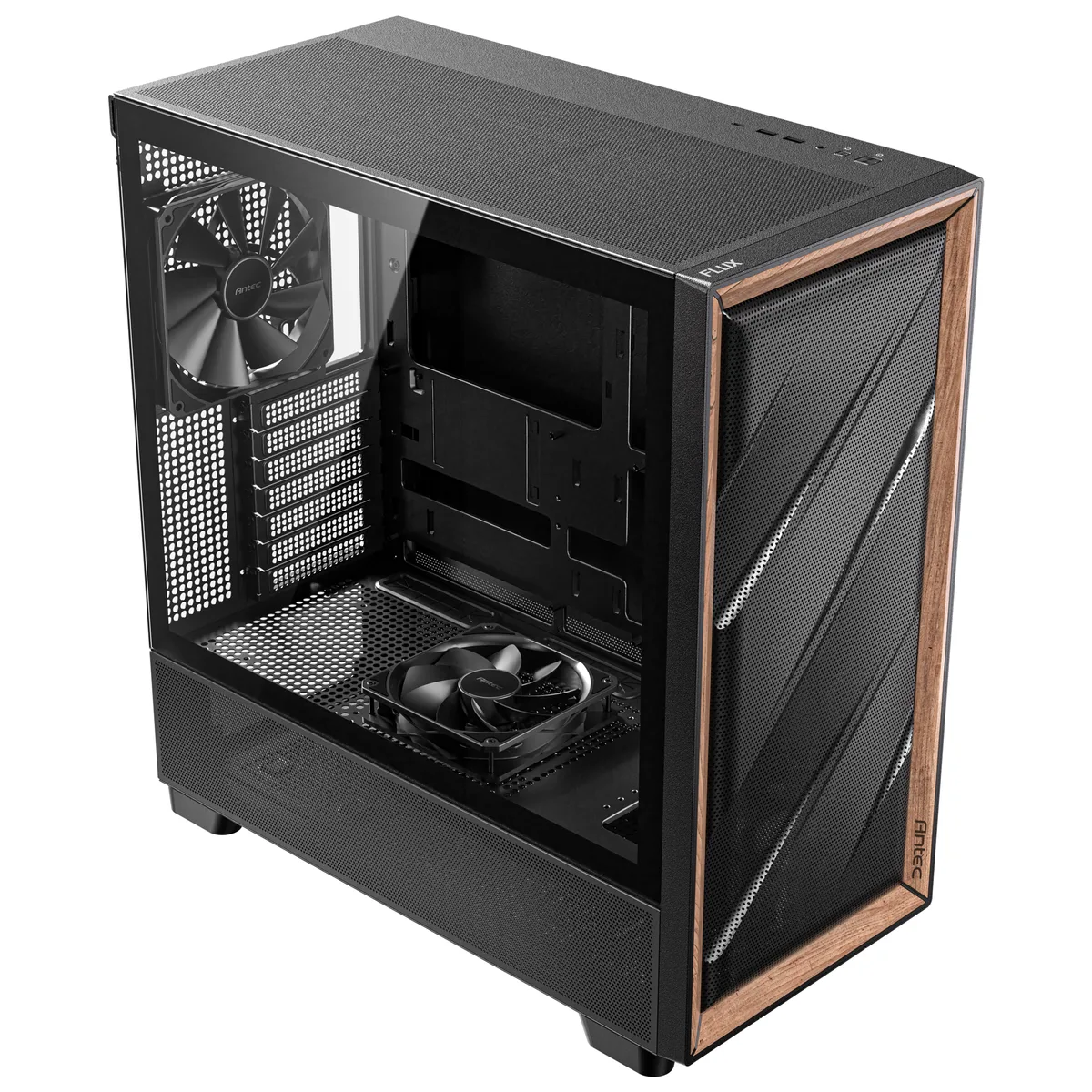

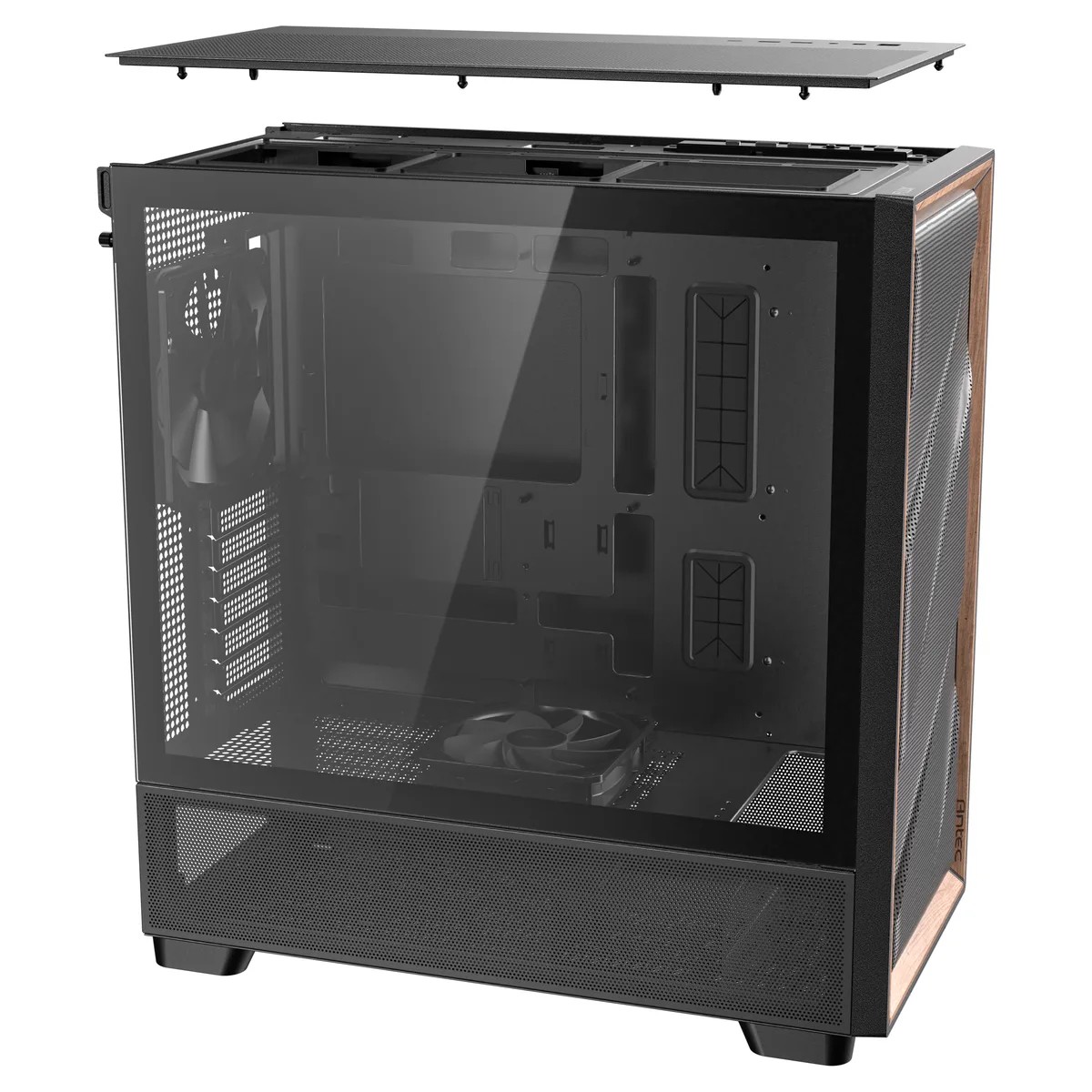

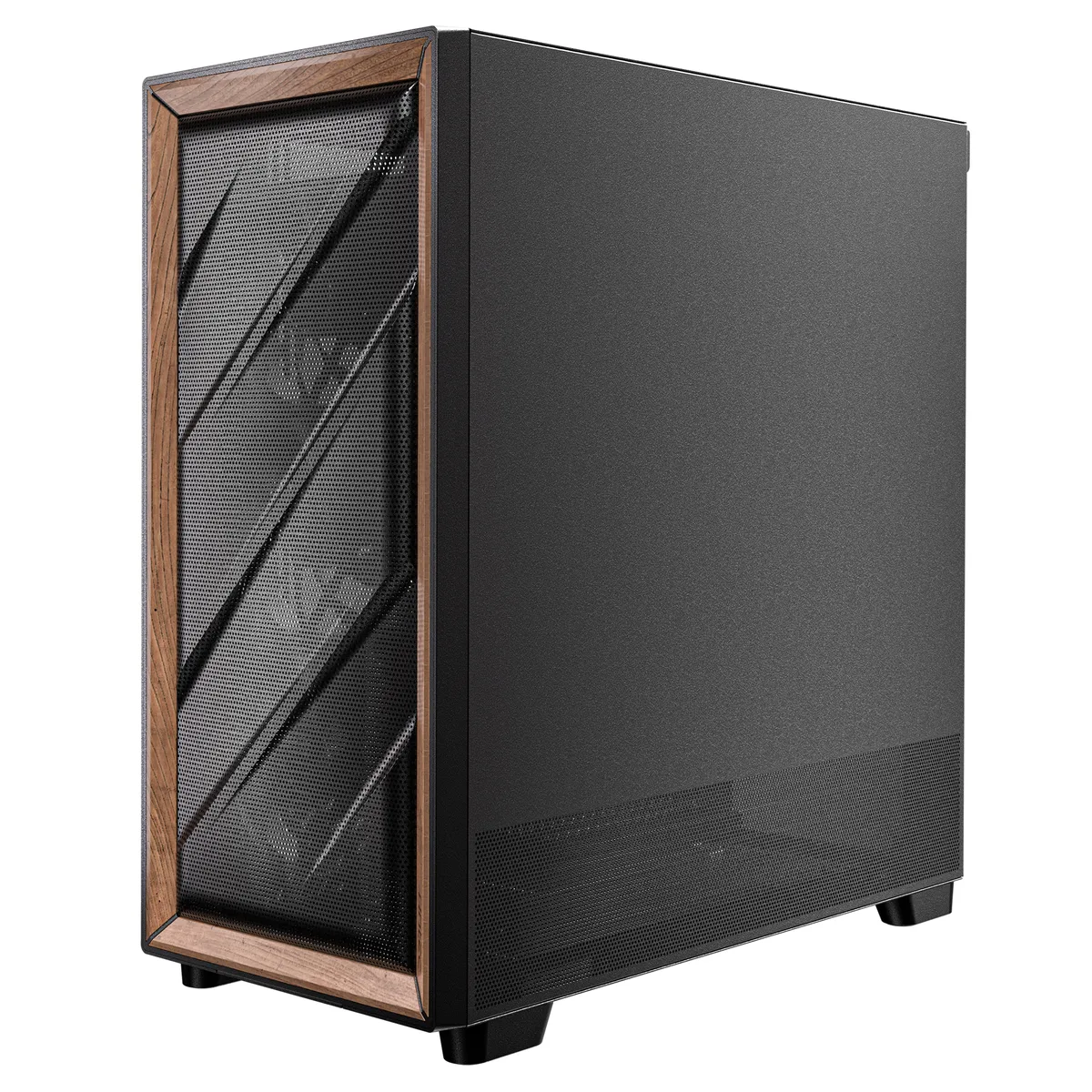

Antec Flux Mid Tower Case - Black
MPN: 0-761345-10133-2
Key specifications
Max GPU408 mm
Max Cooler180 mm
Max PSU235 mm
Form factorMid Tower
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 408mm GPU clearance.
Supports up to 180mm CPU cooler height.
Full Specifications101 fields
Additional Contents

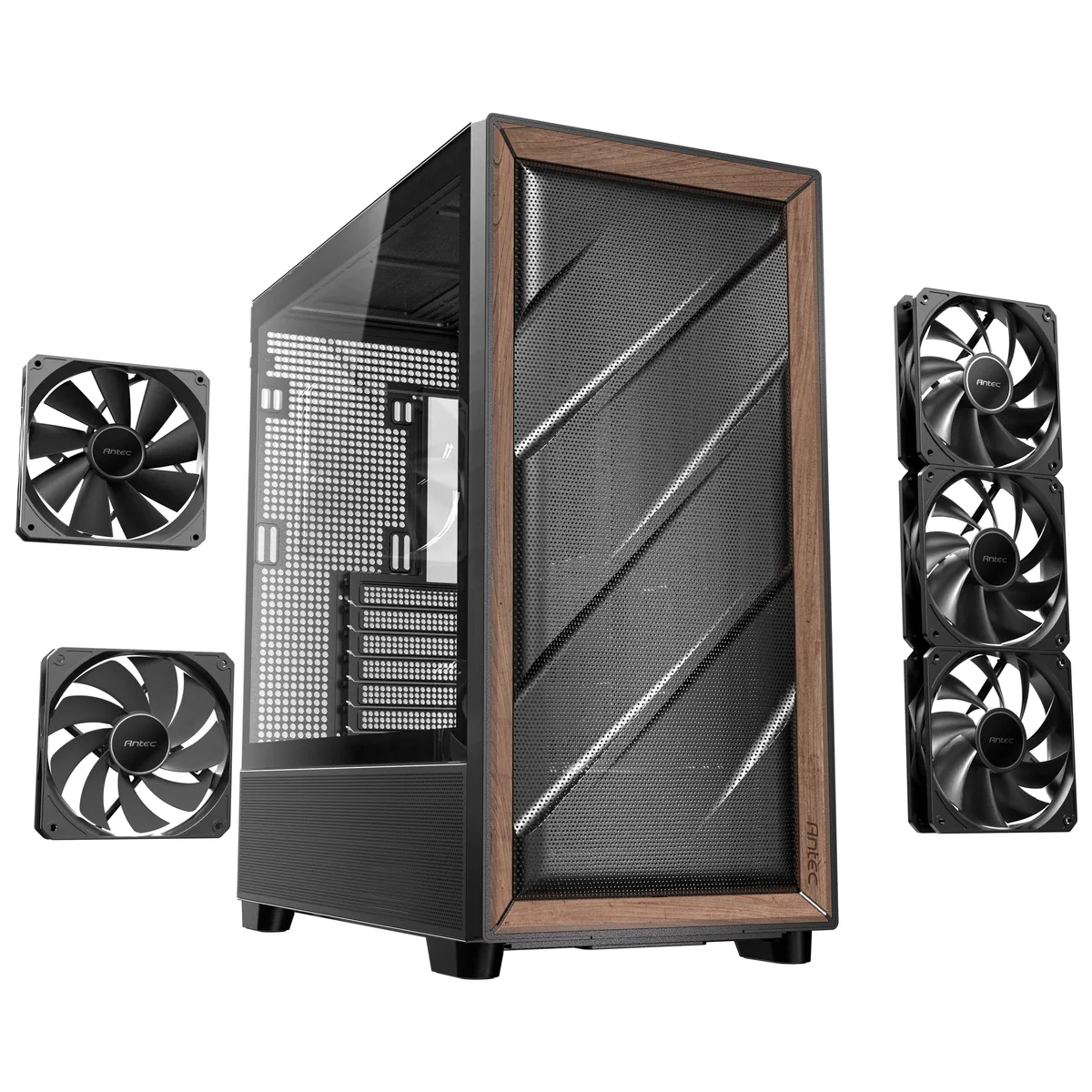

Fans Included
Yes
Included Fans
4x 120 mm, 1x 140 mm
Additional Information
Model Number
0-761345-10133-2
Gtin
0761345101332
Back Connect
Back Connect
Yes
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Chassis Physical Specifications
Colour
Black
Chassis Construction Materials
Steel / Plastic
Dimensions
239 x 502 x 484 (WxHxD mm)
Package Type
-
Please Note
-
Clearances
Cable Routing Space
-
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Core Chassis Specifications
Edition
Flux Black
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
E-ATX (330 mm)
MicroATX
Mini-ITX
Back Connect Compatible
Yes
Dimensions
Length Depth
484 mm
Width
239 mm
Height
502 mm
Weight
9.27 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
3
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
1
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
Yes
Fans & Filters
Fan Bays
9 x 120mm / 8x 140mm
Fan Controller Hub
-

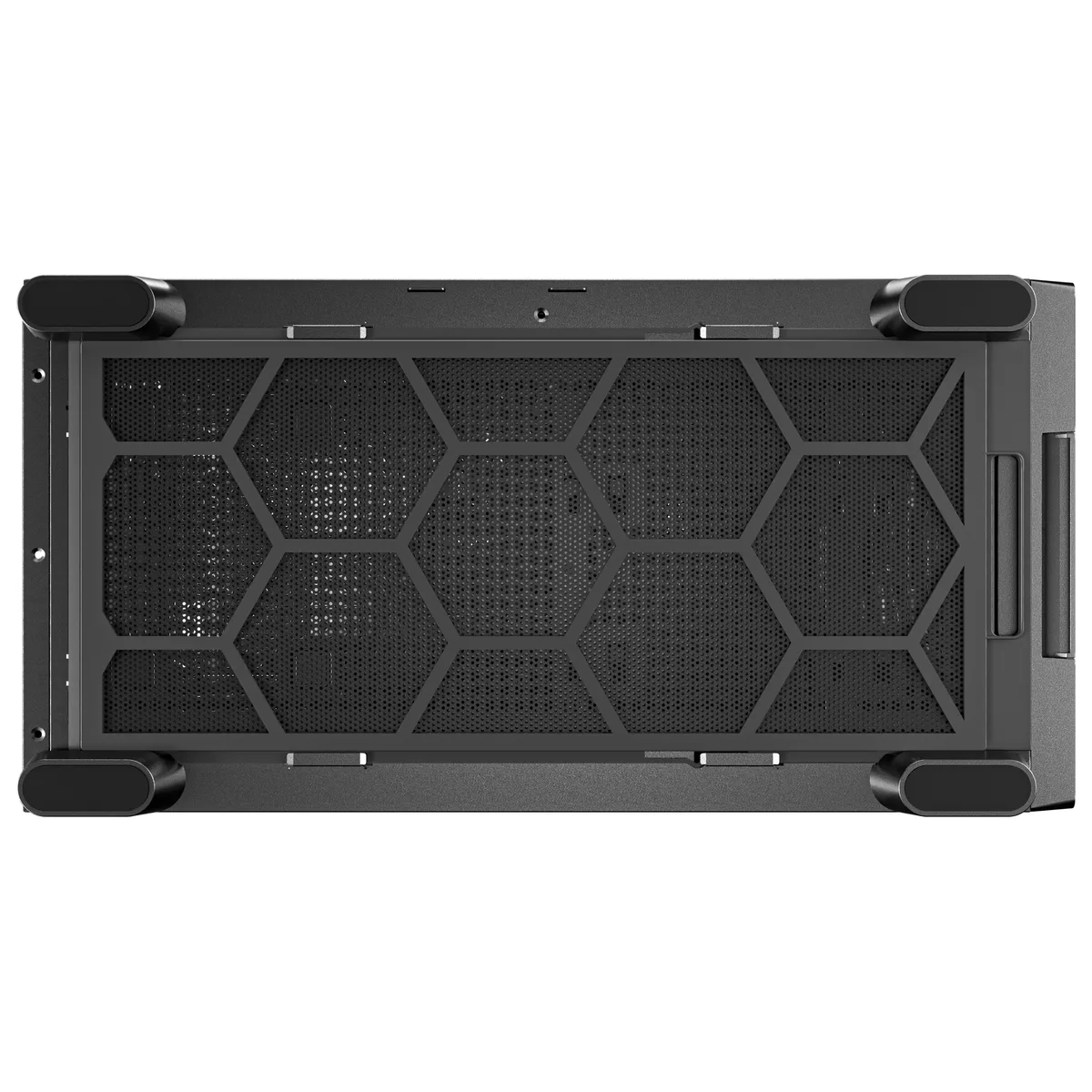

Dust Filters
Bottom
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (2x), 140mm Fan (2x)
Max Number Of Fans
9
120 Mm Fans
9
140 Mm Fans
8
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
180 mm
Max Gpu Length
408 mm
Max Psu Length Depth
235 mm
I/O, Bays & Expansion

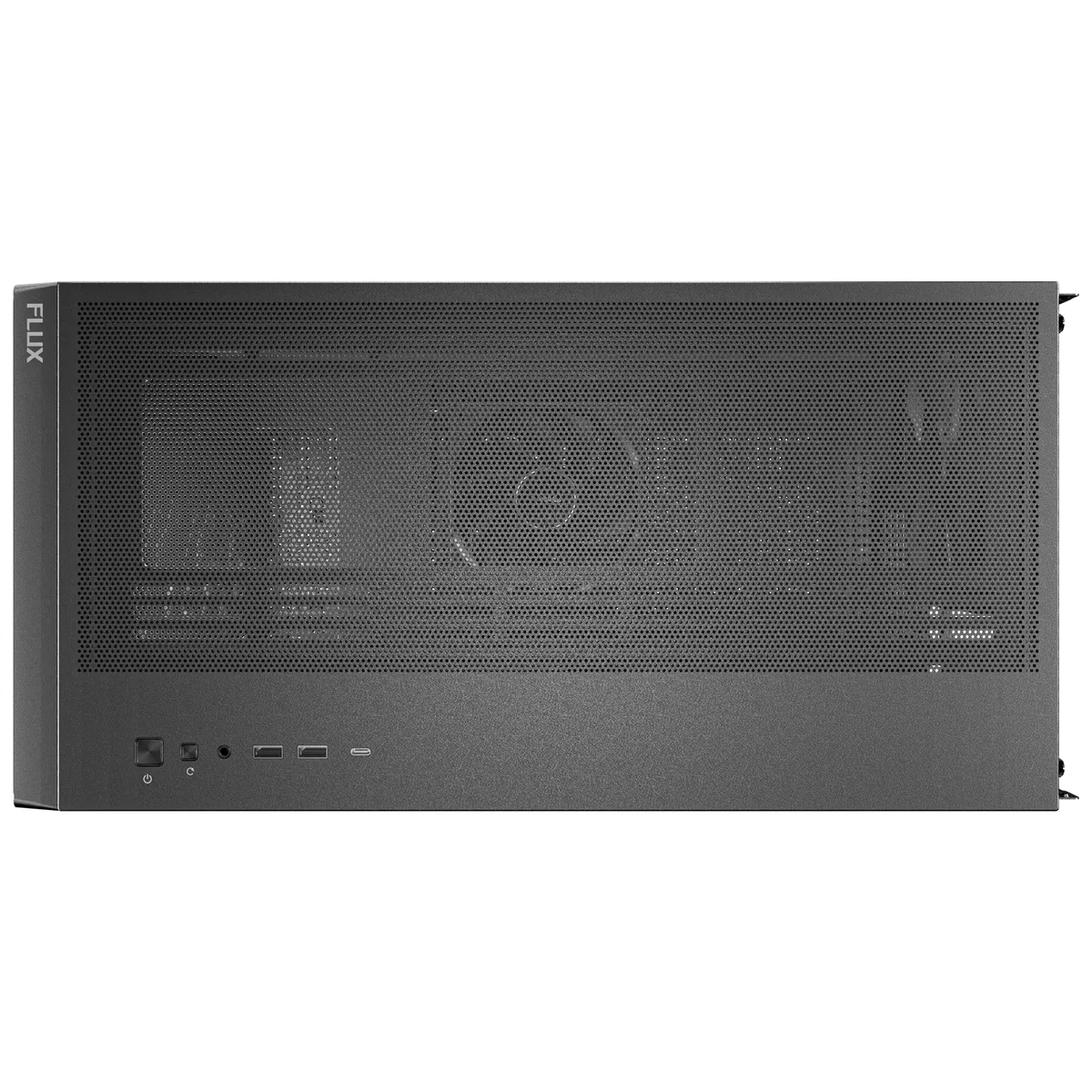

Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x Power Button
1 x Reset Button
2 x USB 3.0
1 x USB 3.2 Gen2 Type-C
Drive Bays
1 x 2.5" Internal
2 x 3.5" / 1x 2.5"
Standard Expansion Slots
7
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
No
Led Lighting Emitters
-
Led Lighting Colour
-
Led Lighting Support Control
-
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Top Radiator Compatibility
1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120/240mm
Side Radiator Compatibility
-
Materials
Materials
Plastic, Steel, Tempered Glass, Wood
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Power Supply Compatibility
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
235 mm
Radiator Support
Max Radiator Compatibility
1x Single (140 mm), 1x Triple (360 mm), 1x Triple (420 mm)
Radiator Aio Support Front
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
Radiator Aio Support Top
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator

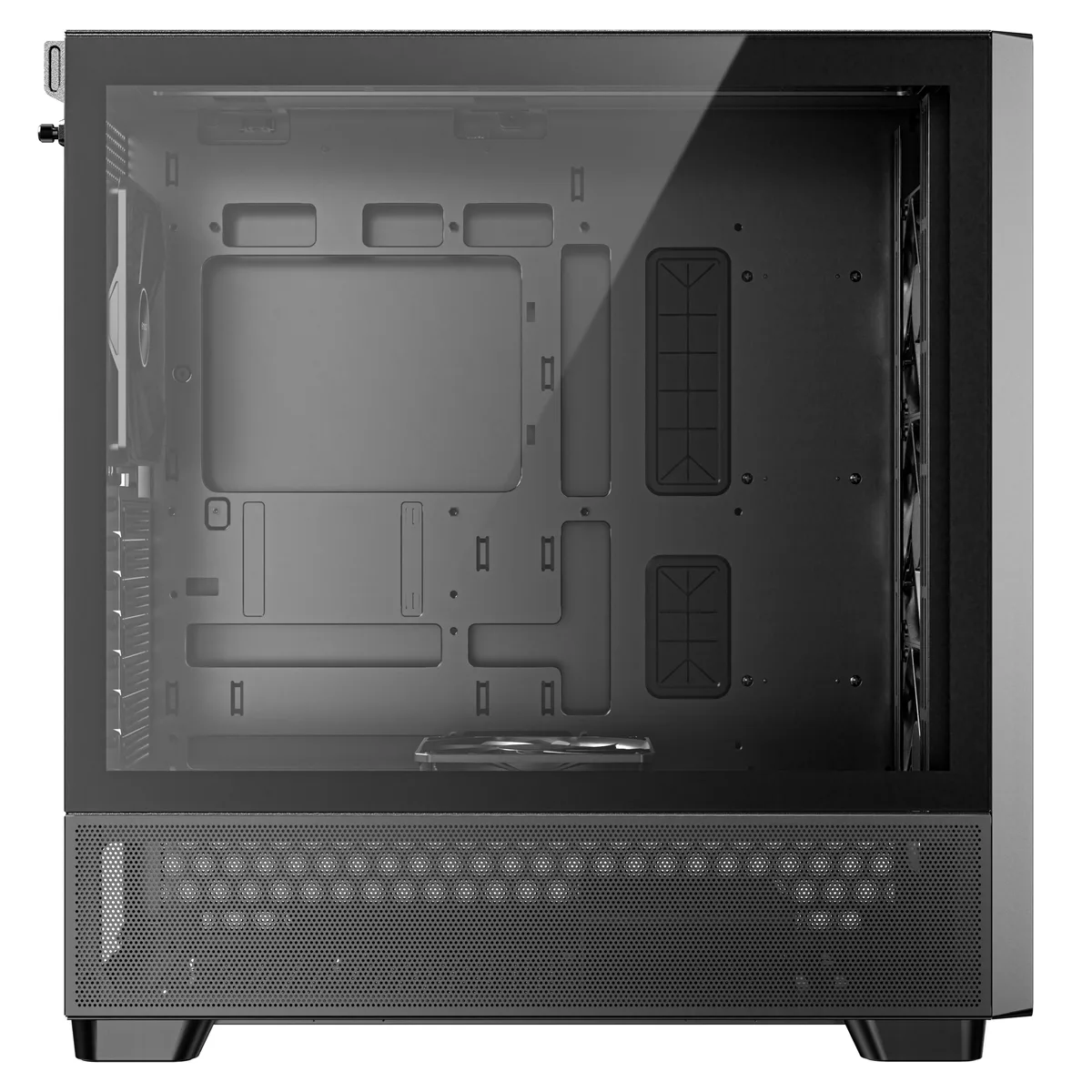

Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
