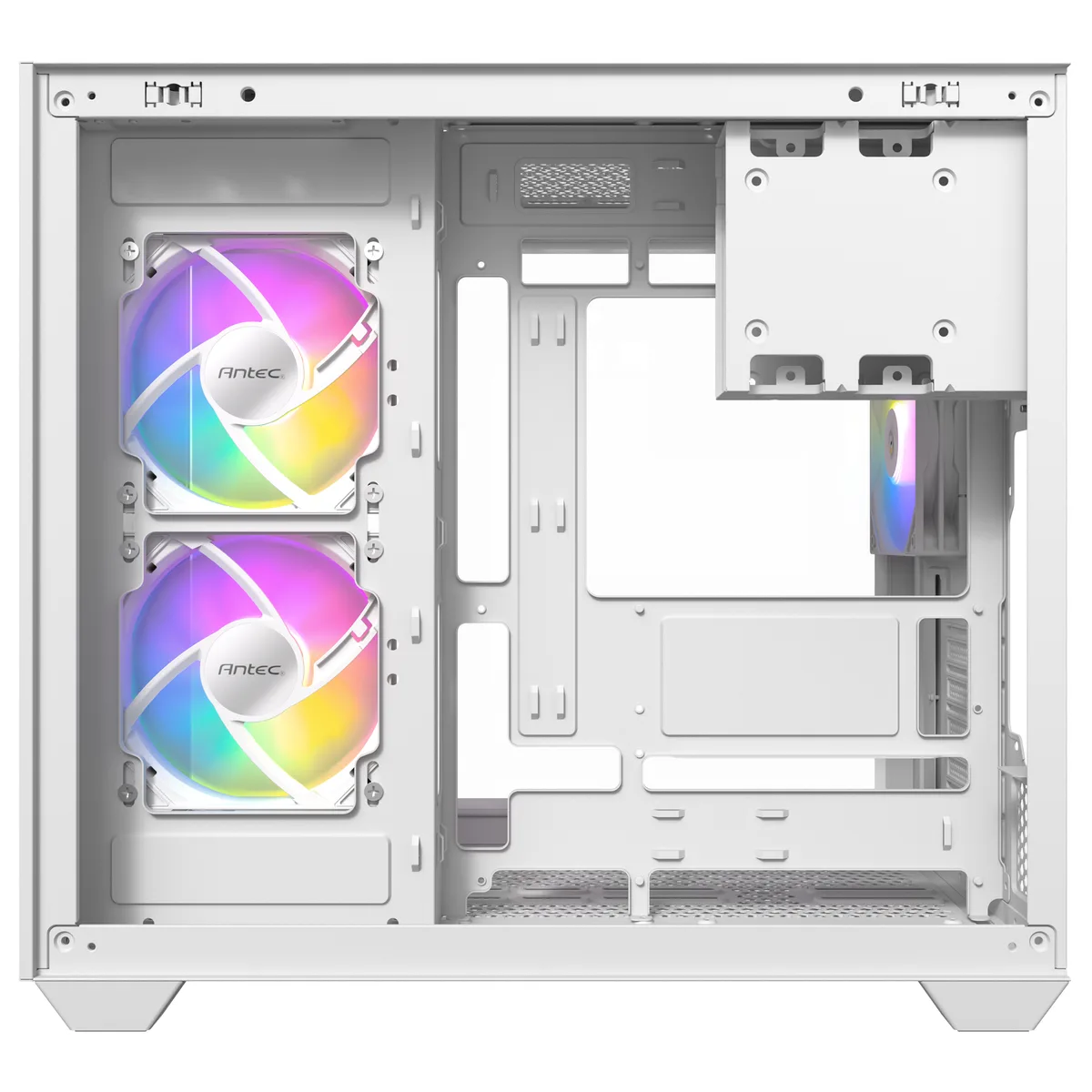

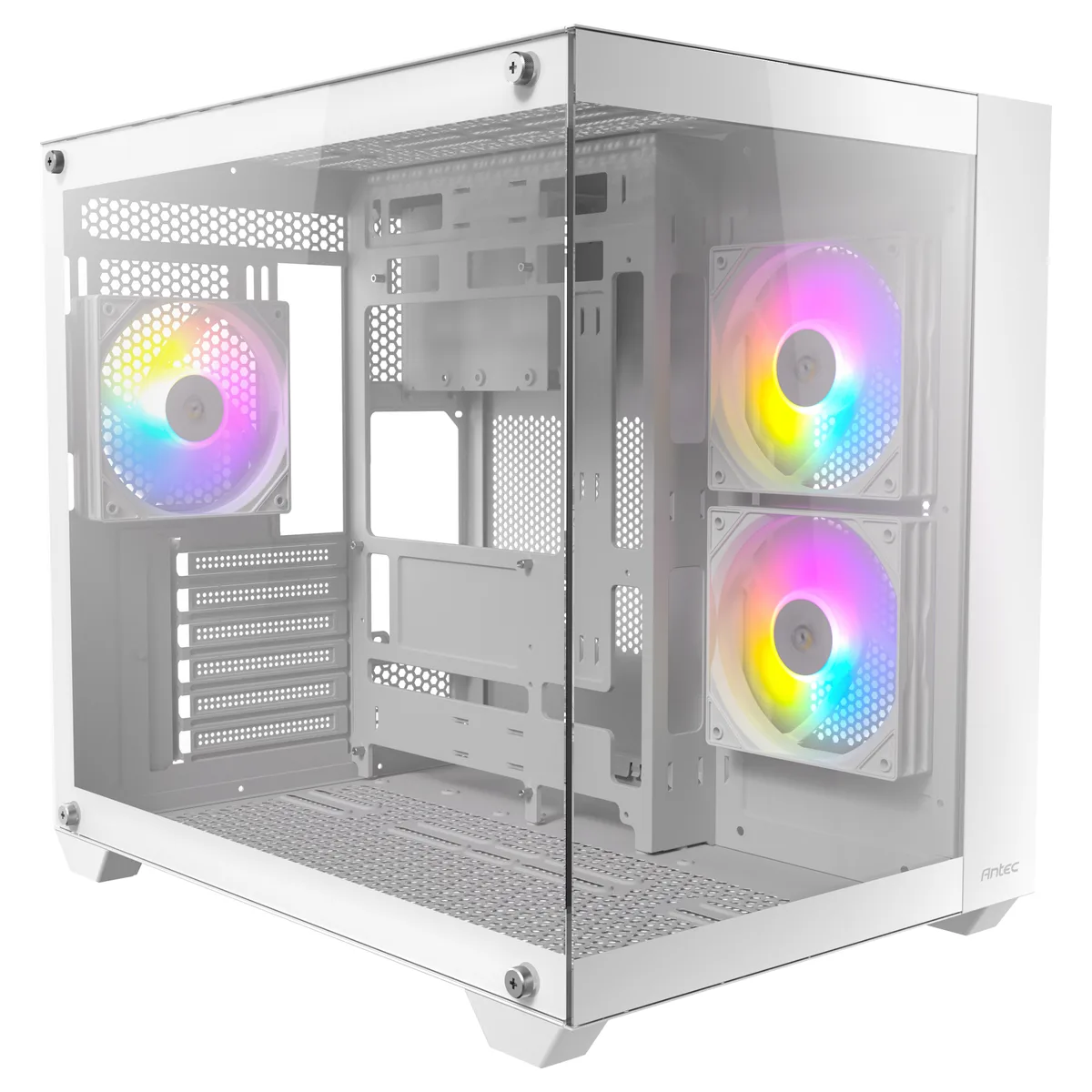

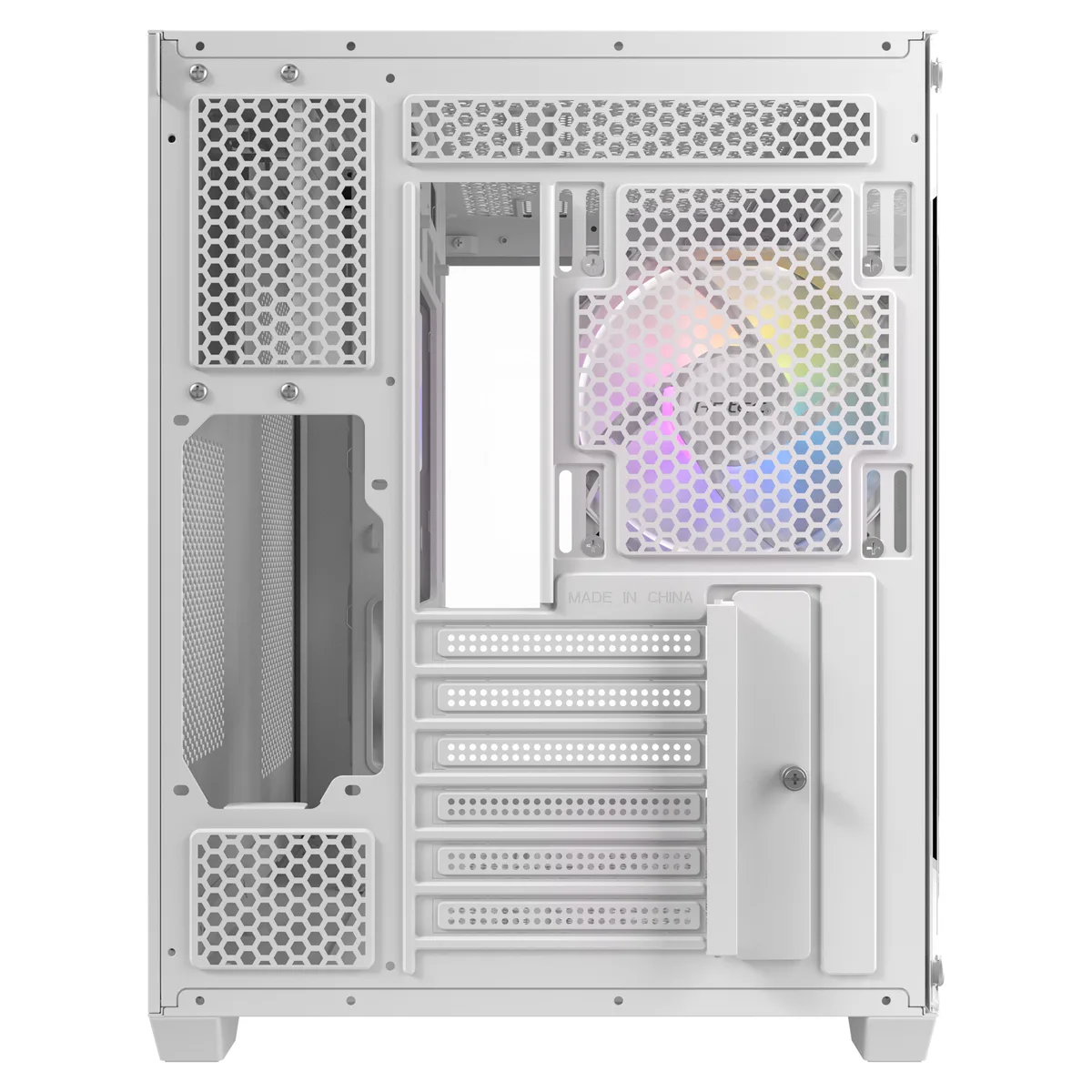

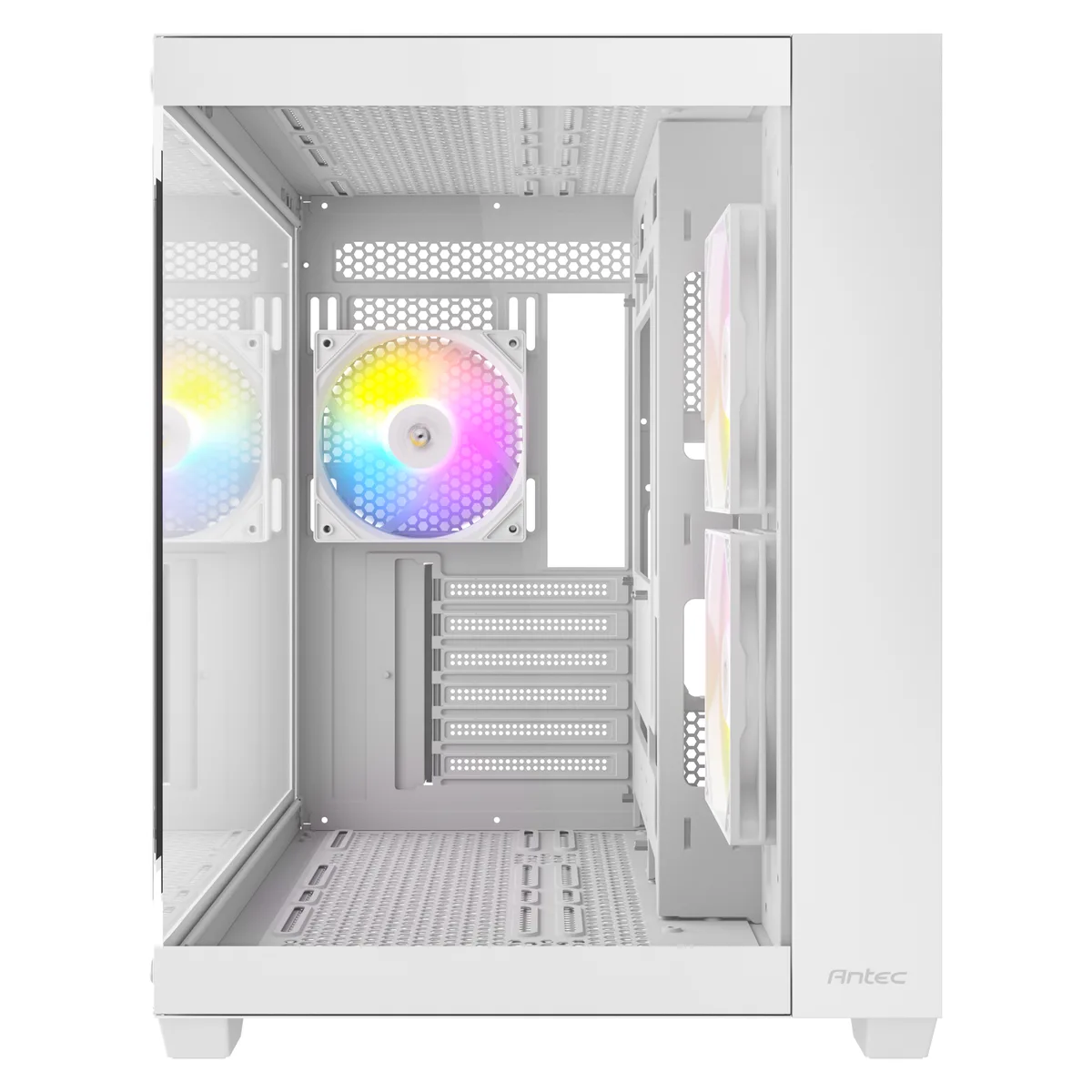

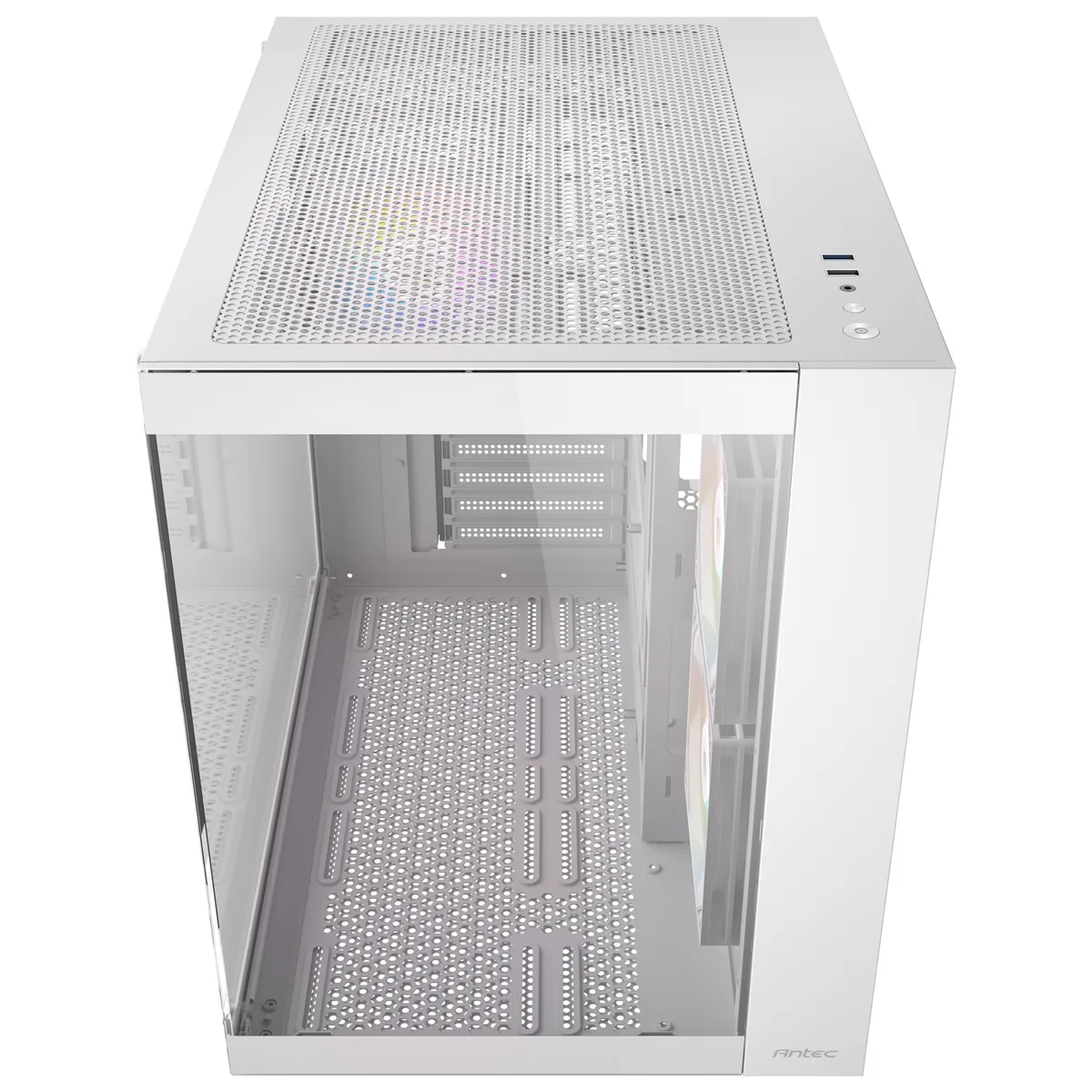

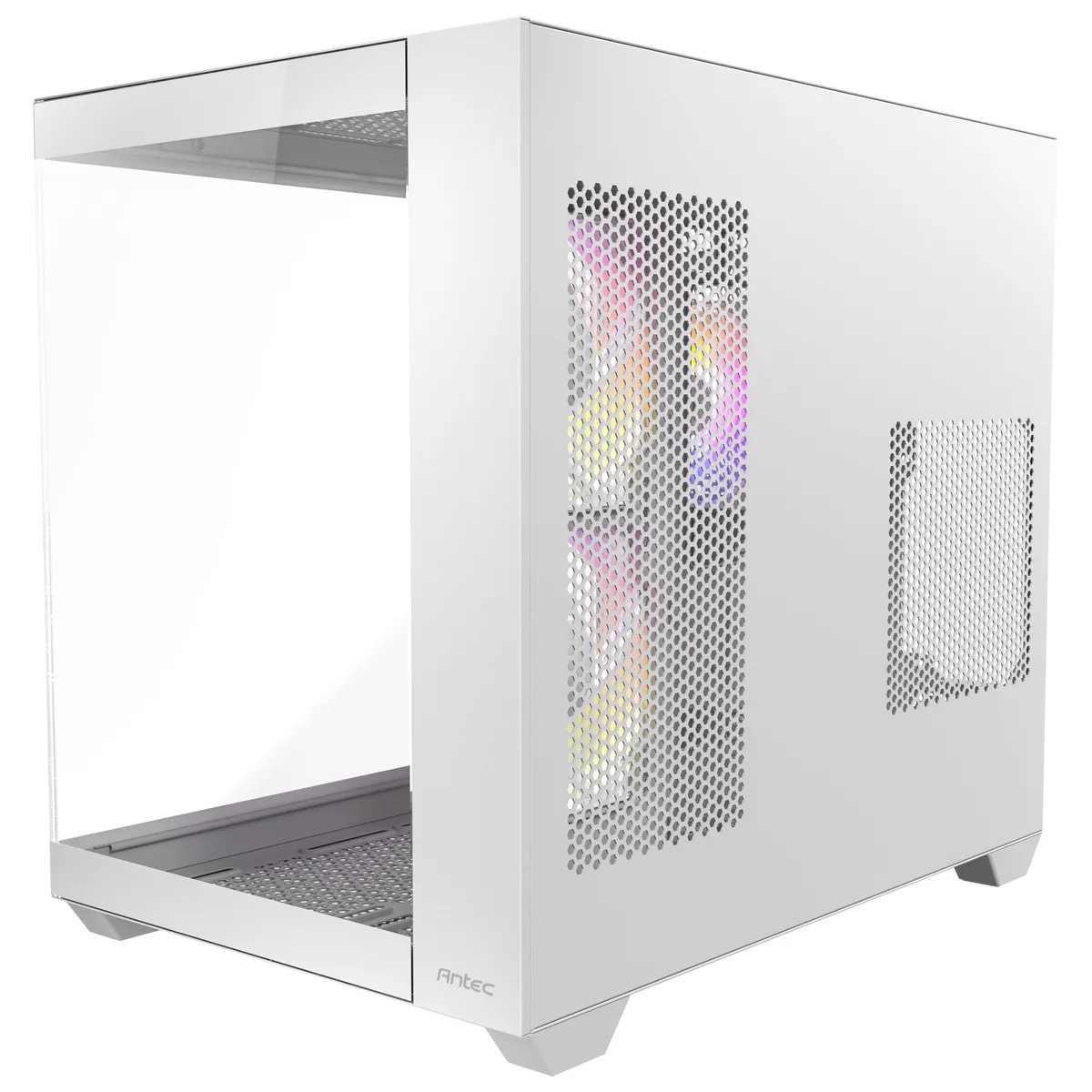

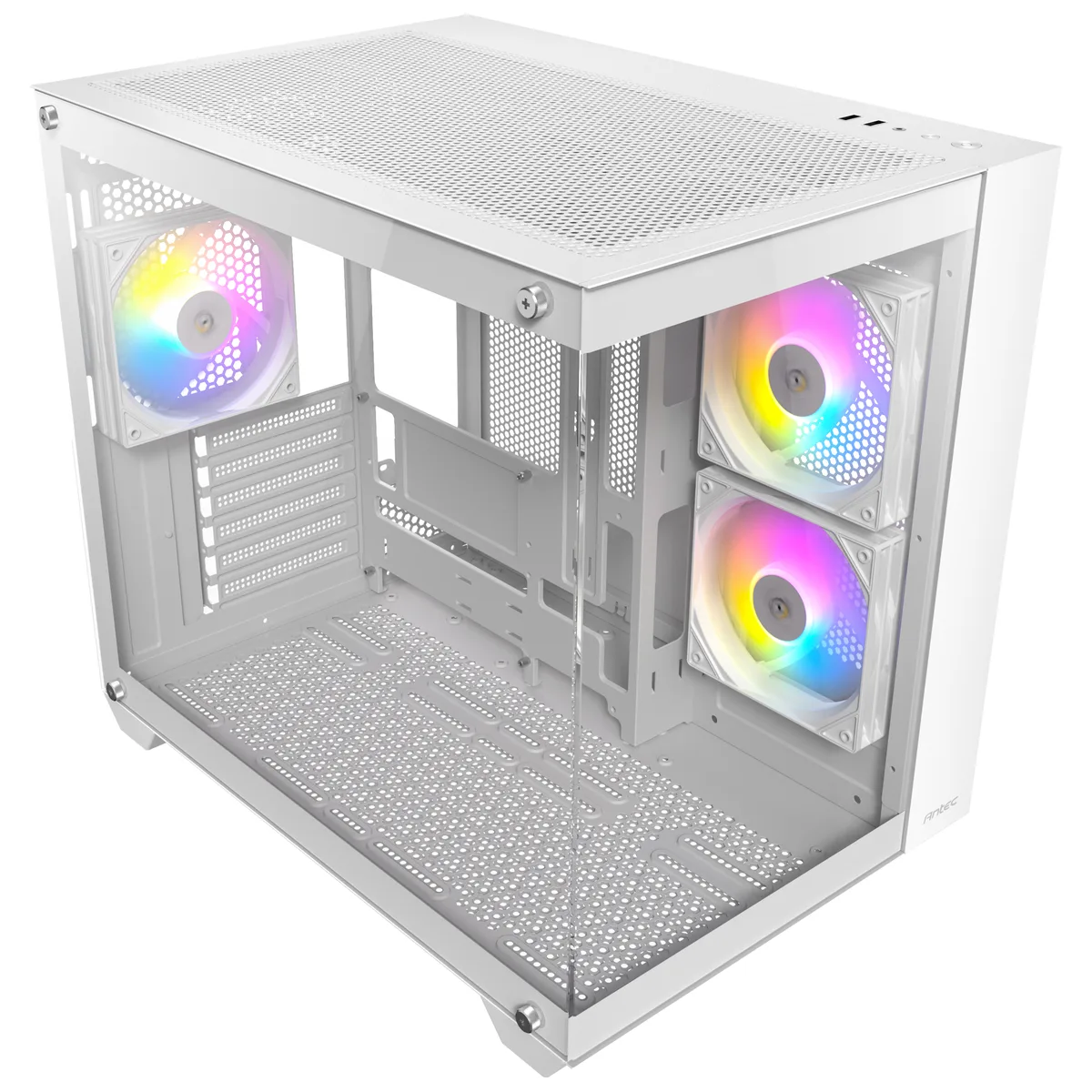

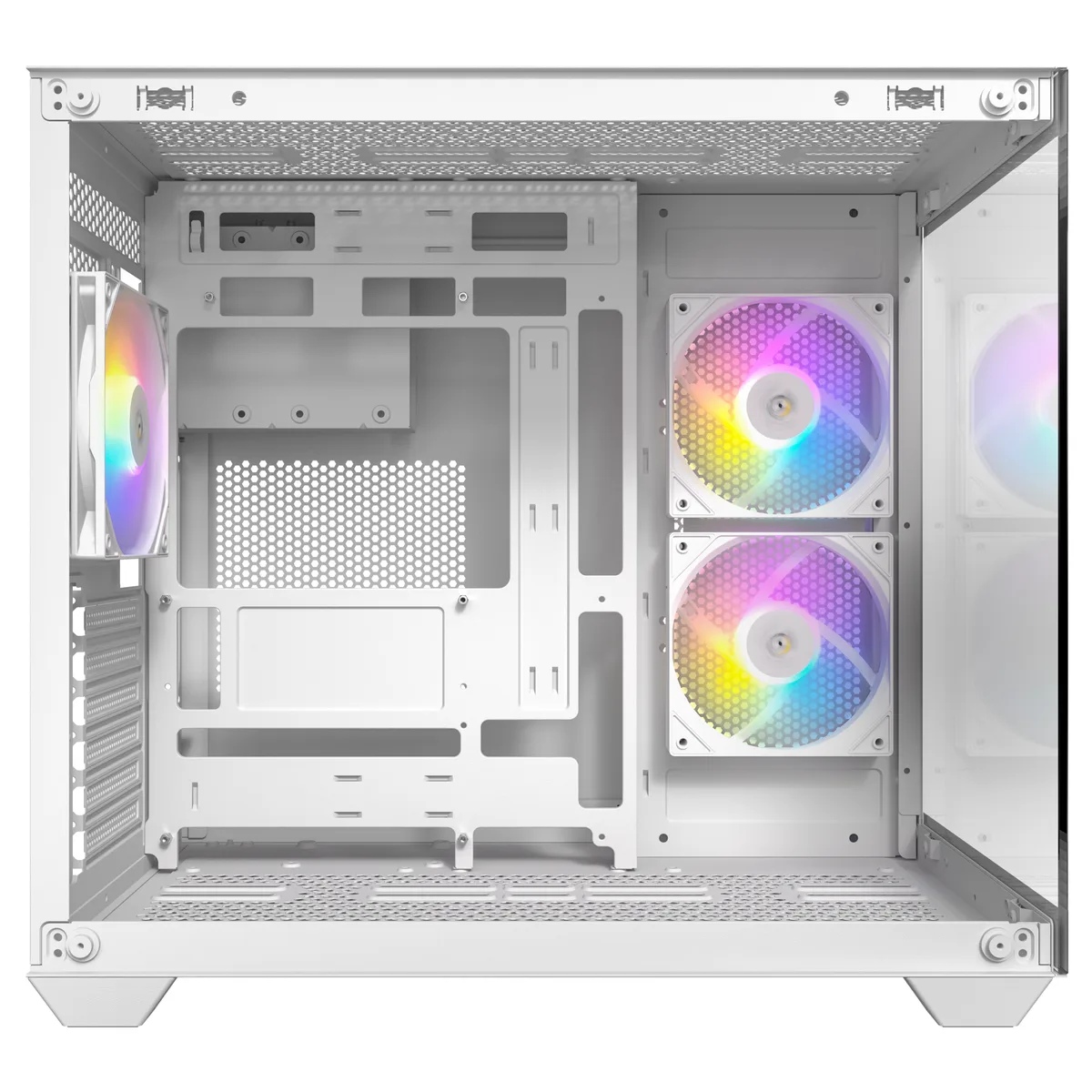

Antec CX800 ARGB Mid Tower - White
MPN: 0-761345-10171-4
Key specifications
Max GPU410 mm
Max Cooler175 mm
Max PSU225 mm
Form factorMid Tower
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 410mm GPU clearance.
Supports up to 175mm CPU cooler height.
Related Products
Full Specifications87 fields
Additional Information
Model Number
0-761345-10171-4
Gtin
0761345101714
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Steel / Glass
Dimensions
302 x 390 x 435 (WxHxD mm)
Package Type
Retail
Please Note
-
Clearances
Max Cooler Height
175 mm
Max Gpu Length
410 mm
Cable Routing Space
97 mm
Cooling
Side Fans Installed
2x 120 mm
Number Of Side Fans Supported Max
2
Side Fans Diameters Supported
120 mm
Rear Fans Installed
1x 120 mm
Number Of Rear Fans Supported Max
1
Rear Fans Diameters Supported
120,140 mm
Number Of Top Fans Supported Max
3
Top Fans Diameters Supported
120,140 mm
Number Of Bottom Fans Supported Max
3
Bottom Fans Diameters Supported
120,140 mm
Core Chassis Specifications
Edition
CX800 ARGB White
Motherboard Form Factor
ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Design
Material
Glass, Steel
Form Factor
Midi Tower
Type
PC
Product Colour
White
Supported Motherboard Form Factors
ATX, ITX, micro ATX
Number Of 3 5 Bays
2
Number Of 2 5 Bays
2
Number Of Expansion Slots
6
Side Window
Yes
Suitable For
Gaming
Illumination
Yes
Illumination Colour
Blue, Green, Red
Tempered Glass Panel S
Yes
Anti Dust Filter
Yes
Cable Management
Yes
Reset Button
Yes
On Off Button
Yes
Rgb Control Button
Yes
Maximum Cpu Cooler Height
17.5 cm
Maximum Graphics Card Length
41 cm
Maximum Psu Length
22.5 cm
Fans & Filters
Fan Bays
2 x 120mm
7 x 120mm / 5x 140mm
Fans Included
3 x 120mm w/ Addressable RGB LEDs
Fan Controller Hub
Front Panel Fan Controller
Dust Filters
Bottom
Top
I/O, Bays & Expansion

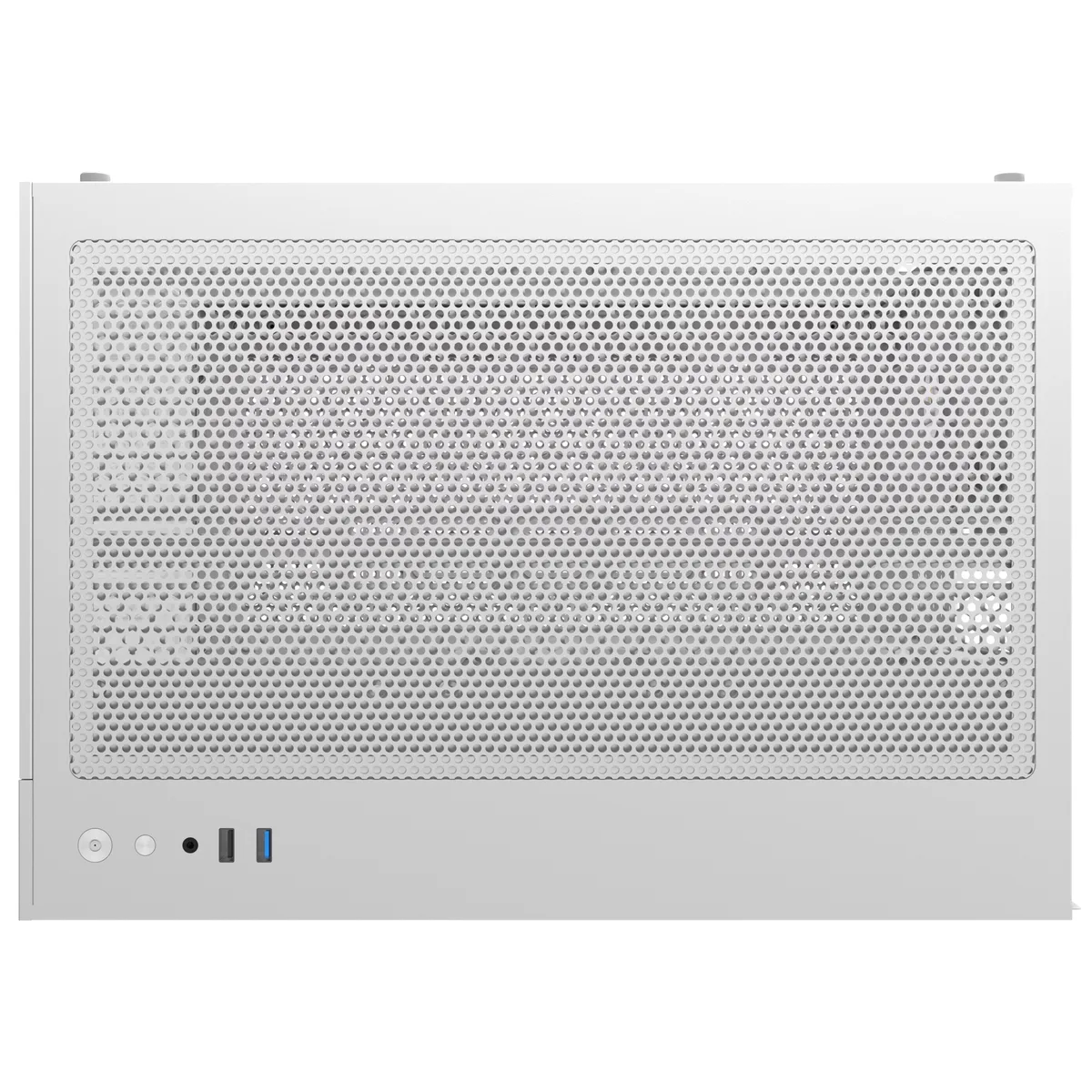

Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x LED Control Button
1 x Power Button
1 x Reset Button
1 x USB 2.0
1 x USB 3.0
Drive Bays
2 x 2.5" Internal
2 x 3.5" Internal
Standard Expansion Slots
6
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included Addressable LED Fan/s
Led Lighting Colour
RGB
Led Lighting Support Control
Control via Inc. Controller/Hub (Buttons/Switches)
Liquid Cooling Support
Front Radiator Compatibility
-
Top Radiator Compatibility
1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
1 x 120/140/240/280/360mm
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
1 x 120/240mm
Packaging data
Package Width
378 mm
Package Depth
446 mm
Package Height
514 mm
Package Weight
7.94 kg
Ports & interfaces
Usb 2 0 Ports Quantity
1
Usb 3 2 Gen 1 3 1 Gen 1 Type A Ports Quantity
1
Power supply
Power Supply Included
No
Power Supply Location
Bottom
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
225 mm
Side Panels
Window S
Yes
Window Configuration
1 x Front
1 x Main Side
Window Construction
Tempered Glass
Storage
Supported Hdd Sizes
3.5"
Weight & dimensions
Width
302 mm
Depth
435 mm
Height
390 mm
Weight
6.38 kg
