CasesAntec

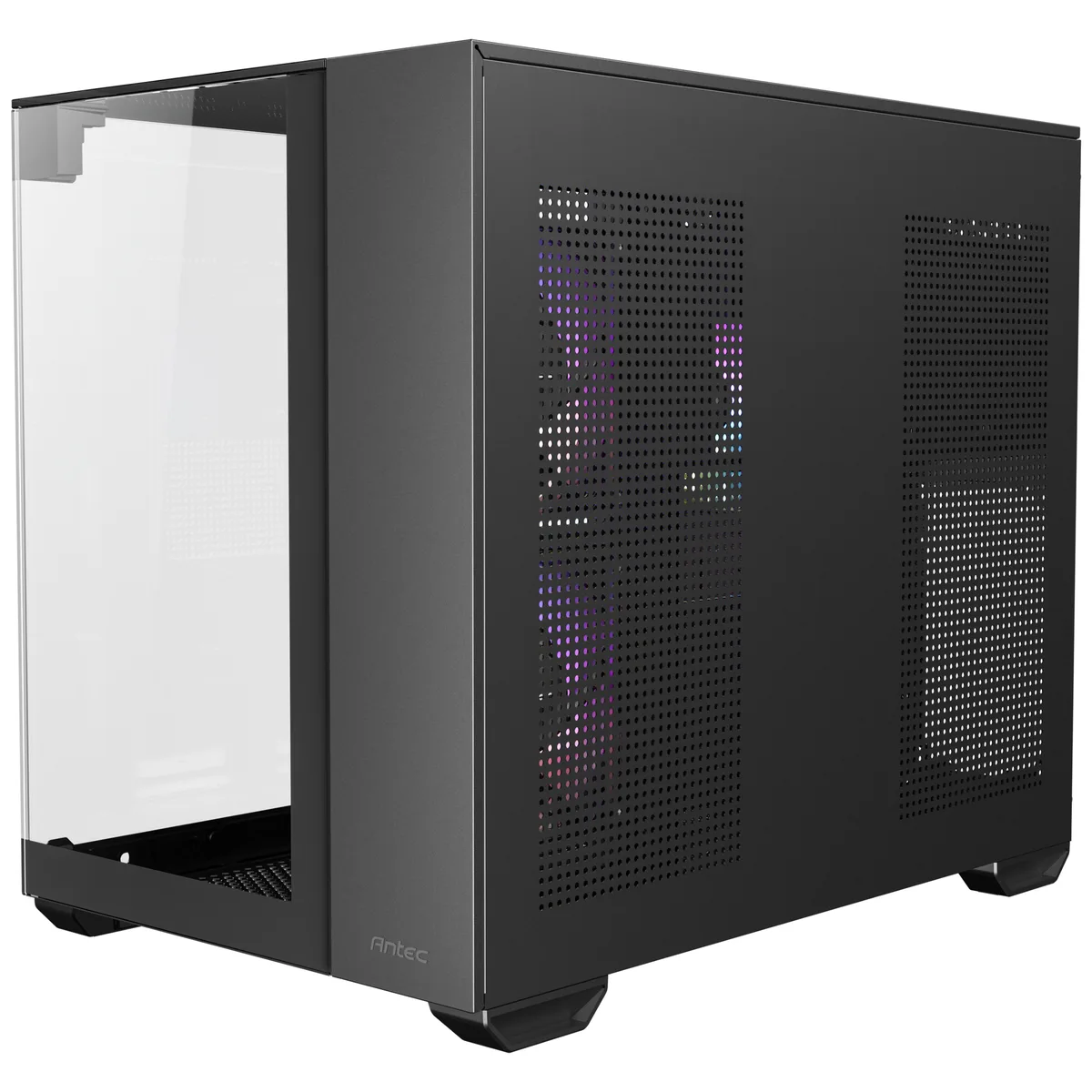

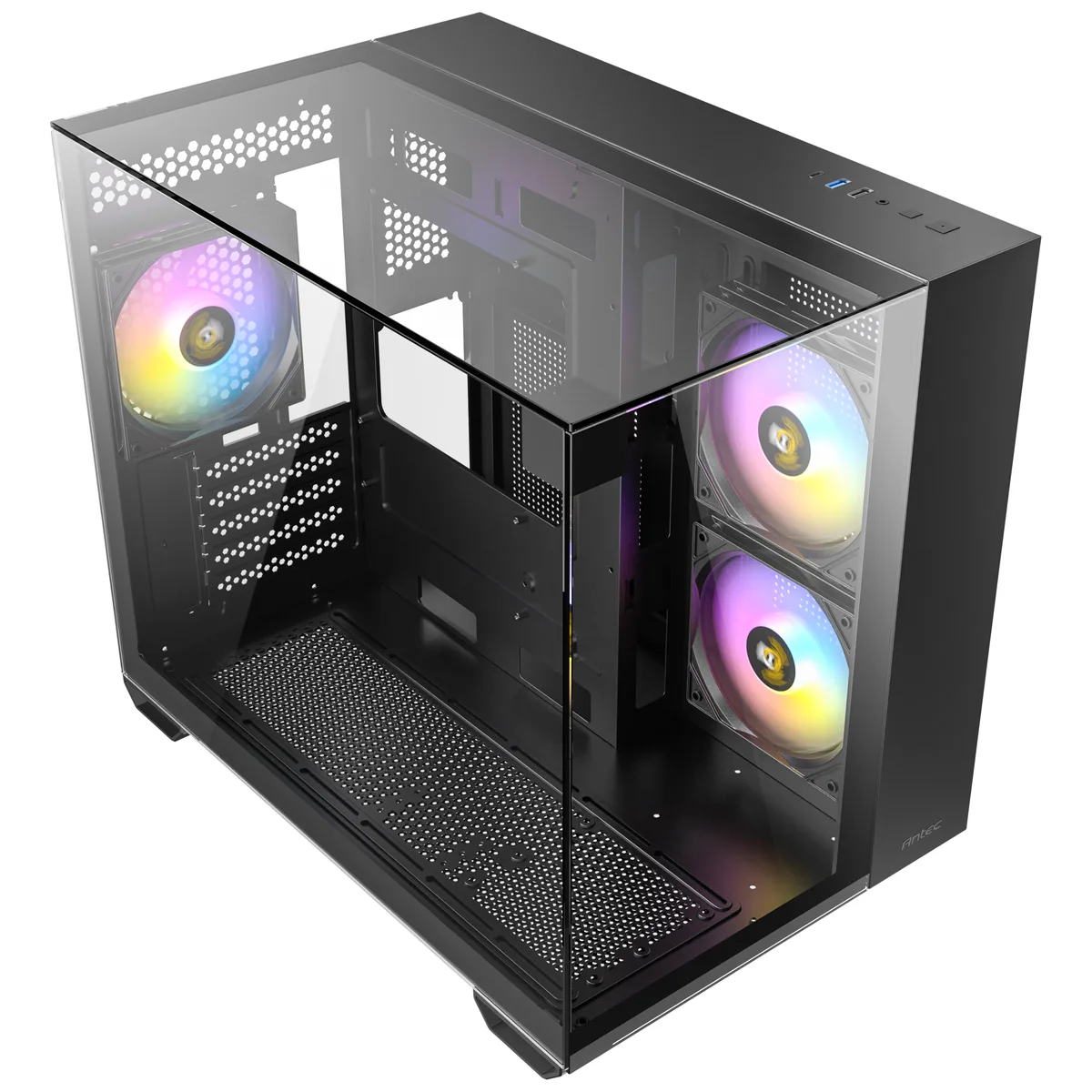

Antec CX600M Trio ARGB M-ATX Mini Tower - Black
MPN: 0-761345-10139-4
Key specifications
Max GPU410 mm
Max Cooler160 mm
Max PSU240 mm
Form factorMini Tower
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 410mm GPU clearance.
Supports up to 160mm CPU cooler height.
Full Specifications99 fields
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm
Additional Information
Model Number
0-761345-10139-4
Gtin
0761345101394
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Chassis Physical Specifications
Colour
Black
Chassis Construction Materials
Steel / Glass
Dimensions
290 x 370 x 436 (WxHxD mm)
Package Type
Retail
Please Note
-
Clearances
Cable Routing Space
99 mm
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Core Chassis Specifications
Edition
CX600M Trio ARGB
Case Form Factor
Mini Tower
Motherboard Form Factor
MicroATX
Mini-ITX
Back Connect Compatible
No
Dimensions
Length Depth
436 mm
Width
290 mm
Height
370 mm
Weight
6.63 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
5
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Usb 2 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fans & Filters
Fan Bays
2 x 120/140mm
4 x 120mm
Fan Controller Hub
Front Panel Fan Controller
Dust Filters
Bottom
Fan Support
Case Fan Support Bottom
120mm Fan (3x)
Max Number Of Fans
6
Case Fan Support Rear
120mm Fan (1x)
Case Fan Support Side
120mm Fan (2x), 140mm Fan (2x)
120 Mm Fans
6
140 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
160 mm
Max Gpu Length
410 mm
Max Psu Length Depth
240 mm
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x LED Control Button
1 x Power Button
1 x USB 2.0
1 x USB 3.0
1 x USB 3.1 Gen1 Type-C
Drive Bays
2 x 2.5" Internal
1 x 3.5" Internal
Standard Expansion Slots
5
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included LED Fan/s
Led Lighting Colour
RGB
Led Lighting Support Control
Control via Inc. Controller/Hub (Buttons/Switches)
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Liquid Cooling Support
Front Radiator Compatibility
-
Top Radiator Compatibility
-
Bottom Radiator Compatibility
1 x 120/240/360mm
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
1 x 120/140/240/280mm
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Max Motherboard Format
Micro-ATX
Compatible Motherboard Formats
Micro-ATX, Mini-ITX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side
Power Supply Compatibility
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
240 mm
Radiator Support
Radiator Aio Support Bottom
120mm Radiator, 240mm Radiator, 360mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Dual (280 mm), 1x Triple (360 mm)
Radiator Aio Support Side
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator
Radiator Aio Support Rear
120mm Radiator
Side Panels
Window S
No
Window Configuration
1 x Front
1 x Main Side
1 x Top
Window Construction
Tempered Glass
